| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

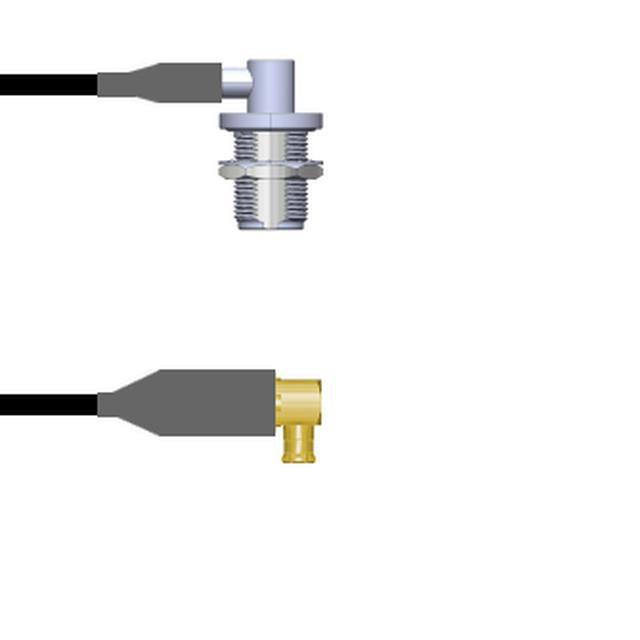

Q-1S0180008036iCBL ASY MCX-N PLG TO JK RG58 36 |
3,080 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00 (914.40mm) | RG-58 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

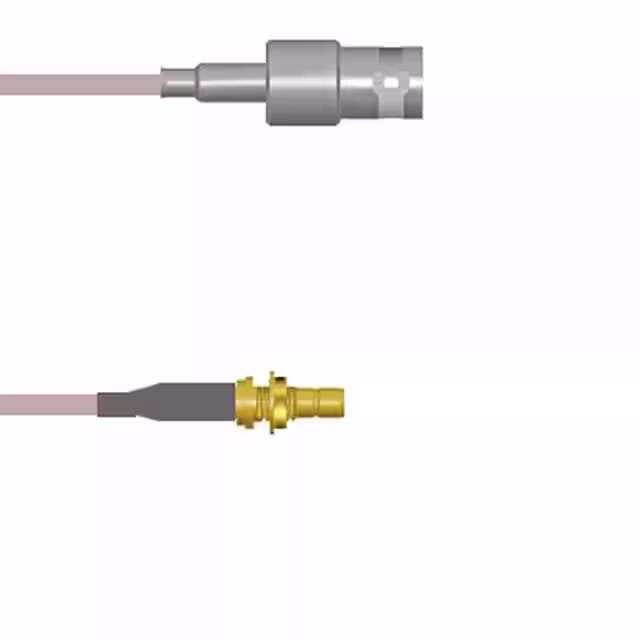

Q-0303M0005003MCBL ASSY BNC-SMB JACK RG316 3M |
2,435 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | Free Hanging (In-Line) | - | SMB Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1 (3.0m) 9.8' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

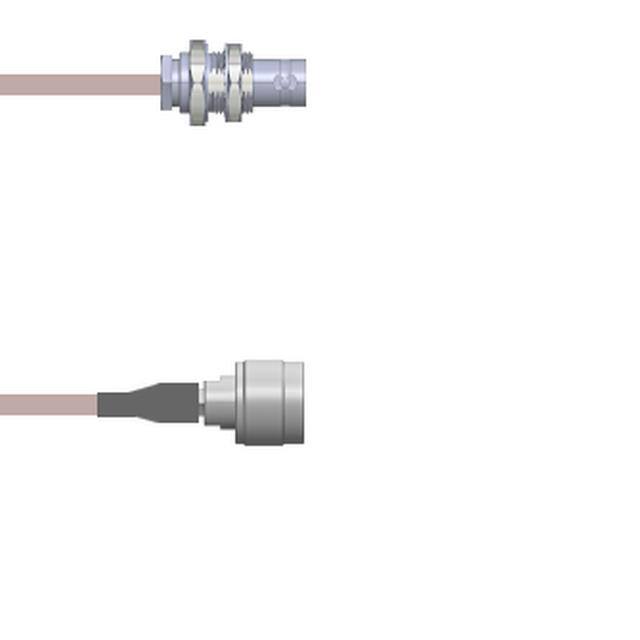

Q-0702M000R108iCBL ASSY BNC-N-TYPE RG316 DB 9' |
2,938 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 108.0 (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 2 GHz | Copper | Shielded | - |
|

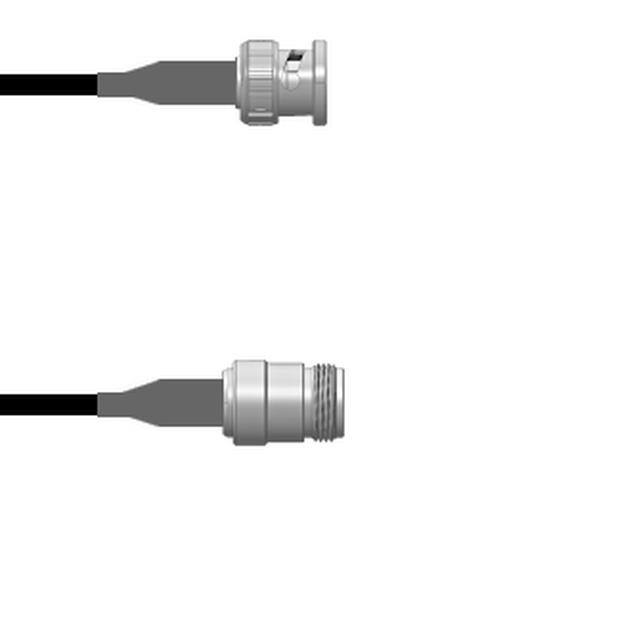

Q-0L01W0008048iCBL ASY BNC-N-TYPE P-J RG58 4' |
3,383 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug | Male | - | - | N-Type Jack | Female | - | - | 48.0 (1.2m) 4.0' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-0304800050.5MCBL ASSY BNC-TNC JK RG316 19.69 |
2,103 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 19.69 (500.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

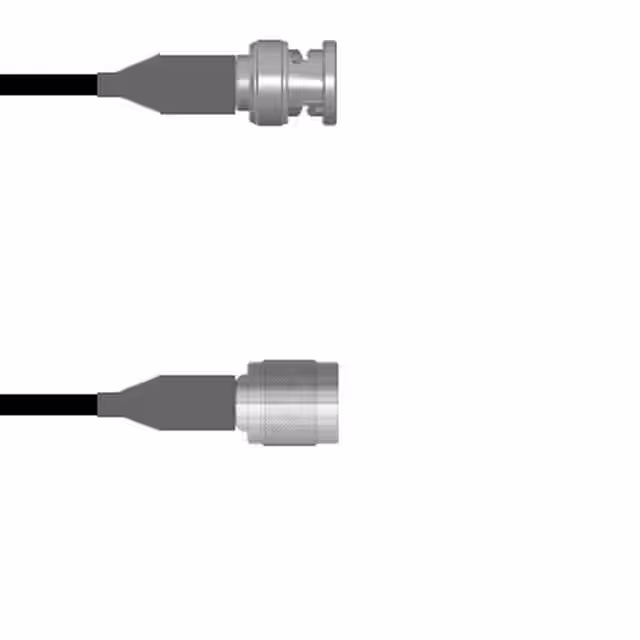

Q-0N058001A036iCBL ASSY BNC-TNC PLUG RG59 36 |
2,365 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Plug | Male | - | - | TNC Plug | Male | - | - | 36.00 (914.40mm) | RG-59 | - | - | 75 Ohms | 1 GHz | Black | Shielded | - |
|

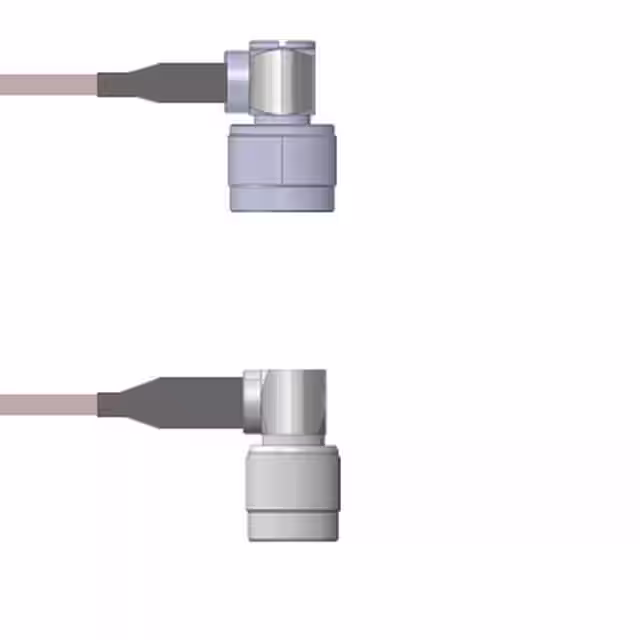

Q-2G04X000H012iCBL ASSY N TO TNC PLUG RG142 12 |
3,518 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | - | - | TNC Plug, Right Angle | Male | - | - | 12.00 (304.80mm) | RG-142 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

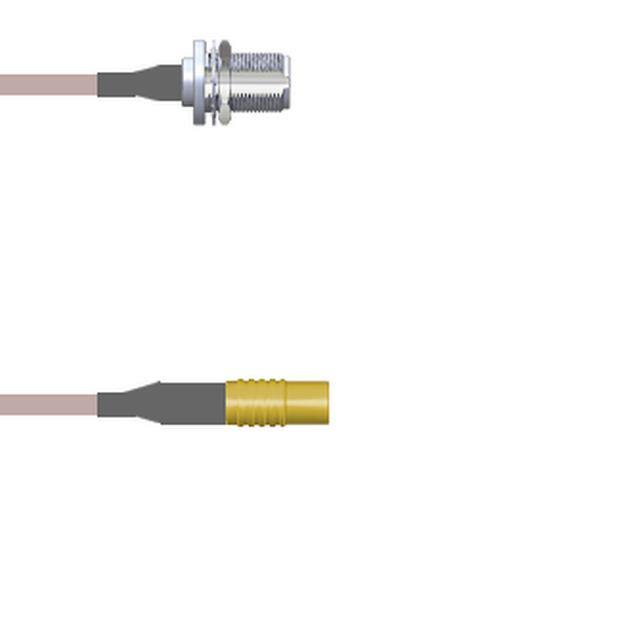

Q-1Z00Z0001003MCBL ASSY MCX-N JACK RG178 3M |
2,492 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1 (3.0m) 9.8' | RG-178 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

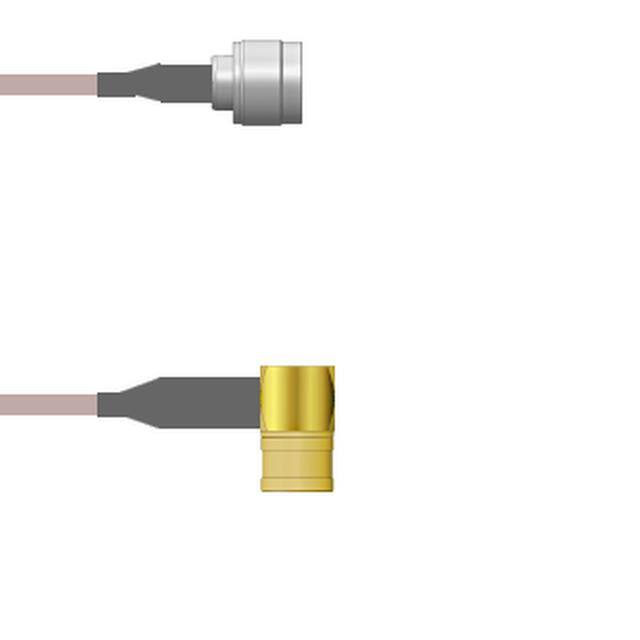

Q-2J03V000H084iCBL ASSY SMB-N PLUG RG142 7' |
3,906 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug, Right Angle | Female | - | - | N-Type Plug | Male | - | - | 84.0 (2.1m) 7.0' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

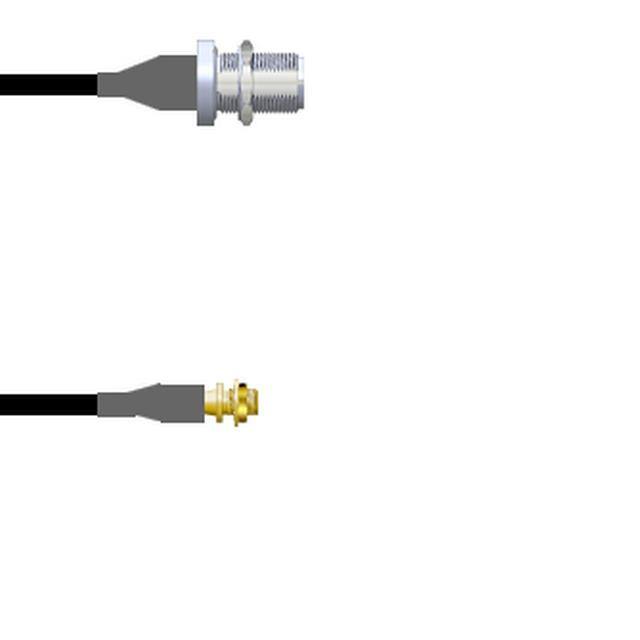

Q-1U01I0003003MCBL ASSY MMCX-N JACK RG174 3M |
2,056 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1 (3.0m) 9.8' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

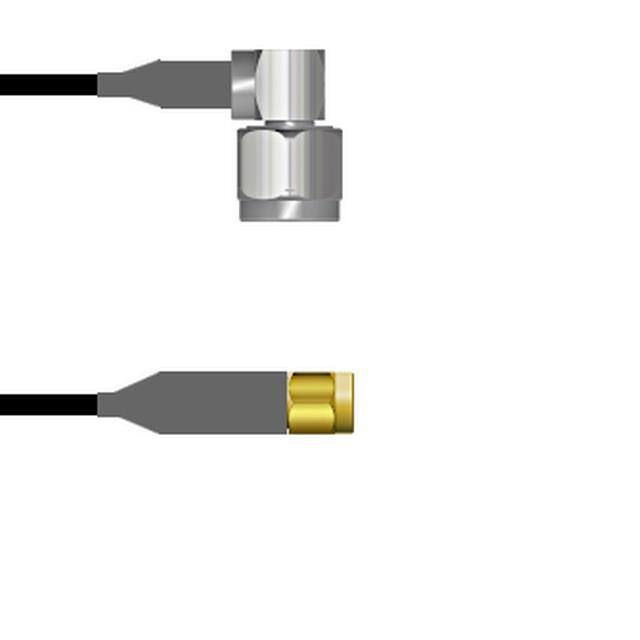

Q-2A03G000M002MCBL ASSY SMA-N PLUG 2M |
2,561 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 78.7 (2.0m) 6.6' | LMR 240 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

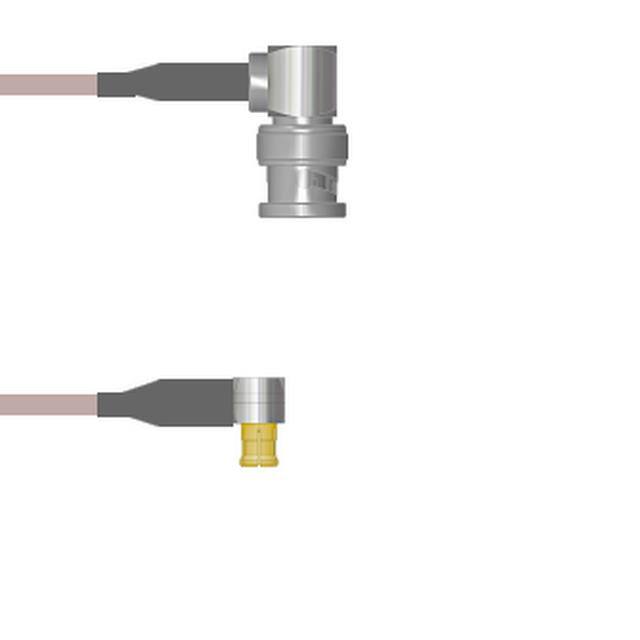

Q-0D01A0005012iCBL ASSY BNC-MCX PLUG RG316 12 |
2,637 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Plug, Right Angle | Male | - | - | MCX Plug, Right Angle | Male | - | - | 12.00 (304.80mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

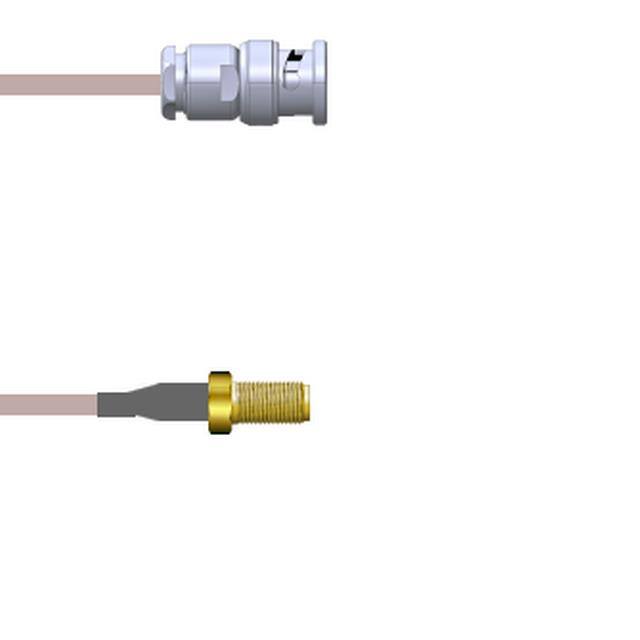

Q-0J02V00052.5MCBL ASY BNC-SMA P-J RG316 2.5M |
3,501 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug | Male | - | - | SMA Jack | Female | - | - | 98.4 (2.5m) 8.2' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

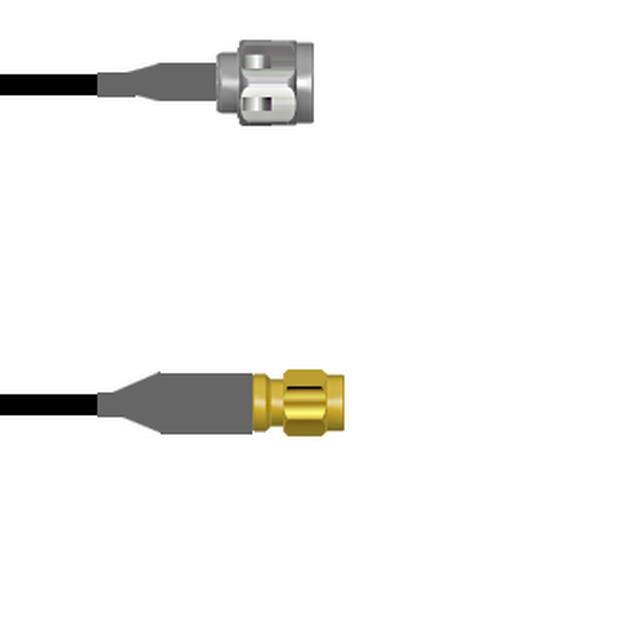

Q-2K067000M048iCBL ASSY RP-SMA TO N PLUG 4' |
3,594 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to N-Type | RP-SMA Plug | Female | - | - | N-Type Plug | Male | - | - | 48.0 (1.2m) 4.0' | LMR 240 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

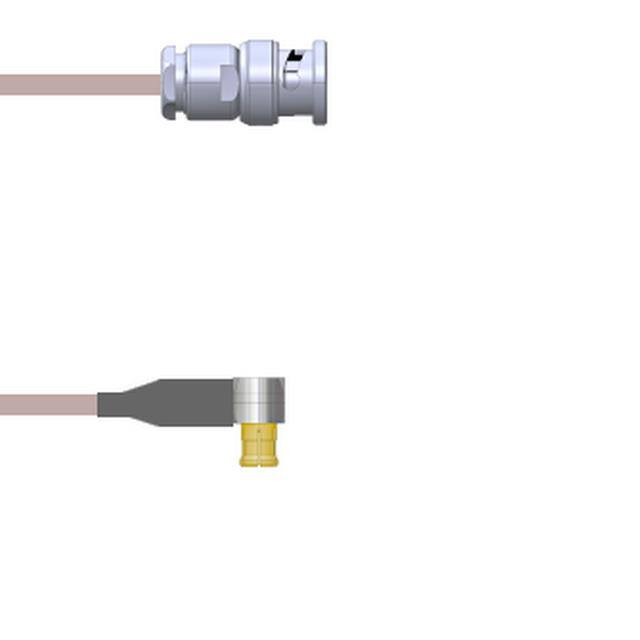

Q-0J01A0005036iCBL ASSY BNC-MCX PLUG RG316 36 |
3,469 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Plug | Male | - | - | MCX Plug, Right Angle | Male | - | - | 36.00 (914.40mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

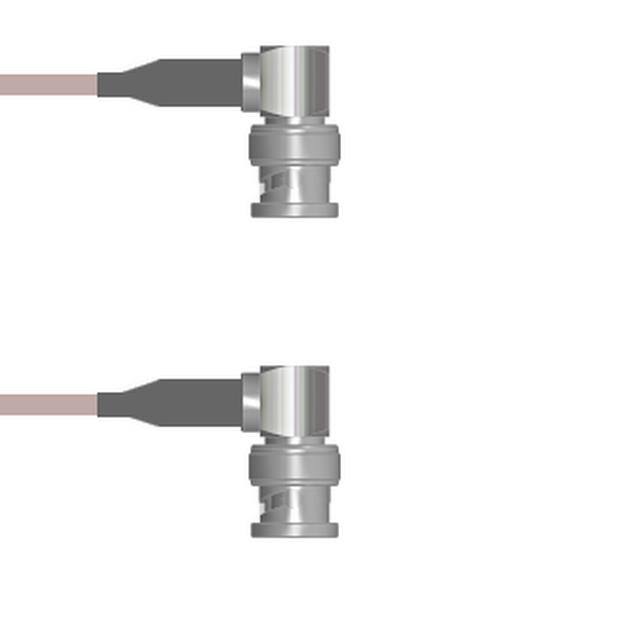

Q-0F00F000H0.5MCBL ASSY BNC PLUG RG142 19.69 |
2,563 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug, Right Angle | Male | - | - | 19.69 (500.00mm) | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-2C01A0005001MCBL ASSY MCX-N PLUG RG316 1M |
2,405 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 39.4 (1.0m) 3.3' | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

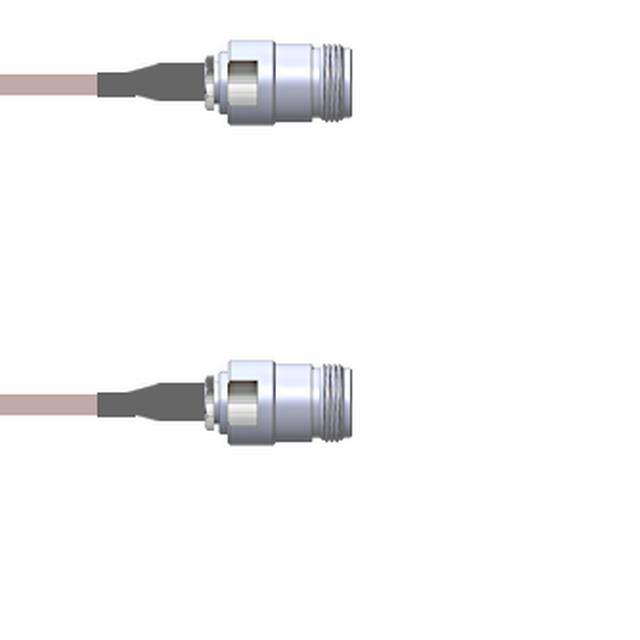

Q-1V01V000R001MCBL ASSY N-TYPE JACK RG316 DB 1M |
2,339 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | - | - | N-Type Jack | Female | - | - | 39.4 (1.0m) 3.3' | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

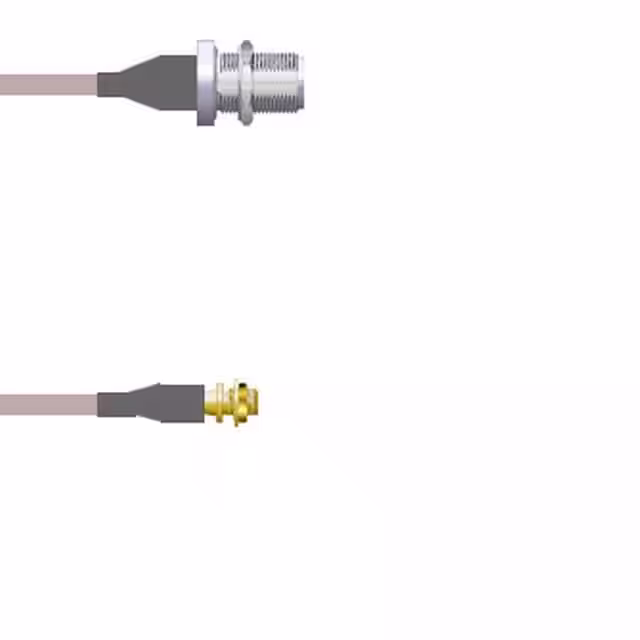

Q-1U01I0005.25MCBL ASSY MMCX-N JCK RG316 9.843 |
2,479 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.843 (250.00mm) | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

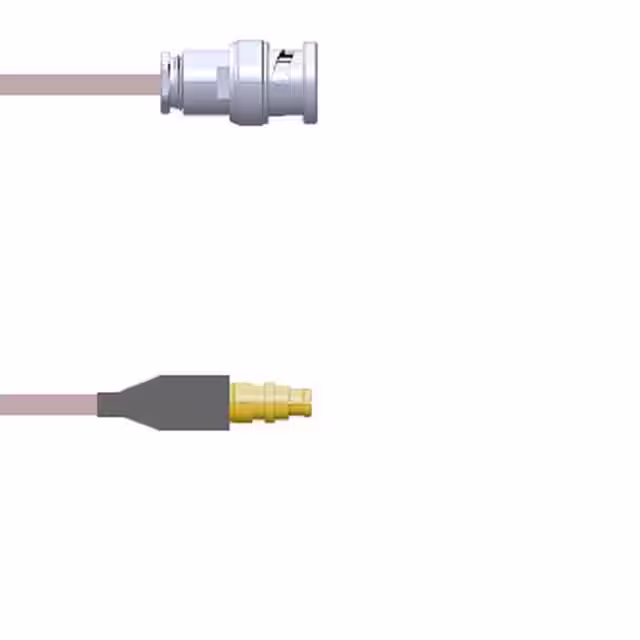

Q-0I0470001060iCBL ASSY BNC-SMPM PLUG RG178 5' |
3,376 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMPM | BNC Plug | Male | - | - | SMPM Plug | Male | - | - | 60.0 (1.5m) 5.0' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
