| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

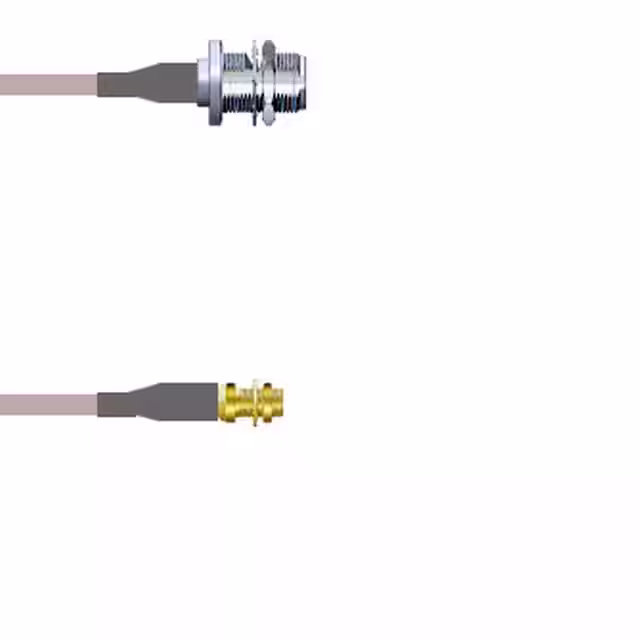

Q-21012000R006iCBL ASSY MCX-N JACK RG316 DB 6 |
3,058 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000 (152.40mm) | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

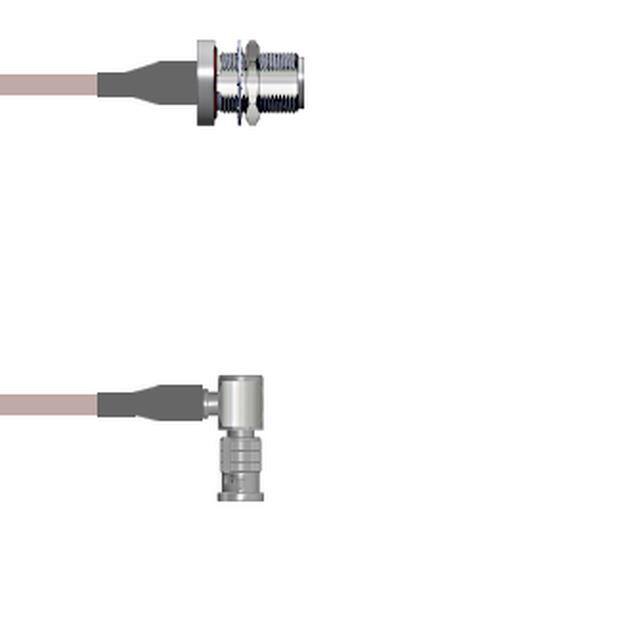

Q-1T05G0005060iCBL ASSY HD-BNC TO N RG316 5' |
3,834 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 60.0 (1.5m) 5.0' | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

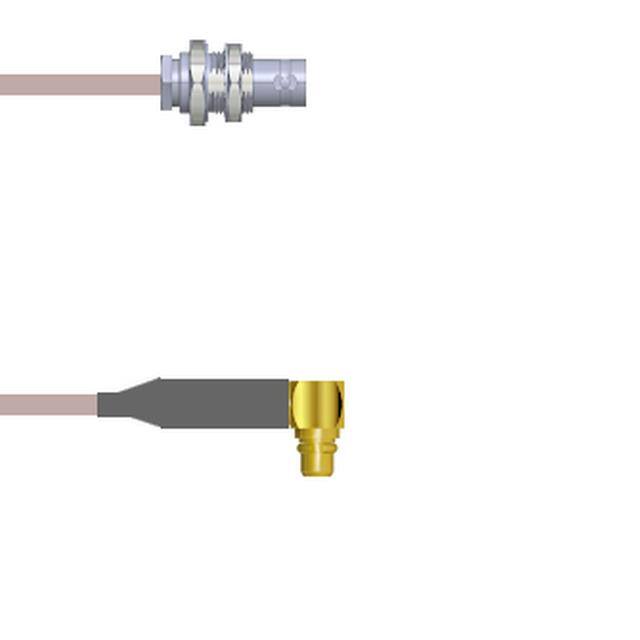

Q-0701O000R006iCBL ASSY BNC-MMCX RG316 DB 6 |
3,993 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-316 DB | - | - | 50 Ohms | 2 GHz | Copper | Shielded | - |
|

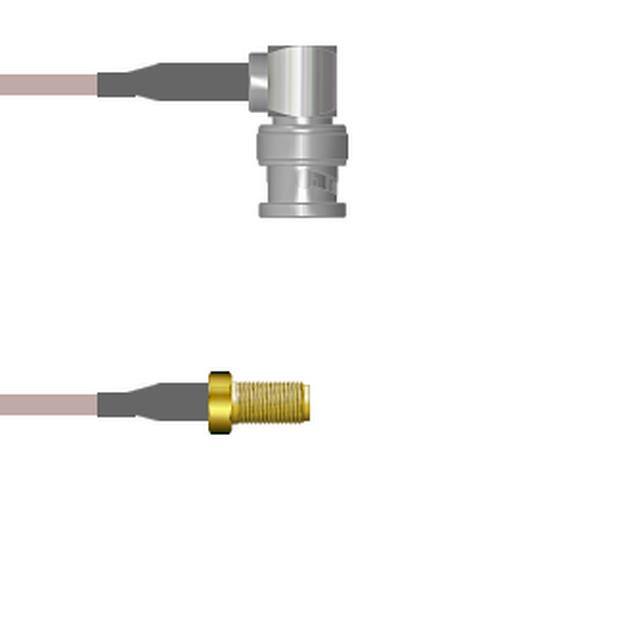

Q-0D02V0005012iCBL ASY BNC-SMA P-J RG316 12 |
2,464 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug, Right Angle | Male | - | - | SMA Jack | Female | - | - | 12.00 (304.80mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

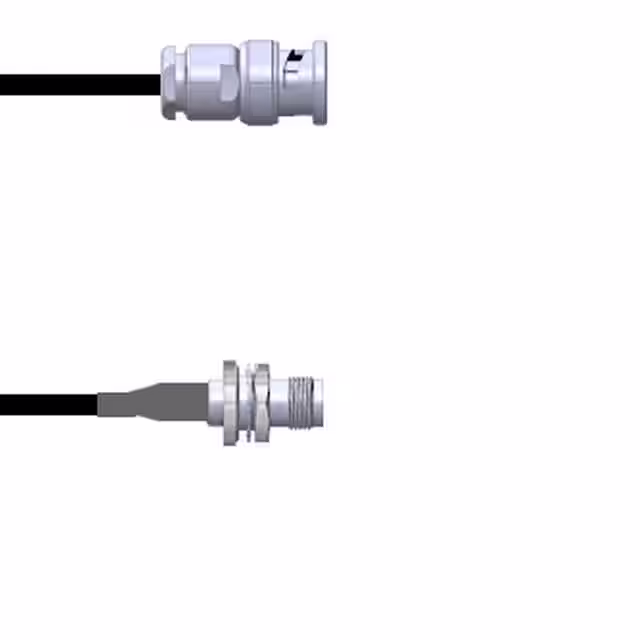

Q-0J04E0003003iCBL ASY BNC-TNC P-J RG174 3 |
2,343 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 3.000 (76.20mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

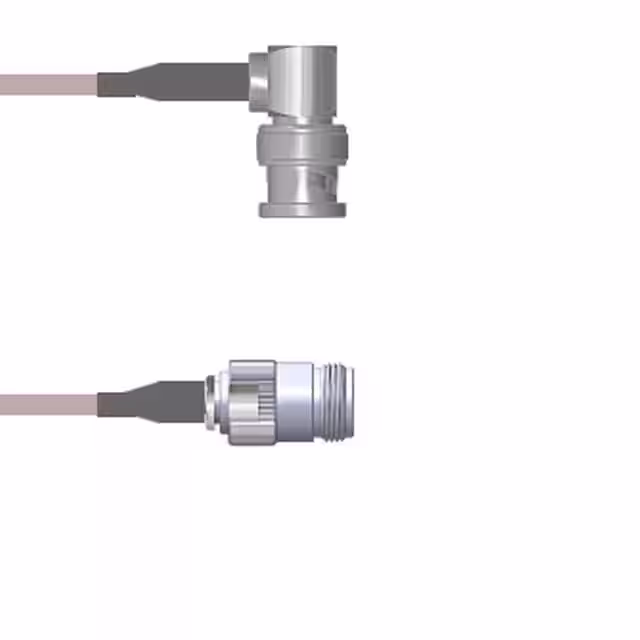

Q-0D0200005060iCBL ASSY BNC-N-TYPE P-J RG316 5' |
2,322 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug, Right Angle | Male | - | - | N-Type Jack | Female | - | - | 60.0 (1.5m) 5.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

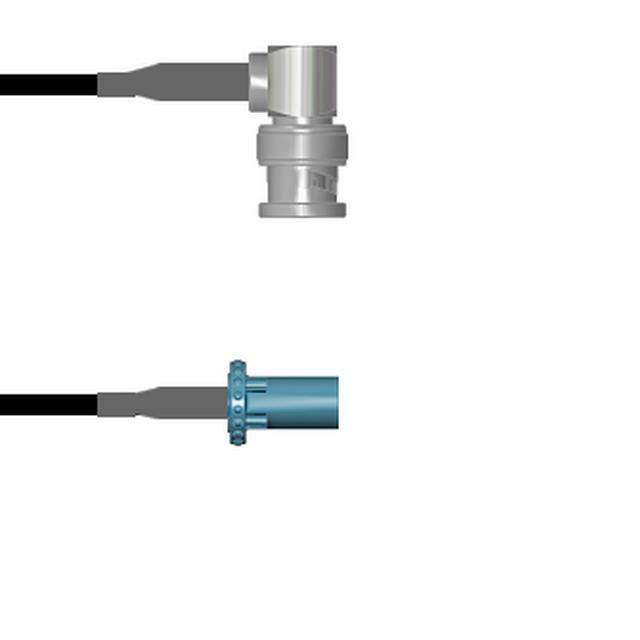

Q-0D05A0003024iCBL ASSY BNC-FAKRA PLG RG174 24 |
2,579 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Fakra | BNC Plug, Right Angle | Male | - | - | Fakra Plug | Male | - | - | 24.00 (609.60mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|

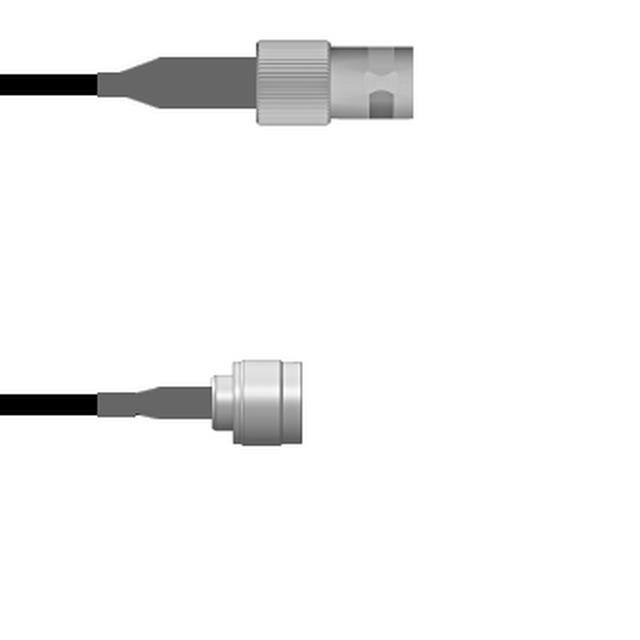

Q-0902N0008072iCBL ASY BNC-N-TYPE J-P RG58 6' |
3,932 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Jack | Female | - | - | N-Type Plug | Male | - | - | 72.0 (1.8m) 6.0' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

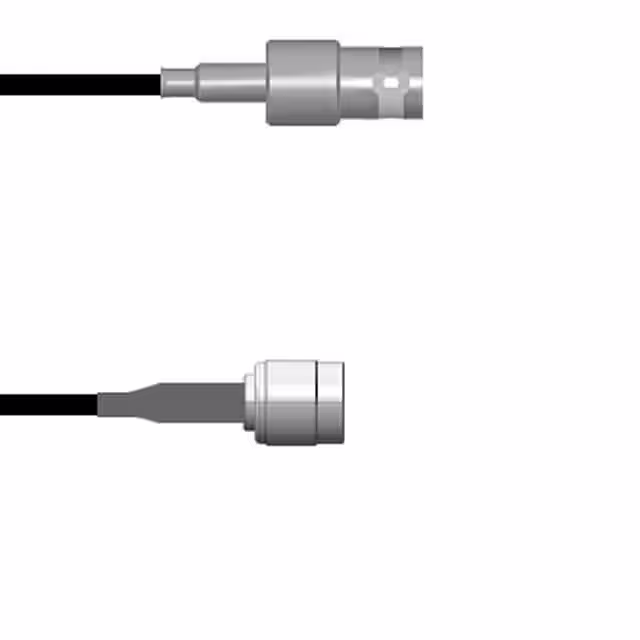

Q-030520003084iCBL ASY BNC-TNC J TO P RG174 7' |
3,923 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | - | - | TNC Plug | Male | - | - | 84.0 (2.1m) 7.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

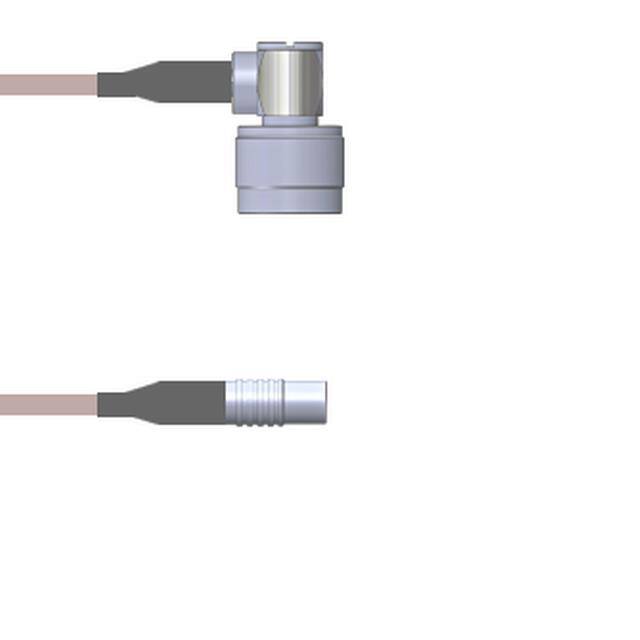

Q-2C0140005018iCBL ASSY MCX-N J TO P RG316 18 |
3,818 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Jack | Female | - | - | N-Type Plug, Right Angle | Male | - | - | 18.00 (457.20mm) | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|
Q-0D02P0003060iCBL ASY BNC-SMA P-J RG174 5' |
3,321 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 60.0 (1.5m) 5.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

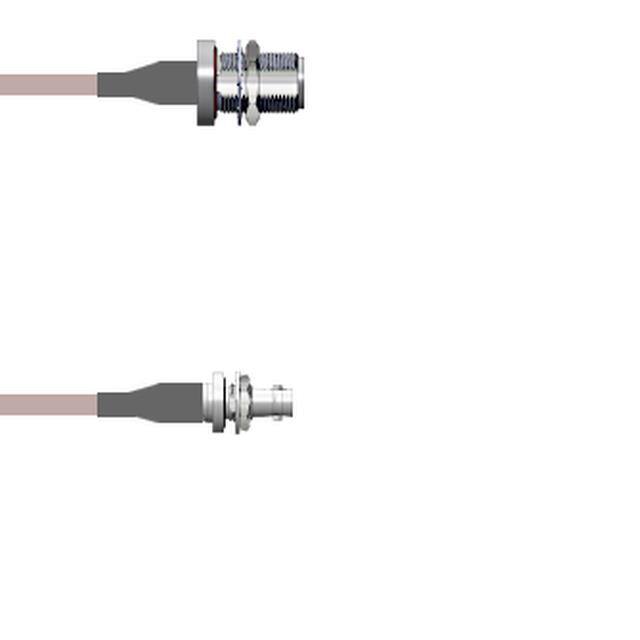

Q-1T00P0005.25MCBL ASY HD-BNC TO N RG316 9.843 |
3,149 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.843 (250.00mm) | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|
Q-0403B0003003MCBL ASY BNC-SMA J TO P RG174 3M |
3,785 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 118.1 (3.0m) 9.8' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

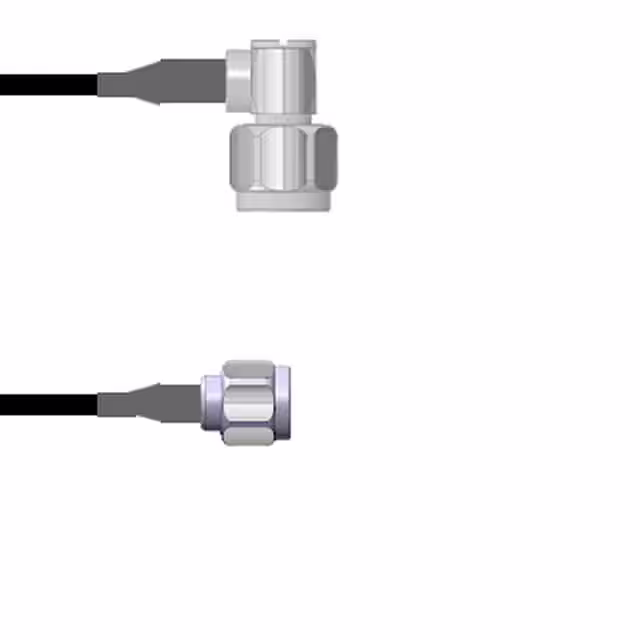

Q-2E02O000D001MCBL ASSY N-TYPE PLUG 1M |
3,476 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 39.4 (1.0m) 3.3' | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

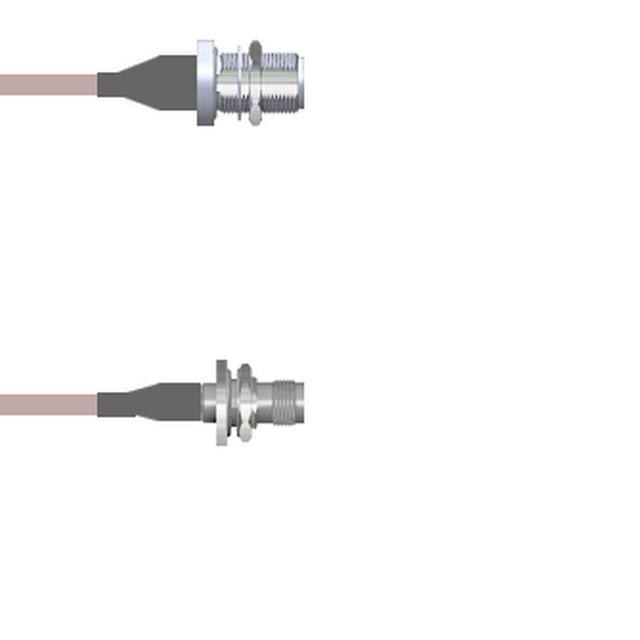

Q-2204H000R003MCBL ASSY N TO TNC JK RG316 DB 3M |
2,026 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1 (3.0m) 9.8' | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|
Q-0D03M00052.5MCBL ASY BNC-SMB P-J RG316 2.5M |
3,700 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 98.4 (2.5m) 8.2' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-030140005.75MCBL ASSY BNC-MCX JK RG316 29.53 |
2,422 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Jack | Female | - | - | MCX Jack | Female | - | - | 29.53 (750.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-2C03B0003.75MCBL ASSY SMA-N PLUG RG174 29.53 |
3,010 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 29.53 (750.00mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|
Q-0J04E0003001MCBL ASY BNC-TNC P-J RG174 1M |
3,787 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 39.4 (1.0m) 3.3' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

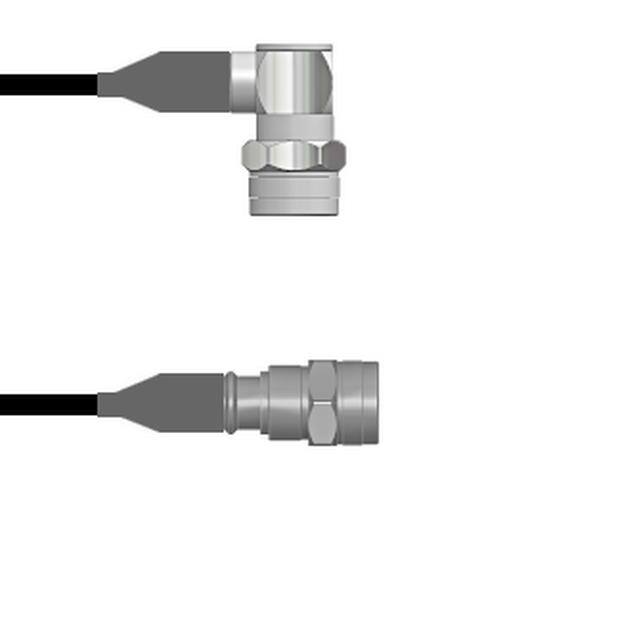

Q-2B02L0013003iCBL ASSY N-TYPE PLUG 3 |
3,901 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 3.000 (76.20mm) | LMR 400 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
