| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

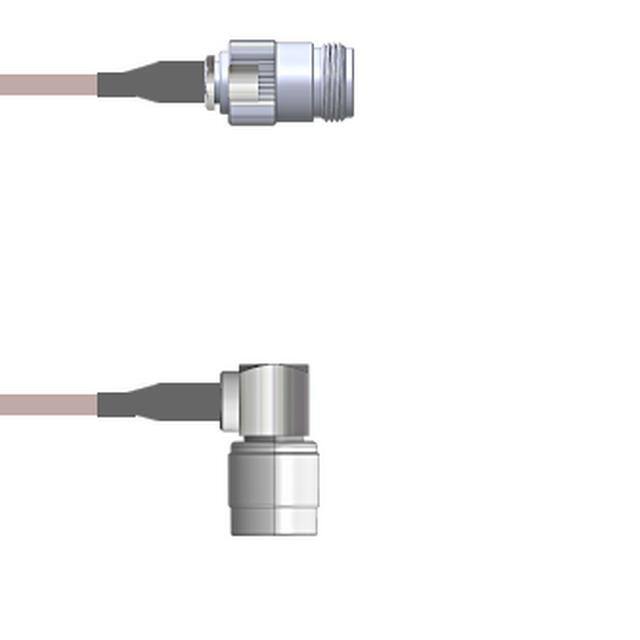

Q-2004T0005.75MCBL ASSY N TO TNC RG316 29.53 |
3,702 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | - | - | TNC Plug, Right Angle | Male | - | - | 29.53 (750.00mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

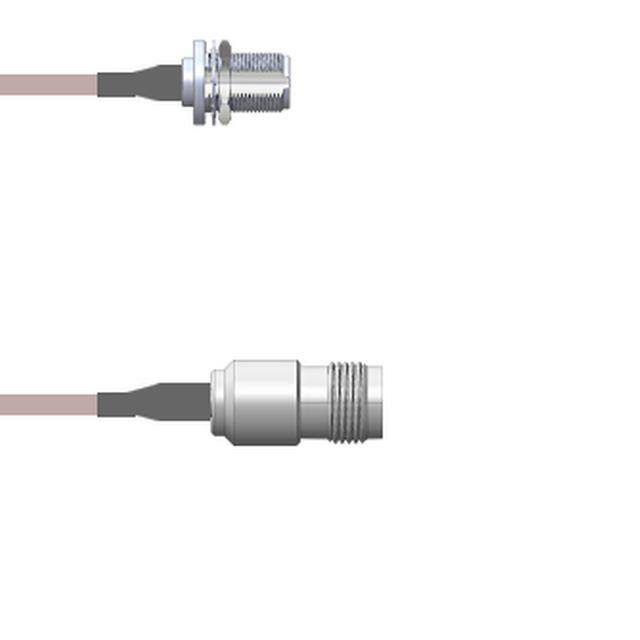

Q-1Z04B0001018iCBL ASSY N TO TNC JACK RG178 18 |
2,717 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-178 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

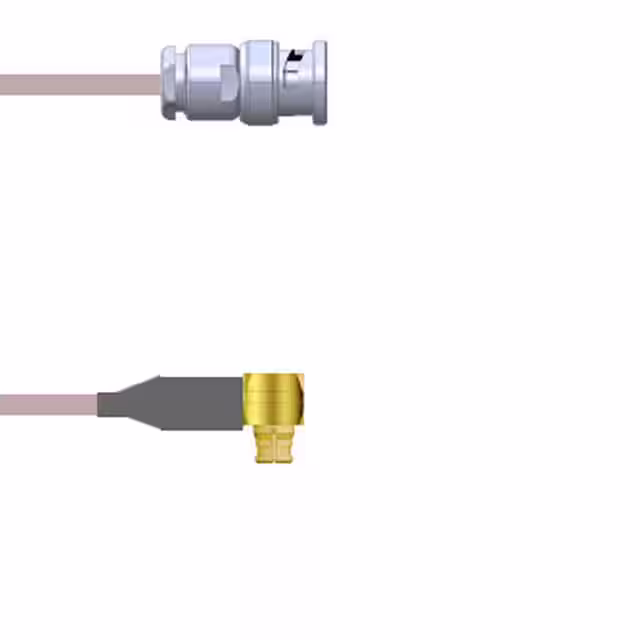

Q-0J0420005060iCBL ASSY BNC-SMP PLUG RG316 5' |
2,478 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMP | BNC Plug | Male | - | - | SMP Plug, Right Angle | Male | - | - | 60.0 (1.5m) 5.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-1S04W0008002MCBL ASY N TO TNC J TO P RG58 2M |
2,242 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 78.7 (2.0m) 6.6' | RG-58 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
Q-1W02R0008084iCBL ASSY SMA-N JACK RG58 7' |
3,777 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 84.0 (2.1m) 7.0' | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|
Q-0E04J0008084iCBL ASSY BNC-TNC P TO J RG58 7' |
2,156 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Plug, Right Angle | Male | - | - | TNC Jack | Female | - | - | 84.0 (2.1m) 7.0' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

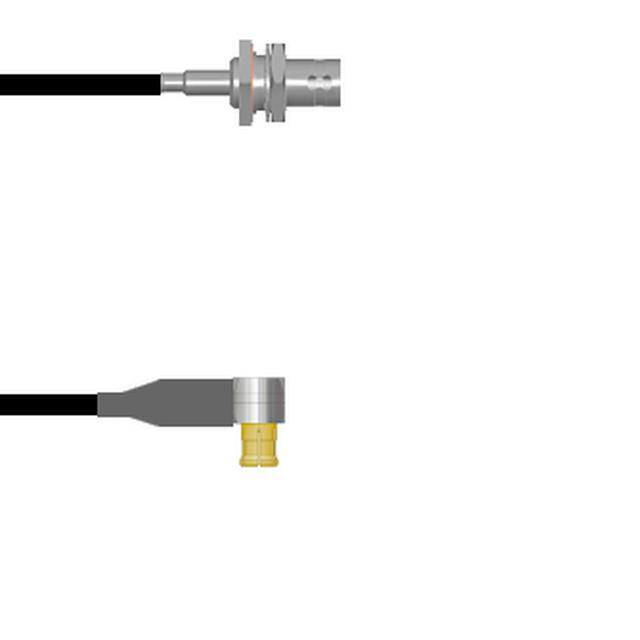

Q-0401A00032.5MCBL ASY BNC-MCX J-P RG174 2.5M |
3,451 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 98.4 (2.5m) 8.2' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-0305H0005012iCBL ASSY BNC-HD-BNC RG316 12 |
2,786 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Jack | Female | - | - | HD-BNC Plug | Male | - | - | 12.00 (304.80mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

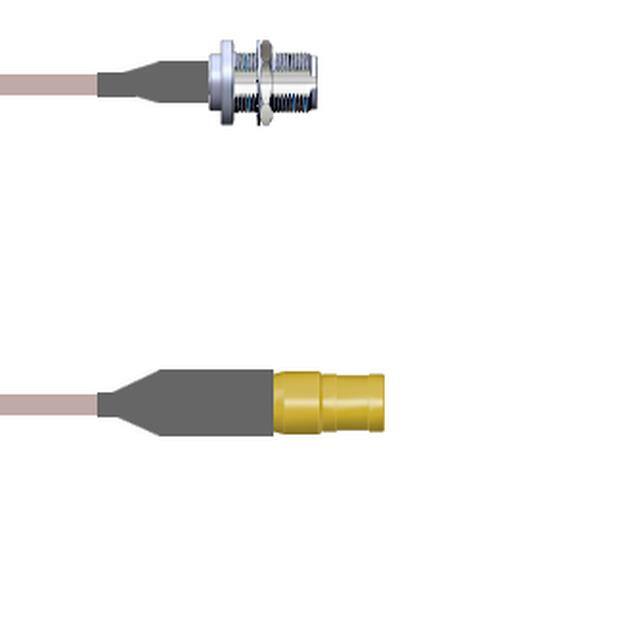

Q-2503Y000H2.5MCBL ASY SMB-N P-J RG142 2.5M |
3,575 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 98.4 (2.5m) 8.2' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

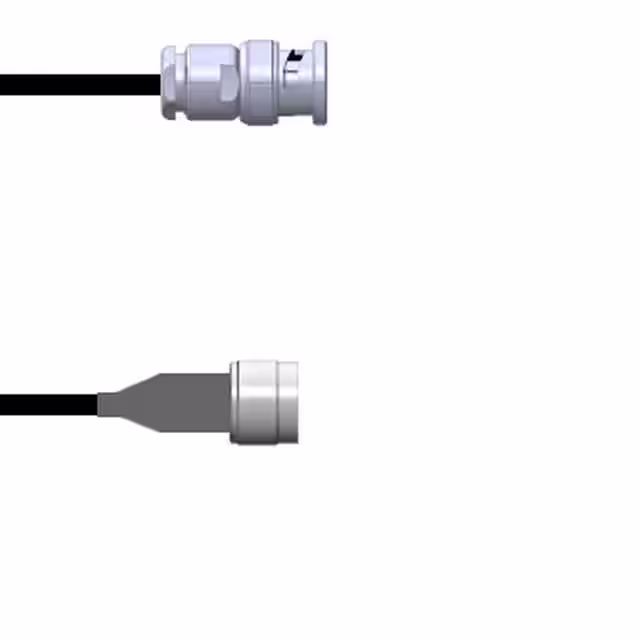

Q-0J02I0003048iCBL ASSY BNC-N-TYP PLUG RG174 4' |
3,521 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug | Male | - | - | N-Type Plug | Male | - | - | 48.0 (1.2m) 4.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

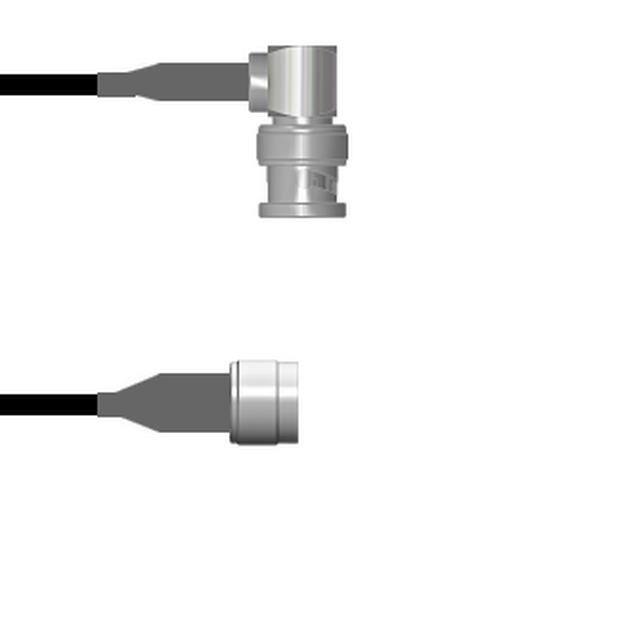

Q-0D02I0003048iCBL ASSY BNC-N-TYP PLUG RG174 4' |
2,877 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 48.0 (1.2m) 4.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-2102D000R009iCBL ASY N-TYPE J-P RG316 DB 9 |
3,821 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.000 (228.60mm) | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|
Q-2I03I0003006iCBL ASY SMB-N JK TO PLG RG174 6 |
2,476 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 6.000 (152.40mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-2N04J0008024iCBL ASY N TO TNC P-J RG58 24 |
2,917 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug | Male | - | - | TNC Jack | Female | - | - | 24.00 (609.60mm) | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

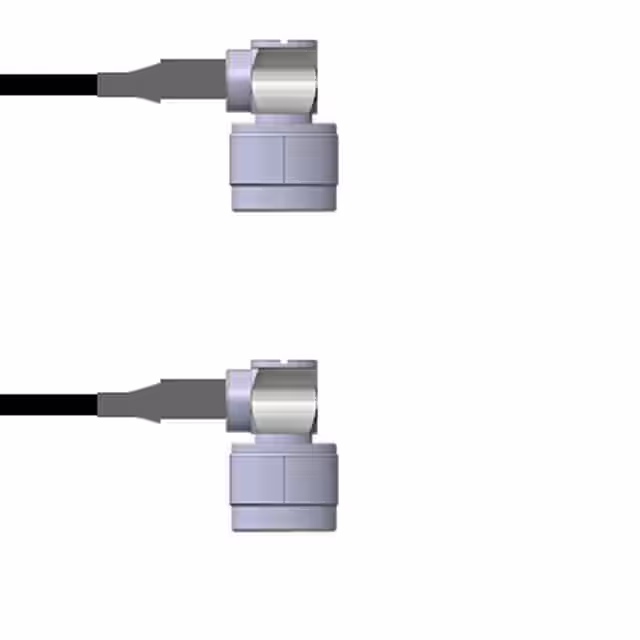

Q-2F02F00081.5MCBL ASSY N-TYPE PLUG RG58 1.5M |
3,156 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 59.1 (1.5m) 4.9' | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

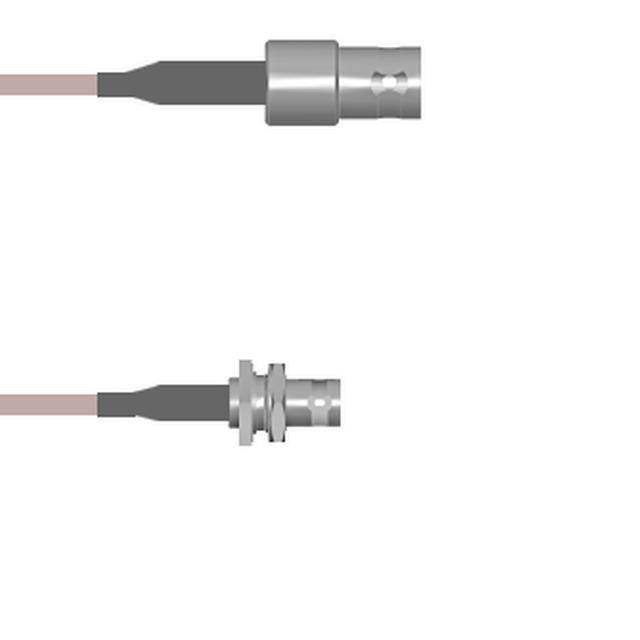

Q-05006000S1.5MCBL ASSY BNC JACK RG179 1.5M |
3,031 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Jack | Female | Free Hanging (In-Line) | - | 59.1 (1.5m) 4.9' | RG-179 | - | - | 75 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-1Y0750013084iCBL ASSY RP-TNC TO N-TYP JACK 7' |
3,685 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-TNC to N-Type | RP-TNC Jack | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 84.0 (2.1m) 7.0' | LMR 400 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

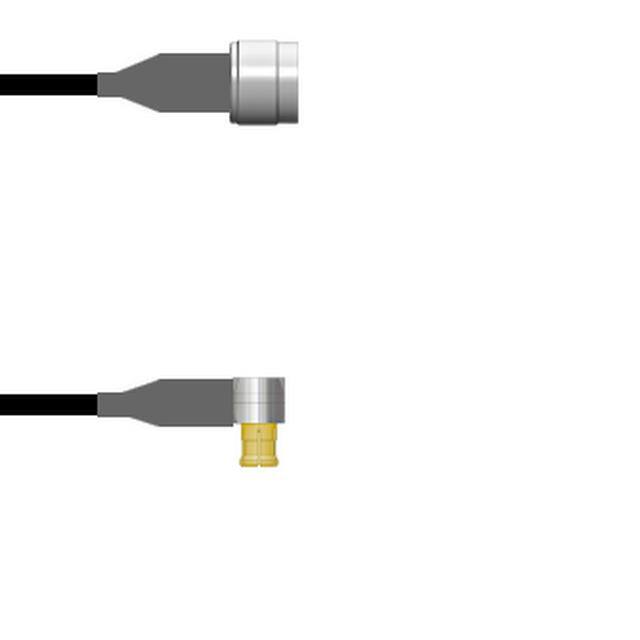

Q-2I01A00030.5MCBL ASSY MCX-N PLUG RG174 19.69 |
3,331 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 19.69 (500.00mm) | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
Q-0300Q0003084iCBL ASSY BNC-HD-BNC JCK RG174 7' |
3,600 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Jack | Female | - | - | HD-BNC Jack | Female | - | - | 84.0 (2.1m) 7.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

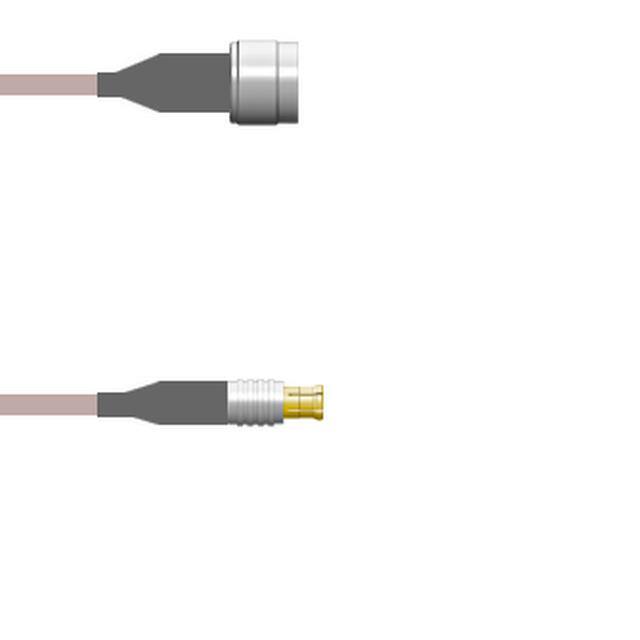

Q-2I01F0005009iCBL ASSY MCX-N PLUG RG316 9 |
2,009 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug | Male | - | - | N-Type Plug | Male | - | - | 9.000 (228.60mm) | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
