| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

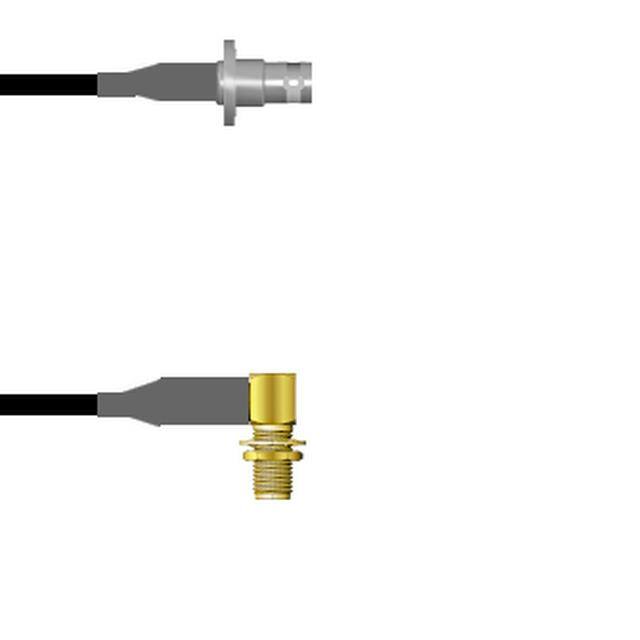

Q-0802R0008036iCBL ASSY BNC-SMA JACK RG58 36 |
3,697 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00 (914.40mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

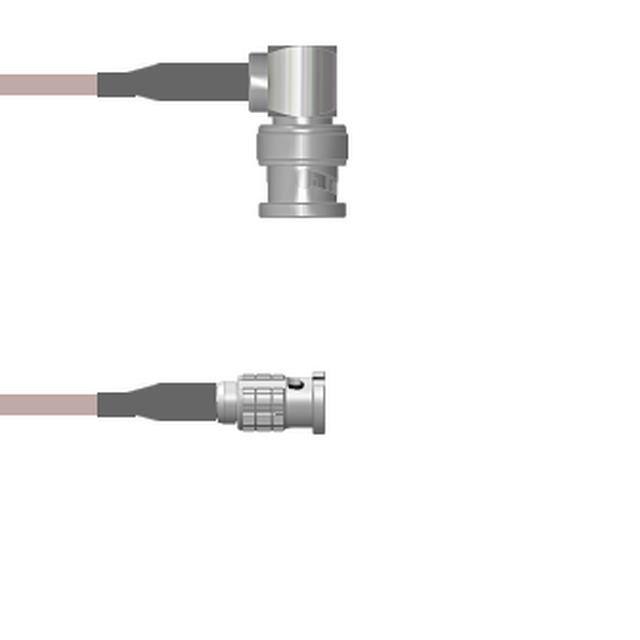

Q-0D00V0005036iCBL ASSY BNC-HD-BNC PL RG316 36 |
2,893 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug, Right Angle | Male | - | - | HD-BNC Plug | Male | - | - | 36.00 (914.40mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

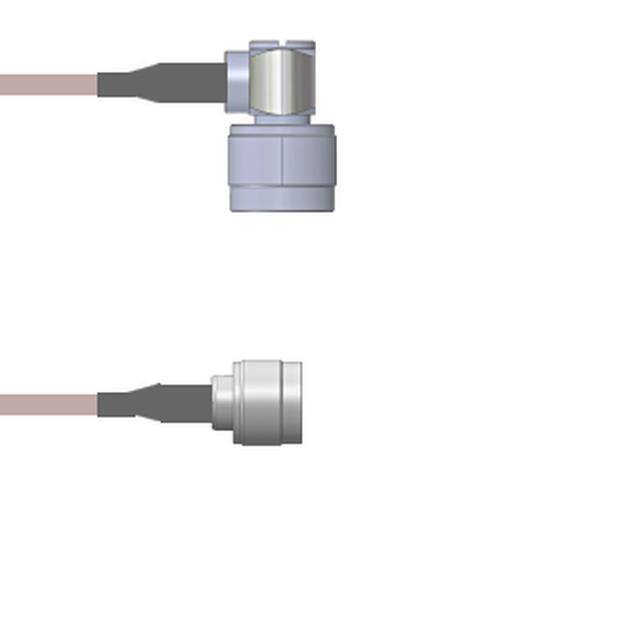

Q-2G02J000H2.5MCBL ASSY N-TYPE PLUG RG142 2.5M |
3,373 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 98.4 (2.5m) 8.2' | RG-142 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

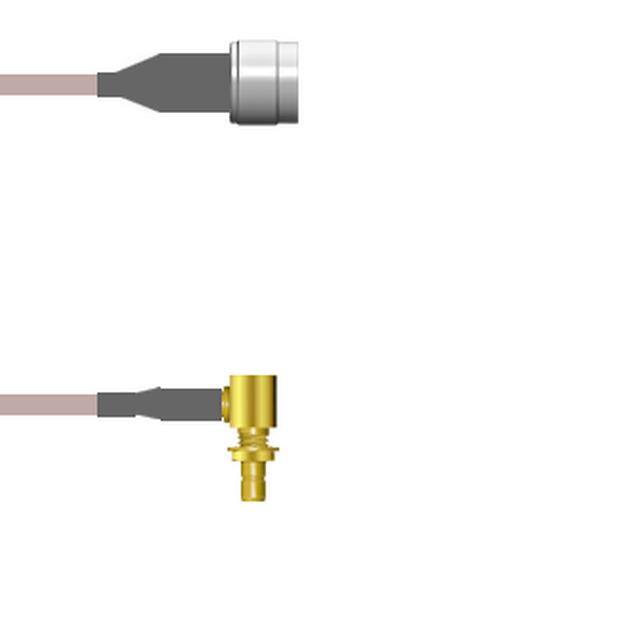

Q-2I03H0005072iCBL ASY SMB-N JK TO PLG RG316 6' |
2,188 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 72.0 (1.8m) 6.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

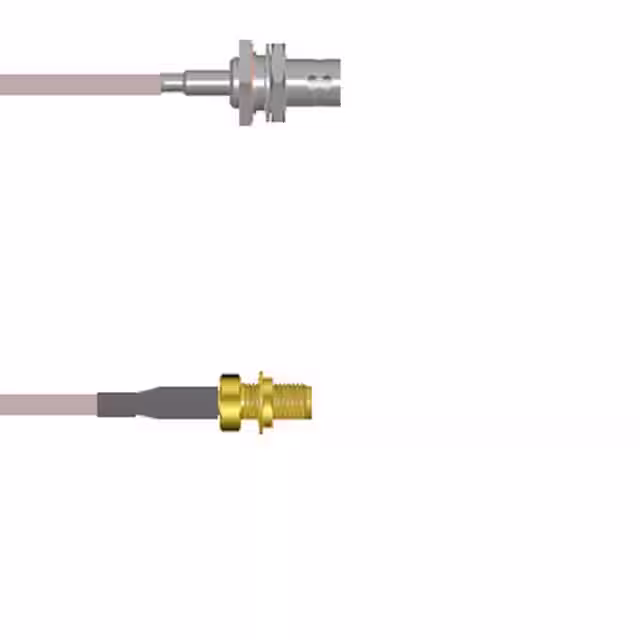

Q-0402W0005001MCBL ASSY BNC-SMA JACK RG316 1M |
2,818 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 39.4 (1.0m) 3.3' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

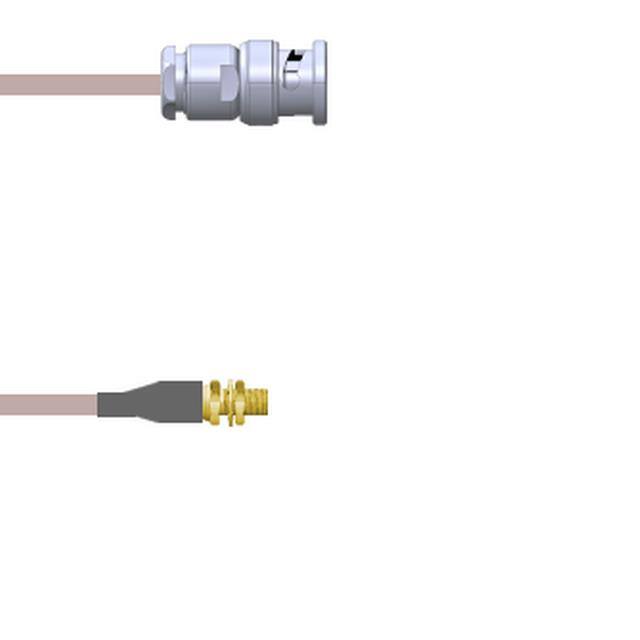

Q-0J0110005024iCBL ASY BNC-MCX P-J RG316 24 |
3,528 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Plug | Male | Free Hanging (In-Line) | - | MCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00 (609.60mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

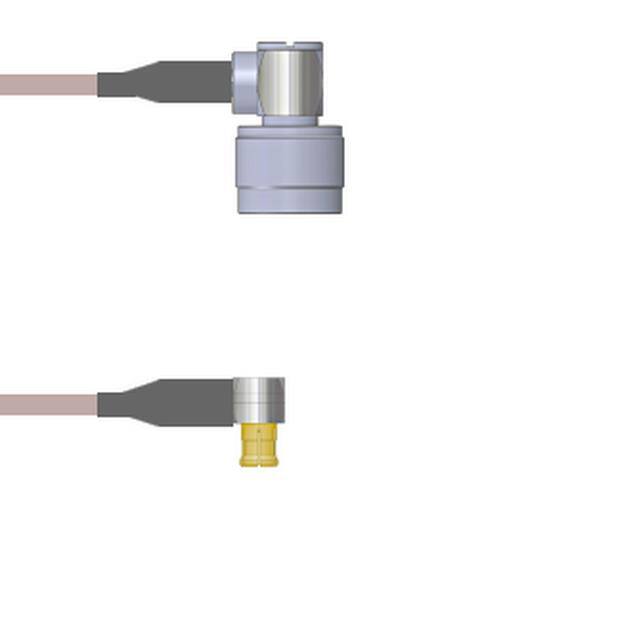

Q-2C01A0005.25MCBL ASSY MCX-N PLUG RG316 9.843 |
3,185 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 9.843 (250.00mm) | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

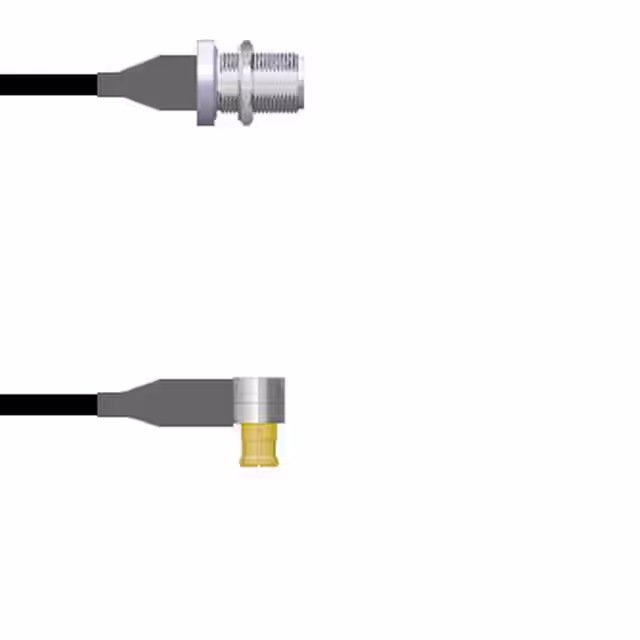

Q-1U01A0003018iCBL ASSY MCX-N P TO J RG174 18 |
3,341 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00 (457.20mm) | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

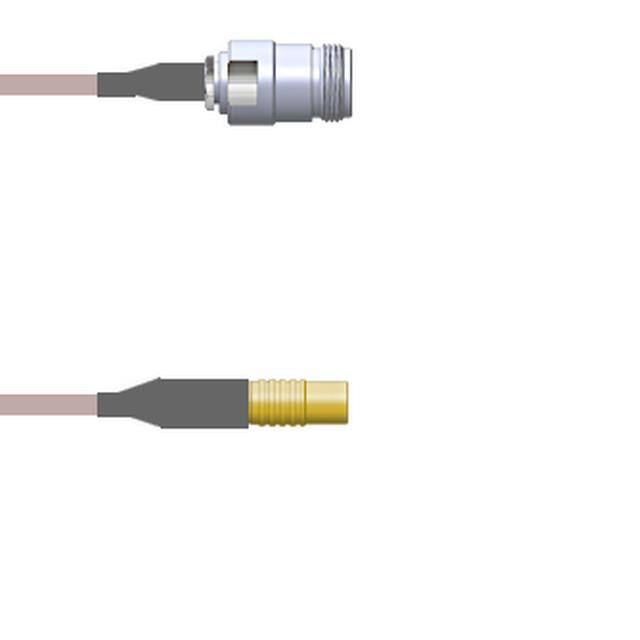

Q-1V013000R018iCBL ASSY MCX-N JACK RG316 DB 18 |
3,149 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Jack | Female | - | - | N-Type Jack | Female | - | - | 18.00 (457.20mm) | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

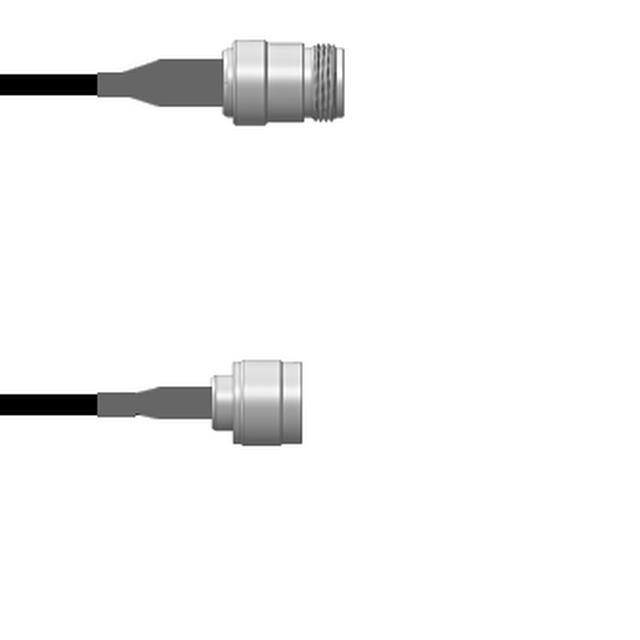

Q-1W02N0008003MCBL ASY N-TYPE JK TO PLG RG58 3M |
3,724 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | - | - | N-Type Plug | Male | - | - | 118.1 (3.0m) 9.8' | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

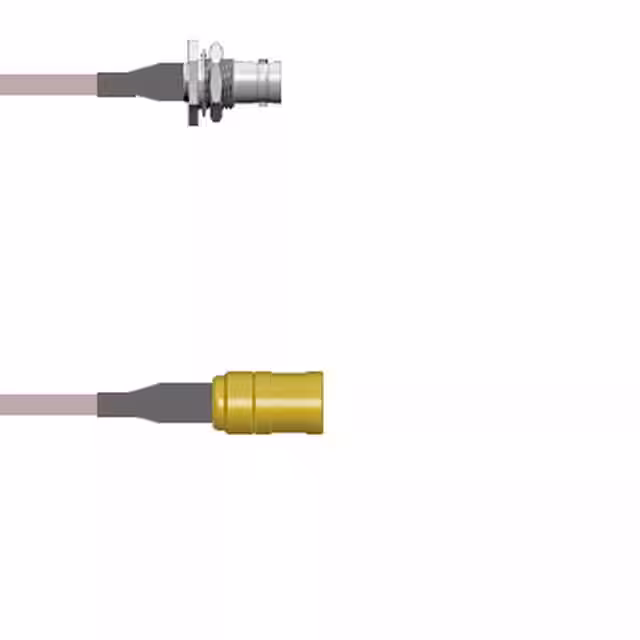

Q-0106000010.5MCBL ASSY BNC-SMB RG178 19.69 |
3,171 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Plug | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

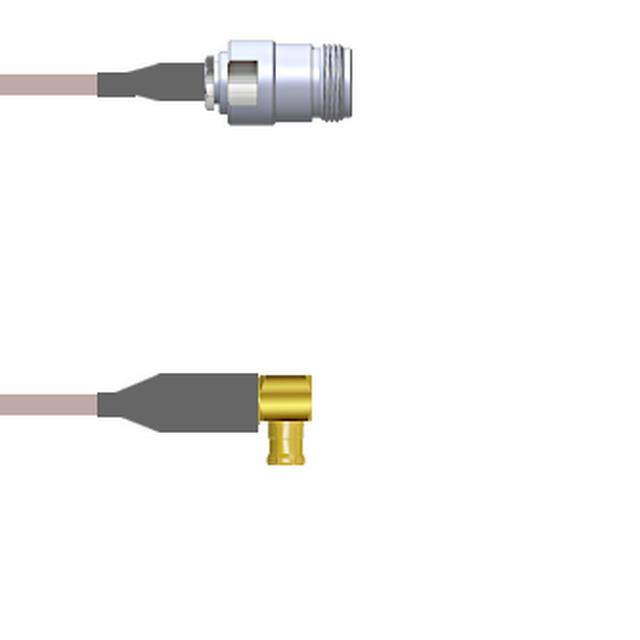

Q-1V017000R.25MCBL ASSY MCX-N RG316 DB 9.843 |
2,682 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug, Right Angle | Male | - | - | N-Type Jack | Female | - | - | 9.843 (250.00mm) | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

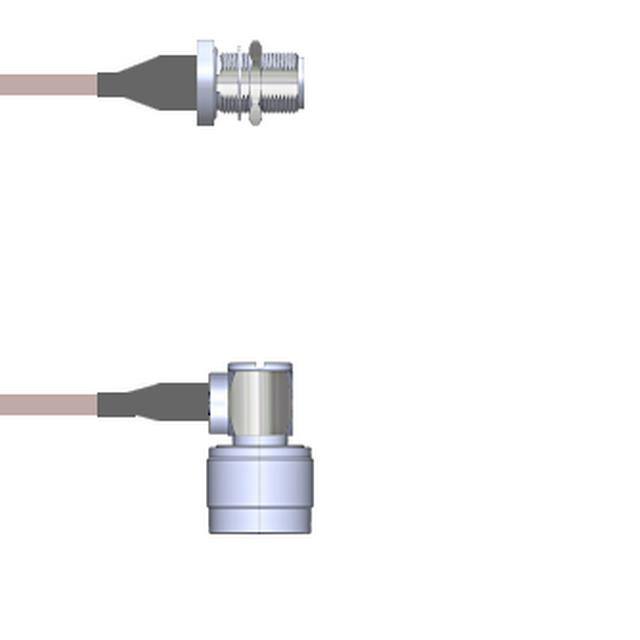

Q-2202D000R024iCBL ASSY N-TYPE J-P RG316 DB 24 |
3,898 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

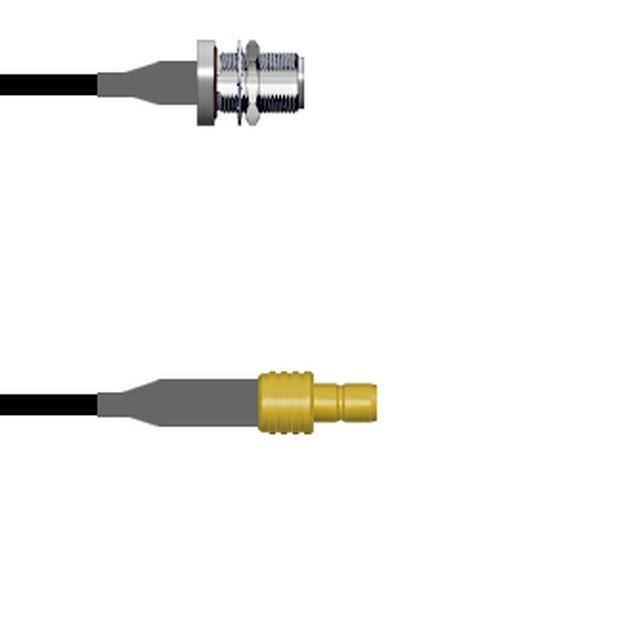

Q-1T03L0003002MCBL ASSY SMB-N JACK RG174 2M |
3,444 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 78.7 (2.0m) 6.6' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

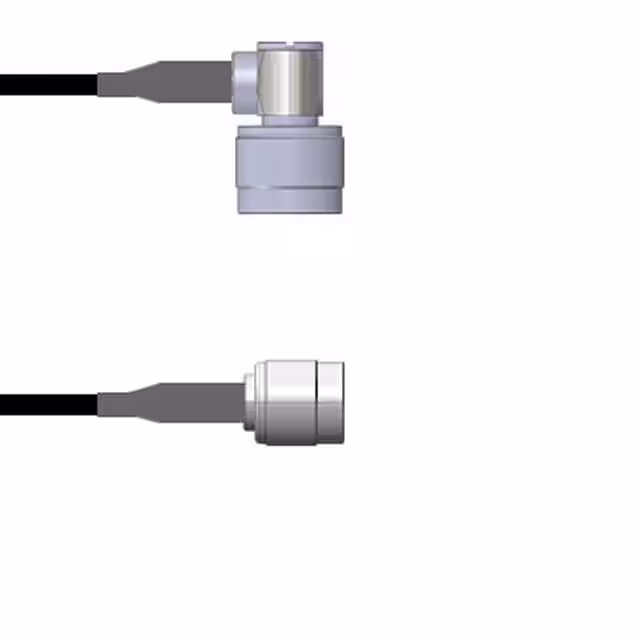

Q-2C0520003024iCBL ASSY N TO TNC PLUG RG174 24 |
3,526 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | - | - | TNC Plug | Male | - | - | 24.00 (609.60mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

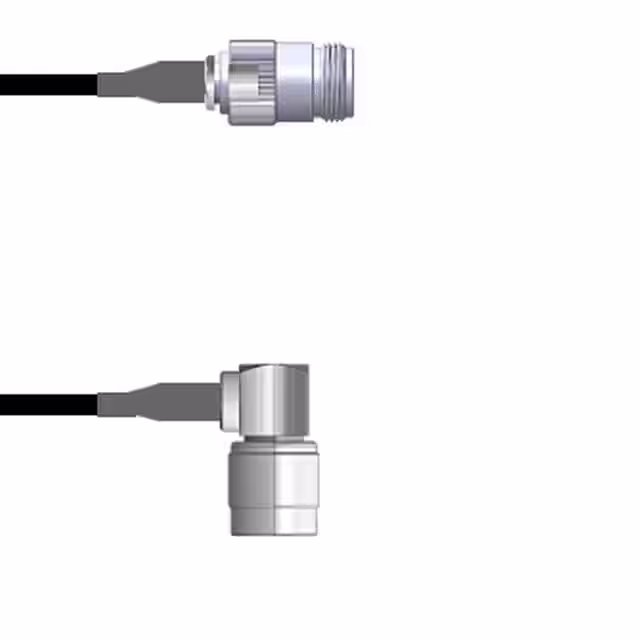

Q-2004T0003001MCBL ASY N TO TNC J TO P RG174 1M |
3,297 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | - | - | TNC Plug, Right Angle | Male | - | - | 39.4 (1.0m) 3.3' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

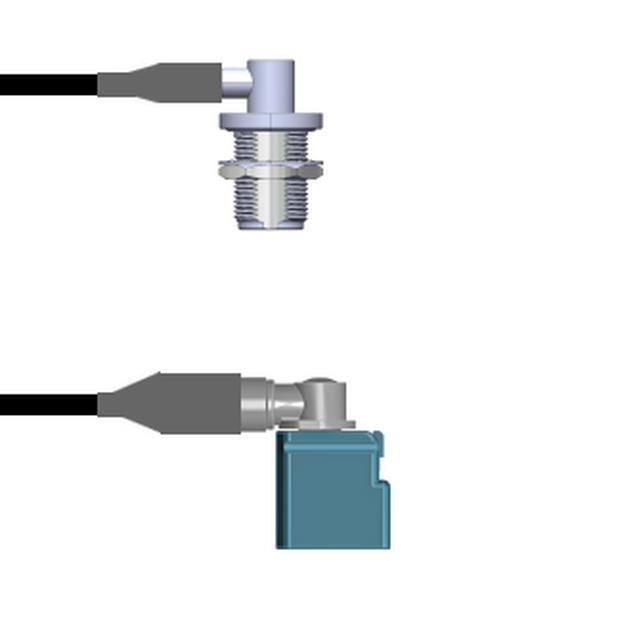

Q-1S05D0008012iCBL ASSY N-FAKRA JACK RG58 12 |
3,907 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to Fakra | N-Type Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Jack, Right Angle | Female | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-58 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|

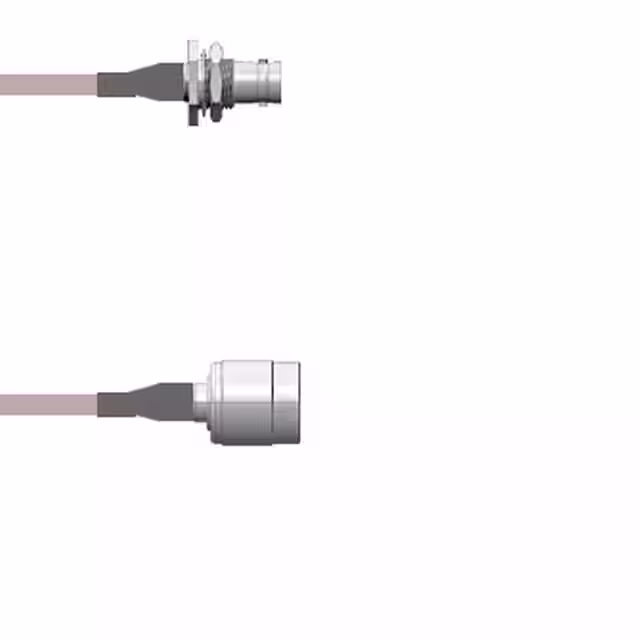

Q-0105100010.5MCBL ASSY BNC-TNC RG178 19.69 |
3,646 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-0J0110005018iCBL ASY BNC-MCX P-J RG316 18 |
2,509 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Plug | Male | Free Hanging (In-Line) | - | MCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00 (457.20mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

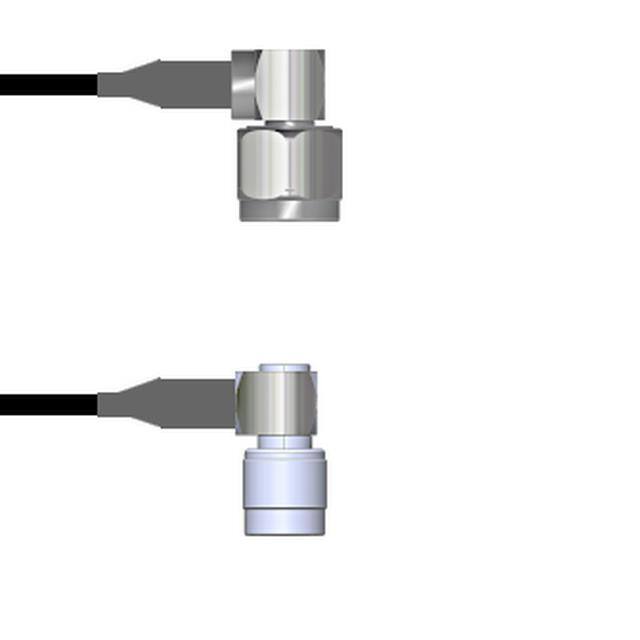

Q-2A04Z000M108iCBL ASSY N TO TNC PLUG 9' |
3,607 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | - | - | TNC Plug, Right Angle | Male | - | - | 108.0 (2.7m) 9.0' | LMR 240 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
