| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CABLE 378 RF-200-A-1CBL ASSY RP-SMA-MHF4L 7.874 |
162 | 12.24 |
RFQ |
Datasheet |
Bag | Nautilus | Active | RP-SMA to IPEX MHF4L | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C |
|
CABLE 385 RF-200-A-2CBL ASSY MHF4L-SMA 7.874 |
3,226 | 12.27 |
RFQ |
Datasheet |
Bag | Nautilus | Active | SMA to IPEX MHF4L | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C |
|
CAB422RF-0200-A-1CBL ASSY SMA-MHF4L LK 7.874 |
516 | 13.00 |
RFQ |
Datasheet |
Bag | Nautilus | Active | RP-SMA to IPEX MHF4L LK | RP-SMA Plug | Female | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C |
|
CABLE 305 RF-0100-A-1CBL ASSY SMA RG178 3.937 |
3,936 | 13.58 |
RFQ |
Datasheet |
Bag | Nautilus | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.937 (100.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | - | -40°C ~ 125°C |
|
|
CABLE 305 RF-0200-A-1CBL ASSY SMA RG178 7.874 |
164 | 14.13 |
RFQ |
Datasheet |
Bag | Nautilus | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7.874 (200.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | - | -40°C ~ 125°C |
|
CABLE 243 RF-0200-A-1CBL ASSY SMA-SMA 7.874 |
3,353 | 14.13 |
RFQ |
Datasheet |
Bag | Nautilus | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 7.874 (200.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | - | -40°C ~ 125°C |
|
CABLE 394 RF-200-A-1CBL ASSY MHF1-SMA 7.874 |
2,512 | 16.57 |
RFQ |
Datasheet |
Bag | Nautilus | Active | IPEX MHF1 to SMA | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Brown | - | -40°C ~ 85°C |
|
CABLE 272 RF-0100-A-1CBL ASSY MHF1-BNC 3.937 |
149 | 17.52 |
RFQ |
Datasheet |
Bag | Nautilus | Active | IPEX MHF1 to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | -20°C ~ 80°C |
|
CABLE 272 RF-0150-A-1CBL ASSY MHF1-BNC 5.906 |
143 | 18.20 |
RFQ |
Datasheet |
Bag | Nautilus | Active | IPEX MHF1 to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | -20°C ~ 80°C |
|
CAB412RF-0200-A-1-ECBL ASSY MHF1-SMA 7.874 |
701 | 18.37 |
RFQ |
Datasheet |
Bag | Nautilus | Active | IPEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | Stainless Steel | -40°C ~ 85°C |
|
CABLE 391 RF-200-A-1CBL ASSY MMCX-SMA 7.874 |
166 | 18.81 |
RFQ |
Datasheet |
Bag | Nautilus | Active | SMA to MMCX | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7.874 (200.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Brown | - | -40°C ~ 125°C |
|
CABLE 399 RF-0300-A-1CBL ASSY SMA-SMA 11.811 |
103 | 18.81 |
RFQ |
Datasheet |
Bag | Nautilus | Active | SMA to SMA | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 11.811 (300.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Brown | - | -40°C ~ 125°C |
|
CAB411RF-0200-A-1-ECBL ASSY SMA-MMCX 7.874 |
213 | 21.13 |
RFQ |
Datasheet |
Bag | Nautilus | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7.874 (200.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | Stainless Steel | -40°C ~ 125°C |
|
CABLE 272 RF-0050-A-1CBL ASSY MHF1-BNC 1.969 |
365 | 16.95 |
RFQ |
Datasheet |
Bag | Nautilus | Active | IPEX MHF1 to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969 (50.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | -20°C ~ 80°C |
|

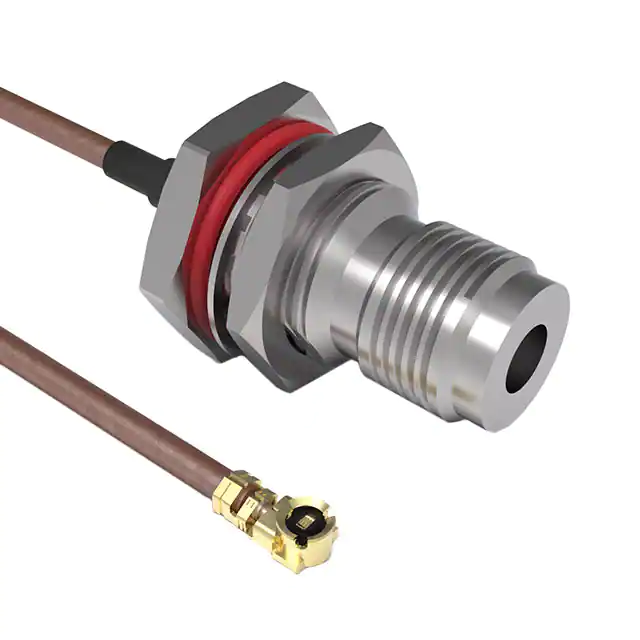

CABLE 235 RF-100-A-2CBL ASSY MHF1-TNC 3.937 |
203 | 19.30 |
RFQ |
Datasheet |
Bag | Nautilus | Active | IPEX MHF1 to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | RG-178 | 50 Ohms | - | - | 3 GHz | Brown | - | -40°C ~ 90°C |
|
CABLE 235 RF-150-A-2CBL ASSY MHF1-TNC 5.906 |
2,085 | 20.00 |
RFQ |
Datasheet |
Bag | Nautilus | Active | IPEX MHF1 to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | RG-178 | 50 Ohms | - | - | 3 GHz | Brown | - | -40°C ~ 90°C |
|
CAB468RF-050-A-1CBL ASSY MHF1-SMA 1.969 |
930 | 3.46 |
RFQ |
Datasheet |
Bag | - | Active | IPEX MHF1 to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969 (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 85°C |
|
|
CAB468RF-100-A-1CBL ASSY MHF1-SMA 3.937 |
475 | 3.54 |
RFQ |
Datasheet |
Bag | - | Active | IPEX MHF1 to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 85°C |
|
|
CAB468RF-150-A-1CBL ASSY MHF1-SMA 5.906 |
951 | 3.59 |
RFQ |
Datasheet |
Bag | - | Active | IPEX MHF1 to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 85°C |
|
CABLE 384RF-250-0/0/0-ECBL ASSY MHF1 LK -CBL 9.843 |
405 | 3.66 |
RFQ |
Datasheet |
Bag | Nautilus | Active | IPEX MHF1 LK to Cable | IPEX MHF1 LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 9.843 (250.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C |
