| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CABLE 161 RF-100-A-1CBL ASSY MHF1-SMA 3.937 |
2,386 | 10.06 |
RFQ |
Datasheet |
Bag | Nautilus | Active | IPEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | - | -40°C ~ 90°C |
|
CABLE 161 RF-150-A-1CBL ASSY MHF1-SMA 5.906 |
2,137 | 10.24 |
RFQ |
Datasheet |
Bag | Nautilus | Active | IPEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | - | -40°C ~ 90°C |
|
CABLE 196 RF-0100-A-1CBL ASSY SMA-MMCX RG178 3.937 |
1,327 | 12.91 |
RFQ |
Datasheet |
Bag | Nautilus | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.937 (100.00mm) | RG-178 | 50 Ohms | - | - | 3 GHz | Brown | - | -40°C ~ 125°C |
|
CABLE 196 RF-0150-A-1CBL ASSY SMA-MMCX RG178 5.906 |
1,387 | 13.15 |
RFQ |
Datasheet |
Bag | Nautilus | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.906 (150.00mm) | RG-178 | 50 Ohms | - | - | 3 GHz | Brown | - | -40°C ~ 125°C |
|
CABLE 305 RF-0300-A-1CBL ASSY SMA RG178 11.811 |
765 | 14.73 |
RFQ |
Datasheet |
Bag | Nautilus | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 11.811 (300.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | - | -40°C ~ 125°C |
|
CABLE 234 RF-0300-A-1CBL ASSY RP-SMA-RP-SMA 11.811 |
1,158 | 14.75 |
RFQ |
Datasheet |
Bag | Nautilus | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 11.811 (300.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | - | -40°C ~ 125°C |
|
CABLE 329 RF-100-ACBL ASSY MHF1-N 3.937 |
3,863 | 19.56 |
RFQ |
Datasheet |
Bag | Nautilus | Active | IPEX MHF1 to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | RG-178 | 50 Ohms | - | - | 6 GHz | Brown | - | -40°C ~ 90°C |
|
CABLE 348 RF-050-A-1CBL ASSY MHF1-SMA 1.969 |
3,687 | 3.42 |
RFQ |
Datasheet |
Bag | - | Active | IPEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969 (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 85°C |
|
CABLE 348 RF-100-A-1CBL ASSY MHF1-SMA 3.937 |
5,853 | 3.54 |
RFQ |
Datasheet |
Bag | - | Active | IPEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 85°C |
|
CABLE 348 RF-150-A-1CBL ASSY MHF1-SMA 5.906 |
2,214 | 3.59 |
RFQ |
Datasheet |
Bag | - | Active | IPEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 85°C |
|
CABLE 355 RF-200-ACBL ASSY SMA-MHF4 7.874 |
277 | 7.30 |
RFQ |
Datasheet |
Bag | - | Active | SMA to IPEX MHF4 | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 85°C |
|
CABLE 161 RF-050-A-1CBL ASSY MHF1-SMA 1.969 |
776 | 9.90 |
RFQ |
Datasheet |
Bag | Nautilus | Active | IPEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969 (50.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | - | -40°C ~ 90°C |
|
CABLE 162 RF-050-A-1CBL ASSY MHF1-SMA 1.969 |
400 | 9.92 |
RFQ |
Datasheet |
Bag | Nautilus | Active | IPEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Rear Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969 (50.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | - | -40°C ~ 90°C |
|
CABLE 162 RF-100-A-1CBL ASSY MHF1-SMA 3.937 |
325 | 10.11 |
RFQ |
Datasheet |
Bag | Nautilus | Active | IPEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Rear Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | - | -40°C ~ 90°C |
|
CABLE 197 RF-100-A-4CBL ASSY MHF1-RP SMA 3.937 |
130 | 10.27 |
RFQ |
Datasheet |
Bag | Nautilus | Active | IPEX MHF1 to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Rear Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | RG-178 | 50 Ohms | - | - | 3 GHz | Brown | - | -40°C ~ 90°C |
|
CABLE 197 RF-150-A-4CBL ASSY MHF1-RP SMA 5.906 |
324 | 10.64 |
RFQ |
Datasheet |
Bag | Nautilus | Active | IPEX MHF1 to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Rear Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | RG-178 | 50 Ohms | - | - | 3 GHz | Brown | - | -40°C ~ 90°C |
|

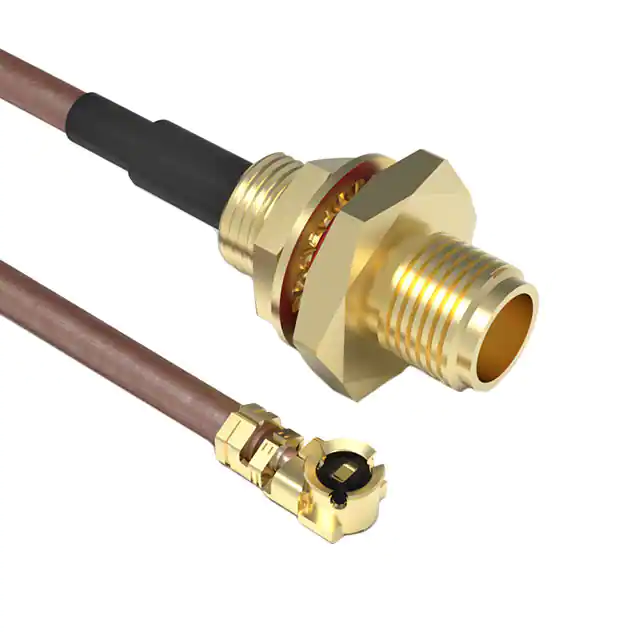

CABLE 162 RF-150-A-1CBL ASSY MHF1-SMA 5.906 |
809 | 10.71 |
RFQ |
Datasheet |
Bag | Nautilus | Active | IPEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Rear Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | - | -40°C ~ 90°C |
|
CABLE 138 RF-0150-A-2CBL ASSY MHF1-RP SMA 5.906 |
345 | 10.71 |
RFQ |
Datasheet |
Bag | Nautilus | Active | IPEX MHF1 to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | 1.37mm OD Coaxial Cable | - | - | - | 3 GHz | Black | - | -40°C ~ 90°C |
|
CAB424RF-0200-A-1CBL ASSY SMA-MHF4L LK 7.874 |
144 | 11.48 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to IPEX MHF4L LK | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C |
|
CABLE 375 RF-150-A-2CBL ASSY MHF1-SMA 5.906 |
332 | 12.13 |
RFQ |
Datasheet |
Bag | Nautilus | Active | IPEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 85°C |
