| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
336313-14-0250CBL ASSY SMA-UMC 9.843 |
405 | 10.27 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843 (250.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
|
336313-14-0300CBL ASSY SMA-UMC 11.811 |
1,037 | 10.50 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811 (300.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
A-1PA-178-500N2CBL ASSY UMCC PLUG RG178 19.69 |
3,758 | 10.89 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Natural | Shielded | -40°C ~ 90°C |
|
135100-01-06.00SMA STRAIGHT PLUG TO BLUNT CUT R |
2,722 | 11.53 |
RFQ |
Datasheet |
Bag | - | Active | SMA to Cable | SMA Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 6.000 (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
115101-19-06.00CBL ASSY BNC PLUG-PLUG RG58 6 |
850 | 12.98 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - |
|
115101-19-M0.25CBL ASSY BNC PLUG RG58 9.843 |
2,582 | 13.11 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 9.843 (250.00mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - |
|
095-902-516-100SMA STRAIGHT PLUG TO AMC PLUG ON |
1,244 | 13.82 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to SMA | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 3.937 (100.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | - | - |
|
|
115101-19-18.00CBL ASSY BNC PLUG-PLUG RG58 18 |
303 | 13.93 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - |
|
|
095-902-516-200SMA STRAIGHT PLUG TO AMC PLUG ON |
102 | 14.13 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to SMA | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 7.874 (200.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | - | - |
|
|
115101-19-M0.50CBL ASSY BNC PLUG RG58 19.69 |
157 | 14.27 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - |
|
|
095-902-516-300SMA STRAIGHT PLUG TO AMC PLUG ON |
3,454 | 14.40 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to SMA | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 11.811 (300.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | - | - |
|
095-902-544-150AMC RA PLUG TO SMA STRAIGHT PLUG |
3,177 | 14.69 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to SMA | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 5.906 (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
095-902-513-100SMA RIGHT ANGLE PLUG TO AMC PLUG |
2,838 | 14.84 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to SMA | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.937 (100.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | - | - |
|
|
095-902-513-200SMA RIGHT ANGLE PLUG TO AMC PLUG |
3,852 | 15.15 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to SMA | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7.874 (200.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | - | - |
|
135100-01-24.00CBL ASSY SMA RG316 24 |
879 | 15.40 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to Cable | SMA Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 24.00 (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
|
095-902-513-300SMA RIGHT ANGLE PLUG TO AMC PLUG |
3,032 | 15.42 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to SMA | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 11.811 (300.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | - | - |
|
115101-05-06.00CBL ASSY BNC PLUG-PLUG RG179 6 |
219 | 15.58 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | - | Copper | Shielded | - |
|
|
095-902-544-300AMC RA PLUG TO SMA STRAIGHT PUGL |
125 | 15.60 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to SMA | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 11.811 (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|

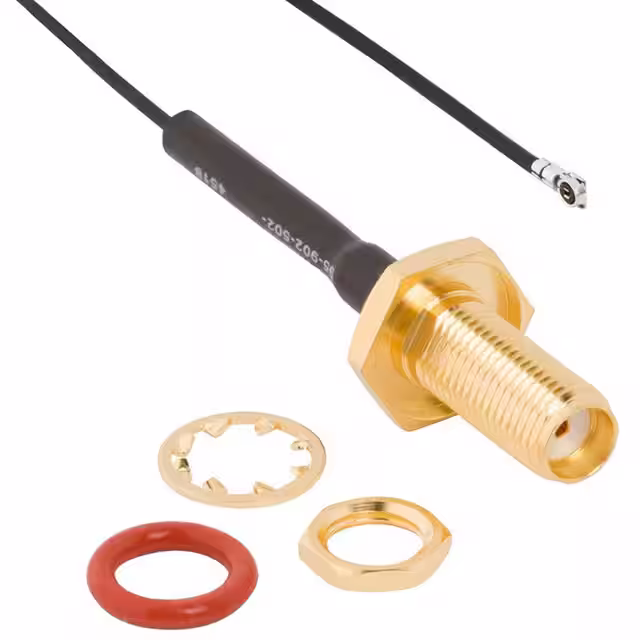

095-902-502-300AMC4 PLUG TO SMA STRAIGHT BULKHE |
584 | 15.93 |
RFQ |
Datasheet |
Bag | - | Active | AMC4 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811 (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
|
115101-19-M1.00CBL ASSY BNC PLUG RG58 3.3' |
258 | 16.51 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - |
