| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
135111-02-12.00CBL ASSY SMA JACK-PLUG RG174 12 |
874 | 24.50 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|
135111-01-12.00CBL ASSY SMA JACK-PLUG RG316 12 |
1,046 | 24.55 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|
336320-12-0250CBL ASSY RP-SMA-UMC 9.843 |
726 | 24.57 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843 (250.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|

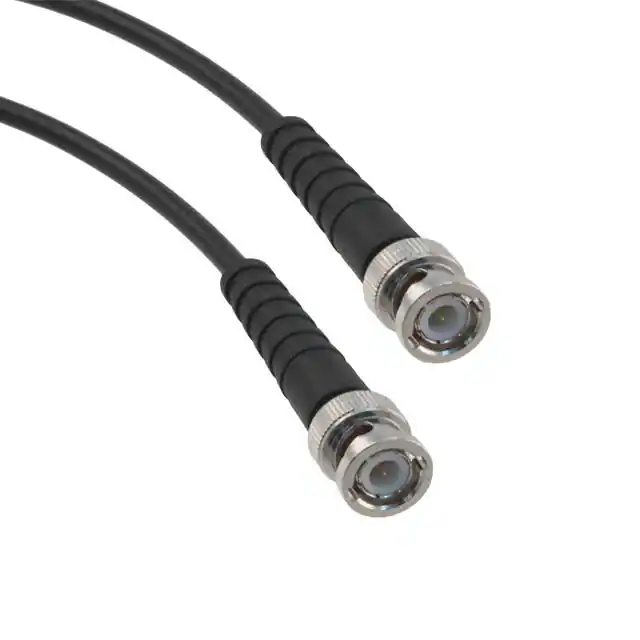

115101-19-180CBL ASSY BNC PLUG-PLUG RG58 15' |
400 | 24.68 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 180.0 (4.6m) 15.0' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - |
|
135104-01-24.00CBL ASSY SMA PLUG RG316 24 |
1,043 | 24.79 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|
145104-01-M0.75CBL ASSY SMB PLUG RG316 29.53 |
333 | 25.22 |
RFQ |
Datasheet |
Bag | - | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 29.53 (750.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
135111-02-M0.50CBL ASSY SMA RG174 19.69 |
440 | 25.49 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|
135101-01-72.00CBL ASSY SMA PLUG-PLUG RG316 72 |
745 | 25.58 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 72.0 (1.8m) 6.0' | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|
245108-01-09.00CBL ASSY SMA-MMCX RG316 9 |
1,242 | 25.92 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to MMCX | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.000 (228.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|

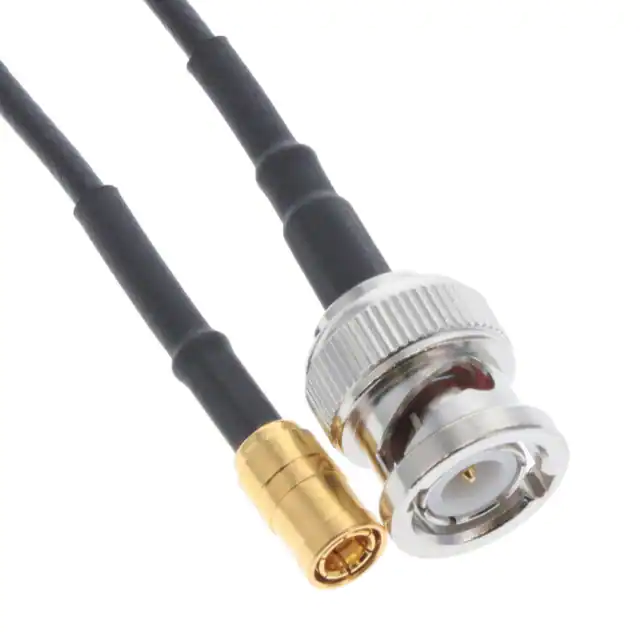

095-850-236-006BNC STRAIGHT PLUG TO SMB STRAIGH |
484 | 26.36 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - |
|
145101-01-M1.00CBL ASSY SMB PLUG RG316 3.3' |
320 | 26.93 |
RFQ |
Datasheet |
Bag | - | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
|
135111-01-24.00CBL ASSY SMA JACK-PLUG RG316 24 |
611 | 27.17 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|
115101-19-M5.00CBL ASSY BNC PLUG RG58 16.4' |
251 | 27.52 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 196.9 (5.0m) 16.4' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - |
|
|
095-850-236-036BNC STRAIGHT PLUG TO SMB STRAIGH |
623 | 27.97 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - |
|
|
135101-01-M2.00SMA STRAIGHT PLUG TO SMA STRAIGH |
397 | 28.33 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 78.7 (2.0m) 6.6' | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|
135104-03-24.00CBL ASSY SMA PLUG RG316 DS 24 |
601 | 29.52 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | 12.4 GHz | Copper | Shielded | - |
|
135101-03-36.00CBL ASSY SMA PLUG RG316 DS 36 |
767 | 29.60 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | 12.4 GHz | Copper | Shielded | - |
|
095-850-130-006CBL ASSY HD-BNC PLUG-PLUG 6 |
920 | 29.84 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | Belden 1855A | - | - | 75 Ohms | 3 GHz | Black | Shielded | -30°C ~ 75°C |
|
115101-19-300CBL ASSY BNC PLUG-PLUG RG58 25' |
276 | 31.54 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 300.0 (7.6m) 25.0' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - |
|
135101-03-M1.00CBL ASSY SMA PLUG RG316 3.3' |
343 | 31.90 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | RG-316 DS | 50 Ohms | - | 50 Ohms | 12.4 GHz | Copper | Shielded | - |
