| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-725-108-030CBL ASSY SMP PLUG-PLUG .085 3 |
2,316 | 43.85 |
RFQ |
Datasheet |
Bag | - | Active | SMP to SMP | SMP Plug | Female | Free Hanging (In-Line) | - | SMP Plug | Female | Free Hanging (In-Line) | - | 3.000 (76.20mm) | Hand Formable .085 | - | - | 50 Ohms | 20 GHz | Gray | - | - |
|
095-902-450-024CBL ASSY SMA PLUG-PLUG .141 24 |
2,397 | 45.05 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Gray | - | - |
|
095-902-459-007CBL ASSY SMA-SMP TFLEX-405 7 |
3,328 | 46.45 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Plug | Female | Free Hanging (In-Line) | - | 7.000 (177.80mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | - |
|
095-850-222M050TNC RA PLUG TO TNC BULKHEAD JACK |
2,328 | 50.27 |
RFQ |
Datasheet |
Bag | ARC | Active | TNC to TNC | TNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Panel Mount | Bulkhead - Front Side Nut | 19.69 (500.00mm) | LMR 200 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
175101-07-24.00CBL ASSY N TYPE PLUG RG142 24 |
3,420 | 58.33 |
RFQ |
Datasheet |
Bulk | - | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-142 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
095-850-186-072CBL ASSY BNC PLUG-PLUG 6' |
3,257 | 59.06 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 72.0 (1.8m) 6.0' | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|
A-1PL-081-100B2CBL ASSY UMCC PLUG-PLUG 3.937 |
3,126 | 4.04 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
|
A-1PL-081-300B2CBL ASSY UMCC PLUG-PLUG 11.811 |
2,599 | 4.95 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811 (300.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
A-2PA-113-050B2CBL ASSY AMMC PLUG-PLUG 1.969 |
3,618 | 5.61 |
RFQ |
Datasheet |
Bag | - | Active | AMMC to AMMC | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969 (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
A-2PA-081-100B2CBL ASSY AMMC PLUG-PLUG 3.937 |
3,982 | 5.76 |
RFQ |
Datasheet |
Bag | - | Active | AMMC to AMMC | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
|
A-2PA-113-100B2CBL ASSY AMMC PLUG-PLUG 3.937 |
2,287 | 5.81 |
RFQ |
Datasheet |
Bag | - | Active | AMMC to AMMC | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
|
A-1PL-081-500B2CBL ASSY UMCC PLUG-PLUG 19.69 |
2,291 | 5.83 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 19.69 (500.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
|
A-2PA-113-250B2CBL ASSY AMMC PLUG-PLUG 9.843 |
2,600 | 6.25 |
RFQ |
Datasheet |
Bag | - | Active | AMMC to AMMC | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843 (250.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|

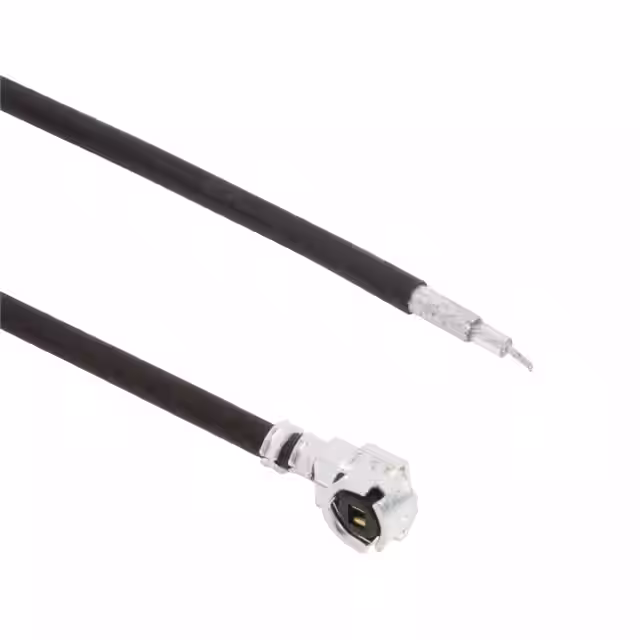

095-666-50056-5CBL ASSY AMC PLUG 14.02 |
2,127 | 6.29 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to Cable | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 14.02 (356.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C |
|
A-1PA-113-153B2CBL ASSY UMCC PLUG-PLUG 6.024 |
2,223 | 6.30 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.024 (153.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
|
A-1PA-113-229B2CBL ASSY UMCC PLUG-PLUG 9 |
2,834 | 6.52 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.000 (228.60mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
|
A-1PA-113-370B2CBL ASSY UMCC PLUG-PLUG 14.56 |
3,791 | 7.05 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 14.56 (369.70mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
|
A-1PA-113-390B2CBL ASSY UMCC PLUG-PLUG 15.35 |
2,451 | 7.13 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 15.35 (390.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
A-1PA-178-150N2CBL ASSY UMCC PLUG RG178 5.906 |
3,956 | 7.49 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Natural | Shielded | -40°C ~ 90°C |
|
A-1PA-132-178B2CBL ASSY UMCC PLUG-PLUG 7 |
2,567 | 7.59 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.000 (177.80mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
