| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
135111-02-M0.75CBL ASSY SMA RG174 29.53 |
2,069 | 27.11 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|
095-850-187M100CBL ASSY BNC PLUG-PLUG 3.3' |
2,396 | 28.46 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|

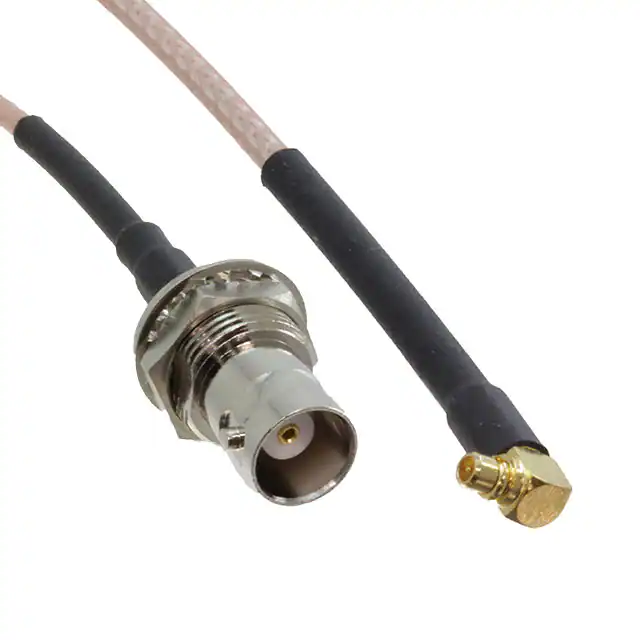

095-850-207-048BNC BULKHEAD JACK TO MMCX PLUG O |
2,746 | 29.54 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | - | - |
|
095-850-243-012CBL ASSY BNC-MCX JACK-PLUG 12 |
2,927 | 29.56 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|
255101-05-12.00CBL ASSY MCX PLUG RG179 12 |
3,945 | 29.77 |
RFQ |
Datasheet |
Box | - | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-179 | 75 Ohms | - | 75 Ohms | - | Copper | Shielded | - |
|
095-725-119M015SMP STRAIGHT PLUG TO SMP STRAIGH |
3,358 | 32.21 |
RFQ |
Datasheet |
Bag | - | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug | Male | Free Hanging (In-Line) | - | 5.906 (150.00mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - |
|
135101-07-18.00CBL ASSY SMA PLUG RG142 18 |
3,530 | 32.53 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-142 | 50 Ohms | - | 50 Ohms | 12.4 GHz | Copper | Shielded | - |
|
095-850-216-024BNC STRAIGHT JACK TO HD-BNC STRA |
2,084 | 42.81 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | Belden 4694R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|

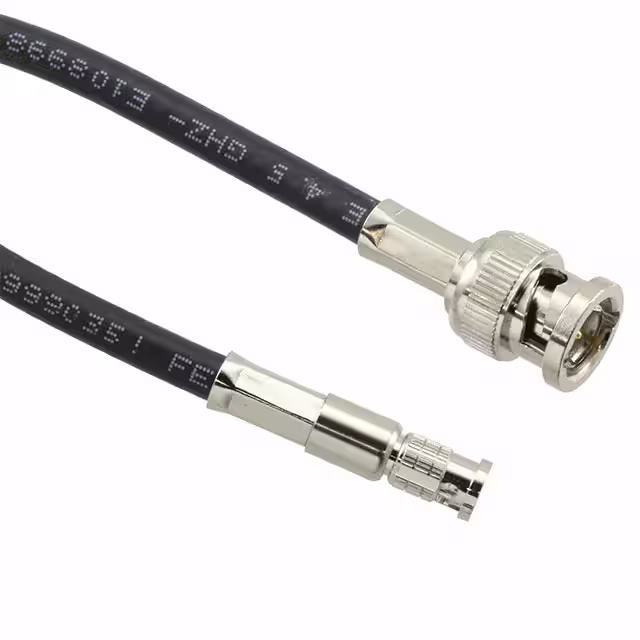

095-850-162-036CBL ASSY HD-BNC PLUG-PLUG 36 |
250 | 33.05 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | Belden 1505A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - |
|
095-850-242-012CBL ASSY BNC-MCX JACK-PLUG 12 |
3,137 | 33.65 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|
095-902-449-005CBL ASSY SMA PLUG-PLUG .085 5 |
3,737 | 34.74 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 5.000 (127.00mm) | Hand Formable .085 | - | - | 50 Ohms | 18 GHz | Gray | - | - |
|
135101-R1-M0.50CBL ASSY SMA PLUG .085 19.69 |
2,935 | 35.13 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | Hand Formable .085 | - | - | 50 Ohms | 12.4 GHz | Gray | - | - |
|
|
095-902-449-006CBL ASSY SMA PLUG-PLUG .085 6 |
2,255 | 35.26 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | Hand Formable .085 | - | - | 50 Ohms | 18 GHz | Gray | - | - |
|
|
095-850-242-024CBL ASSY BNC-MCX JACK-PLUG 24 |
3,263 | 36.45 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|
135104-07-12.00CBL ASSY SMA PLUG RG142 12 |
174 | 37.03 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-142 | 50 Ohms | - | 50 Ohms | 12.4 GHz | Copper | Shielded | - |
|
095-725-119-012SMP STRAIGHT PLUG TO SMP STRAIGH |
2,786 | 37.16 |
RFQ |
Datasheet |
Bag | - | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - |
|
135101-R1-24.00CBL ASSY SMA PLUG-PLUG .085 24 |
3,771 | 38.68 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | Hand Formable .085 | - | - | 50 Ohms | 12.4 GHz | Gray | - | - |
|
095-850-166M300CBL ASSY BNC PLUG-PLUG 9.8' |
2,437 | 39.84 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 118.1 (3.0m) 9.8' | Belden 1694A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - |
|
|
135104-07-18.00CBL ASSY SMA PLUG RG142 18 |
123 | 40.83 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-142 | 50 Ohms | - | 50 Ohms | 12.4 GHz | Copper | Shielded | - |
|
|
095-902-451-008CBL ASSY SMA PLUG TFLEX-405 8 |
2,501 | 41.37 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 8.000 (203.20mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | - |
