| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-288-300AMC4 RIGHT ANGLE PLUG TO RP-TNC |
3,795 | 23.06 |
RFQ |
Bag | - | Active | RP-TNC to AMC4 | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811 (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | |
|
095-850-268-012CBL ASSY BNC JCK TO PLG RG58 12 |
3,902 | 23.24 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 80°C |
|
095-902-568-300AMC RIGHT ANGLE PLUG TO SMA STRA |
2,914 | 23.30 |
RFQ |
Bag | - | Active | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811 (300.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | |
|
|
095-850-289-200AMC4 RIGHT ANGLE PLUG TO RP-TNC |
3,188 | 23.36 |
RFQ |
Bag | - | Active | RP-TNC to AMC4 | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | |
|

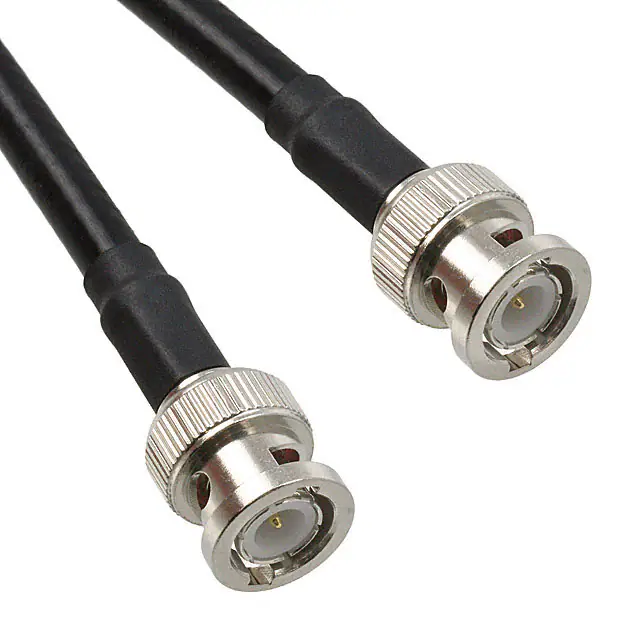

115101-22-36.00CBL ASSY BNC PLUG LMR 240 36 |
2,815 | 23.64 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | LMR 240 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - |
|
095Z820-166M100FAKRA STRAIGHT PLUG TO SMA STRAI |
2,651 | 23.66 |
RFQ |
Datasheet |
Bag | - | Active | SMA to Fakra II | SMA Plug | Male | Free Hanging (In-Line) | - | Fakra II (Gen 2.0) Plug | Male | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - |
|

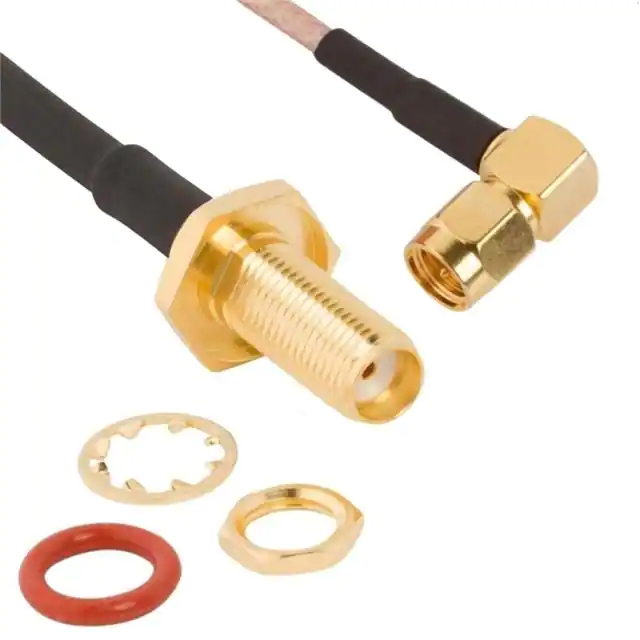

095-902-570-012SMA RIGHT ANGLE MALE PLUG TO SMA |
3,090 | 24.07 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | - | -65°C ~ 165°C |
|
095Z820-165M100FAKRA STRAIGHT JACK TO SMA STRAI |
3,851 | 24.16 |
RFQ |
Datasheet |
Bag | - | Active | SMA to Fakra III | SMA Plug | Male | Free Hanging (In-Line) | - | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - |
|
|
095-850-289-300AMC4 RIGHT ANGLE PLUG TO RP-TNC |
3,196 | 24.31 |
RFQ |
Bag | - | Active | RP-TNC to AMC4 | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811 (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | |
|
|
095-850-268-024CBL ASSY BNC JCK TO PLG RG58 24 |
3,664 | 24.40 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 80°C |
|

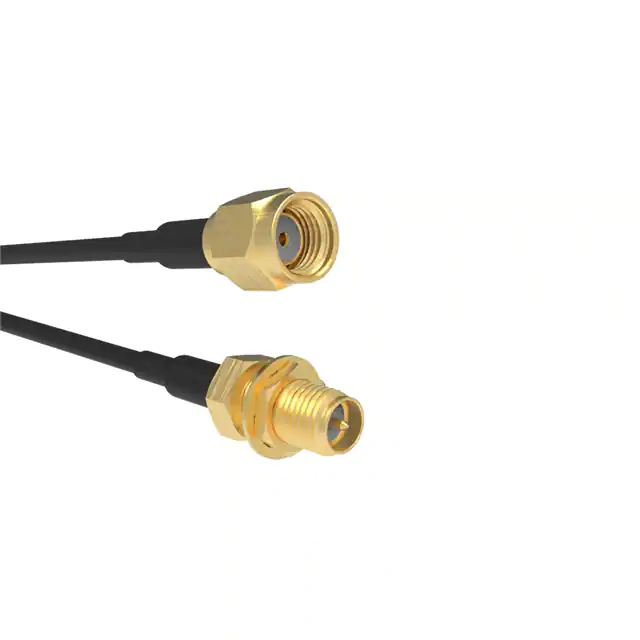

095-902-536-024RP SMA PLUG TO RP SMA JACK ON RG |
3,440 | 24.57 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -65°C ~ 165°C |
|
095-850-259-006RF CABLE ASSEMBLY BNC STRAIGHT P |
2,675 | 24.74 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C |
|

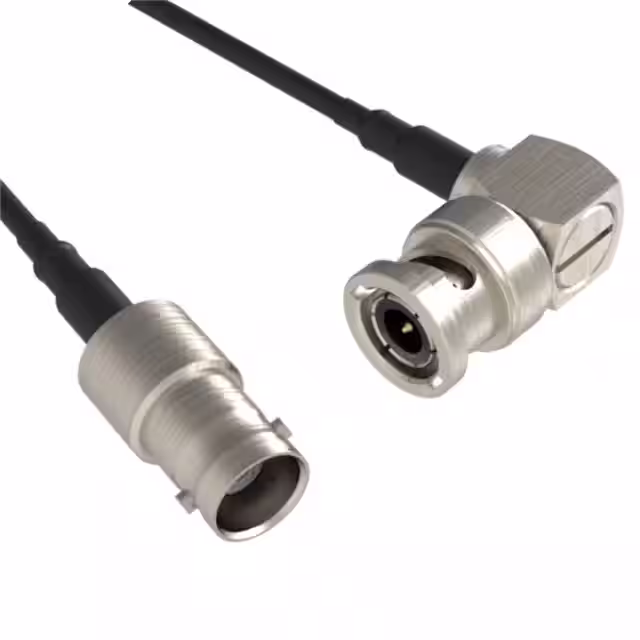

095-850-258-024RF CABLE ASSEMBLY BNC RIGHT ANGL |
2,415 | 24.81 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C |
|
095-850-269M200CBL ASSY BNC JACK TO PLG RG58 2M |
2,741 | 25.02 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 78.7 (2.0m) 6.6' | RG-58 | 50 Ohms | - | 50 Ohms | 4 GHz | Black | Shielded | -40°C ~ 80°C |
|
336303-12-0050CBL ASSY SMA-UMC 1.969 |
2,489 | 25.09 |
RFQ |
Datasheet |
Bulk | - | Not For New Designs | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969 (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|

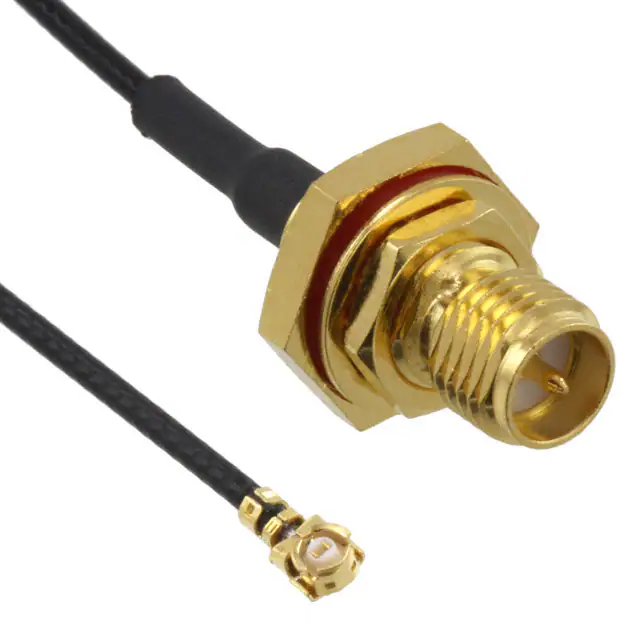

336306-14-0050CBL ASSY RP-SMA-UMC PLUG 1.969 |
3,948 | 25.09 |
RFQ |
Datasheet |
Bag | - | Not For New Designs | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969 (50.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | - | Black | - | - |
|
|
095-850-268-036CBL ASSY BNC JCK TO PLG RG58 36 |
3,791 | 25.32 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 80°C |
|
095-902-535-024RP SMA PLUG TO RP SMA BKHD JACK |
2,719 | 25.43 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -65°C ~ 165°C |
|
|
095-850-268M100CBL ASSY BNC JACK TO PLG RG58 1M |
3,641 | 25.54 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 80°C |
|
|
336306-14-0150CBL ASSY RP-SMA-UMC PLUG 5.906 |
2,233 | 25.54 |
RFQ |
Datasheet |
Bag | - | Not For New Designs | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | - | Black | - | - |
