| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

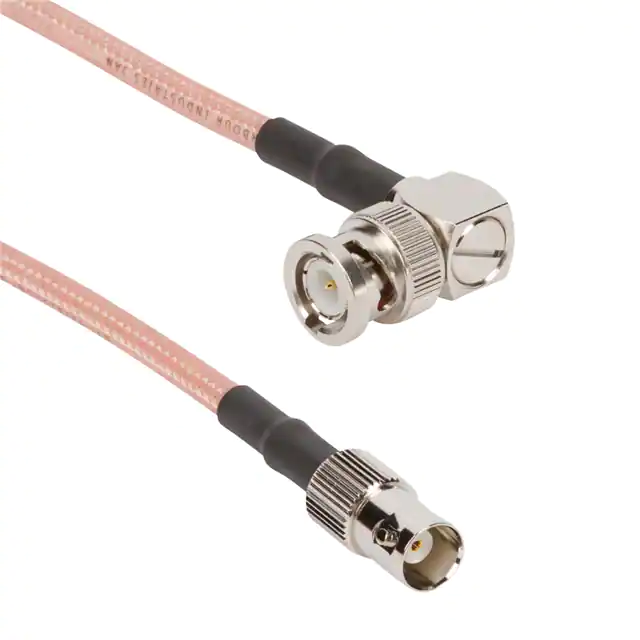

095-850-265M025CBL ASY BNC J TO P RG316 9.843 |
3,898 | 21.86 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843 (250.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -55°C ~ 165°C |
|
095-850-288-200AMC4 RIGHT ANGLE PLUG TO RP-TNC |
3,409 | 22.16 |
RFQ |
Bag | - | Active | RP-TNC to AMC4 | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | |
|

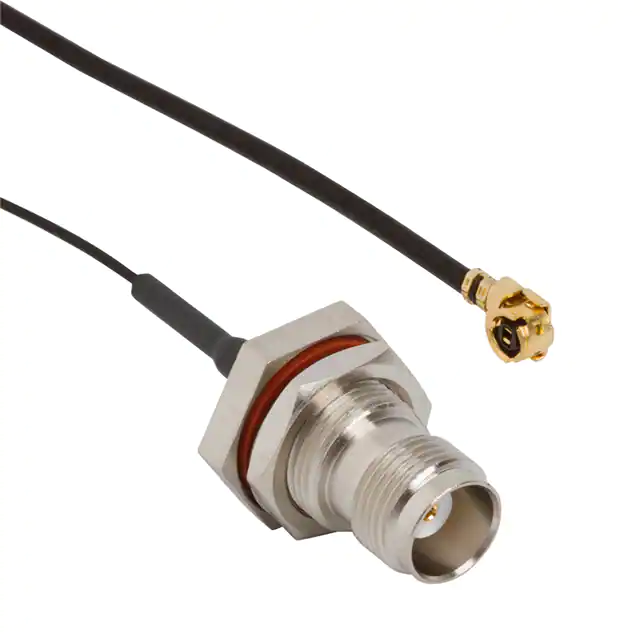

095-850-286-200AMC4 RIGHT ANGLE PLUG TO TNC IP6 |
3,907 | 22.16 |
RFQ |
Bag | - | Active | AMC4 to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | |
|
095-700-37-006CBL ASSY SMB PLUG RG174 6 |
3,887 | 22.20 |
RFQ |
Datasheet |
Bag | SMB | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 4 GHz | Black | - | -40°C ~ 85°C |
|
095-902-568-150AMC RIGHT ANGLE PLUG TO SMA STRA |
3,068 | 22.63 |
RFQ |
Bag | - | Active | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | |
|
|

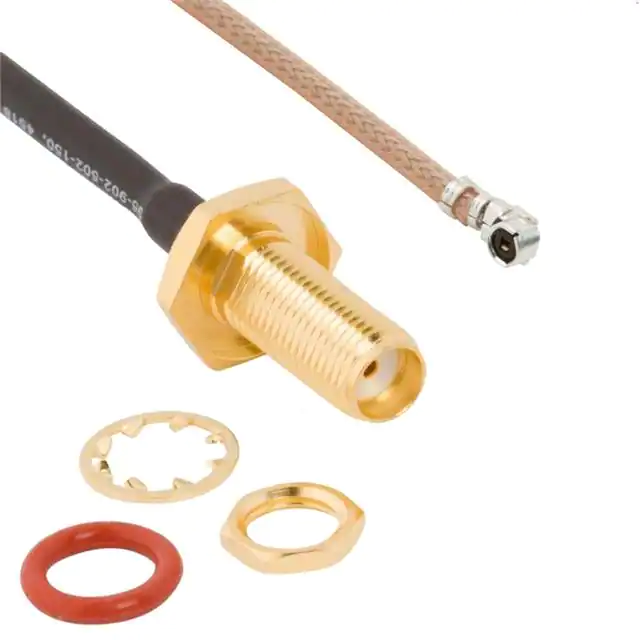

095-902-568-200AMC RIGHT ANGLE PLUG TO SMA STRA |
3,113 | 22.85 |
RFQ |
Bag | - | Active | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | |
|
|

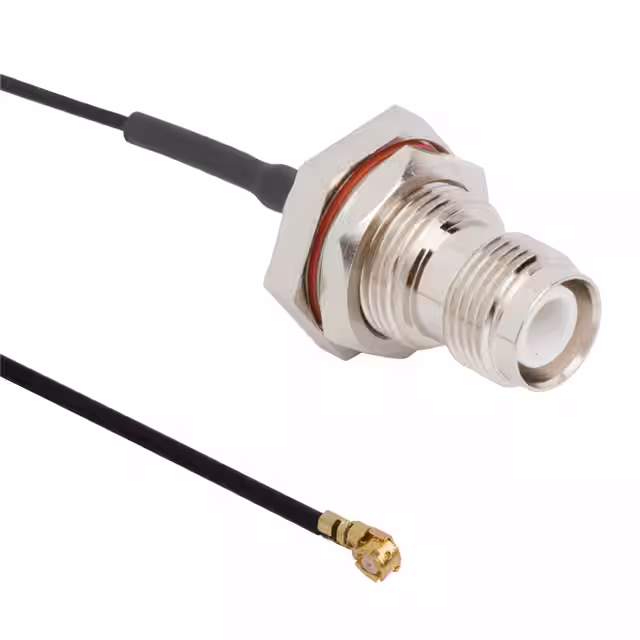

095-850-289-150AMC4 RIGHT ANGLE PLUG TO RP-TNC |
2,359 | 22.91 |
RFQ |
Bag | - | Active | RP-TNC to AMC4 | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | |
|
336212-12-0300CBL ASSY UMCC-RPTNC 11.811 |
3,898 | 32.34 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to RP-TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | 11.811 (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
095-850-275-036CBL ASSY TNC PLUG RG142 36 |
3,139 | 33.02 |
RFQ |
Datasheet |
Bag | TNC | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-142 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | -40°C ~ 85°C |
|

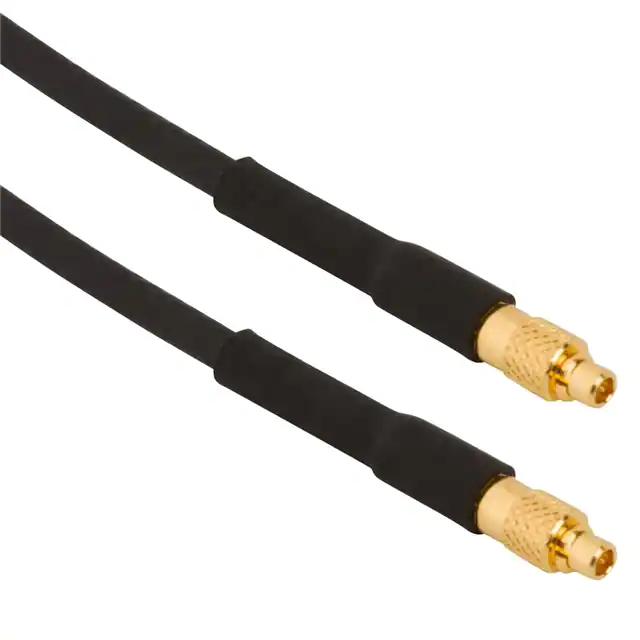

095-900-548-012CBL ASSY MMCX PLUG RG174 12 |
2,999 | 17.52 |
RFQ |
Datasheet |
Bag | MMCX | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C |
|
|
095-900-548-018CBL ASSY MMCX PLUG RG174 18 |
3,570 | 17.75 |
RFQ |
Datasheet |
Bag | MMCX | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C |
|
095-900-549-018CBL ASSY MMCX PLUG RG174 18 |
3,995 | 18.58 |
RFQ |
Datasheet |
Bag | MMCX | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C |
|
|
095-902-567-200AMC RIGHT ANGLE PLUG TO SMA STRA |
2,171 | 18.64 |
RFQ |
Bag | - | Active | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | |
|
095Z820-162-012FAKRA STRAIGHT PLUG TO SMA STRAI |
2,615 | 18.77 |
RFQ |
Datasheet |
Bag | - | Active | SMA to Fakra II | SMA Plug | Male | Free Hanging (In-Line) | - | Fakra II (Gen 2.0) Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - |
|

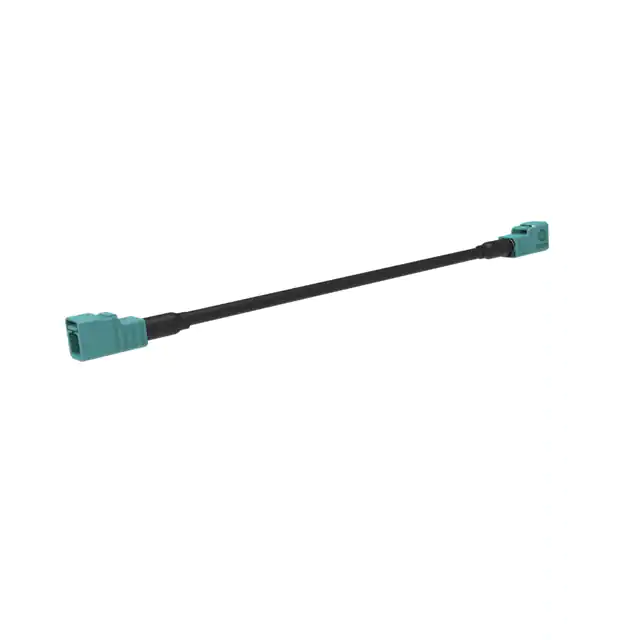

095FJZFJZSH-012RF CABLE ASSEMBLY FAKRA STRAIGHT |
3,216 | 18.80 |
RFQ |
Datasheet |
Bag | - | Active | Fakra to Fakra | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Shielded, Z Code | -40°C ~ 85°C |
|
095-902-538-006RP SMA PLUG TO RP SMA JACK ON RG |
3,675 | 18.91 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -65°C ~ 165°C |
|

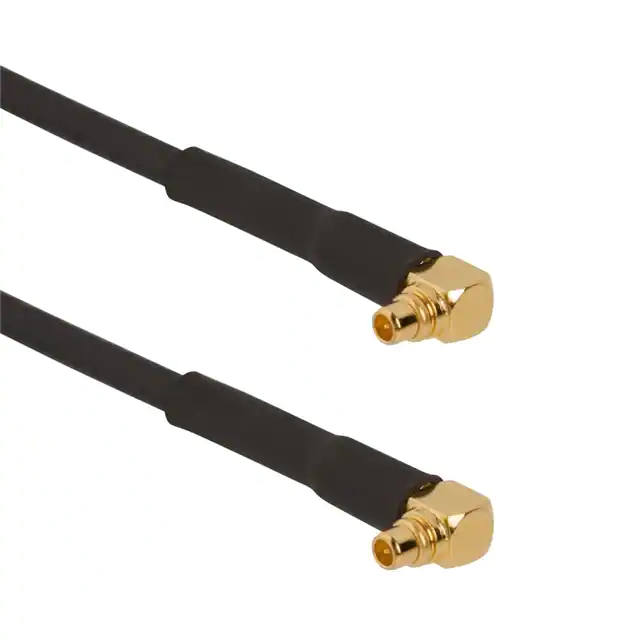

095-900-550-006CBL ASSY MMCX PLUG RG174 6 |
3,359 | 18.94 |
RFQ |
Datasheet |
Bag | MMCX | Active | MMCX to MMCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C |
|

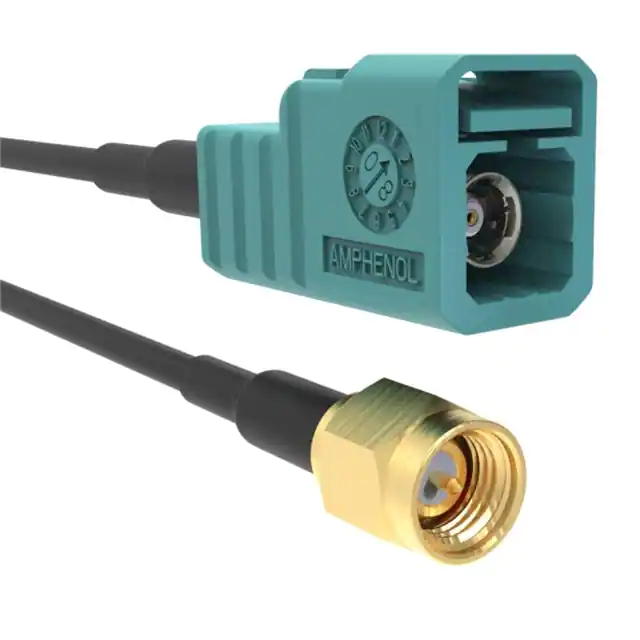

095Z820-161-012FAKRA STRAIGHT JACK TO SMA STRAI |
2,367 | 19.13 |
RFQ |
Datasheet |
Bag | - | Active | SMA to Fakra III | SMA Plug | Male | Free Hanging (In-Line) | - | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - |
|
|
095-902-538-012RP SMA PLUG TO RP SMA JACK ON RG |
2,464 | 19.21 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -65°C ~ 165°C |
|
095-850-250-006BNC STRAIGHT PLUG TO SMA STRAIGH |
2,319 | 19.23 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | 6 GHz | - | Shielded | - |
