| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
135108-04-12.00SMA STRAIGHT JACK TO SMA STRAIGH |
3,088 | 29.90 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - |
|

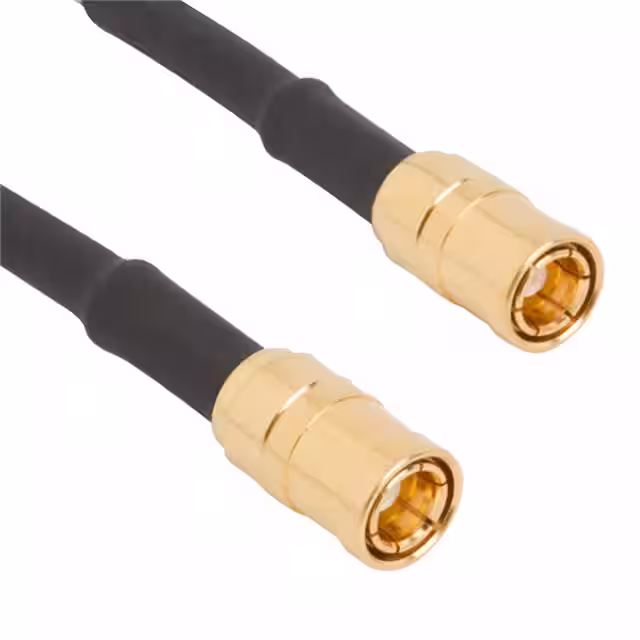

095-700-38-M300CBL ASSY SMB PLUG RG58 3M |
2,620 | 29.98 |
RFQ |
Datasheet |
Bag | SMB | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 118.1 (3.0m) 9.8' | RG-58 | 50 Ohms | - | 50 Ohms | 4 GHz | Black | - | -40°C ~ 85°C |
|
095-850-157M050HD-BNC STRAIGHT PLUG TO 1.0/2.3 |
3,985 | 30.03 |
RFQ |
Datasheet |
Bulk | - | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | Belden 1694A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - |
|
095-850-243M100CBL ASSY BNC-MCX JACK-PLUG 3.3' |
3,220 | 30.04 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug | Male | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|
095-850-255M050RF CABLE ASSEMBLY BNC STRAIGHT J |
2,143 | 30.06 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-142 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C |
|
095-850-246M400CBL ASY BNC-SMA JCK-P RG58 13.1' |
2,855 | 30.12 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 157.5 (4.0m) 13.1' | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - |
|
095-850-279-024CBL ASSY BNC PLUG 24 |
3,106 | 30.15 |
RFQ |
Datasheet |
Bag | BNC | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | LMR 400 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | -40°C ~ 85°C |
|
175101-17-36.00CBL ASSY N TYPE PLUG LMR 200 36 |
2,963 | 30.15 |
RFQ |
Datasheet |
Bulk | - | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | LMR 200 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - |
|
095-850-185-006CBL ASSY HD-BNC PLUG RG316 6 |
2,591 | 30.17 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - |
|
175101-22-M0.25N STRAIGHT PLUG TO N STRAIGHT PL |
2,466 | 30.18 |
RFQ |
Datasheet |
Bulk | - | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 9.843 (250.00mm) | LMR 240 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - |
|
|
095-850-162M150CBL ASSY HD-BNC PLUG-PLUG 4.9' |
2,559 | 30.20 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 5.906 (150.00mm) | Belden 1505A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - |
|
|
095-850-156M050HD-BNC STRAIGHT PLUG TO 1.0/2.3 |
3,301 | 30.23 |
RFQ |
Datasheet |
Bulk | - | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | Belden 1505A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - |
|
255104-03-48.00CBL ASSY MCX PLUG RG316 DS 4' |
3,455 | 30.31 |
RFQ |
Datasheet |
Bulk | - | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | RG-316 DS | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
|
095-850-162-060HD-BNC STRAIGHT PLUG TO BNC STRA |
2,232 | 30.31 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 60.0 (1.5m) 5.0' | Belden 1505A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - |
|
095-725-120M015SMP STRAIGHT PLUG TO SMP RIGHT A |
2,095 | 30.42 |
RFQ |
Datasheet |
Bag | - | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.906 (150.00mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - |
|
135110-07-M0.50SMA BULKHEAD JACK TO SMA STRAIGH |
2,529 | 30.43 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-142 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
095-850-251-012RF CABLE ASSEMBLY BNC RIGHT ANGL |
2,360 | 30.43 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-142 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C |
|
095-725-119-011SMP STRAIGHT PLUG TO SMP STRAIGH |
3,269 | 30.48 |
RFQ |
Datasheet |
Bag | - | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug | Male | Free Hanging (In-Line) | - | 11.000 (279.40mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - |
|
255101-05-48.00CBL ASSY MCX PLUG-PLUG RG179 4' |
3,793 | 30.50 |
RFQ |
Datasheet |
Bulk | - | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | RG-179 | 75 Ohms | - | 75 Ohms | - | Copper | Shielded | - |
|
175101-10-06.00CBL ASSY N TYPE PLUG LMR 400 6 |
3,158 | 30.57 |
RFQ |
Datasheet |
Bulk | - | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | LMR 400 | 50 Ohms | - | 50 Ohms | 5.8 GHz | Black | Shielded | - |
