| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
175101-22-06.00CBL ASSY N TYPE PLUG LMR 240 6 |
3,775 | 28.16 |
RFQ |
Datasheet |
Bulk | - | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | LMR 240 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - |
|
095-850-131M025CBL ASSY HD-BNC PLUG 9.843 |
2,766 | 28.16 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 9.843 (250.00mm) | Belden 1694A | - | - | 75 Ohms | 3 GHz | Black | Shielded | 0°C ~ 50°C |
|
095-850-165-120CBL ASSY BNC PLUG-PLUG 8.5' |
2,228 | 28.19 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 102.0 (2.6m) 8.5' | Belden 1505A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - |
|
095-900-551-036CBL ASSY MCX PLUG 36 |
3,625 | 28.19 |
RFQ |
Datasheet |
Bag | MCX | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | - | -40°C ~ 85°C |
|
095-850-155M025HD-BNC STRAIGHT PLUG TO 1.0/2.3 |
2,318 | 28.21 |
RFQ |
Datasheet |
Bulk | - | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 9.843 (250.00mm) | Belden 1855A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - |
|
095-850-252-012RF CABLE ASSEMBLY BNC RIGHT ANGL |
3,274 | 28.21 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-142 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C |
|
095-902-475-018CBL ASSY SMA PLUG LMR 195 18 |
2,038 | 28.27 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00 (457.20mm) | LMR 195 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
095-725-119M020SMP STRAIGHT PLUG TO SMP STRAIGH |
2,644 | 28.34 |
RFQ |
Datasheet |
Bag | - | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug | Male | Free Hanging (In-Line) | - | 7.874 (200.00mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - |
|
095-902-462-011SMA STRAIGHT JACK TO BLUNT CUT O |
3,278 | 28.35 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 11.000 (279.40mm) | Micro Coaxial | - | - | 50 Ohms | 18 GHz | Gray | Shielded | -20°C ~ 75°C |
|
336209-13-0050CBL ASSY UMCC-TNC 1.969 |
2,461 | 28.38 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 1.969 (50.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
|
095-850-155-012HD-BNC STRAIGHT PLUG TO 1.0/2.3 |
3,255 | 28.41 |
RFQ |
Datasheet |
Bulk | - | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | Belden 1855A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - |
|
|
095-725-119-008SMP STRAIGHT PLUG TO SMP STRAIGH |
3,494 | 28.41 |
RFQ |
Datasheet |
Bag | - | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug | Male | Free Hanging (In-Line) | - | 8.000 (203.20mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - |
|
095-850-254-018RF CABLE ASSEMBLY BNC STRAIGHT P |
3,092 | 28.45 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-142 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C |
|
135108-R1-11.00CBL ASSY SMA JACK-JACK .085 11 |
3,335 | 28.46 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 11.000 (279.40mm) | Hand Formable .085 | - | - | 50 Ohms | - | - | - | - |
|

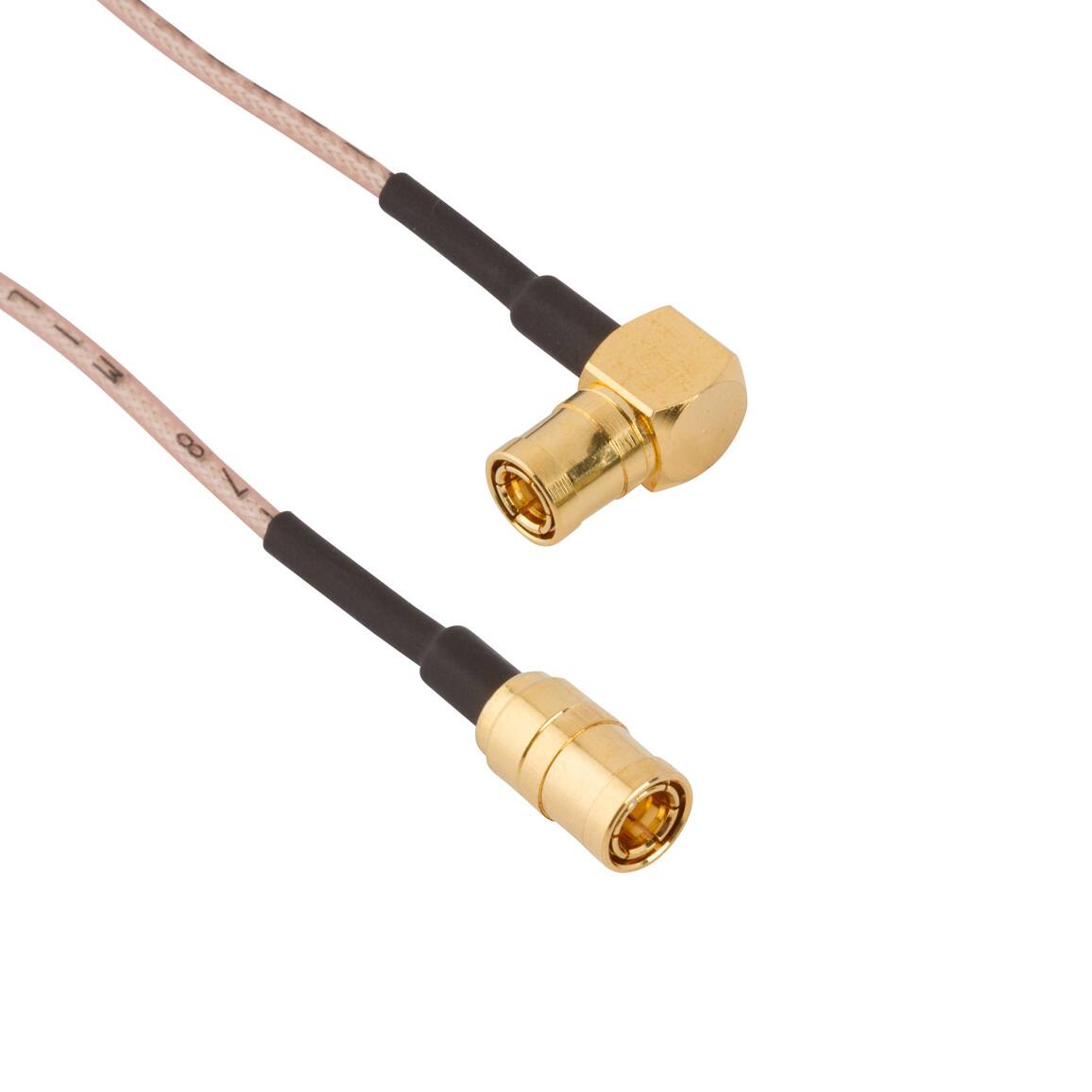

145103-08-48.00SMB RIGHT ANGLE PLUG TO SMB STRA |
2,762 | 28.49 |
RFQ |
Datasheet |
Bag | - | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
|
095-900-551M100CBL ASSY MCX PLUG 1M |
2,879 | 28.55 |
RFQ |
Datasheet |
Bag | MCX | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | - | -40°C ~ 85°C |
|
095-850-269M500CBL ASSY BNC JACK TO PLG RG58 5M |
2,769 | 28.57 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 196.9 (5.0m) 16.4' | RG-58 | 50 Ohms | - | 50 Ohms | 4 GHz | Black | Shielded | -40°C ~ 80°C |
|
095-850-157M025HD-BNC STRAIGHT PLUG TO 1.0/2.3 |
3,211 | 28.60 |
RFQ |
Datasheet |
Bulk | - | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 9.843 (250.00mm) | Belden 1694A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - |
|
135108-04-06.00SMA STRAIGHT JACK TO SMA STRAIGH |
3,745 | 28.62 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - |
|
135111-03-24.00CBL ASSY SMA RG316 DS 24 |
3,093 | 28.63 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
