| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
265101-08-84.00MMCX STRAIGHT PLUG TO MMCX STRAI |
2,068 | 24.45 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 84.0 (2.1m) 7.0' | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
145103-08-24.00CBL ASSY SMB PLUG RG178 24 |
2,948 | 24.47 |
RFQ |
Datasheet |
Bulk | - | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
|
245110-08-48.00CBL ASY SMA-MMCX J TO P RG178 4' |
2,850 | 24.47 |
RFQ |
Datasheet |
Bag | - | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | RG-178 | - | - | 50 Ohms | - | Copper | Shielded | - |
|
095-850-246M200CBL ASSY BNC-SMA JK-PL RG58 6.6' |
3,407 | 24.53 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 78.7 (2.0m) 6.6' | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - |
|

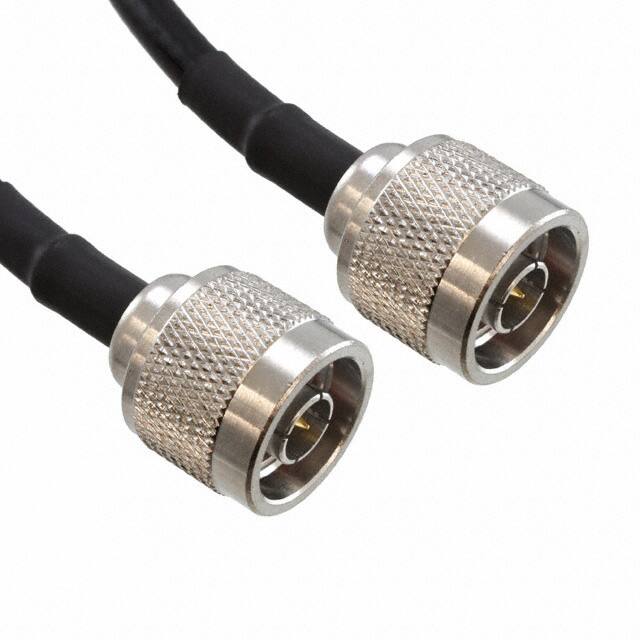

175101-19-24.00CBL ASSY N TYPE PLUG RG58 24 |
2,482 | 24.55 |
RFQ |
Datasheet |
Bulk | - | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - |
|
095-850-237M025BNC RIGHT ANGLE PLUG TO SMB STRA |
2,192 | 24.55 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 9.843 (250.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - |
|
095-850-275M075CBL ASSY TNC PLUG RG142 29.53 |
2,378 | 24.59 |
RFQ |
Datasheet |
Bag | TNC | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | RG-142 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | -40°C ~ 85°C |
|
095-850-234M020BNC STRAIGHT BULKHEAD JACK PIGTA |
2,712 | 24.64 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Cable | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 7.874 (200.00mm) | Hand Formable .085 | - | - | 50 Ohms | 4 GHz | Silver | - | - |
|
|
135108-R1-04.00CBL ASSY SMA JACK-JACK .085 4 |
3,277 | 24.74 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 4.000 (101.60mm) | Hand Formable .085 | - | - | 50 Ohms | - | - | - | - |
|
|
135108-R2-04.00CBL ASSY SMA JACK-JACK .141 4 |
3,785 | 24.74 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 4.000 (101.60mm) | Hand Formable .141 | - | - | 50 Ohms | - | - | - | - |
|
095-900-551M025CBL ASSY MCX PLUG 9.843 |
2,128 | 24.75 |
RFQ |
Datasheet |
Bag | MCX | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843 (250.00mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | - | -40°C ~ 85°C |
|
095-850-255-012RF CABLE ASSEMBLY BNC STRAIGHT J |
3,759 | 24.80 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-142 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C |
|
095-902-570-048SMA RIGHT ANGLE MALE PLUG TO SMA |
2,356 | 24.88 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | - | -65°C ~ 165°C |
|
|
336503-13-0100CBL ASSY UMCC-MCX 3.937 |
2,516 | 24.89 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to MCX | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | MCX Socket | Female | Panel Mount | Bulkhead - Front Side Nut | 3.937 (100.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | - | - | - | - |
|
|
095-850-162M025CBL ASSY HD-BNC PLUG 9.843 |
3,512 | 24.89 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 9.843 (250.00mm) | Belden 1505A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - |
|
095-850-186M025CBL ASSY BNC PLUG-PLUG 9.843 |
3,520 | 24.89 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 9.843 (250.00mm) | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|
|
095-850-237-018BNC RIGHT ANGLE PLUG TO SMB STRA |
3,566 | 24.92 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - |
|
095-850-210-050BNC STRAIGHT BULKHEAD JACK TO AM |
3,269 | 24.95 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969 (50.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
|
095-850-237M050BNC RIGHT ANGLE PLUG TO SMB STRA |
2,431 | 24.99 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - |
|
|
336503-13-0050CBL ASSY UMCC-MCX 1.969 |
2,770 | 25.02 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to MCX | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | MCX Socket | Female | Panel Mount | Bulkhead - Front Side Nut | 1.969 (50.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | - | - | - | - |
