| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TNPU1206252RBZEA00RES 252 OHM 0.1% 1/4W 1206 |
4,873 | 2.59 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 252 Ohms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) | |
|
WSC25151R000FTARES 1 OHM 1% 1W 2515 |
1,850 | 2.09 |
RFQ |
Datasheet |
2515 J-Lead | Tape & Reel (TR),Cut Tape (CT) | WSC | Active | 1 Ohms | ±1% | 1W | Wirewound | Automotive AEC-Q200, Pulse Withstanding | ±50ppm/°C | -65°C ~ 275°C | AEC-Q200 | 0.250 L x 0.150 W (6.35mm x 3.81mm) | 0.125 (3.17mm) | |
|
WSLT59311L000FEARES 0.001 OHM 1% 5W 5931 |
1,405 | 2.67 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WSLT | Active | 1 mOhms | ±1% | 5W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 275°C | AEC-Q200 | 0.591 L x 0.305 W (15.00mm x 7.75mm) | 0.020 (0.50mm) | |
|

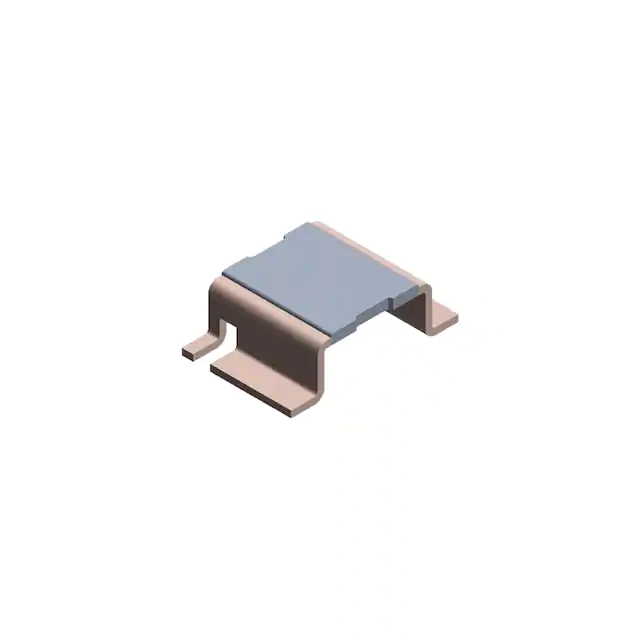

WSLT40265L000FEARES 0.005 OHM 1% 3W 4026 |
1,379 | 2.67 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WSLT | Active | 5 mOhms | ±1% | 3W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 275°C | AEC-Q200 | 0.400 L x 0.260 W (10.16mm x 6.60mm) | 0.126 (3.20mm) | |
|
WSR54L000FEARES 0.004 OHM 1% 5W 4527 |
1,369 | 2.71 |
RFQ |
Datasheet |
4527 J-Lead | Tape & Reel (TR),Cut Tape (CT) | WSR | Active | 4 mOhms | ±1% | 5W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±300ppm/°C | -65°C ~ 275°C | AEC-Q200 | 0.455 L x 0.275 W (11.56mm x 6.98mm) | 0.100 (2.54mm) | |
|
RCP0505W25R0GEBRES SMD 25 OHM 2% 1.4W 0505 |
1,345 | 2.73 |
RFQ |
Datasheet |
0505 (1412 Metric) | Tape & Reel (TR),Cut Tape (CT) | RCP | Active | 25 Ohms | ±2% | 1.4W | Thick Film | Moisture Resistant | ±150ppm/°C | -65°C ~ 155°C | - | 0.055 L x 0.050 W (1.40mm x 1.27mm) | 0.025 (0.64mm) | |
|
WSLP40263L000FEARES 0.003 OHM 1% 5W 4026 |
1,139 | 2.80 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WSLP4026 | Active | 3 mOhms | ±1% | 5W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.400 L x 0.260 W (10.16mm x 6.60mm) | 0.113 (2.88mm) | |
|
TNPU040220K0AZEP00TNPU0402 20K 0.05% T-16 EP1 E3 |
3,800 | 2.29 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 20 kOhms | ±0.05% | 0.063W, 1/16W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.039 L x 0.020 W (1.00mm x 0.50mm) | 0.016 (0.40mm) | |
.JPG)
|
TNPW1210100RBEENRES 100 OHM 0.1% 1/3W 1210 |
3,207 | 2.29 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPW e3 | Active | 100 Ohms | ±0.1% | 0.333W, 1/3W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±25ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.096 W (3.20mm x 2.45mm) | 0.030 (0.75mm) | |
|
|
TNPU0402100KAZEP00TNPU0402 100K 0.05% T-16 EP1 E3 |
5,890 | 2.29 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 100 kOhms | ±0.05% | 0.063W, 1/16W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.039 L x 0.020 W (1.00mm x 0.50mm) | 0.016 (0.40mm) | |
|
WSLP5931L2000FEARES SMD 200 UOHM 1% 10W 5931 |
1,400 | 2.86 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WSLP5931 | Active | 200 µOhms | ±1% | 10W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±225ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.591 L x 0.305 W (15.00mm x 7.75mm) | 0.020 (0.50mm) | |
|
WSL36375L000DEARES 0.005 OHM 0.5% 3W 3637 |
7,483 | 2.88 |
RFQ |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WSL | Active | 5 mOhms | ±0.5% | 3W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.360 L x 0.370 W (9.14mm x 9.40mm) | 0.035 (0.89mm) | ||
|
TNPU060320K0AZEN00RES SMD 20K OHM 0.05% 1/10W 0603 |
1,805 | 2.88 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 20 kOhms | ±0.05% | 0.1W, 1/10W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.063 L x 0.033 W (1.60mm x 0.85mm) | 0.022 (0.55mm) | |
|
|
WSLP5931L5000FEBRES SMD 500 UOHM 1% 10W 5931 |
1,245 | 2.88 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WSLP5931 | Active | 500 µOhms | ±1% | 10W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±175ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.591 L x 0.305 W (15.00mm x 7.75mm) | 0.020 (0.50mm) | |
|
|
WSR5R0150FEARES 0.015 OHM 1% 5W 4527 |
2,375 | 2.92 |
RFQ |
Datasheet |
4527 J-Lead | Tape & Reel (TR),Cut Tape (CT) | WSR | Active | 15 mOhms | ±1% | 5W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 275°C | AEC-Q200 | 0.455 L x 0.275 W (11.56mm x 6.98mm) | 0.100 (2.54mm) | |
|
TNPU08055K00AZEN00RES SMD 5K OHM 0.05% 1/8W 0805 |
1,527 | 2.94 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 5 kOhms | ±0.05% | 0.125W, 1/8W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.022 (0.55mm) | |
|
|
TNPU12062K21BZEN00RES SMD 2.21K OHM 0.1% 1/4W 1206 |
195 | 3.03 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 2.21 kOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) | |
|
|
TNPU1206590RBZEN00RES SMD 590 OHM 0.1% 1/4W 1206 |
172 | 3.03 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 590 Ohms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) | |
|
|
TNPU12062K20BZEN00RES SMD 2.2K OHM 0.1% 1/4W 1206 |
110 | 3.03 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 2.2 kOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) | |
|
|
TNPU12064K99BZEN00RES SMD 4.99K OHM 0.1% 1/4W 1206 |
1,059 | 3.05 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 4.99 kOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) |
