| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG)
|
TNPW080510K0BETYRES 10K OHM 0.1% 1/8W 0805 |
1,005 | 1.63 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPW | Active | 10 kOhms | ±0.1% | 0.125W, 1/8W | Thin Film | - | ±25ppm/°C | -55°C ~ 125°C | - | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.022 (0.55mm) | |
|
RCP1206W10R0GEBRES SMD 10 OHM 2% 2.4W 1206 |
830 | 1.99 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | RCP | Active | 10 Ohms | ±2% | 2.4W | Thick Film | Moisture Resistant | ±150ppm/°C | -65°C ~ 155°C | - | 0.122 L x 0.060 W (3.10mm x 1.52mm) | 0.025 (0.64mm) | |
|
|
RCP1206W75R0GEBRES SMD 75 OHM 2% 2.4W 1206 |
1,448 | 1.99 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | RCP | Active | 75 Ohms | ±2% | 2.4W | Thick Film | Moisture Resistant | ±150ppm/°C | -65°C ~ 155°C | - | 0.122 L x 0.060 W (3.10mm x 1.52mm) | 0.025 (0.64mm) | |
|
WSR25L000FEARES 0.005 OHM 1% 2W 4527 |
2,042 | 1.66 |
RFQ |
Datasheet |
4527 J-Lead | Tape & Reel (TR),Cut Tape (CT) | WSR | Active | 5 mOhms | ±1% | 2W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±110ppm/°C | -65°C ~ 275°C | AEC-Q200 | 0.455 L x 0.275 W (11.56mm x 6.98mm) | 0.100 (2.54mm) | |
|

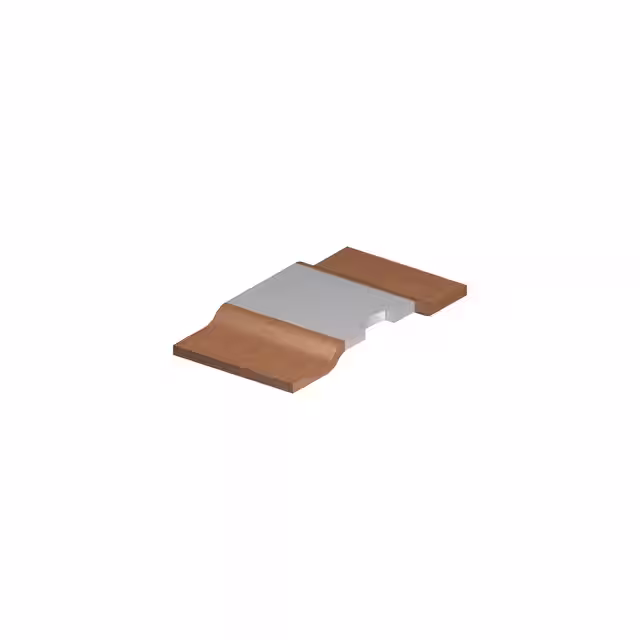

WSLT39214L000FEARES 0.004 OHM 1% 3W 3921 |
2,900 | 2.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WSLT | Active | 4 mOhms | ±1% | 3W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 275°C | AEC-Q200 | 0.394 L x 0.205 W (10.00mm x 5.20mm) | 0.020 (0.50mm) | |
|
|
WSLT39211L000FEARES 0.001 OHM 1% 3W 3921 |
2,896 | 2.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WSLT | Active | 1 mOhms | ±1% | 3W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 275°C | AEC-Q200 | 0.394 L x 0.205 W (10.00mm x 5.20mm) | 0.020 (0.50mm) | |
|
WSL2726L5000FEBRES SMD 500 UOHM 1% 3W 2726 |
1,219 | 2.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WSL | Active | 500 µOhms | ±1% | 3W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.272 L x 0.260 W (6.90mm x 6.60mm) | 0.126 (3.20mm) | |
|
WSL2010R1000DEBRES 0.1 OHM 0.5% 1/2W 2010 |
1,984 | 2.02 |
RFQ |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSL | Active | 100 mOhms | ±0.5% | 0.5W, 1/2W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.200 L x 0.100 W (5.08mm x 2.54mm) | 0.035 (0.89mm) | ||
|
WSL0603R0100DEARES 0.01 OHM 0.5% 1/10W 0603 |
1,738 | 2.02 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSL | Active | 10 mOhms | ±0.5% | 0.1W, 1/10W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.060 L x 0.030 W (1.52mm x 0.76mm) | 0.021 (0.53mm) | |
.JPG)
|
TNPW1210240RBEEARES 240 OHM 0.1% 1/3W 1210 |
4,609 | 1.70 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPW e3 | Active | 240 Ohms | ±0.1% | 0.333W, 1/3W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±25ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.096 W (3.20mm x 2.45mm) | 0.030 (0.75mm) | |
|
CRMA2512AF15M0FKEFRES 15M OHM 1% 1W 2512 |
2,245 | 1.63 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | CRMA | Active | 15 MOhms | ±1% | 1W | Thick Film | Automotive AEC-Q200, High Voltage | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.250 L x 0.126 W (6.35mm x 3.20mm) | 0.029 (0.73mm) | |
|
WSL12065L000DEARES 0.005 OHM 0.5% 1/4W 1206 |
3,950 | 2.09 |
RFQ |
- | Tape & Reel (TR),Cut Tape (CT) | WSL | Active | 5 mOhms | ±0.5% | 0.25W, 1/4W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±110ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.035 (0.89mm) | ||
|
TNPU040220K0AYEP00TNPU0402 20K 0.05% T-13 EP1 E3 |
3,990 | 1.73 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 20 kOhms | ±0.05% | 0.063W, 1/16W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±10ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.039 L x 0.020 W (1.00mm x 0.50mm) | 0.016 (0.40mm) | |
|
|
WSR36L000FEARES 0.006 OHM 1% 3W 4527 |
952 | 1.73 |
RFQ |
Datasheet |
4527 J-Lead | Tape & Reel (TR),Cut Tape (CT) | WSR | Active | 6 mOhms | ±1% | 3W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±110ppm/°C | -65°C ~ 275°C | AEC-Q200 | 0.455 L x 0.275 W (11.56mm x 6.98mm) | 0.100 (2.54mm) | |
|
|
TNPU04022K00AYEP00TNPU0402 2K0 0.05% T-13 EP1 E3 |
1,045 | 1.73 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 2 kOhms | ±0.05% | 0.063W, 1/16W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±10ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.039 L x 0.020 W (1.00mm x 0.50mm) | 0.016 (0.40mm) | |
|
WSHP28181L000FEARES 0.001 OHM 1% 10W 2818 |
4,629 | 2.12 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WSHP2818 | Active | 1 mOhms | ±1% | 10W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±200ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.280 L x 0.181 W (7.10mm x 4.60mm) | 0.069 (1.75mm) | |
|
|
TNPU04024K99BZEP00TNPU0402 4K99 0.1% T-16 EP1 E3 |
1,666 | 1.77 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 4.99 kOhms | ±0.1% | 0.063W, 1/16W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.039 L x 0.020 W (1.00mm x 0.50mm) | 0.016 (0.40mm) | |
|

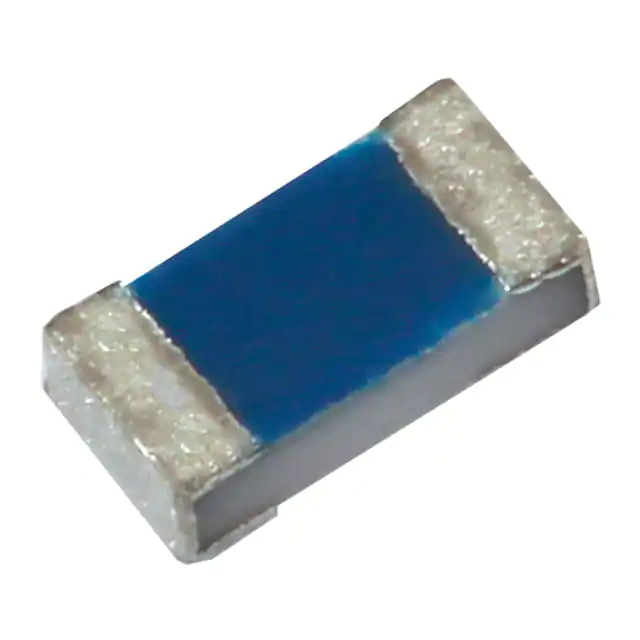

TNPU04023K01BZEP00TNPU0402 3K01 0.1% T-16 EP1 E3 |
1,600 | 1.77 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 3.01 kOhms | ±0.1% | 0.063W, 1/16W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.039 L x 0.020 W (1.00mm x 0.50mm) | 0.016 (0.40mm) | |
|
|
WSL1206R0500FTBRES 0.05 OHM 1% 1/4W 1206 |
1,980 | 2.16 |
RFQ |
- | Tape & Reel (TR),Cut Tape (CT) | WSL | Active | 50 mOhms | ±1% | 0.25W, 1/4W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.035 (0.89mm) | ||
|
|
WSR21L000FEARES 0.001 OHM 1% 2W 4527 |
2,370 | 1.76 |
RFQ |
Datasheet |
4527 J-Lead | Tape & Reel (TR),Cut Tape (CT) | WSR | Active | 1 mOhms | ±1% | 2W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±750ppm/°C | -65°C ~ 275°C | AEC-Q200 | 0.455 L x 0.275 W (11.56mm x 6.98mm) | 0.100 (2.54mm) |
