| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

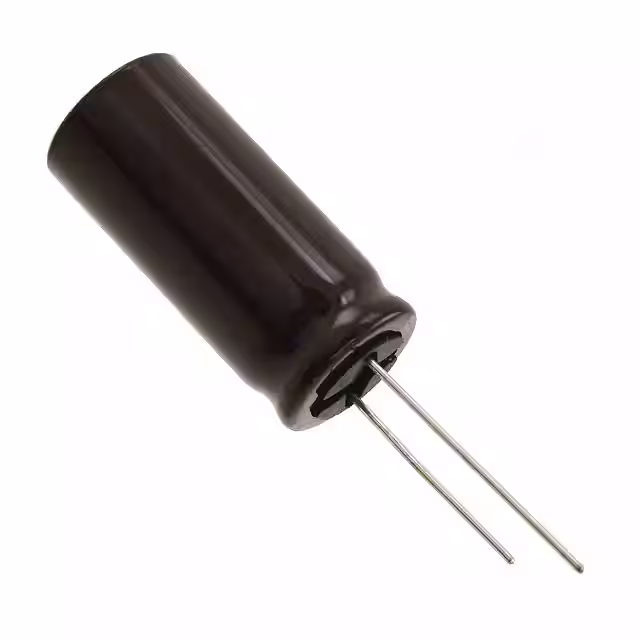

UPJ1E332MHDCAP ALUM 3300UF 20% 25V RADIAL |
2,172 | 1.26 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 3300 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.41 A @ 120 Hz | 2.68 A @ 10 kHz | 25 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
UUJ1J221MNQ6MSCAP ALUM 220UF 20% 63V SMD |
3,754 | 1.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | UUJ | Not For New Designs | 220 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 385 mA @ 120 Hz | 577.5 mA @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | 0.535 L x 0.535 W (13.60mm x 13.60mm) | Surface Mount |
|
UBT2C151MHD8CAP ALUM 150UF 20% 160V RADIAL |
2,039 | 1.68 |
RFQ |
Datasheet |
Bulk | UBT | Active | 150 µF | ±20% | 160 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 434 mA @ 120 Hz | 651 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
LLS2C471MELZCAP ALUM 470UF 20% 160V SNAP |
3,720 | 1.61 |
RFQ |
Datasheet |
Bulk | LLS | Active | 470 µF | ±20% | 160 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.86 A @ 120 Hz | 2.79 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
UUG2E470MNQ6MSCAP ALUM 47UF 20% 250V SMD |
3,457 | 1.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | UUG | Not For New Designs | 47 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 415 mA @ 120 Hz | - | - | - | 0.630 Dia (16.00mm) | 0.886 (22.50mm) | 0.673 L x 0.673 W (17.10mm x 17.10mm) | Surface Mount |
|
UPA1E332MHDCAP ALUM 3300UF 20% 25V RADIAL |
3,758 | 1.27 |
RFQ |
Datasheet |
Bulk | UPA | Active | 3300 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.346 A @ 120 Hz | 2.76 A @ 100 kHz | 19 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UHV0J822MHDCAP ALUM 8200UF 20% 6.3V RADIAL |
2,286 | 1.27 |
RFQ |
Datasheet |
Bulk | UHV | Not For New Designs | 8200 µF | ±20% | 6.3 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.392 A @ 120 Hz | 3.99 A @ 100 kHz | 12 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UBX2D470MHLCAP ALUM 47UF 20% 200V RADIAL |
2,248 | 1.27 |
RFQ |
Datasheet |
Bulk | UBX | Active | 47 µF | ±20% | 200 V | - | 1000 Hrs @ 150°C | -40°C ~ 150°C | Polar | - | Automotive | 250 mA @ 120 Hz | 375 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
UBY1H112MHLCAP ALUM 1100UF 20% 50V RADIAL |
3,083 | 1.27 |
RFQ |
Datasheet |
Bulk | UBY | Active | 1100 µF | ±20% | 50 V | 37mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | Automotive | 1.512 A @ 120 Hz | 2.52 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.299 (33.00mm) | - | Through Hole |
|
UPJ1E272MHD6CAP ALUM 2700UF 20% 25V RADIAL |
3,577 | 1.27 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 2700 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.06 A @ 120 Hz | 2.29 A @ 10 kHz | 34 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
|
UAS2G390MHD1TNCAP ALUM 39UF 20% 400V RADIAL |
2,841 | 1.70 |
RFQ |
Datasheet |
Tape & Reel (TR) | UAS | Active | 39 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 255 mA @ 120 Hz | 408 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
UAS2G470MHD1TNCAP ALUM 47UF 20% 400V RADIAL |
3,455 | 1.70 |
RFQ |
Datasheet |
Tape & Reel (TR) | UAS | Active | 47 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 290 mA @ 120 Hz | 464 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
UPA1C472MHDCAP ALUM 4700UF 20% 16V RADIAL |
2,338 | 1.28 |
RFQ |
Datasheet |
Bulk | UPA | Active | 4700 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.346 A @ 120 Hz | 2.76 A @ 100 kHz | 19 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UCA2V470MHDCAP ALUM 47UF 20% 350V RADIAL |
2,201 | 1.28 |
RFQ |
Datasheet |
Bulk | UCA | Not For New Designs | 47 µF | ±20% | 350 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 350 mA @ 120 Hz | 700 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
UPJ0J822MHDCAP ALUM 8200UF 20% 6.3V RADIAL |
2,567 | 1.28 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 8200 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.29 A @ 120 Hz | 2.55 A @ 10 kHz | 27 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
UBX2V150MHLCAP ALUM 15UF 20% 350V RADIAL |
3,664 | 1.28 |
RFQ |
Datasheet |
Bulk | UBX | Active | 15 µF | ±20% | 350 V | - | 1000 Hrs @ 150°C | -25°C ~ 150°C | Polar | - | Automotive | 130 mA @ 120 Hz | 234 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
UUJ1J331MNQ1MSCAP ALUM 330UF 20% 63V SMD |
3,413 | 1.29 |
RFQ |
Datasheet |
Tape & Reel (TR) | UUJ | Not For New Designs | 330 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 490 mA @ 120 Hz | 735 mA @ 10 kHz | - | - | 0.709 Dia (18.00mm) | 0.689 (17.50mm) | 0.752 L x 0.752 W (19.10mm x 19.10mm) | Surface Mount |
|
LLS2Z391MELZCAP ALUM 390UF 20% 180V SNAP |
3,200 | 1.64 |
RFQ |
Datasheet |
Bulk | LLS | Active | 390 µF | ±20% | 180 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.84 A @ 120 Hz | 2.76 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
LGU2C391MELYCAP ALUM 390UF 20% 160V SNAP |
2,290 | 1.64 |
RFQ |
Datasheet |
Bulk | LGU | Active | 390 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.95 A @ 50 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
LLS2Z391MELYCAP ALUM 390UF 20% 180V SNAP |
3,554 | 1.65 |
RFQ |
Datasheet |
Bulk | LLS | Active | 390 µF | ±20% | 180 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.84 A @ 120 Hz | 2.76 A @ 50 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.181 (30.00mm) | - | Through Hole |
