| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UHV0J682MHD6TNCAP ALUM 6800UF 20% 6.3V RADIAL |
3,666 | 1.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | UHV | Not For New Designs | 6800 µF | ±20% | 6.3 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | 3.575 A @ 100 kHz | 14 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
|

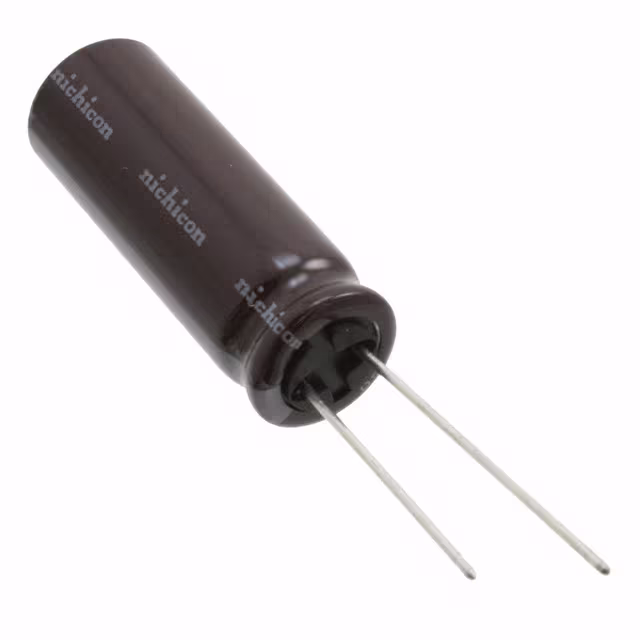

UPT2E101MHDCAP ALUM 100UF 20% 250V RADIAL |
3,825 | 1.13 |
RFQ |
Datasheet |
Bulk | UPT | Active | 100 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 460 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
UHV1E332MHD1TNCAP ALUM 3300UF 20% 25V RADIAL |
3,169 | 1.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | UHV | Not For New Designs | 3300 µF | ±20% | 25 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.993 A @ 120 Hz | 3.99 A @ 100 kHz | 12 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
URZ0J682MHDCAP ALUM 6800UF 20% 6.3V RADIAL |
3,239 | 1.13 |
RFQ |
Datasheet |
Bulk | URZ | Active | 6800 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.38 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
UPA1A472MHD6CAP ALUM 4700UF 20% 10V RADIAL |
3,162 | 1.13 |
RFQ |
Datasheet |
Bulk | UPA | Active | 4700 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.981 A @ 120 Hz | 2.33 A @ 100 kHz | 26 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UBT1A472MHD8CAP ALUM 4700UF 20% 10V RADIAL |
3,660 | 1.51 |
RFQ |
Datasheet |
Bulk | UBT | Active | 4700 µF | ±20% | 10 V | - | 10000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 1.816 A @ 120 Hz | 2.71 A @ 100 kHz | 20 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
UHE1E392MHD6CAP ALUM 3900UF 20% 25V RADIAL |
3,694 | 1.51 |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 3900 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.336 A @ 120 Hz | 4.17 A @ 100 kHz | 15 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
|
UBT2G330MHD8CAP ALUM 33UF 20% 400V RADIAL |
3,489 | 1.51 |
RFQ |
Datasheet |
Bulk | UBT | Active | 33 µF | ±20% | 400 V | - | 2000 Hrs @ 125°C | -25°C ~ 125°C | Polar | - | Automotive | 189 mA @ 120 Hz | 340.2 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
UPA0J562MHD6CAP ALUM 5600UF 20% 6.3V RADIAL |
3,680 | 1.13 |
RFQ |
Datasheet |
Bulk | UPA | Active | 5600 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.981 A @ 120 Hz | 2.33 A @ 100 kHz | 26 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UHD1C392MHD1TNCAP ALUM 3900UF 20% 16V RADIAL |
2,334 | 1.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | UHD | Not For New Designs | 3900 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.768 A @ 120 Hz | 3.46 A @ 100 kHz | 16 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UPM2D330MHDCAP ALUM 33UF 20% 200V RADIAL |
3,079 | 1.14 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 33 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 288 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
UPM2C470MHDCAP ALUM 47UF 20% 160V RADIAL |
3,358 | 1.14 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 47 µF | ±20% | 160 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 220 mA @ 120 Hz | 352 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UAQ2D820MHDCAP ALUM 82UF 20% 200V RADIAL |
3,736 | 1.14 |
RFQ |
Datasheet |
Bulk | UAQ | Active | 82 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 285 mA @ 120 Hz | 456 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.319 (33.50mm) | - | Through Hole |
|
UKW0J682MHDCAP ALUM 6800UF 20% 6.3V RADIAL |
3,646 | 1.14 |
RFQ |
Datasheet |
Bulk | UKW | Not For New Designs | 6800 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.6 A @ 120 Hz | 1.84 A @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.984 (25.00mm) | - | Through Hole |
|
UPM1A392MHD6CAP ALUM 3900UF 20% 10V RADIAL |
3,025 | 1.14 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 3900 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.84 A @ 120 Hz | 2.05 A @ 10 kHz | 28 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UBX1K560MPLCAP ALUM 56UF 20% 80V RADIAL |
2,186 | 1.14 |
RFQ |
Datasheet |
Bulk | UBX | Active | 56 µF | ±20% | 80 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | - | Automotive | 345 mA @ 120 Hz | 690 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
|
UBX2A560MPLCAP ALUM 56UF 20% 100V RADIAL |
3,853 | 1.14 |
RFQ |
Datasheet |
Bulk | UBX | Active | 56 µF | ±20% | 100 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | - | Automotive | 320 mA @ 120 Hz | 640 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
|
UHV0J682MHDCAP ALUM 6800UF 20% 6.3V RADIAL |
2,709 | 1.14 |
RFQ |
Datasheet |
Bulk | UHV | Not For New Designs | 6800 µF | ±20% | 6.3 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | 3.925 A @ 100 kHz | 11 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.476 (37.50mm) | - | Through Hole |
|
UPJ1A472MHD6CAP ALUM 4700UF 20% 10V RADIAL |
3,033 | 1.14 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 4700 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.02 A @ 120 Hz | 2.25 A @ 10 kHz | 35 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
|
UHE1A562MHD3TNCAP ALUM 5600UF 20% 10V RADIAL |
3,772 | 1.14 |
RFQ |
Datasheet |
Tape & Reel (TR) | UHE | Not For New Designs | 5600 µF | ±20% | 10 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.288 A @ 120 Hz | 2.86 A @ 100 kHz | 26 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
