| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

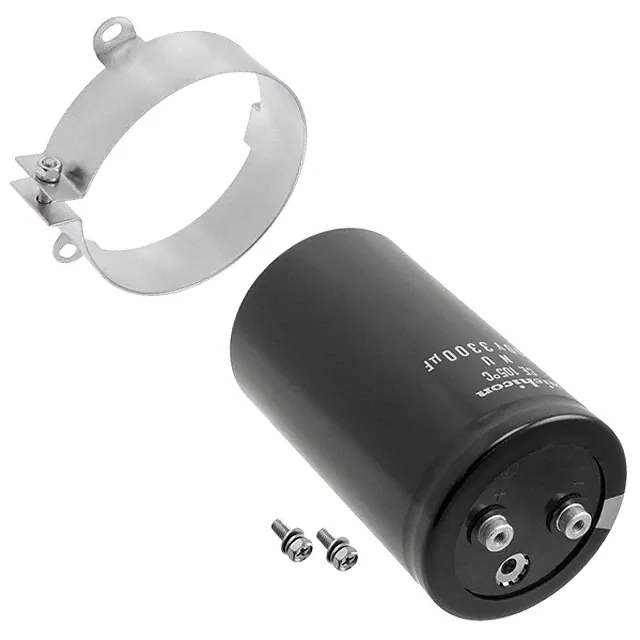

LNU2H332MSEHCAP ALUM 3300UF 20% 500V SCREW |
2,223 | 106.37 |
RFQ |
Datasheet |
Bulk | LNU | Active | 3300 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 10.9 A @ 120 Hz | 15.26 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 5.236 (133.00mm) | - | Chassis Mount |
|
LNR2A104MSECAP ALUM 100000UF 20% 100V SCREW |
2,281 | 107.58 |
RFQ |
Datasheet |
Bulk | LNR | Active | 100000 µF | ±20% | 100 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.1 A @ 120 Hz | 25.415 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.811 (173.00mm) | - | Chassis Mount |
|

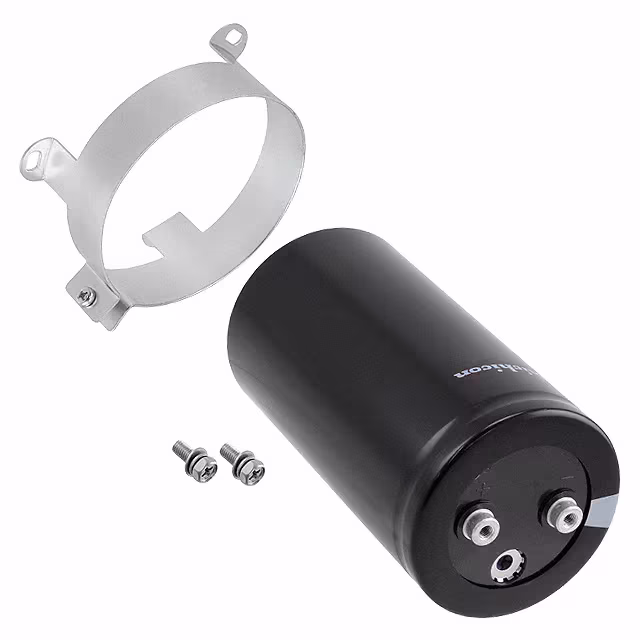

LNU2H392MSEHCAP ALUM 3900UF 20% 500V SCREW |
2,022 | 107.64 |
RFQ |
Datasheet |
Bulk | LNU | Active | 3900 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 12.4 A @ 120 Hz | 17.36 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 5.827 (148.00mm) | - | Chassis Mount |
|

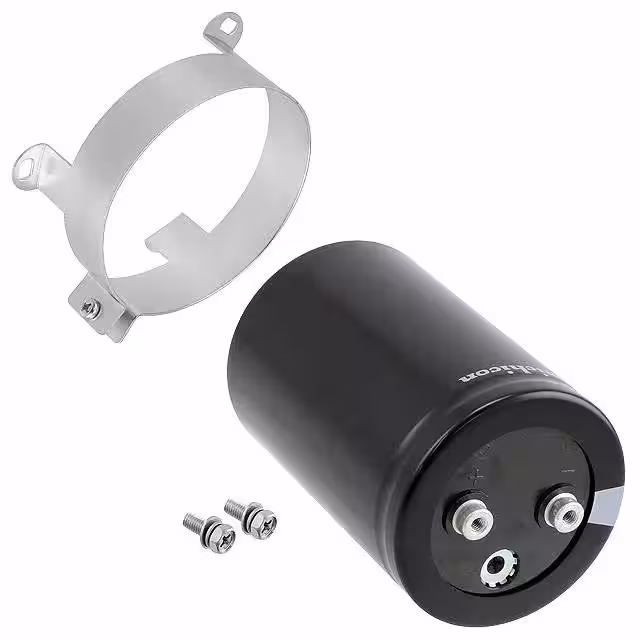

LNUN7272MSEHCAP ALUM 2700UF 20% 525V SCREW |
3,265 | 107.70 |
RFQ |
Datasheet |
Bulk | LNU | Active | 2700 µF | ±20% | 525 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 10.6 A @ 120 Hz | 14.84 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 4.646 (118.00mm) | - | Chassis Mount |
|

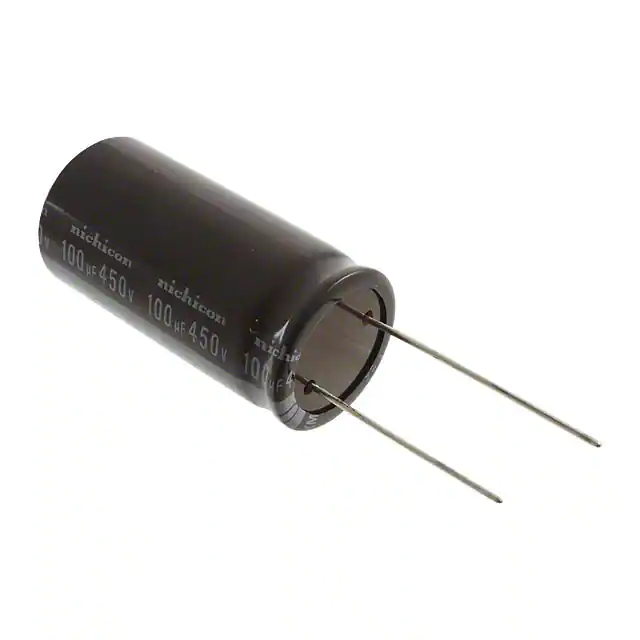

UPS2W101MRDCAP ALUM 100UF 20% 450V RADIAL |
2,260 | 5.91 |
RFQ |
Datasheet |
Bulk | UPS | Not For New Designs | 100 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 350 mA @ 120 Hz | - | - | 0.492 (12.50mm) | 0.984 Dia (25.00mm) | 2.047 (52.00mm) | - | Through Hole |
|

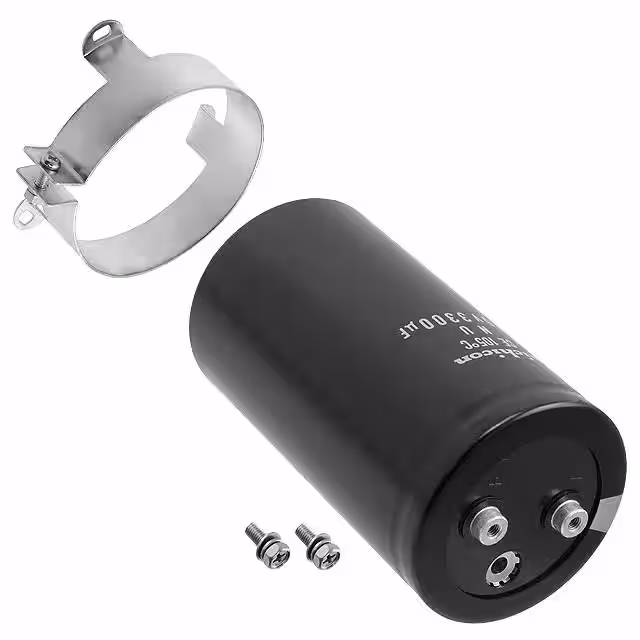

LNUN7332MSEHCAP ALUM 3300UF 20% 525V SCREW |
3,503 | 113.69 |
RFQ |
Datasheet |
Bulk | LNU | Active | 3300 µF | ±20% | 525 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 12.1 A @ 120 Hz | 16.94 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 5.630 (143.00mm) | - | Chassis Mount |
|

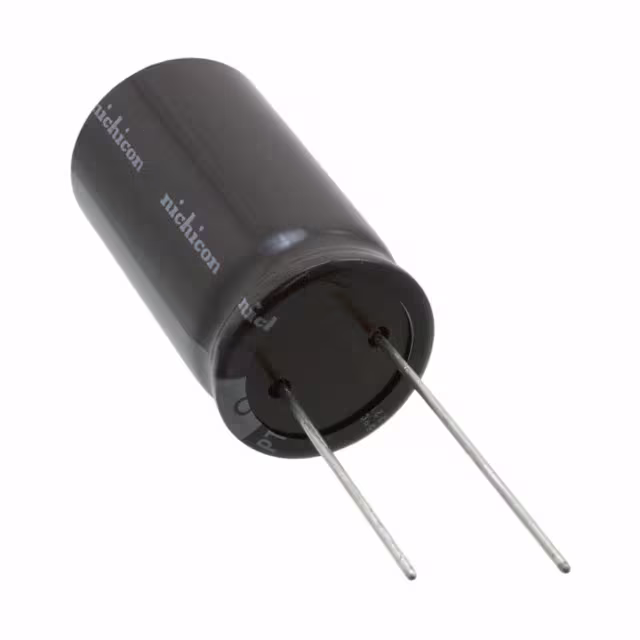

UPTW6151MRDCAP ALUM 150UF 20% 420V RADIAL |
2,228 | 5.93 |
RFQ |
Datasheet |
Bulk | UPT | Active | 150 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.28 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
LGG2W181MELZ40CAP ALUM 180UF 20% 450V SNAP |
3,176 | 5.93 |
RFQ |
Datasheet |
Bulk | LGG | Active | 180 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 120 Hz | 1.1297 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
UPT2W121MRDCAP ALUM 120UF 20% 450V RADIAL |
3,670 | 5.94 |
RFQ |
Datasheet |
Bulk | UPT | Active | 120 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 770 mA @ 120 Hz | 1.232 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

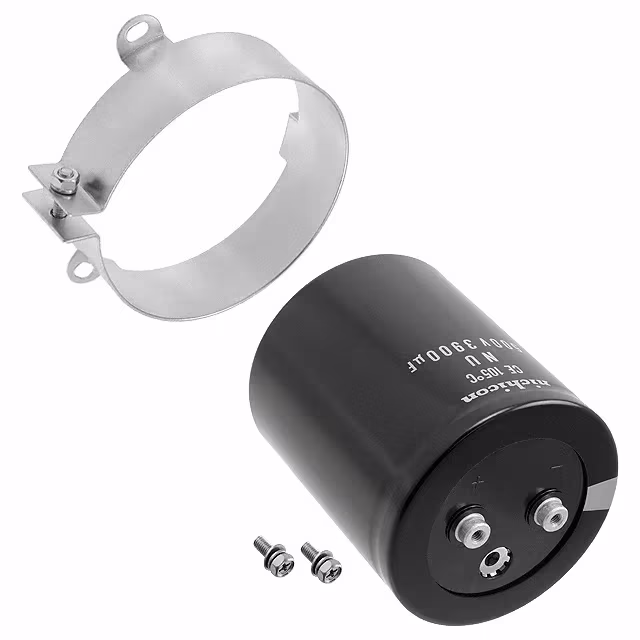

LNU2H392MSEJCAP ALUM 3900UF 20% 500V SCREW |
2,823 | 119.03 |
RFQ |
Datasheet |
Bulk | LNU | Active | 3900 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 12.4 A @ 120 Hz | 17.36 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 4.252 (108.00mm) | - | Chassis Mount |
|
|
LNR1H334MSECAP ALUM 330000UF 20% 50V SCREW |
3,105 | 123.26 |
RFQ |
Datasheet |
Bulk | LNR | Active | 330000 µF | ±20% | 50 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 25.3 A @ 120 Hz | 29.095 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.811 (173.00mm) | - | Chassis Mount |
|
LGW2W181MELA40CAP ALUM 180UF 20% 450V SNAP |
3,053 | 5.98 |
RFQ |
Datasheet |
Bulk | LGW | Active | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.9305 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
LNR1E105MSECAP ALUM 1F 20% 25V SCREW |
2,603 | 159.57 |
RFQ |
Datasheet |
Bulk | LNR | Active | 1 F | ±20% | 25 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 36.4 A @ 120 Hz | - | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 10.000 (254.00mm) | - | Chassis Mount |
|
LNR2A154MSECAP ALUM 150000UF 20% 100V SCREW |
3,158 | 161.36 |
RFQ |
Datasheet |
Bulk | LNR | Active | 150000 µF | ±20% | 100 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 27 A @ 120 Hz | 31.05 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
|
LNR1V684MSECAP ALUM 680000UF 20% 35V SCREW |
2,454 | 176.23 |
RFQ |
Datasheet |
Bulk | LNR | Active | 680000 µF | ±20% | 35 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 35.2 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|

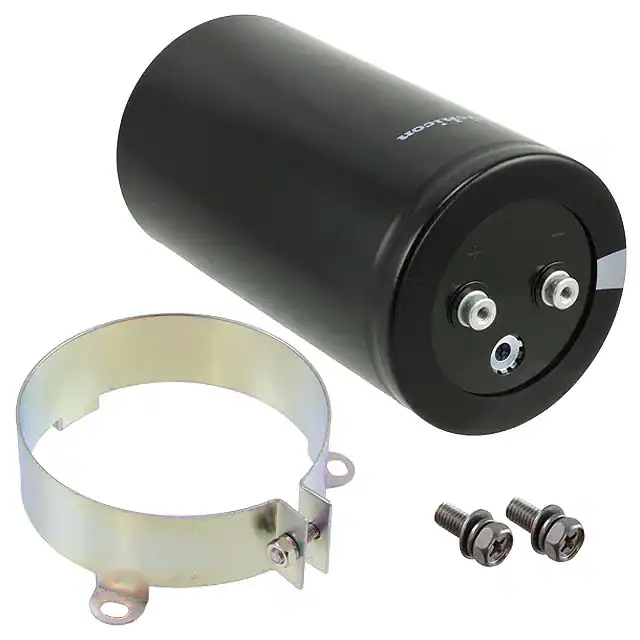

LNU2H682MSEJCAP ALUM 6800UF 20% 500V SCREW |
3,601 | 180.63 |
RFQ |
Datasheet |
Bulk | LNU | Active | 6800 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.5 A @ 120 Hz | 25.9 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.496 (165.00mm) | - | Chassis Mount |
|
|
LNR1J334MSECAP ALUM 330000UF 20% 63V SCREW |
3,982 | 187.01 |
RFQ |
Datasheet |
Bulk | LNR | Active | 330000 µF | ±20% | 63 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 31.2 A @ 120 Hz | 29.095 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
LLS2A392MELBCAP ALUM 3900UF 20% 100V SNAP |
2,437 | 6.03 |
RFQ |
Datasheet |
Bulk | LLS | Active | 3900 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.67 A @ 120 Hz | 5.3705 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
|
LNR2E333MSECAP ALUM 33000UF 20% 250V SCREW |
2,642 | 200.06 |
RFQ |
Datasheet |
Bulk | LNR | Active | 33000 µF | ±20% | 250 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 19.7 A @ 120 Hz | 23.64 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
|
LNR1J474MSECAP ALUM 470000UF 20% 63V SCREW |
3,871 | 219.83 |
RFQ |
Datasheet |
Bulk | LNR | Active | 470000 µF | ±20% | 63 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 33.6 A @ 120 Hz | - | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 10.000 (254.00mm) | - | Chassis Mount |
