| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LAR2G271MELZ50CAP ALUM 270UF 20% 400V SNAP |
2,342 | 5.48 |
RFQ |
Datasheet |
Bulk | LAR | Active | 270 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.7446 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
LGU1V123MELCCAP ALUM 12000UF 20% 35V SNAP |
2,016 | 5.52 |
RFQ |
Datasheet |
Bulk | LGU | Active | 12000 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.2 A @ 120 Hz | 3.68 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.260 (32.00mm) | - | Through Hole |
|

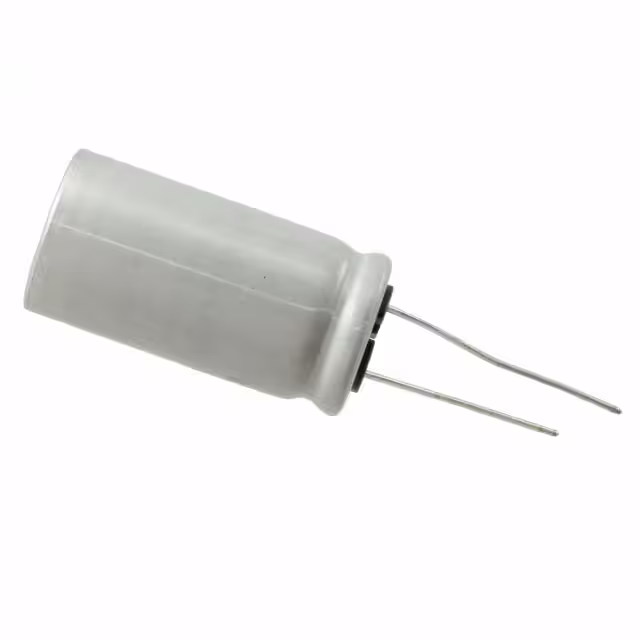

UBY1V622MHLCAP ALUM 6200UF 20% 35V RADIAL |
3,373 | 5.54 |
RFQ |
Datasheet |
Bulk | UBY | Active | 6200 µF | ±20% | 35 V | 19mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | Automotive | 3.188 A @ 120 Hz | 3.75 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
LGG2E681MELA40CAP ALUM 680UF 20% 250V SNAP |
3,612 | 5.55 |
RFQ |
Datasheet |
Bulk | LGG | Active | 680 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.55 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
LNR1C224MSECAP ALUM 220000UF 20% 16V SCREW |
2,865 | 37.62 |
RFQ |
Datasheet |
Bulk | LNR | Active | 220000 µF | ±20% | 16 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.6 A @ 120 Hz | 17.94 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 4.843 (123.00mm) | - | Chassis Mount |
|

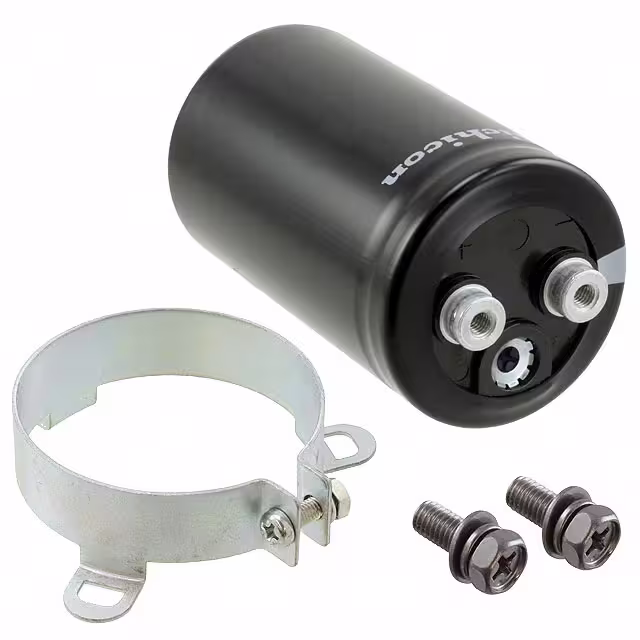

LNUN7681MSEFCAP ALUM 680UF 20% 525V SCREW |
2,140 | 42.70 |
RFQ |
Datasheet |
Bulk | LNU | Active | 680 µF | ±20% | 525 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.4 A @ 120 Hz | 6.16 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 3.346 (85.00mm) | - | Chassis Mount |
|
|
LNR2E682MSECAP ALUM 6800UF 20% 250V SCREW |
3,844 | 46.97 |
RFQ |
Datasheet |
Bulk | LNR | Active | 6800 µF | ±20% | 250 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 8.9 A @ 120 Hz | 10.68 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 4.843 (123.00mm) | - | Chassis Mount |
|
LNR1J683MSECAP ALUM 68000UF 20% 63V SCREW |
2,868 | 52.08 |
RFQ |
Datasheet |
Bulk | LNR | Active | 68000 µF | ±20% | 63 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15 A @ 120 Hz | 12.65 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 4.055 (103.00mm) | - | Chassis Mount |
|
LNR2D103MSECAP ALUM 10000UF 20% 200V SCREW |
3,898 | 54.45 |
RFQ |
Datasheet |
Bulk | LNR | Active | 10000 µF | ±20% | 200 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.8 A @ 120 Hz | 11.76 A @ 10 kHz | - | 0.500 (12.70mm) | 2.500 Dia (63.50mm) | 4.843 (123.00mm) | - | Chassis Mount |
|
LAR2G271MELB30CAP ALUM 270UF 20% 400V SNAP |
2,389 | 5.63 |
RFQ |
Datasheet |
Bulk | LAR | Active | 270 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.7446 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
LNUN7102MSEFCAP ALUM 1000UF 20% 525V SCREW |
2,373 | 57.16 |
RFQ |
Datasheet |
Bulk | LNU | Active | 1000 µF | ±20% | 525 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.4 A @ 120 Hz | 7.56 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 3.858 (98.00mm) | - | Chassis Mount |
|

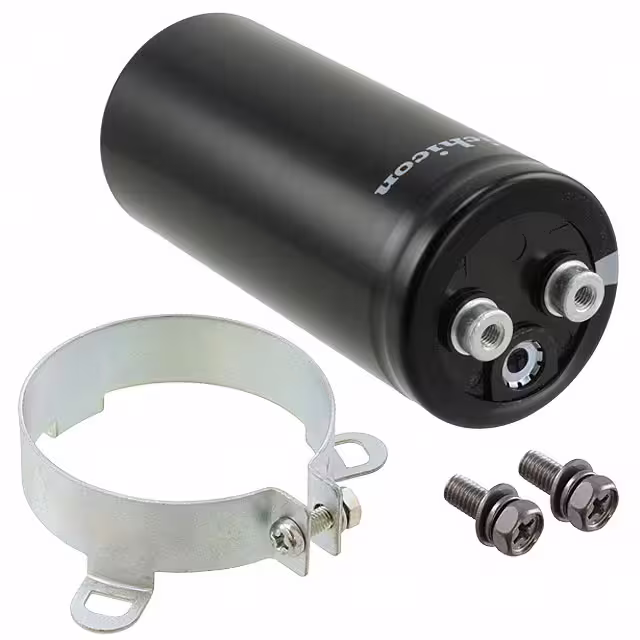

LNU2H122MSEFCAP ALUM 1200UF 20% 500V SCREW |
3,042 | 57.92 |
RFQ |
Datasheet |
Bulk | LNU | Active | 1200 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.7 A @ 120 Hz | 7.98 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 4.646 (118.00mm) | - | Chassis Mount |
|
LLS1H123MELCCAP ALUM 12000UF 20% 50V SNAP |
2,251 | 5.64 |
RFQ |
Datasheet |
Bulk | LLS | Active | 12000 µF | ±20% | 50 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.69 A @ 120 Hz | 6.5435 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
UFW1C223MRDCAP ALUM 22000UF 20% 16V RADIAL |
3,304 | 5.65 |
RFQ |
Datasheet |
Bulk | UFW | Not For New Designs | 22000 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.2 A @ 120 Hz | 4.83 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
LGW2W181MELZ45CAP ALUM 180UF 20% 450V SNAP |
3,678 | 5.65 |
RFQ |
Datasheet |
Bulk | LGW | Active | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.9305 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
LAR2E681MELA40CAP ALUM 680UF 20% 250V SNAP |
3,631 | 5.67 |
RFQ |
Datasheet |
Bulk | LAR | Active | 680 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.55 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.575 (40.00mm) | - | Through Hole |
|

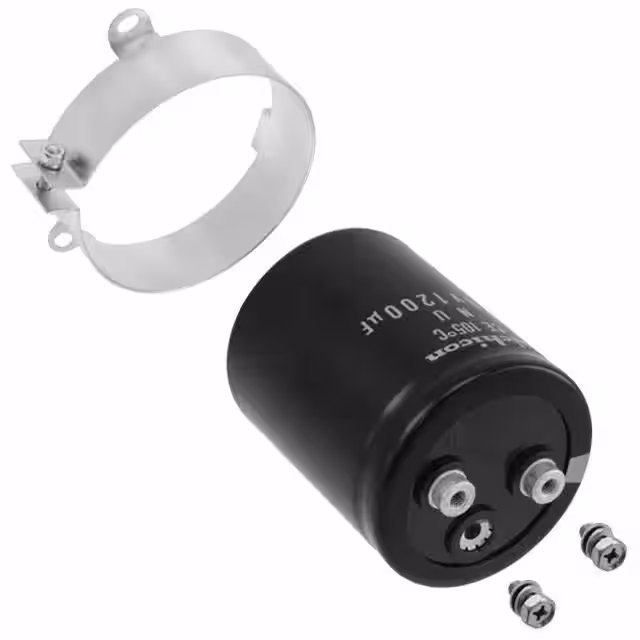

LNU2H122MSEGCAP ALUM 1200UF 20% 500V SCREW |
3,757 | 60.78 |
RFQ |
Datasheet |
Bulk | LNU | Active | 1200 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.7 A @ 120 Hz | 7.98 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 3.268 (83.00mm) | - | Chassis Mount |
|
LGN2V331MELA40CAP ALUM 330UF 20% 350V SNAP |
2,193 | 5.68 |
RFQ |
Datasheet |
Bulk | LGN | Active | 330 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.716 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
LGN2G271MELZ50CAP ALUM 270UF 20% 400V SNAP |
3,847 | 5.70 |
RFQ |
Datasheet |
Bulk | LGN | Active | 270 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.7446 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
LNU2H182MSEHCAP ALUM 1800UF 20% 500V SCREW |
3,358 | 64.83 |
RFQ |
Datasheet |
Bulk | LNU | Active | 1800 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.4 A @ 120 Hz | 10.36 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 2.874 (73.00mm) | - | Chassis Mount |
