| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNT2V562MSEGCAP ALUM 5600UF 20% 350V SCREW |
2,240 | 103.32 |
RFQ |
Datasheet |
Bulk | LNT | Active | 5600 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 22.7 A @ 120 Hz | 31.78 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 6.811 (173.00mm) | - | Chassis Mount |
|
LNR1A684MSECAP ALUM 680000UF 20% 10V SCREW |
2,884 | 109.78 |
RFQ |
Datasheet |
Bulk | LNR | Active | 680000 µF | ±20% | 10 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.8 A @ 120 Hz | 26.22 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 4.843 (123.00mm) | - | Chassis Mount |
|

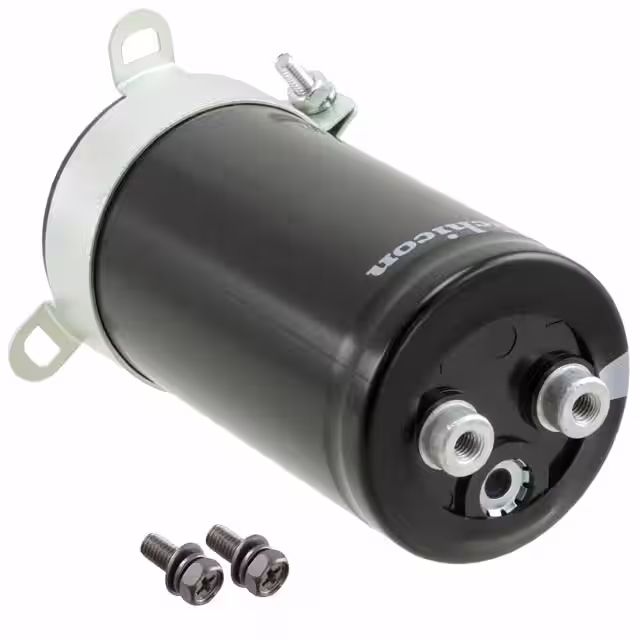

LNT2V562MSEHCAP ALUM 5600UF 20% 350V SCREW |
2,352 | 117.92 |
RFQ |
Datasheet |
Bulk | LNT | Active | 5600 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 22.2 A @ 120 Hz | 31.08 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 5.236 (133.00mm) | - | Chassis Mount |
|

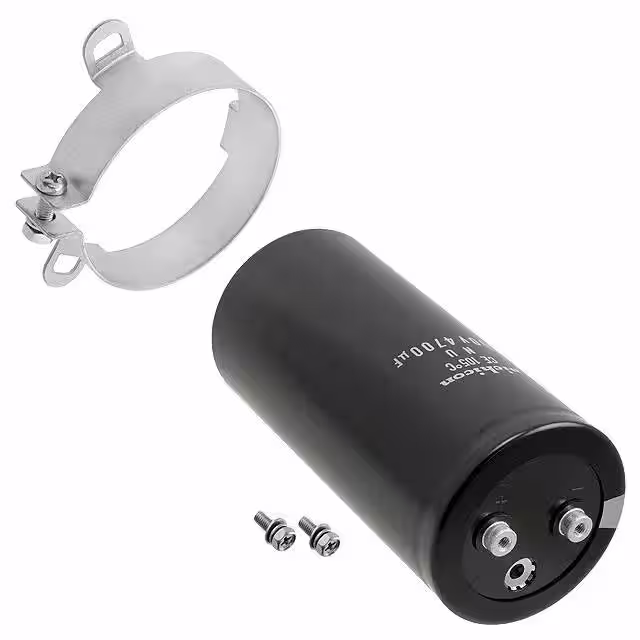

LNU2H472MSEHCAP ALUM 4700UF 20% 500V SCREW |
2,186 | 139.22 |
RFQ |
Datasheet |
Bulk | LNU | Active | 4700 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 13.9 A @ 120 Hz | 19.46 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 6.614 (168.00mm) | - | Chassis Mount |
|

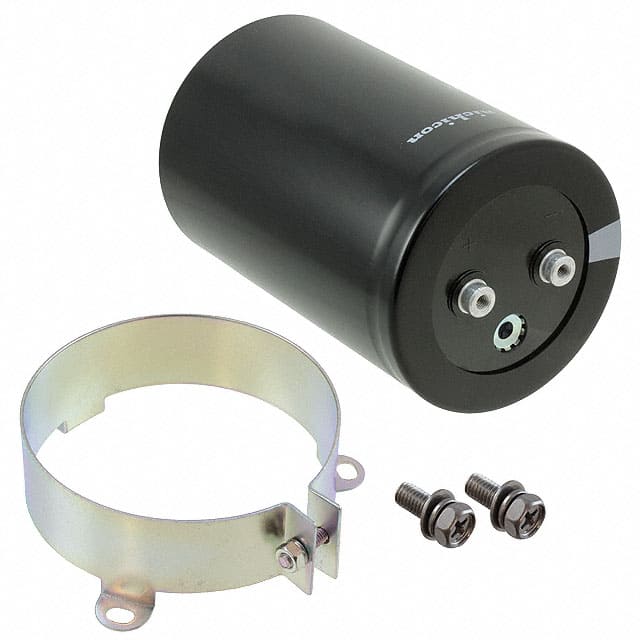

LNUN7472MSEJCAP ALUM 4700UF 20% 525V SCREW |
2,364 | 156.06 |
RFQ |
Datasheet |
Bulk | LNU | Active | 4700 µF | ±20% | 525 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.2 A @ 120 Hz | 21.28 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.433 (138.00mm) | - | Chassis Mount |
|

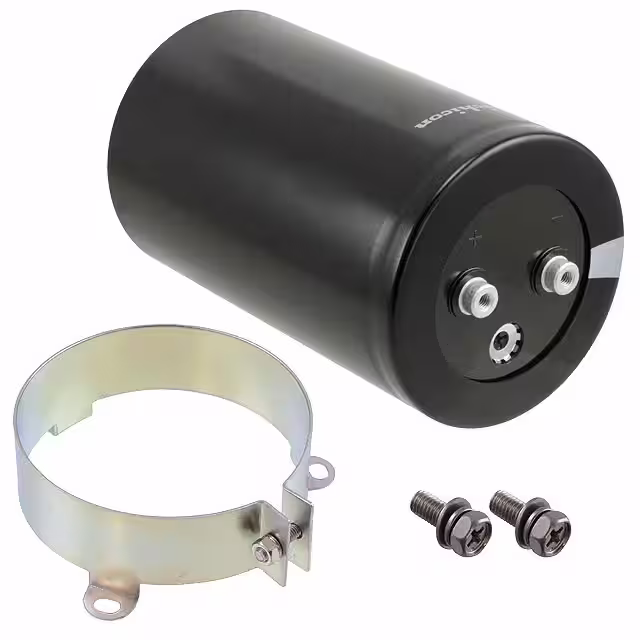

LNU2H562MSEJCAP ALUM 5600UF 20% 500V SCREW |
2,556 | 162.17 |
RFQ |
Datasheet |
Bulk | LNU | Active | 5600 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.8 A @ 120 Hz | 22.12 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.787 (147.00mm) | - | Chassis Mount |
|

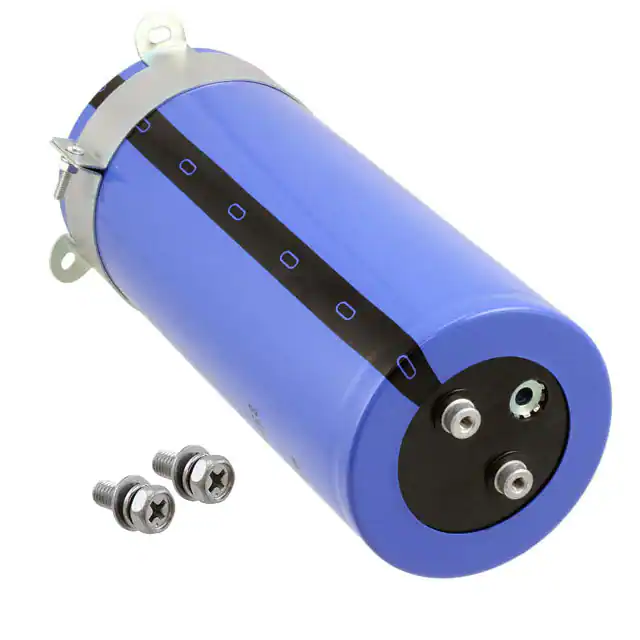

LNR1E684MSECAP ALUM 680000UF 20% 25V SCREW |
2,193 | 162.62 |
RFQ |
Datasheet |
Bulk | LNR | Active | 680000 µF | ±20% | 25 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 33.3 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
LQR2V153MSEJCAP ALUM 15000UF 20% 350V SCREW |
3,699 | 165.38 |
RFQ |
Datasheet |
Bulk | LQR | Active | 15000 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 40.5 A @ 120 Hz | 56.7 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.598 (193.00mm) | - | Chassis Mount |
|
|
LNR1H474MSECAP ALUM 470000UF 20% 50V SCREW |
3,921 | 182.73 |
RFQ |
Datasheet |
Bulk | LNR | Active | 470000 µF | ±20% | 50 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 33.2 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
|
LNR1C105MSECAP ALUM 1F 20% 16V SCREW |
2,420 | 185.06 |
RFQ |
Datasheet |
Bulk | LNR | Active | 1 F | ±20% | 16 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 36 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
|
LNR1K224MSECAP ALUM 220000UF 20% 80V SCREW |
2,884 | 192.21 |
RFQ |
Datasheet |
Bulk | LNR | Active | 220000 µF | ±20% | 80 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28.9 A @ 120 Hz | 33.235 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|

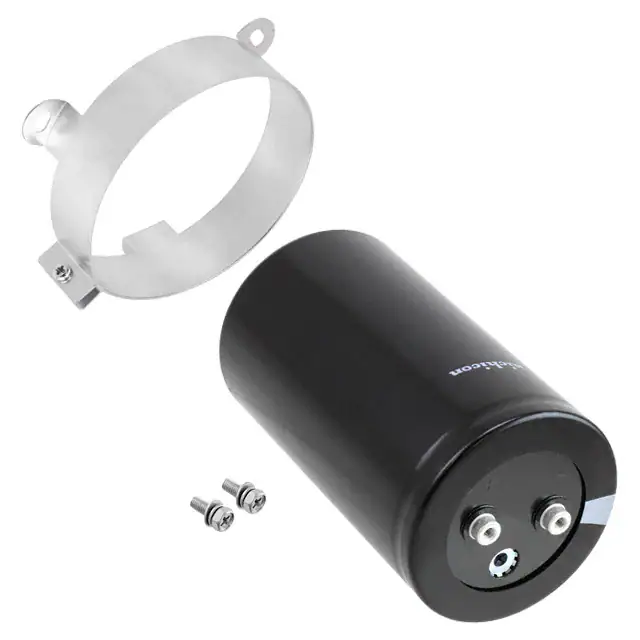

LNUN7562MSEJCAP ALUM 5600UF 20% 525V SCREW |
2,303 | 198.08 |
RFQ |
Datasheet |
Bulk | LNU | Active | 5600 µF | ±20% | 525 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17.5 A @ 120 Hz | 24.5 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.220 (158.00mm) | - | Chassis Mount |
|
|
LNR1A155MSECAP ALUM 1.5F 20% 10V SCREW |
2,675 | 227.71 |
RFQ |
Datasheet |
Bulk | LNR | Active | 1.5 F | ±20% | 10 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 33.9 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
|
LNR2D473MSECAP ALUM 47000UF 20% 200V SCREW |
3,027 | 234.31 |
RFQ |
Datasheet |
Bulk | LNR | Active | 47000 µF | ±20% | 200 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 20.9 A @ 120 Hz | 25.08 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|

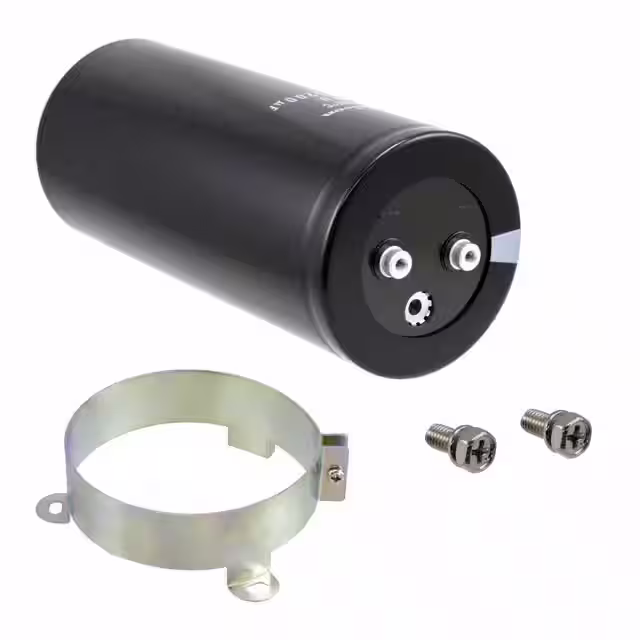

LNU2H822MSEJCAP ALUM 8200UF 20% 500V SCREW |
2,024 | 269.42 |
RFQ |
Datasheet |
Bulk | LNU | Active | 8200 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 20.2 A @ 120 Hz | 28.28 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.189 (208.00mm) | - | Chassis Mount |
|
LNR1C155MSECAP ALUM 1.5F 20% 16V SCREW |
3,196 | 283.75 |
RFQ |
Datasheet |
Bulk | LNR | Active | 1.5 F | ±20% | 16 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 39.7 A @ 120 Hz | 45.655 A @ 10 kHz | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 10.000 (254.00mm) | - | Chassis Mount |
|
|
LNR1A225MSECAP ALUM 2.2F 20% 10V SCREW |
3,401 | 330.02 |
RFQ |
Datasheet |
Bulk | LNR | Active | 2.2 F | ±20% | 10 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 41.1 A @ 120 Hz | - | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 10.000 (254.00mm) | - | Chassis Mount |
|
UCX1A331MCS6GSCAP ALUM 330UF 20% 10V SMD |
500 | 1.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCX | Not For New Designs | 330 µF | ±20% | 10 V | 200mOhm @ 100kHz | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | General Purpose | 135 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|

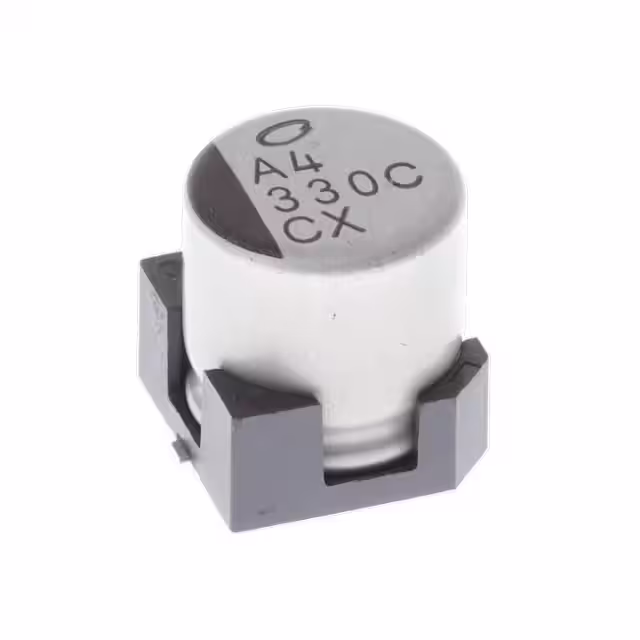

UCX1C331MCS1GSCAP ALUM 330UF 20% 16V SMD |
480 | 1.96 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCX | Not For New Designs | 330 µF | ±20% | 16 V | 150mOhm @ 100kHz | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
UCX1A331MCS1GSCAP ALUM 330UF 20% 10V SMD |
500 | 1.96 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCX | Not For New Designs | 330 µF | ±20% | 10 V | 150mOhm @ 100kHz | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
