| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNT2H472MSEJCAP ALUM 4700UF 20% 500V SCREW |
3,030 | 205.00 |
RFQ |
Datasheet |
Bulk | LNT | Active | 4700 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 16.3 A @ 120 Hz | 22.82 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.024 (153.00mm) | - | Chassis Mount |
|
LNX2J272MSEJCAP ALUM 2700UF 20% 630V SCREW |
3,532 | 207.26 |
RFQ |
Datasheet |
Bulk | LNX | Active | 2700 µF | ±20% | 630 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 12.6 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.024 (153.00mm) | - | Chassis Mount |
|
UCYW6680MHD3CAP ALUM 68UF 20% 420V RADIAL |
3,110 | 3.84 |
RFQ |
Datasheet |
Bulk | UCY | Active | 68 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 615 mA @ 120 Hz | 1.23 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
LQR2W103MSEJCAP ALUM 10000UF 20% 450V SCREW |
2,515 | 211.03 |
RFQ |
Datasheet |
Bulk | LQR | Active | 10000 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 31.3 A @ 120 Hz | 43.82 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.598 (193.00mm) | - | Chassis Mount |
|

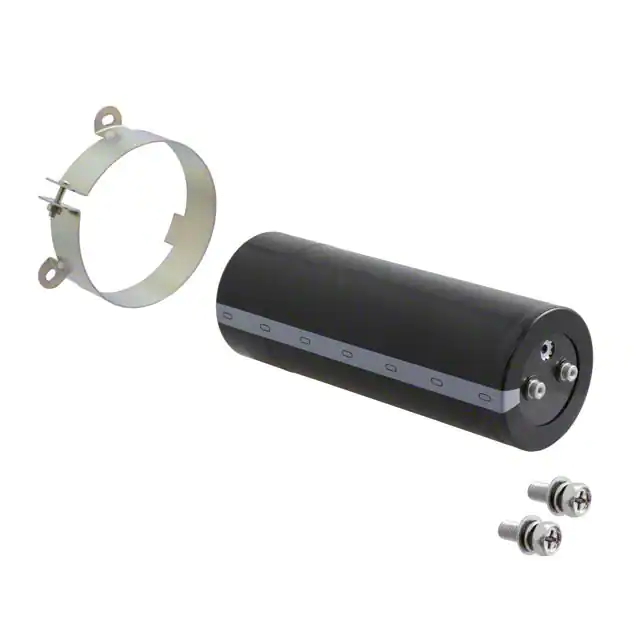

LNT2W153MSEJCAP ALUM 15000UF 20% 450V SCREW |
2,323 | 216.58 |
RFQ |
Datasheet |
Bulk | LNT | Active | 15000 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 45.6 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 9.961 (253.00mm) | - | Chassis Mount |
|
LNT2G103MSEJCAP ALUM 10000UF 20% 400V SCREW |
3,780 | 217.71 |
RFQ |
Datasheet |
Bulk | LNT | Active | 10000 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 32.9 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.598 (193.00mm) | - | Chassis Mount |
|
UHW0J123MHDCAP ALUM 12000UF 20% 6.3V RADIAL |
115 | 3.91 |
RFQ |
Datasheet |
Bulk | UHW | Not For New Designs | 12000 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.2 A @ 120 Hz | 4 A @ 100 kHz | 11 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
LNC2G183MSEJCAP ALUM 18000UF 20% 400V SCREW |
3,932 | 226.63 |
RFQ |
Datasheet |
Bulk | LNC | Active | 18000 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 48.2 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.189 (208.00mm) | - | Chassis Mount |
|
LGU2P391MELZCAP ALUM 390UF 20% 220V SNAP |
2,055 | 3.80 |
RFQ |
Datasheet |
Bulk | LGU | Active | 390 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2.1 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.378 (35.00mm) | - | Through Hole |
|

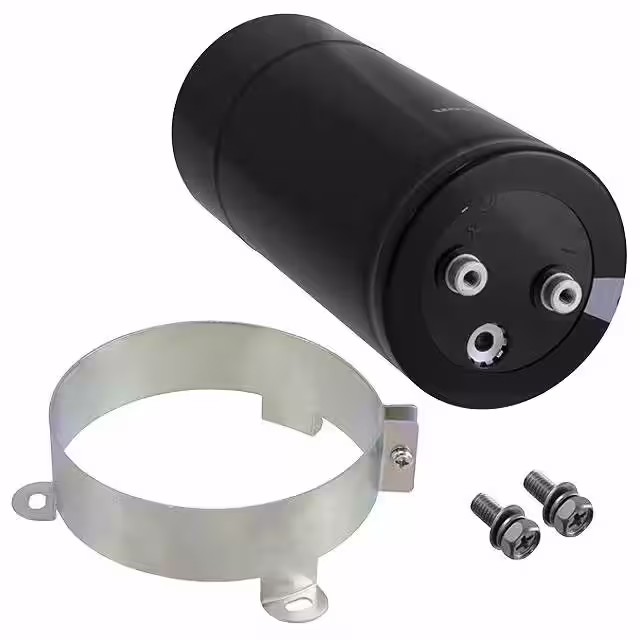

LQR2W123MSEJCAP ALUM 12000UF 20% 450V SCREW |
2,321 | 229.85 |
RFQ |
Datasheet |
Bulk | LQR | Active | 12000 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 35.5 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|

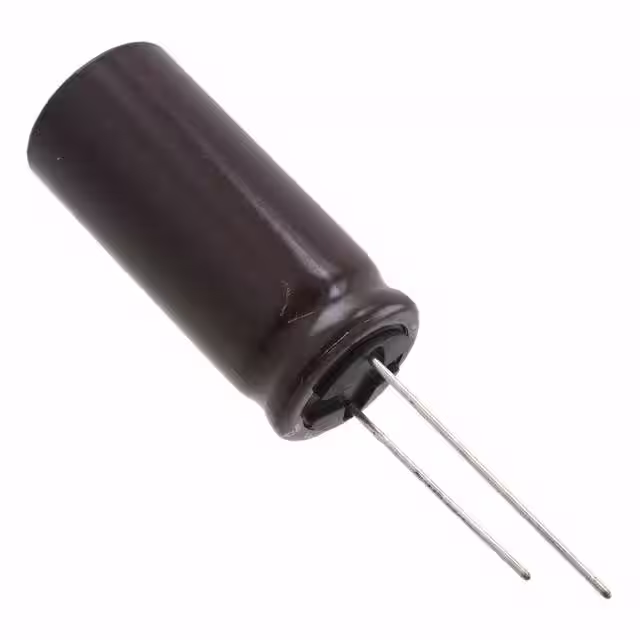

UAS2G680MHDCAP ALUM 68UF 20% 400V RADIAL |
2,982 | 4.00 |
RFQ |
Datasheet |
Bulk | UAS | Active | 68 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 385 mA @ 120 Hz | 616 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.476 (37.50mm) | - | Through Hole |
|

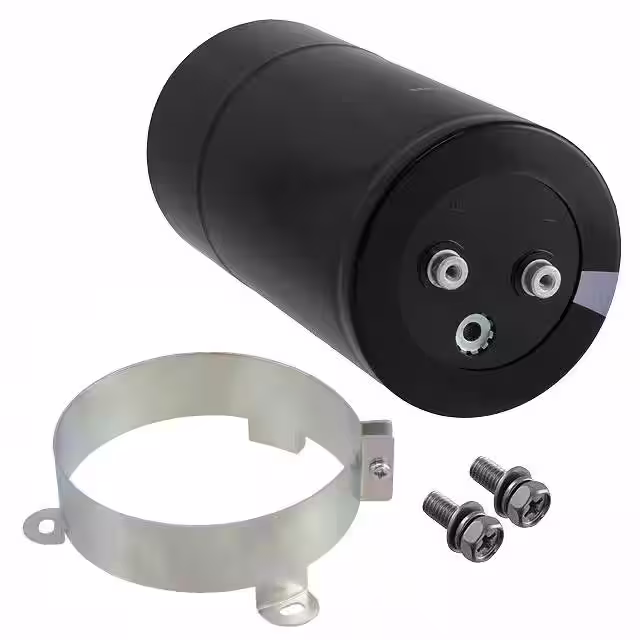

LNX2J332MSEJCAP ALUM 3300UF 20% 630V SCREW |
2,152 | 232.22 |
RFQ |
Datasheet |
Bulk | LNX | Active | 3300 µF | ±20% | 630 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 14.7 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.811 (173.00mm) | - | Chassis Mount |
|
LNX2H822MSEJCAP ALUM 8200UF 20% 500V SCREW |
2,407 | 239.48 |
RFQ |
Datasheet |
Bulk | LNX | Active | 8200 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 21.4 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.598 (193.00mm) | - | Chassis Mount |
|

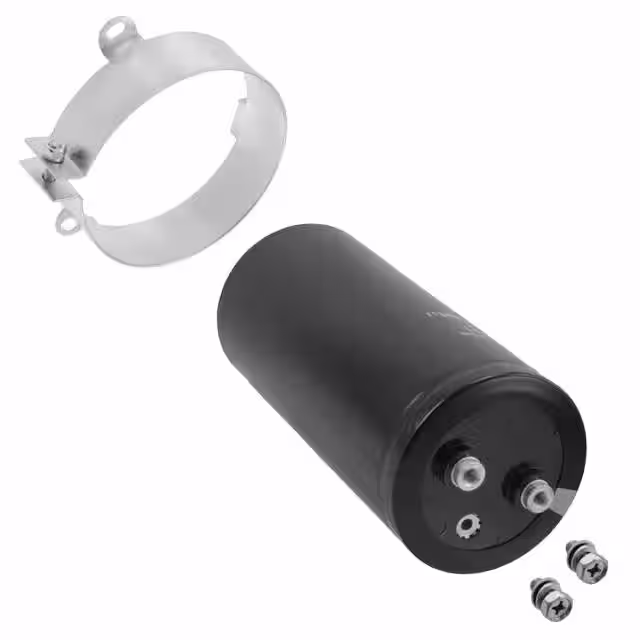

LNT1A155MSECAP ALUM 1.5F 20% 10V SCREW |
2,022 | 244.93 |
RFQ |
Datasheet |
Bulk | LNT | Active | 1.5 F | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 22.1 A @ 120 Hz | 25.415 A @ 10 kHz | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 8.819 (224.00mm) | - | Chassis Mount |
|
LNY2W153MSEJCAP ALUM 15000UF 20% 450V SCREW |
3,808 | 246.41 |
RFQ |
Datasheet |
Bulk | LNY | Active | 15000 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29.6 A @ 120 Hz | 41.44 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.661 (220.00mm) | - | Chassis Mount |
|
LGU2C681MELZCAP ALUM 680UF 20% 160V SNAP |
3,214 | 4.07 |
RFQ |
Datasheet |
Bulk | LGU | Active | 680 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.82 A @ 120 Hz | 2.73 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
LNT2V153MSEJCAP ALUM 15000UF 20% 350V SCREW |
2,709 | 255.45 |
RFQ |
Datasheet |
Bulk | LNT | Active | 15000 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 42.9 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
LNT1C155MSECAP ALUM 1.5F 20% 16V SCREW |
3,695 | 261.26 |
RFQ |
Datasheet |
Bulk | LNT | Active | 1.5 F | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 28.8 A @ 120 Hz | 33.12 A @ 10 kHz | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 10.000 (254.00mm) | - | Chassis Mount |
|
LNT2H682MSEJCAP ALUM 6800UF 20% 500V SCREW |
3,020 | 264.01 |
RFQ |
Datasheet |
Bulk | LNT | Active | 6800 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 20.7 A @ 120 Hz | 28.98 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.811 (173.00mm) | - | Chassis Mount |
|

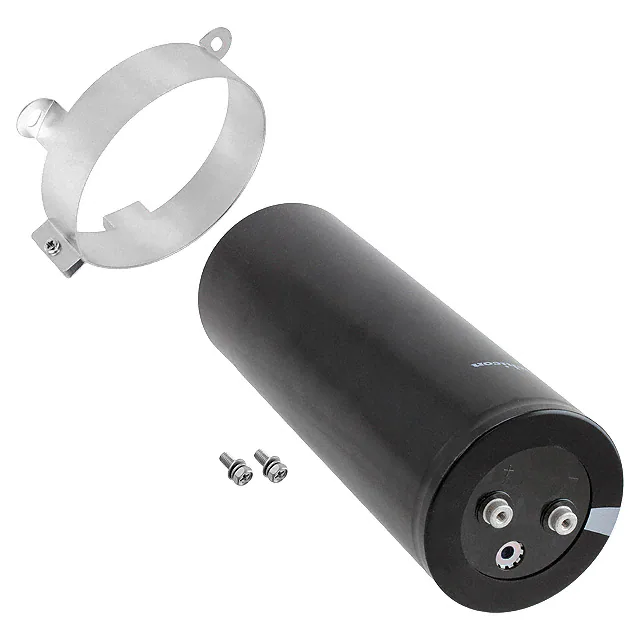

LNT2D473MSECAP ALUM 47000UF 20% 200V SCREW |
3,439 | 264.34 |
RFQ |
Datasheet |
Bulk | LNT | Active | 47000 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 19.9 A @ 120 Hz | 23.88 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 10.000 (254.00mm) | - | Chassis Mount |
