| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UAS2G470MHD6CAP ALUM 47UF 20% 400V RADIAL |
2,053 | 3.59 |
RFQ |
Datasheet |
Bulk | UAS | Active | 47 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 448 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
LNX2H562MSEJCAP ALUM 5600UF 20% 500V SCREW |
3,382 | 179.57 |
RFQ |
Datasheet |
Bulk | LNX | Active | 5600 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 15.9 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.024 (153.00mm) | - | Chassis Mount |
|

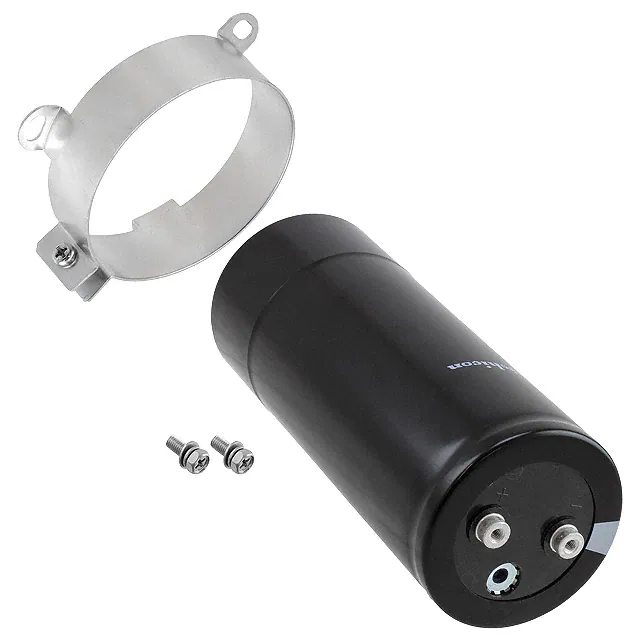

LNT2H472MSEHCAP ALUM 4700UF 20% 500V SCREW |
2,822 | 179.61 |
RFQ |
Datasheet |
Bulk | LNT | Active | 4700 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 17.2 A @ 120 Hz | 24.08 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 7.598 (193.00mm) | - | Chassis Mount |
|
UPZW6680MHDCAP ALUM 68UF 20% 420V RADIAL |
126 | 3.61 |
RFQ |
Datasheet |
Bulk | UPZ | Active | 68 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 510 mA @ 120 Hz | 765 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
UHE0J153MHDCAP ALUM 15000UF 20% 6.3V RADIAL |
183 | 3.65 |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 15000 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.376 A @ 120 Hz | 4.22 A @ 100 kHz | 14 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.398 (35.50mm) | - | Through Hole |
|
LNT1E684MSECAP ALUM 680000UF 20% 25V SCREW |
2,944 | 182.88 |
RFQ |
Datasheet |
Bulk | LNT | Active | 680000 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 24.2 A @ 120 Hz | 27.83 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
LNT2G822MSEJCAP ALUM 8200UF 20% 400V SCREW |
2,418 | 185.06 |
RFQ |
Datasheet |
Bulk | LNT | Active | 8200 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 31 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.811 (173.00mm) | - | Chassis Mount |
|
UCY2W560MHDCAP ALUM 56UF 20% 450V RADIAL |
2,396 | 3.70 |
RFQ |
Datasheet |
Bulk | UCY | Active | 56 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 585 mA @ 120 Hz | 1.17 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
UCY2C391MHD9CAP ALUM 390UF 20% 160V RADIAL |
135 | 3.72 |
RFQ |
Datasheet |
Bulk | UCY | Active | 390 µF | ±20% | 160 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.51 A @ 120 Hz | 3.02 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
UPW0J153MHDCAP ALUM 15000UF 20% 6.3V RADIAL |
537 | 3.73 |
RFQ |
Datasheet |
Bulk | UPW | Not For New Designs | 15000 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 3.128 A @ 120 Hz | 3.68 A @ 100 kHz | 15 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.398 (35.50mm) | - | Through Hole |
|
UVR0J223MRD6CAP ALUM 22000UF 20% 6.3V RADIAL |
233 | 3.73 |
RFQ |
Datasheet |
Bulk | UVR | Not For New Designs | 22000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.2 A @ 120 Hz | 3.68 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
|
UCYW6680MHDCAP ALUM 68UF 20% 420V RADIAL |
3,859 | 3.76 |
RFQ |
Datasheet |
Bulk | UCY | Active | 68 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 645 mA @ 120 Hz | 1.29 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|

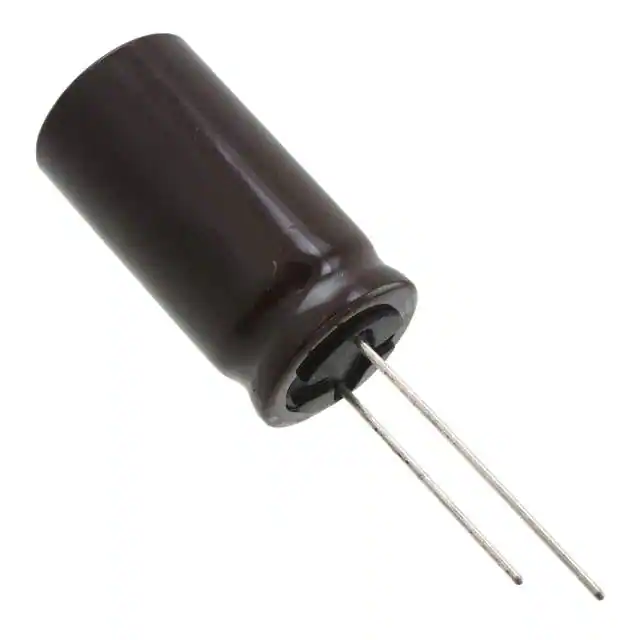

UAS2G560MHDCAP ALUM 56UF 20% 400V RADIAL |
2,061 | 3.77 |
RFQ |
Datasheet |
Bulk | UAS | Active | 56 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 340 mA @ 120 Hz | 544 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|

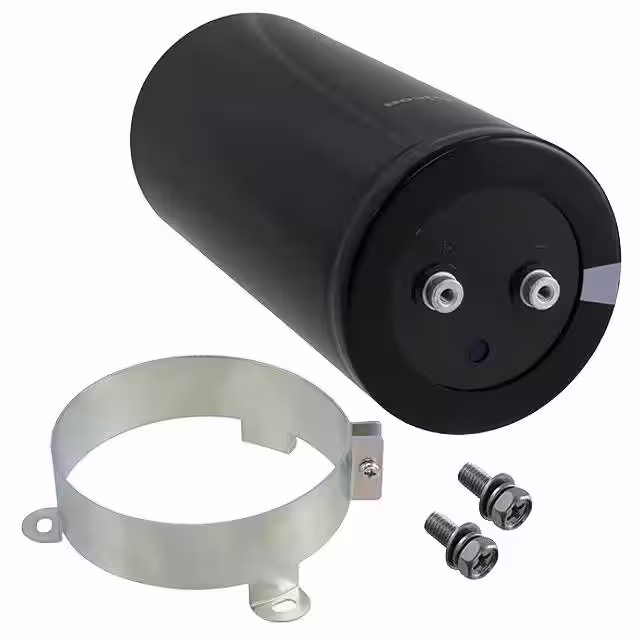

LNY2G153MSEJCAP ALUM 15000UF 20% 400V SCREW |
3,266 | 197.13 |
RFQ |
Datasheet |
Bulk | LNY | Active | 15000 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28.3 A @ 120 Hz | 39.62 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.480 (190.00mm) | - | Chassis Mount |
|
|
LNT2C473MSECAP ALUM 47000UF 20% 160V SCREW |
2,245 | 198.66 |
RFQ |
Datasheet |
Bulk | LNT | Active | 47000 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 17.2 A @ 120 Hz | 20.64 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
LNC2H822MSEJCAP ALUM 8200UF 20% 500V SCREW |
3,710 | 199.15 |
RFQ |
Datasheet |
Bulk | LNC | Active | 8200 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 33.7 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.614 (168.00mm) | - | Chassis Mount |
|

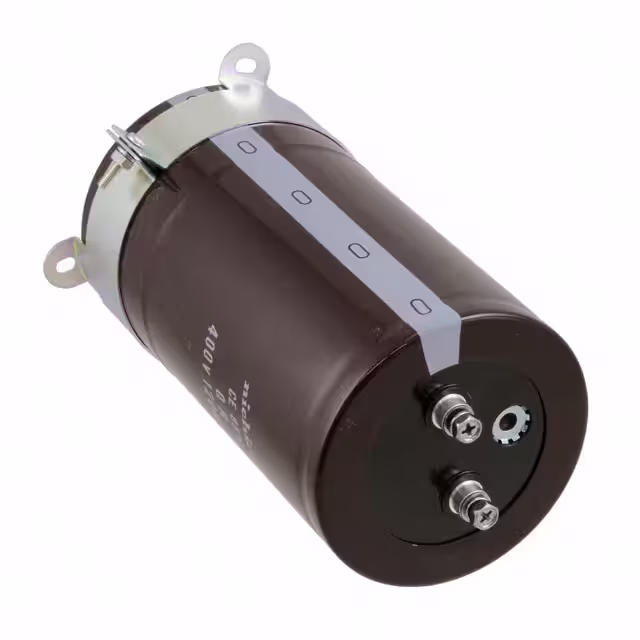

LQR2G123MSEJCAP ALUM 12000UF 20% 400V SCREW |
3,665 | 200.54 |
RFQ |
Datasheet |
Bulk | LQR | Active | 12000 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 37.6 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.811 (173.00mm) | - | Chassis Mount |
|
LNT2V123MSEJCAP ALUM 12000UF 20% 350V SCREW |
2,113 | 204.11 |
RFQ |
Datasheet |
Bulk | LNT | Active | 12000 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 36 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.598 (193.00mm) | - | Chassis Mount |
|
LNT2H562MSEJCAP ALUM 5600UF 20% 500V SCREW |
2,612 | 204.11 |
RFQ |
Datasheet |
Bulk | LNT | Active | 5600 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 17.8 A @ 120 Hz | 24.92 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.024 (153.00mm) | - | Chassis Mount |
|
LNX2W103MSEJCAP ALUM 10000UF 20% 450V SCREW |
3,499 | 204.89 |
RFQ |
Datasheet |
Bulk | LNX | Active | 10000 µF | ±20% | 450 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 29.6 A @ 120 Hz | 41.44 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.598 (193.00mm) | - | Chassis Mount |
