| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNT2D332MSECAP ALUM 3300UF 20% 200V SCREW |
2,911 | 37.74 |
RFQ |
Datasheet |
Bulk | LNT | Active | 3300 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.9 A @ 120 Hz | 4.68 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 4.055 (103.00mm) | - | Chassis Mount |
|

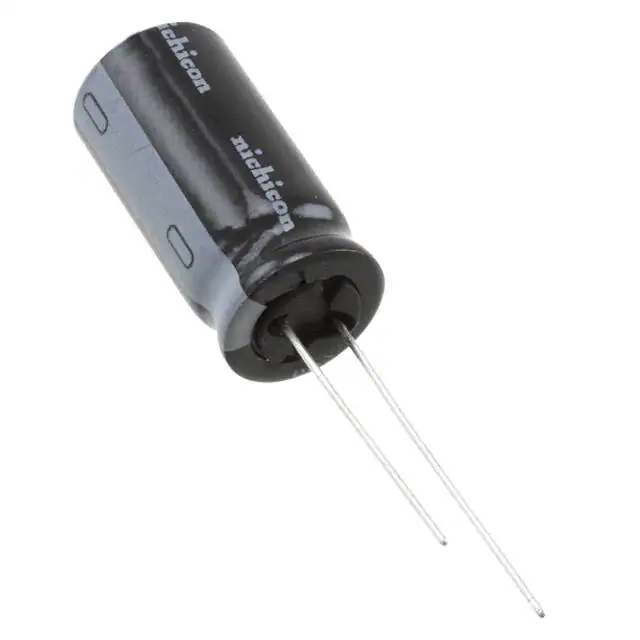

UHW1A392MHDCAP ALUM 3900UF 20% 10V RADIAL |
239 | 1.79 |
RFQ |
Datasheet |
Bulk | UHW | Not For New Designs | 3900 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 3.2 A @ 100 kHz | 15 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
LNY2G182MSEGCAP ALUM 1800UF 20% 400V SCREW |
2,950 | 40.13 |
RFQ |
Datasheet |
Bulk | LNY | Active | 1800 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.1 A @ 120 Hz | 12.74 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 2.559 (65.00mm) | - | Chassis Mount |
|
UVR2G330MHDCAP ALUM 33UF 20% 400V RADIAL |
316 | 1.81 |
RFQ |
Datasheet |
Bulk | UVR | Not For New Designs | 33 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 480 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
UBT2W220MHD1TNCAP ALUM 22UF 20% 450V RADIAL |
571 | 3.43 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UBT | Active | 22 µF | ±20% | 450 V | - | 2000 Hrs @ 125°C | -25°C ~ 125°C | Polar | - | Automotive | 154 mA @ 120 Hz | 277.2 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
UHW0J472MHDCAP ALUM 4700UF 20% 6.3V RADIAL |
326 | 1.83 |
RFQ |
Datasheet |
Bulk | UHW | Not For New Designs | 4700 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.56 A @ 120 Hz | 3.2 A @ 100 kHz | 15 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
LNT2V152MSEFCAP ALUM 1500UF 20% 350V SCREW |
3,721 | 41.16 |
RFQ |
Datasheet |
Bulk | LNT | Active | 1500 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 8.6 A @ 120 Hz | 12.04 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 4.055 (103.00mm) | - | Chassis Mount |
|
UHE2A271MHD6CAP ALUM 270UF 20% 100V RADIAL |
627 | 1.84 |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 270 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 945 mA @ 120 Hz | 1.35 A @ 100 kHz | 73 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
UUJ1V102MNQ6MSCAP ALUM 1000UF 20% 35V SMD |
185 | 2.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUJ | Not For New Designs | 1000 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 750 mA @ 120 Hz | 862.5 mA @ 10 kHz | - | - | 0.630 Dia (16.00mm) | 0.886 (22.50mm) | 0.673 L x 0.673 W (17.10mm x 17.10mm) | Surface Mount |
|

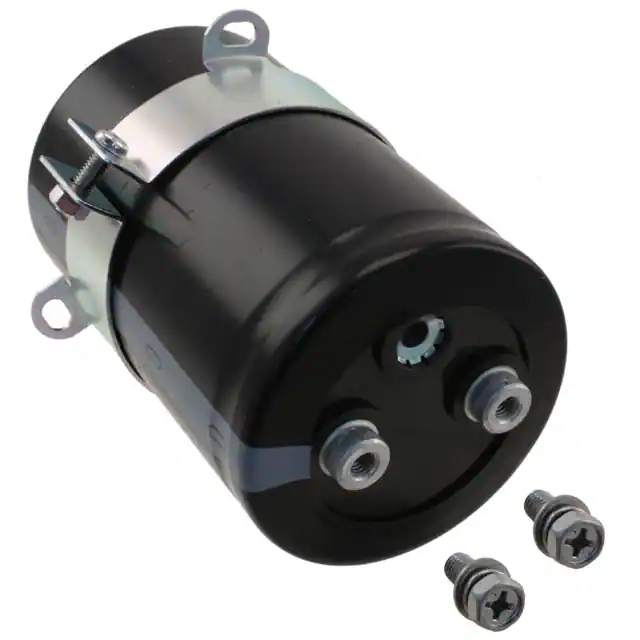

LNC2H122MSEGCAP ALUM 1200UF 20% 500V SCREW |
2,837 | 42.50 |
RFQ |
Datasheet |
Bulk | LNC | Active | 1200 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.4 A @ 120 Hz | 14.56 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 2.874 (73.00mm) | - | Chassis Mount |
|

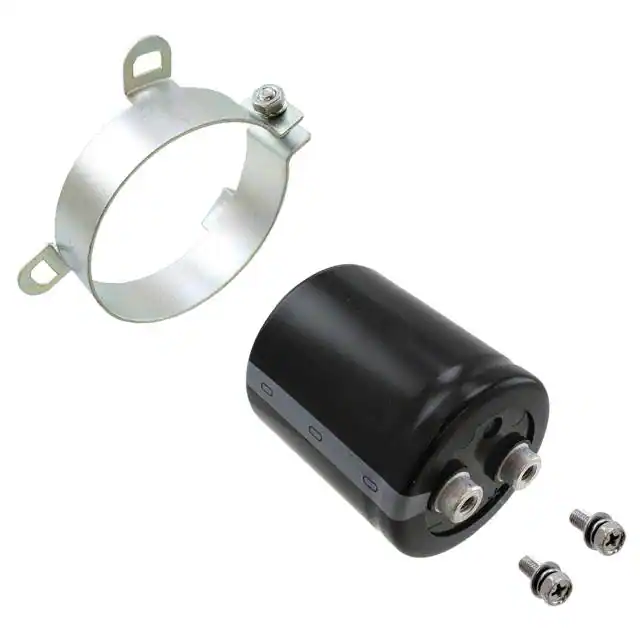

LNY2W821MSEFCAP ALUM 820UF 20% 450V SCREW |
2,279 | 42.56 |
RFQ |
Datasheet |
Bulk | LNY | Active | 820 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.9 A @ 120 Hz | 6.86 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 2.362 (60.00mm) | - | Chassis Mount |
|
UPW1A392MHDCAP ALUM 3900UF 20% 10V RADIAL |
142 | 1.89 |
RFQ |
Datasheet |
Bulk | UPW | Not For New Designs | 3900 µF | ±20% | 10 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.134 A @ 120 Hz | 2.51 A @ 100 kHz | 22 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.398 (35.50mm) | - | Through Hole |
|
LNT2H331MSEFCAP ALUM 330UF 20% 500V SCREW |
2,880 | 42.92 |
RFQ |
Datasheet |
Bulk | LNT | Active | 330 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 3.78 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 3.268 (83.00mm) | - | Chassis Mount |
|

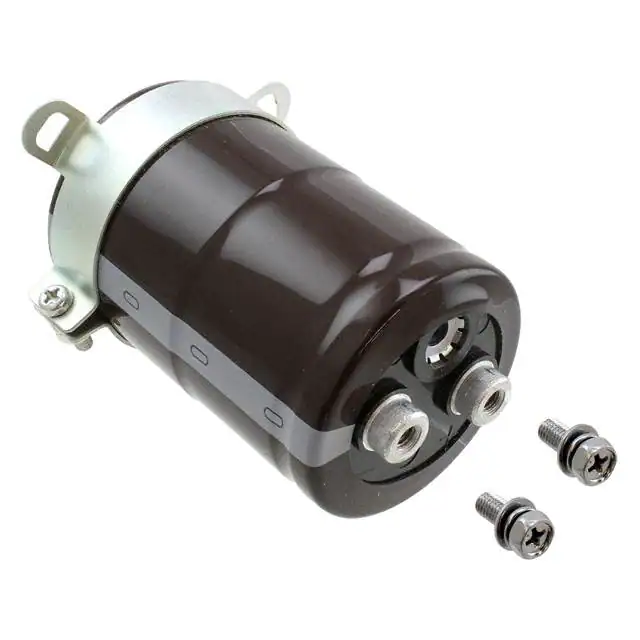

LQR2W122MSEFCAP ALUM 1200UF 20% 450V SCREW |
3,733 | 43.09 |
RFQ |
Datasheet |
Bulk | LQR | Active | 1200 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.2 A @ 120 Hz | 7.28 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 3.268 (83.00mm) | - | Chassis Mount |
|
LNT2A153MSECAP ALUM 15000UF 20% 100V SCREW |
2,739 | 43.32 |
RFQ |
Datasheet |
Bulk | LNT | Active | 15000 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.8 A @ 120 Hz | 8.97 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 4.055 (103.00mm) | - | Chassis Mount |
|

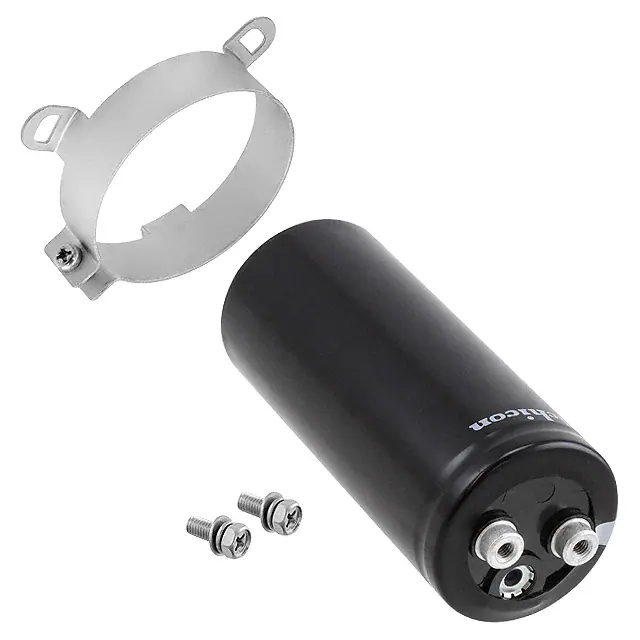

LNT2W152MSEFCAP ALUM 1500UF 20% 450V SCREW |
3,071 | 44.07 |
RFQ |
Datasheet |
Bulk | LNT | Active | 1500 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 9.2 A @ 120 Hz | 12.88 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 4.843 (123.00mm) | - | Chassis Mount |
|
UVZ2D101MHDCAP ALUM 100UF 20% 200V RADIAL |
525 | 1.97 |
RFQ |
Datasheet |
Bulk | UVZ | Not For New Designs | 100 µF | ±20% | 200 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 375 mA @ 120 Hz | 600 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
UVR2V470MHDCAP ALUM 47UF 20% 350V RADIAL |
231 | 1.97 |
RFQ |
Datasheet |
Bulk | UVR | Not For New Designs | 47 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 380 mA @ 120 Hz | 608 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.476 (37.50mm) | - | Through Hole |
|
UPW1E272MHDCAP ALUM 2700UF 20% 25V RADIAL |
173 | 1.98 |
RFQ |
Datasheet |
Bulk | UPW | Not For New Designs | 2700 µF | ±20% | 25 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 2.555 A @ 100 kHz | 22 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
UUG1V222MNQ1MSCAP ALUM 2200UF 20% 35V SMD |
2,722 | 2.86 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUG | Not For New Designs | 2200 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 1.7825 A @ 10 kHz | - | - | 0.709 Dia (18.00mm) | 0.886 (22.50mm) | 0.752 L x 0.752 W (19.10mm x 19.10mm) | Surface Mount |
