| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UHW0J182MPDCAP ALUM 1800UF 20% 6.3V RADIAL |
283 | 1.01 |
RFQ |
Datasheet |
Bulk | UHW | Not For New Designs | 1800 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 2 A @ 100 kHz | 30 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|

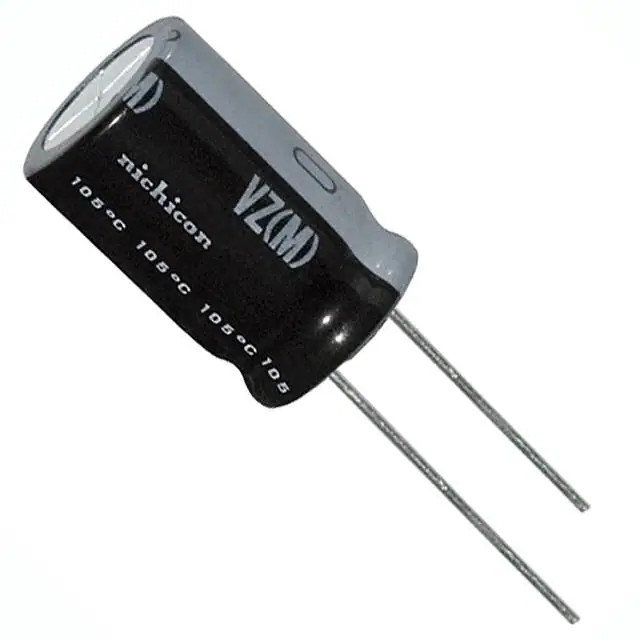

UVZ1V222MHD1TNCAP ALUM 2200UF 20% 35V RADIAL |
318 | 1.97 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVZ | Not For New Designs | 2200 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.26 A @ 120 Hz | 1.89 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
LNT2C222MSECAP ALUM 2200UF 20% 160V SCREW |
3,672 | 21.69 |
RFQ |
Datasheet |
Bulk | LNT | Active | 2200 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 3.24 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 4.055 (103.00mm) | - | Chassis Mount |
|
UPW2F220MHDCAP ALUM 22UF 20% 315V RADIAL |
657 | 1.04 |
RFQ |
Datasheet |
Bulk | UPW | Not For New Designs | 22 µF | ±20% | 315 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 120 mA @ 120 Hz | 192 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.984 (25.00mm) | - | Through Hole |
|
UPM1E222MHD6TNCAP ALUM 2200UF 20% 25V RADIAL |
315 | 1.98 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 2200 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.84 A @ 120 Hz | 2.05 A @ 10 kHz | 28 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UPW1H821MHD6TNCAP ALUM 820UF 20% 50V RADIAL |
2,212 | 1.99 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPW | Not For New Designs | 820 µF | ±20% | 50 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.815 A @ 120 Hz | 2.42 A @ 100 kHz | 42 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UHE0J332MHDCAP ALUM 3300UF 20% 6.3V RADIAL |
282 | 1.05 |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 3300 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.52 A @ 120 Hz | 1.9 A @ 100 kHz | 35 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.787 (20.00mm) | - | Through Hole |
|
UVY1A682MHD1TNCAP ALUM 6800UF 20% 10V RADIAL |
577 | 2.01 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVY | Not For New Designs | 6800 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.57 A @ 120 Hz | 1.8055 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

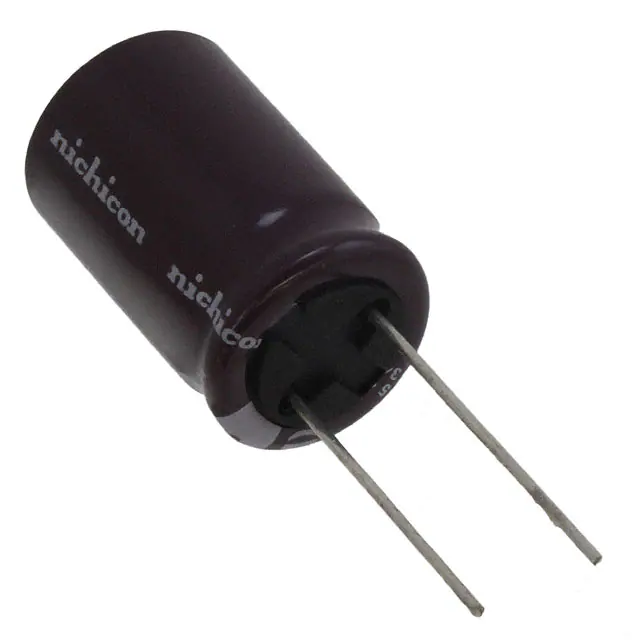

UPJ2W100MHD1TNCAP ALUM 10UF 20% 450V RADIAL |
449 | 2.01 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 10 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 90 mA @ 120 Hz | 144 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UPW1A472MHD1TNCAP ALUM 4700UF 20% 10V RADIAL |
733 | 2.04 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPW | Not For New Designs | 4700 µF | ±20% | 10 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 2.555 A @ 100 kHz | 22 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

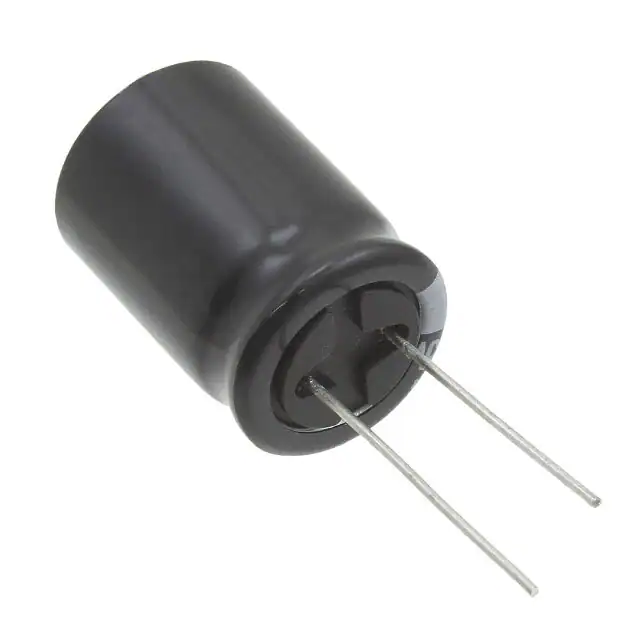

URS1V222MHD1TNCAP ALUM 2200UF 20% 35V RADIAL |
248 | 2.05 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | URS | Active | 2200 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.56 A @ 120 Hz | 1.794 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UUJ1C102MNQ6MSCAP ALUM 1000UF 20% 16V SMD |
329 | 1.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUJ | Not For New Designs | 1000 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 630 mA @ 120 Hz | 724.5 mA @ 10 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.673 L x 0.673 W (17.10mm x 17.10mm) | Surface Mount |
|
|
LNT2G471MSECCAP ALUM 470UF 20% 400V SCREW |
3,271 | 22.88 |
RFQ |
Datasheet |
Bulk | LNT | Active | 470 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.1 A @ 120 Hz | 4.34 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 4.055 (103.00mm) | - | Chassis Mount |
|
UHW1A182MPDCAP ALUM 1800UF 20% 10V RADIAL |
152 | 1.09 |
RFQ |
Datasheet |
Bulk | UHW | Not For New Designs | 1800 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.5 A @ 100 kHz | 19 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
URS1C472MHD1TNCAP ALUM 4700UF 20% 16V RADIAL |
500 | 2.08 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | URS | Active | 4700 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.77 A @ 120 Hz | 2.0355 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|

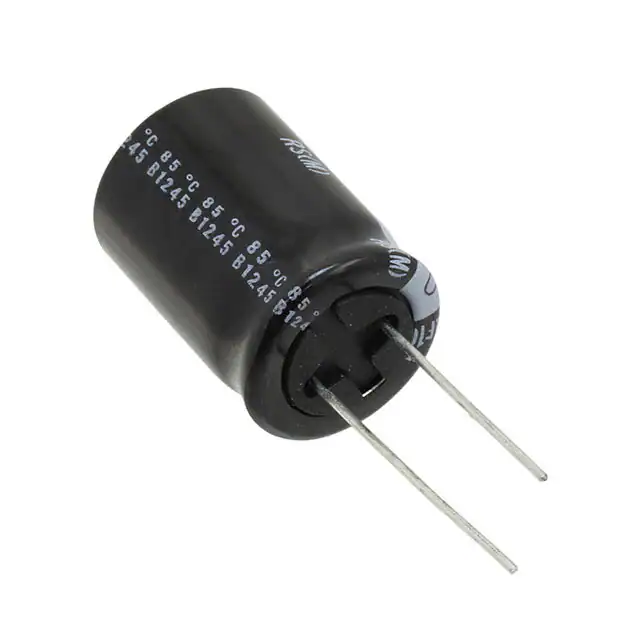

URS1A103MHD1TNCAP ALUM 10000UF 20% 10V RADIAL |
2,751 | 2.10 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | URS | Active | 10000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.35 A @ 120 Hz | 2.7025 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
UVK1E472MHD1TNCAP ALUM 4700UF 20% 25V RADIAL |
287 | 2.11 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVK | Not For New Designs | 4700 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 2.53 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
URS1E472MHD1TNCAP ALUM 4700UF 20% 25V RADIAL |
274 | 2.11 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | URS | Active | 4700 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.05 A @ 120 Hz | 2.3575 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
URS2D101MHD1TNCAP ALUM 100UF 20% 200V RADIAL |
271 | 2.11 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | URS | Active | 100 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 590 mA @ 120 Hz | 944 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UHE1V681MPDCAP ALUM 680UF 20% 35V RADIAL |
3,722 | 1.13 |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 680 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.433 A @ 120 Hz | 1.91 A @ 100 kHz | 31 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.240 (31.50mm) | - | Through Hole |
