| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NEH1500M10CAP ALUM 1500UF 20% 10V AXIAL |
784 | 1.52 |
RFQ |
Datasheet |
Bag | NEH | Active | 1500 µF | ±20% | 10 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.394 Dia x 0.826 L (10.00mm x 21.00mm) | - | - | Through Hole |
|
NPA1000M16CAP ALUM 1000UF 20% 16V AXIAL |
308 | 1.52 |
RFQ |
Datasheet |
Bag | NPA | Active | 1000 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | - | - | - | - | 0.630 Dia x 1.181 L (16.00mm x 30.00mm) | - | - | Through Hole |
|
VHT680M100CAP ALUM 680UF 20% 100V RADIAL |
424 | 1.53 |
RFQ |
Datasheet |
Bag | VHT | Active | 680 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.417 (36.00mm) | - | Through Hole |
|
NEH330M50EDCAP ALUM 330UF 20% 50V AXIAL |
175 | 1.55 |
RFQ |
Datasheet |
Bag | NEH | Active | 330 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.394 Dia x 0.826 L (10.00mm x 21.00mm) | - | - | Through Hole |
|
NEH2200M10EECAP ALUM 2200UF 20% 10V AXIAL |
724 | 1.59 |
RFQ |
Datasheet |
Bag | NEH | Active | 2200 µF | ±20% | 10 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.512 Dia x 0.866 L (13.00mm x 22.00mm) | - | - | Through Hole |
|
NEH2200M6.3EDCAP ALUM 2200UF 20% 6.3V AXIAL |
400 | 1.59 |
RFQ |
Datasheet |
Bag | NEH | Active | 2200 µF | ±20% | 6.3 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.394 Dia x 0.787 L (10.00mm x 20.00mm) | - | - | Through Hole |
|
NEH470M50EECAP ALUM 470UF 20% 50V AXIAL |
848 | 1.62 |
RFQ |
Datasheet |
Bag | NEH | Active | 470 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.512 Dia x 1.063 L (13.00mm x 27.00mm) | - | - | Through Hole |
|
NEV470M100GHCAP ALUM 470UF 20% 100V RADIAL |
700 | 1.62 |
RFQ |
Datasheet |
Bag | NEV | Active | 470 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.339 (34.00mm) | - | Through Hole |
|

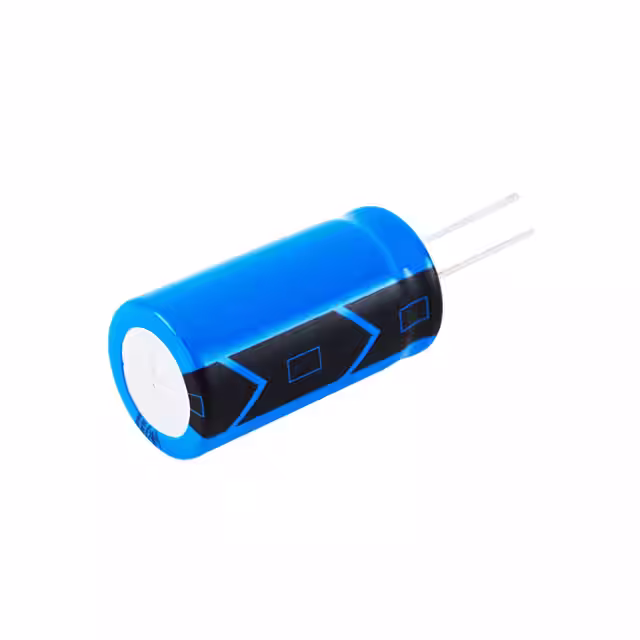

NEV1000M63GHCAP ALUM 1000UF 20% 63V RADIAL |
524 | 1.62 |
RFQ |
Datasheet |
Bag | NEV | Active | 1000 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.141 (29.00mm) | - | Through Hole |
|
NEHH3.3M450CDCAP ALUM 3.3UF 450V AXIAL |
688 | 1.63 |
RFQ |
Datasheet |
Bag | NEHH | Active | 3.3 µF | -10%, +75% | 450 V | - | 1000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.394 Dia x 0.787 L (10.00mm x 20.00mm) | - | - | Through Hole |
|
VHT8200M10CAP ALUM 8200UF 20% 10V RADIAL |
671 | 1.64 |
RFQ |
Datasheet |
Bag | VHT | Active | 8200 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.220 (31.00mm) | - | Through Hole |
|

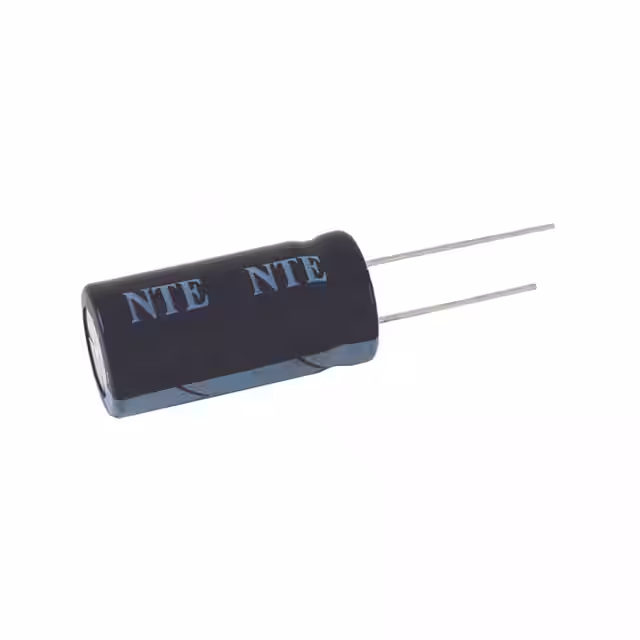

VHT5600M25CAP ALUM 5600UF 20% 25V RADIAL |
657 | 1.64 |
RFQ |
Datasheet |
Bag | VHT | Active | 5600 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.417 (36.00mm) | - | Through Hole |
|
NEHH22M160DDCAP ALUM 22UF 160V AXIAL |
309 | 1.66 |
RFQ |
Datasheet |
Bag | NEHH | Active | 22 µF | -10%, +75% | 160 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.394 Dia x 0.787 L (10.00mm x 20.00mm) | - | - | Through Hole |
|

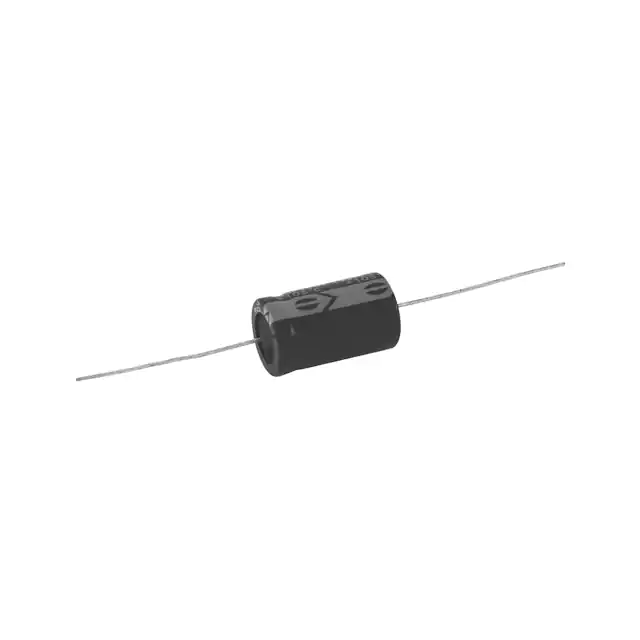

NEHH4.7M450DDCAP ALUM 4.7UF 450V AXIAL |
234 | 1.66 |
RFQ |
Datasheet |
Bag | NEHH | Active | 4.7 µF | -10%, +75% | 450 V | - | 1000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.512 Dia x 0.984 L (13.00mm x 25.00mm) | - | - | Through Hole |
|
NEH2200M16FECAP ALUM 2200UF 20% 16V AXIAL |
748 | 1.69 |
RFQ |
Datasheet |
Bag | NEH | Active | 2200 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.512 Dia x 1.024 L (13.00mm x 26.00mm) | - | - | Through Hole |
|
VHT3300M25CAP ALUM 3300UF 20% 25V RADIAL |
644 | 1.69 |
RFQ |
Datasheet |
Bag | VHT | Active | 3300 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
VHT47M250CAP ALUM 47UF 20% 250V RADIAL |
628 | 1.69 |
RFQ |
Datasheet |
Bag | VHT | Active | 47 µF | ±20% | 250 V | - | 1000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
NEH330M63EECAP ALUM 330UF 20% 63V AXIAL |
454 | 1.69 |
RFQ |
Datasheet |
Bag | NEH | Active | 330 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.512 Dia x 1.043 L (13.00mm x 26.50mm) | - | - | Through Hole |
|
NEH680M35EECAP ALUM 680UF 20% 35V AXIAL |
108 | 1.69 |
RFQ |
Datasheet |
Bag | NEH | Active | 680 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.512 Dia x 0.984 L (13.00mm x 25.00mm) | - | - | Through Hole |
|
VHT100M160CAP ALUM 100UF 20% 160V RADIAL |
743 | 1.71 |
RFQ |
Datasheet |
Bag | VHT | Active | 100 µF | ±20% | 160 V | - | 1000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.984 (25.00mm) | - | Through Hole |
