| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

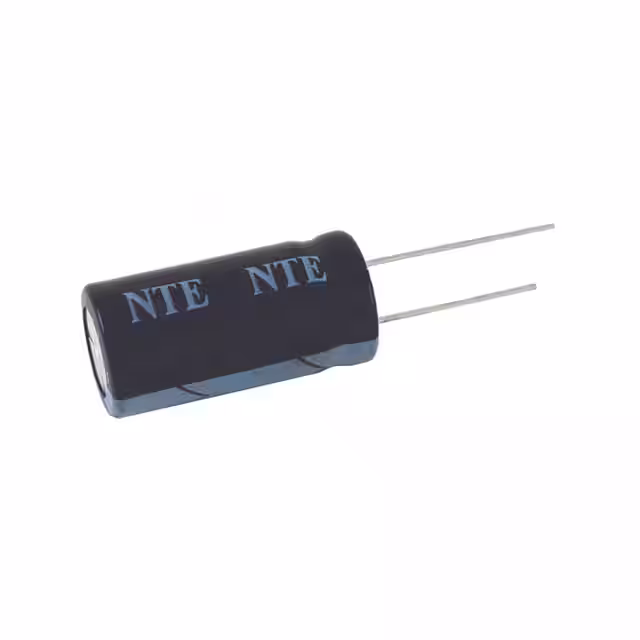

VHT560M63CAP ALUM 560UF 20% 63V RADIAL |
1,067 | 0.68 |
RFQ |
Datasheet |
Bag | VHT | Active | 560 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 0.827 (21.00mm) | - | Through Hole |
|
NEV1000M25EFCAP ALUM 1000UF 20% 25V RADIAL |
2,760 | 0.69 |
RFQ |
Datasheet |
Bag | NEV | Active | 1000 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
NEHH2.2M160BACAP ALUM 2.2UF 160V AXIAL |
1,572 | 0.75 |
RFQ |
Datasheet |
Bag | NEHH | Active | 2.2 µF | -10%, +75% | 160 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.315 Dia x 0.630 L (8.00mm x 16.00mm) | - | - | Through Hole |
|
NEV470M50FFCAP ALUM 470UF 20% 50V RADIAL |
1,496 | 0.76 |
RFQ |
Datasheet |
Bag | NEV | Active | 470 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
NEV1500M6.3CAP ALUM 1500UF 20% 6.3V RADIAL |
1,623 | 0.79 |
RFQ |
Datasheet |
Bag | NEV | Active | 1500 µF | ±20% | 6.3 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
NPA220M16CAP ALUM 220UF 20% 16V AXIAL |
1,499 | 0.86 |
RFQ |
Datasheet |
Bag | NPA | Active | 220 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | - | - | - | - | 0.394 Dia x 0.984 L (10.00mm x 25.00mm) | - | - | Through Hole |
|
NEV2200M16FFCAP ALUM 2200UF 20% 16V RADIAL |
1,068 | 0.86 |
RFQ |
Datasheet |
Bag | NEV | Active | 2200 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 0.965 (24.50mm) | - | Through Hole |
|
NEH330M25DCCAP ALUM 330UF 20% 25V AXIAL |
2,700 | 0.89 |
RFQ |
Datasheet |
Bag | NEH | Active | 330 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.315 Dia x 0.630 L (8.00mm x 16.00mm) | - | - | Through Hole |
|

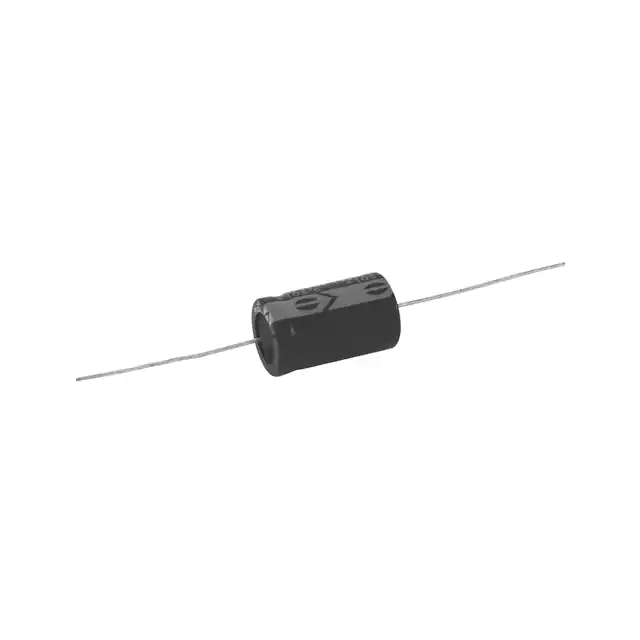

NEHH4.7M160BBCAP ALUM 4.7UF 160V AXIAL |
1,159 | 0.91 |
RFQ |
Datasheet |
Bag | NEHH | Active | 4.7 µF | -10%, +75% | 160 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.315 Dia x 0.787 L (8.00mm x 20.00mm) | - | - | Through Hole |
|
NPA100M50CAP ALUM 100UF 20% 50V AXIAL |
1,100 | 1.00 |
RFQ |
Datasheet |
Bag | NPA | Active | 100 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | - | - | - | - | 0.512 Dia x 1.181 L (13.00mm x 30.00mm) | - | - | Through Hole |
|
NPR22M50CAP ALUM 22UF 20% 50V RADIAL |
3,861 | 1.04 |
RFQ |
Datasheet |
Bag | NPR | Active | 22 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.571 (14.50mm) | - | Through Hole |
|
NEV220M100FFCAP ALUM 220UF 20% 100V RADIAL |
1,507 | 1.07 |
RFQ |
Datasheet |
Bag | NEV | Active | 220 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
NEVH47M160DECAP ALUM 47UF 160V RADIAL |
1,385 | 1.08 |
RFQ |
Datasheet |
Bag | NEVH | Active | 47 µF | -10%, +75% | 160 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
NEH220M50DDCAP ALUM 220UF 20% 50V AXIAL |
1,415 | 1.15 |
RFQ |
Datasheet |
Bag | NEH | Active | 220 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.394 Dia x 0.787 L (10.00mm x 20.00mm) | - | - | Through Hole |
|
NEV680M50FFCAP ALUM 680UF 20% 50V RADIAL |
1,131 | 1.15 |
RFQ |
Datasheet |
Bag | NEV | Active | 680 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
VHT33M250CAP ALUM 33UF 20% 250V RADIAL |
972 | 1.16 |
RFQ |
Datasheet |
Bag | VHT | Active | 33 µF | ±20% | 250 V | - | 1000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
VHT3300M16CAP ALUM 3300UF 20% 16V RADIAL |
248 | 1.16 |
RFQ |
Datasheet |
Bag | VHT | Active | 3300 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
NEV1500M16CAP ALUM 1500UF 20% 16V RADIAL |
1,732 | 1.17 |
RFQ |
Datasheet |
Bag | NEV | Active | 1500 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
NEV4700M10FHCAP ALUM 4700UF 20% 10V RADIAL |
1,117 | 1.18 |
RFQ |
Datasheet |
Bag | NEV | Active | 4700 µF | ±20% | 10 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
VHT10000M6.3CAP ALUM 10000UF 20% 6.3V RAD |
663 | 1.18 |
RFQ |
Datasheet |
Bag | VHT | Active | 10000 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.220 (31.00mm) | - | Through Hole |
