| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43501C9337M000CAP ALUM 330UF 20% 400V SNAP |
3,595 | 11.09 |
RFQ |
Datasheet |
Bulk | B43501 | Not For New Designs | 330 µF | ±20% | 400 V | 200mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.88 A @ 100 Hz | - | 330 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
B41505A8688M000CAP ALUM 6800UF 20% 63V SNAP |
204 | 11.94 |
RFQ |
Datasheet |
Bulk | B41505 | Active | 6800 µF | ±20% | 63 V | 29mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.6 A @ 100 Hz | - | 31 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
B43642B5477M000CAP ALUM 470UF 20% 450V SNAP |
1,148 | 13.49 |
RFQ |
Datasheet |
Bulk | B43642 | Active | 470 µF | ±20% | 450 V | 180mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.34 A @ 100 Hz | - | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
B43305A5687M000CAP ALUM 680UF 20% 450V SNAP |
240 | 20.63 |
RFQ |
Datasheet |
Bulk | B43305 | Not For New Designs | 680 µF | ±20% | 450 V | 200mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3 A @ 100 Hz | - | 280 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
B43521C9687M000CAP ALUM 680UF 20% 400V RADIAL |
3,900 | 26.66 |
RFQ |
Datasheet |
Bulk | B43521 | Not For New Designs | 680 µF | ±20% | 400 V | 140mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.9 A @ 100 Hz | - | 150 mOhms | - | 1.575 Dia (40.00mm) | 2.520 (64.00mm) | - | Through Hole |
|

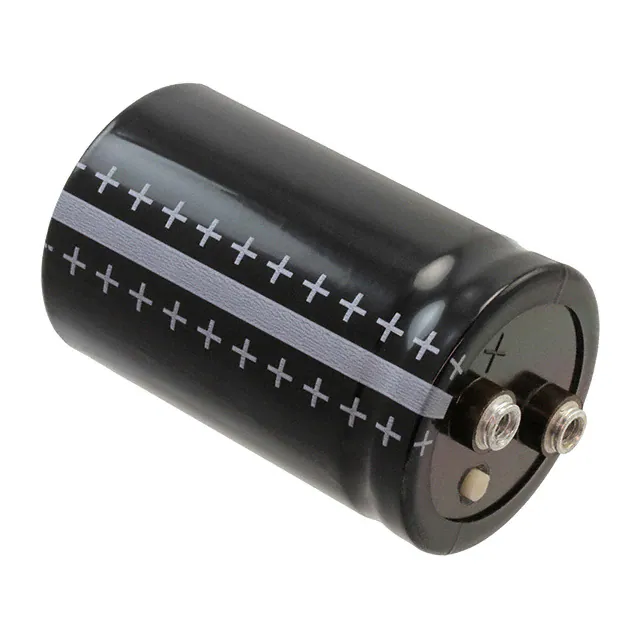

B41560A8159M000CAP ALUM 15000UF 20% 63V SCREW |
281 | 29.30 |
RFQ |
Datasheet |
Bulk | B41560 | Active | 15000 µF | ±20% | 63 V | 19mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.1 A @ 100 Hz | - | 14 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
B41580A7339M000CAP ALUM 33000UF 20% 40V SCREW |
324 | 29.77 |
RFQ |
Datasheet |
Bulk | B41580 | Active | 33000 µF | ±20% | 40 V | 12mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11 A @ 100 Hz | - | 13 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
B41580A8229M000CAP ALUM 22000UF 20% 63V SCREW |
140 | 35.94 |
RFQ |
Datasheet |
Bulk | B41580 | Active | 22000 µF | ±20% | 63 V | 14mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 12 A @ 100 Hz | - | 14 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
B43511A9108M000CAP ALUM 1000UF 20% 400V SNAP |
117 | 36.92 |
RFQ |
Datasheet |
Bulk | B43511 | Not For New Designs | 1000 µF | ±20% | 400 V | 90mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.1 A @ 100 Hz | - | 110 mOhms | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 2.795 (71.00mm) | - | Through Hole |
|
B43520B5108M000CAP ALUM 1000UF 20% 450V RADIAL |
655 | 38.72 |
RFQ |
Datasheet |
Bulk | B43520 | Not For New Designs | 1000 µF | ±20% | 450 V | 110mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.06 A @ 100 Hz | - | 150 mOhms | - | 1.575 Dia (40.00mm) | 2.913 (74.00mm) | - | Through Hole |
|
B43510A5158M000CAP ALUM 1500UF 20% 450V SNAP |
198 | 54.47 |
RFQ |
Datasheet |
Bulk | B43510 | Not For New Designs | 1500 µF | ±20% | 450 V | 75mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.16 A @ 100 Hz | - | 100 mOhms | 0.984 (25.00mm) | 1.575 Dia (40.00mm) | 4.016 (102.00mm) | - | Through Hole |
|
B43456A9228M000CAP ALUM 2200UF 20% 400V SCREW |
685 | 65.65 |
RFQ |
Datasheet |
Bulk | B43456 | Not For New Designs | 2200 µF | ±20% | 400 V | 30mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8 A @ 100 Hz | - | 30 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
B43510A5228M000CAP ALUM 2200UF 20% 450V SNAP |
536 | 68.34 |
RFQ |
Datasheet |
Bulk | B43510 | Not For New Designs | 2200 µF | ±20% | 450 V | 50mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.65 A @ 100 Hz | - | 75 mOhms | 0.984 (25.00mm) | 1.772 Dia (45.00mm) | 4.016 (102.00mm) | - | Through Hole |
|
B43458A5228M000CAP ALUM 2200UF 20% 450V SCREW |
151 | 88.77 |
RFQ |
Datasheet |
Bulk | B43458 | Not For New Designs | 2200 µF | ±20% | 450 V | 50mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.4 A @ 100 Hz | - | 60 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
B43584B5478M000CAP ALUM 4700UF 20% 450V SCREW |
3,974 | 155.01 |
RFQ |
Datasheet |
Bulk | B43584 | Not For New Designs | 4700 µF | ±20% | 450 V | 21mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 15.7 A @ 100 Hz | - | 25 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.677 (144.20mm) | - | Chassis, Stud Mount |
|
B43456A9688M000CAP ALUM 6800UF 20% 400V SCREW |
266 | 163.95 |
RFQ |
Datasheet |
Bulk | B43456 | Not For New Designs | 6800 µF | ±20% | 400 V | 11mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19 A @ 100 Hz | - | 14 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.677 (144.20mm) | - | Chassis Mount |
|
B43509A9686M000CAP ALUM 68UF 20% 400V SNAP |
381 | 3.87 |
RFQ |
Bulk | B43509 | Active | 68 µF | ±20% | 400 V | 1.2Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 510 mA @ 100 Hz | - | 1.7 Ohms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole | |
|
|
B43644A9107M000CAP ALUM 100UF 20% 400V SNAP |
269 | 4.22 |
RFQ |
Datasheet |
Bulk | B43644 | Active | 100 µF | ±20% | 400 V | 870mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 650 mA @ 100 Hz | - | 1.25 Ohms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
B43501B9107M000CAP ALUM 100UF 20% 400V SNAP |
686 | 4.54 |
RFQ |
Datasheet |
Bulk | B43501 | Not For New Designs | 100 µF | ±20% | 400 V | 660mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 800 mA @ 100 Hz | - | 1.06 Ohms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
B43545A5107M000CAP ALUM 100UF 20% 450V SNAP |
517 | 4.76 |
RFQ |
Datasheet |
Bulk | B43545 | Active | 100 µF | ±20% | 450 V | 910mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 100 Hz | - | 1.37 Ohms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
