| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

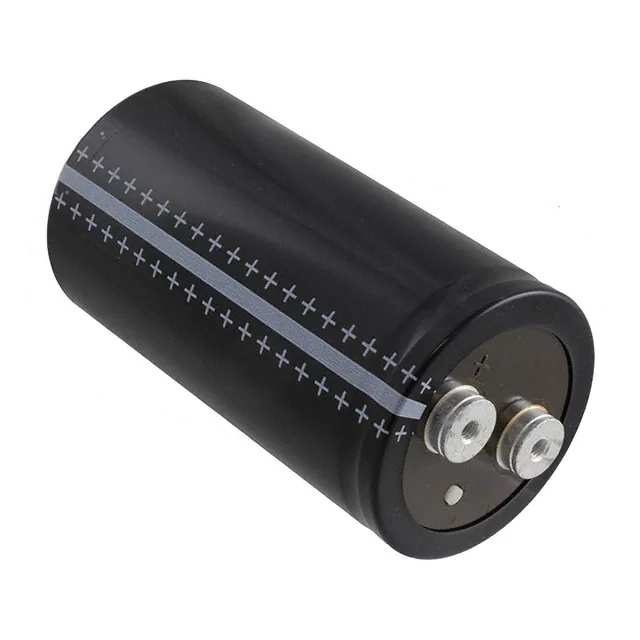

B41458B8100M000CAP ALUM 100000UF 20% 63V SCREW |
3,650 | 108.08 |
RFQ |
Datasheet |
Bulk | B41458 | Active | 100000 µF | ±20% | 63 V | 4mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 25 A @ 100 Hz | - | 6 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.677 (144.20mm) | - | Chassis Mount |
|
B41580A8100M000CAP ALUM 100000UF 20% 63V SCREW |
2,159 | 114.10 |
RFQ |
Datasheet |
Bulk | B41580 | Active | 100000 µF | ±20% | 63 V | 5mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 23 A @ 100 Hz | - | 6.6 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.677 (144.20mm) | - | Chassis Mount |
|
B43458A9478M000CAP ALUM 4700UF 20% 400V SCREW |
3,686 | 127.00 |
RFQ |
Datasheet |
Bulk | B43458 | Not For New Designs | 4700 µF | ±20% | 400 V | 16mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14 A @ 100 Hz | - | 17 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
B41696A7228Q7CAP ALUM 2200UF 40V AXIAL |
3,536 | 7.00 |
RFQ |
Datasheet |
Tray | B41696 | Active | 2200 µF | -10%, +30% | 40 V | - | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 3.5 A @ 10 kHz | 24 mOhms | - | - | - | - | Through Hole |
|
B43548B5337M060CAP ALUM 330UF 20% 450V SNAP |
440 | 8.66 |
RFQ |
Datasheet |
Bulk | B43548 | Active | 330 µF | ±20% | 450 V | 240mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.65 A @ 100 Hz | - | 360 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
B43541B7107M000CAP ALUM 100UF 20% 550V SNAP |
126 | 9.25 |
RFQ |
Datasheet |
Tray | B43541 | Active | 100 µF | ±20% | 550 V | 1.32Ohm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1 A @ 100 Hz | - | 2.1 Ohms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
B43644A9477M000CAP ALUM 470UF 20% 400V SNAP |
925 | 10.50 |
RFQ |
Datasheet |
Bulk | B43644 | Active | 470 µF | ±20% | 400 V | 200mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.09 A @ 100 Hz | - | 290 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
B43647A5567M057CAP ALUM 560UF 20% 450V SNAP |
1,450 | 13.54 |
RFQ |
Datasheet |
Bulk | B43647 | Active | 560 µF | ±20% | 450 V | 200mOhm @ 100Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.08 A @ 100 Hz | - | 310 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
|

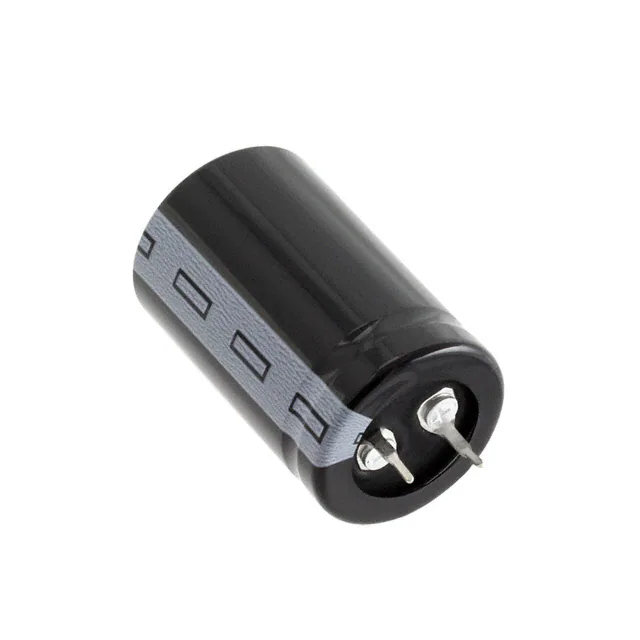

B43545A9687M000CAP ALUM 680UF 20% 400V SNAP |
464 | 14.06 |
RFQ |
Datasheet |
Tray | B43545 | Active | 680 µF | ±20% | 400 V | 90mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.33 A @ 100 Hz | - | 130 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
B43305B9687M000CAP ALUM 680UF 20% 400V SNAP |
112 | 15.42 |
RFQ |
Datasheet |
Bulk | B43305 | Not For New Designs | 680 µF | ±20% | 400 V | 200mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.64 A @ 100 Hz | - | 270 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
B43501A9477M000CAP ALUM 470UF 20% 400V SNAP |
401 | 15.68 |
RFQ |
Datasheet |
Bulk | B43501 | Not For New Designs | 470 µF | ±20% | 400 V | 140mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.6 A @ 100 Hz | - | 230 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
B41456B9109M000CAP ALUM 10000UF 20% 100V SCREW |
367 | 30.87 |
RFQ |
Datasheet |
Bulk | B41456 | Active | 10000 µF | ±20% | 100 V | 18mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10 A @ 100 Hz | - | 14 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 3.177 (80.70mm) | - | Chassis Mount |
|
B41560A9109M000CAP ALUM 10000UF 20% 100V SCREW |
700 | 38.77 |
RFQ |
Datasheet |
Bulk | B41560 | Active | 10000 µF | ±20% | 100 V | 14mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11 A @ 100 Hz | - | 12 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 4.161 (105.70mm) | - | Chassis Mount |
|
B43701B5278M000CAP ALUM 2700UF 20% 450V SCREW |
123 | 64.92 |
RFQ |
Datasheet |
Bulk | B43701 | Active | 2700 µF | ±20% | 450 V | 45mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 8.38 A @ 100 Hz | 1.202 A @ 100 kHz | 75 mOhms | 1.122 (28.50mm) | 2.531 Dia (64.30mm) | 3.846 (97.70mm) | - | Chassis Mount |
|
B41560A8339M000CAP ALUM 33000UF 20% 63V SCREW |
105 | 66.71 |
RFQ |
Datasheet |
Bulk | B41560 | Active | 33000 µF | ±20% | 63 V | 11mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15 A @ 100 Hz | - | 12 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.161 (105.70mm) | - | Chassis Mount |
|
B41456B8689M000CAP ALUM 68000UF 20% 63V SCREW |
512 | 100.75 |
RFQ |
Datasheet |
Bulk | B41456 | Active | 68000 µF | ±20% | 63 V | 5mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 A @ 100 Hz | - | 6.5 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 4.161 (105.70mm) | - | Chassis Mount |
|
B41456B9479M000CAP ALUM 47000UF 20% 100V SCREW |
252 | 107.06 |
RFQ |
Datasheet |
Bulk | B41456 | Active | 47000 µF | ±20% | 100 V | 5mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24 A @ 100 Hz | - | 6 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.638 (143.20mm) | - | Chassis Mount |
|
B43310A5478M000CAP ALUM 4700UF 20% 450V SCREW |
254 | 118.52 |
RFQ |
Datasheet |
Bulk | B43310 | Not For New Designs | 4700 µF | ±20% | 450 V | 41mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 11.2 A @ 120 Hz | - | - | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.118 (130.00mm) | - | Chassis Mount |
|
B41821A8476MCAP ALUM 47UF 20% 63V RADIAL |
1,292 | 0.52 |
RFQ |
Datasheet |
Bulk | B41821 | Active | 47 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 170 mA @ 120 Hz | - | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
B41821A4108M000CAP ALUM 1000UF 20% 16V RADIAL |
6,646 | 0.60 |
RFQ |
Datasheet |
Bulk | B41821 | Not For New Designs | 1000 µF | ±20% | 16 V | 330mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 790 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
