| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B41560A8229M000CAP ALUM 22000UF 20% 63V SCREW |
2,466 | 35.94 |
RFQ |
Datasheet |
Bulk | B41560 | Active | 22000 µF | ±20% | 63 V | 14mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 12 A @ 100 Hz | - | 14 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 4.161 (105.70mm) | - | Chassis Mount |
|
B43727A5188M600CAP ALUM 1800UF 20% 450V SCREW |
2,070 | 44.73 |
RFQ |
Datasheet |
Bulk | B43727 | Active | 1800 µF | ±20% | 450 V | 60mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.11 A @ 100 Hz | - | 90 mOhms | 0.874 (22.20mm) | 2.031 Dia (51.60mm) | 3.217 (81.70mm) | - | Chassis, Stud Mount |
|
B43310C9228M000CAP ALUM 2200UF 20% 400V SCREW |
3,759 | 64.33 |
RFQ |
Datasheet |
Bulk | B43310 | Not For New Designs | 2200 µF | ±20% | 400 V | 87mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 6.4 A @ 120 Hz | - | - | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 3.780 (96.00mm) | - | Chassis Mount |
|
|
B43727A9478M600CAP ALUM 4700UF 20% 400V SCREW |
2,053 | 68.47 |
RFQ |
Datasheet |
Bulk | B43727 | Active | 4700 µF | ±20% | 400 V | 26mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.7 A @ 100 Hz | - | 45 mOhms | 1.122 (28.50mm) | 2.531 Dia (64.30mm) | 3.846 (97.70mm) | - | Chassis, Stud Mount |
|
|
B43310A5338M000CAP ALUM 3300UF 20% 450V SCREW |
3,501 | 92.07 |
RFQ |
Datasheet |
Bulk | B43310 | Not For New Designs | 3300 µF | ±20% | 450 V | 55mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.1 A @ 120 Hz | - | - | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 5.118 (130.00mm) | - | Chassis Mount |
|
B43310A5398M000CAP ALUM 3900UF 20% 450V SCREW |
3,859 | 109.28 |
RFQ |
Datasheet |
Bulk | B43310 | Not For New Designs | 3900 µF | ±20% | 450 V | 49mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.7 A @ 120 Hz | - | - | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 4.528 (115.00mm) | - | Chassis Mount |
|
|
B43310A9688M000CAP ALUM 6800UF 20% 400V SCREW |
2,881 | 123.16 |
RFQ |
Datasheet |
Bulk | B43310 | Not For New Designs | 6800 µF | ±20% | 400 V | 28mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 14.6 A @ 120 Hz | - | - | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 6.102 (155.00mm) | - | Chassis Mount |
|
B43254A2157M000CAP ALUM 150UF 20% 200V SNAP |
606 | 3.19 |
RFQ |
Datasheet |
Bulk | B43254 | Active | 150 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 630 mA @ 120 Hz | 976.5 mA @ 20 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
B43310A9828M000CAP ALUM 8200UF 20% 400V SCREW |
2,837 | 157.64 |
RFQ |
Datasheet |
Bulk | B43310 | Not For New Designs | 8200 µF | ±20% | 400 V | 23mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16.8 A @ 120 Hz | - | - | 1.248 (31.70mm) | 3.583 Dia (91.00mm) | 6.181 (157.00mm) | - | Chassis Mount |
|
B43704A5688M000CAP ALUM 6800UF 20% 450V SCREW |
2,512 | 159.51 |
RFQ |
Datasheet |
Bulk | B43704 | Active | 6800 µF | ±20% | 450 V | 15mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24 A @ 100 Hz | - | 24 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 6.181 (157.00mm) | - | Chassis Mount |
|
B43254B2277M000CAP ALUM 270UF 20% 200V SNAP |
294 | 3.43 |
RFQ |
Datasheet |
Bulk | B43254 | Active | 270 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.55 A @ 20 kHz | - | 0.394 (10.00mm) | 1.000 Dia (25.40mm) | 1.063 (27.00mm) | - | Through Hole |
|

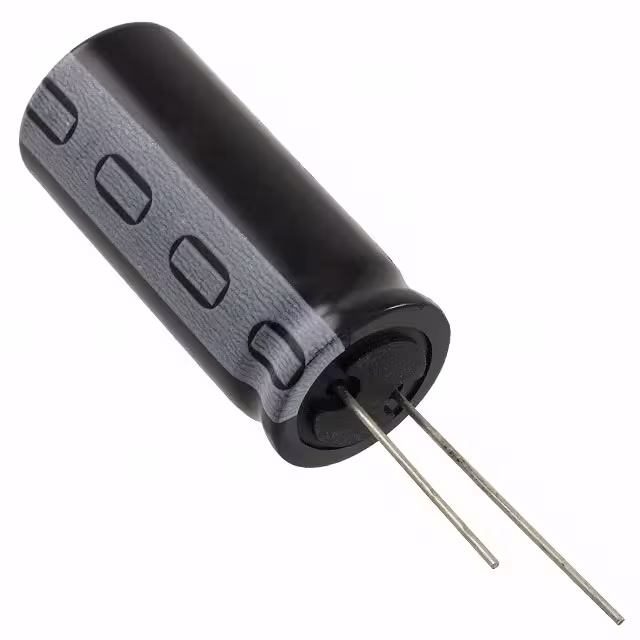

B41821A7478M000CAP ALUM 4700UF 20% 35V RADIAL |
225 | 3.44 |
RFQ |
Datasheet |
Bulk | B41821 | Not For New Designs | 4700 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.55 A @ 120 Hz | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
B43255A9686M000CAP ALUM 68UF 20% 400V SNAP |
184 | 3.76 |
RFQ |
Datasheet |
Bulk | B43255 | Active | 68 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 480 mA @ 120 Hz | 744 mA @ 20 kHz | - | 0.394 (10.00mm) | 1.000 Dia (25.40mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
B43231F2337M000CAP ALUM 330UF 20% 250V SNAP |
3,186 | 3.89 |
RFQ |
Datasheet |
Bulk | B43231 | Not For New Designs | 330 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.56 A @ 120 Hz | 2.418 A @ 20 kHz | - | 0.394 (10.00mm) | 1.000 Dia (25.40mm) | 1.260 (32.00mm) | - | Through Hole |
|
B41505A3109M000CAP ALUM 10000UF 20% 10V SNAP |
608 | 4.09 |
RFQ |
Datasheet |
Bulk | B41505 | Active | 10000 µF | ±20% | 10 V | 53mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 100 Hz | - | 56 mOhms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
B43310A5109M000CAP ALUM 10000UF 20% 450V SCREW |
3,128 | 257.58 |
RFQ |
Datasheet |
Bulk | B43310 | Not For New Designs | 10000 µF | ±20% | 450 V | 19mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 20.4 A @ 120 Hz | - | - | 1.248 (31.70mm) | 3.583 Dia (91.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
B41252A0478M000CAP ALUM 4700UF 20% 80V SNAP |
3,433 | 5.67 |
RFQ |
Datasheet |
Bulk | B41252 | Active | 4700 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
B43504B5107M000CAP ALUM 100UF 20% 450V SNAP |
2,610 | 5.82 |
RFQ |
Datasheet |
Bulk | B43504 | Not For New Designs | 100 µF | ±20% | 450 V | 1.35Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 650 mA @ 100 Hz | - | 1.6 Ohms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
B43505C2337M000CAP ALUM 330UF 20% 250V SNAP |
2,681 | 6.51 |
RFQ |
Datasheet |
Bulk | B43505 | Not For New Designs | 330 µF | ±20% | 250 V | 390mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 100 Hz | - | 470 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
B43504F2477M000CAP ALUM 470UF 20% 200V SNAP |
3,619 | 6.74 |
RFQ |
Datasheet |
Bulk | B43504 | Not For New Designs | 470 µF | ±20% | 200 V | 270mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 100 Hz | - | 330 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.063 (27.00mm) | - | Through Hole |
