| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

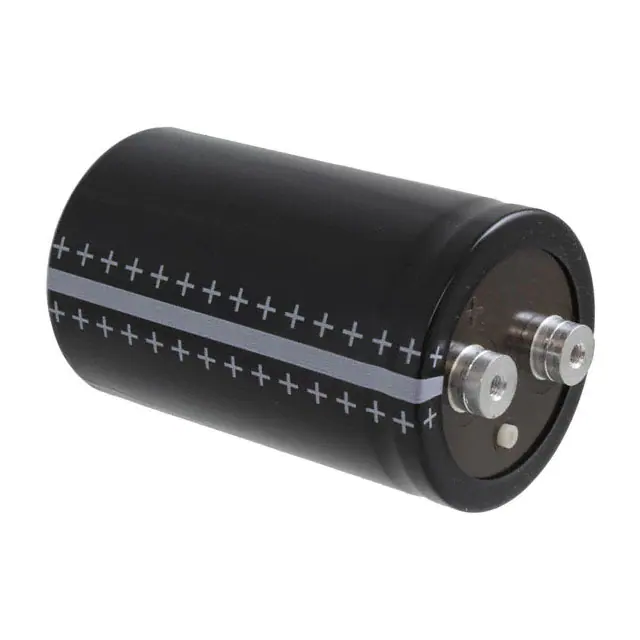

B43564A6278M000CAP ALUM 2700UF 20% 500V SCREW |
3,176 | 134.24 |
RFQ |
Datasheet |
Bulk | B43564 | Not For New Designs | 2700 µF | ±20% | 500 V | 60mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 10.5 A @ 100 Hz | - | 43 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 4.161 (105.70mm) | - | Chassis Mount |
|

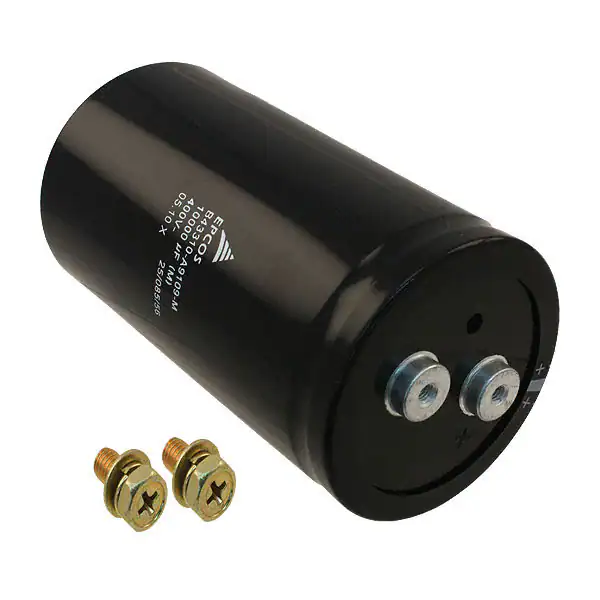

B43310A9109M000CAP ALUM 10000UF 20% 400V SCREW |
2,015 | 190.99 |
RFQ |
Datasheet |
Bulk | B43310 | Not For New Designs | 10000 µF | ±20% | 400 V | 19mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 18.5 A @ 120 Hz | - | - | 1.248 (31.70mm) | 3.583 Dia (91.00mm) | 6.181 (157.00mm) | - | Chassis Mount |
|
B43501A9157M000CAP ALUM 150UF 20% 400V SNAP |
3,704 | 5.42 |
RFQ |
Datasheet |
Bulk | B43501 | Not For New Designs | 150 µF | ±20% | 400 V | 440mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.1 A @ 100 Hz | - | 710 mOhms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
B43508B9157M000CAP ALUM 150UF 20% 400V SNAP |
2,966 | 6.42 |
RFQ |
Datasheet |
Bulk | B43508 | Active | 150 µF | ±20% | 400 V | 820mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 770 mA @ 100 Hz | - | 1.15 Ohms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
B43501C9227M000CAP ALUM 220UF 20% 400V SNAP |
2,657 | 6.79 |
RFQ |
Datasheet |
Bulk | B43501 | Not For New Designs | 220 µF | ±20% | 400 V | 300mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.38 A @ 100 Hz | - | 490 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
B43505G2477M000CAP ALUM 470UF 20% 200V SNAP |
2,799 | 6.80 |
RFQ |
Datasheet |
Bulk | B43505 | Not For New Designs | 470 µF | ±20% | 200 V | 280mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 100 Hz | - | 330 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
B43310A5129M000CAP ALUM 12000UF 20% 450V SCREW |
3,045 | 301.92 |
RFQ |
Datasheet |
Bulk | B43310 | Not For New Designs | 12000 µF | ±20% | 450 V | 16mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 23.5 A @ 120 Hz | - | - | 1.248 (31.70mm) | 3.583 Dia (91.00mm) | 8.661 (220.00mm) | - | Chassis Mount |
|

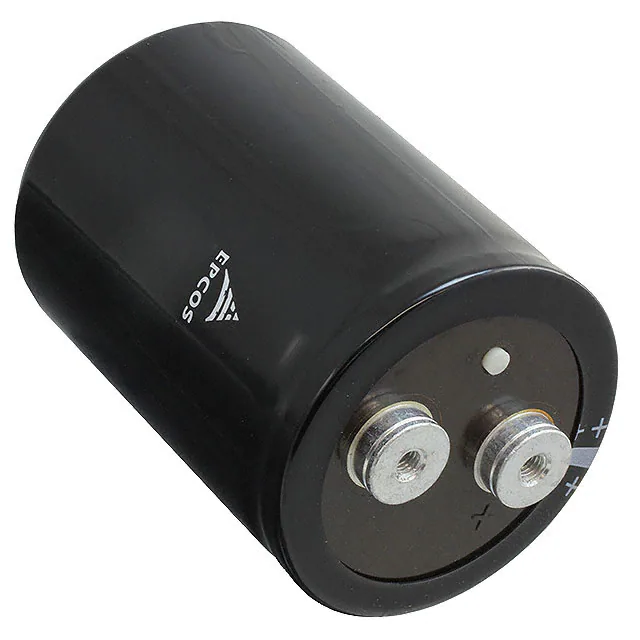

B41560A7339M000CAP ALUM 33000UF 20% 40V SCREW |
2,115 | 29.77 |
RFQ |
Datasheet |
Bulk | B41560 | Active | 33000 µF | ±20% | 40 V | 12mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11 A @ 100 Hz | - | 13 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
B43511A5687M87CAP ALUM 680UF 20% 450V SNAP |
3,374 | 28.85 |
RFQ |
Datasheet |
Bulk | B43511 | Active | 680 µF | ±20% | 450 V | 230mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.2 A @ 100 Hz | - | 240 mOhms | 0.886 (22.50mm) | 1.378 Dia (35.00mm) | 3.236 (82.20mm) | - | Through Hole |
|
B41580A9688M000CAP ALUM 6800UF 20% 100V SCREW |
2,830 | 30.69 |
RFQ |
Datasheet |
Bulk | B41580 | Active | 6800 µF | ±20% | 100 V | 24mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8.7 A @ 100 Hz | - | 25 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
B41456B4150M000CAP ALUM 150000UF 20% 16V SCREW |
2,304 | 32.29 |
RFQ |
Datasheet |
Bulk | B41456 | Active | 150000 µF | ±20% | 16 V | 8.4mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15 A @ 100 Hz | - | 6.8 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
B41458B9159M000CAP ALUM 15000UF 20% 100V SCREW |
3,306 | 38.48 |
RFQ |
Datasheet |
Bulk | B41458 | Active | 15000 µF | ±20% | 100 V | 15mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13 A @ 100 Hz | - | 12 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
B41580A9109M000CAP ALUM 10000UF 20% 100V SCREW |
2,714 | 38.77 |
RFQ |
Datasheet |
Bulk | B41580 | Active | 10000 µF | ±20% | 100 V | 14mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11 A @ 100 Hz | - | 12 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
|
B41580A5100M000CAP ALUM 100000UF 20% 25V SCREW |
3,740 | 39.74 |
RFQ |
Datasheet |
Bulk | B41580 | Active | 100000 µF | ±20% | 25 V | 9.4mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15 A @ 100 Hz | - | 7.6 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 4.201 (106.70mm) | - | Chassis Mount |
|

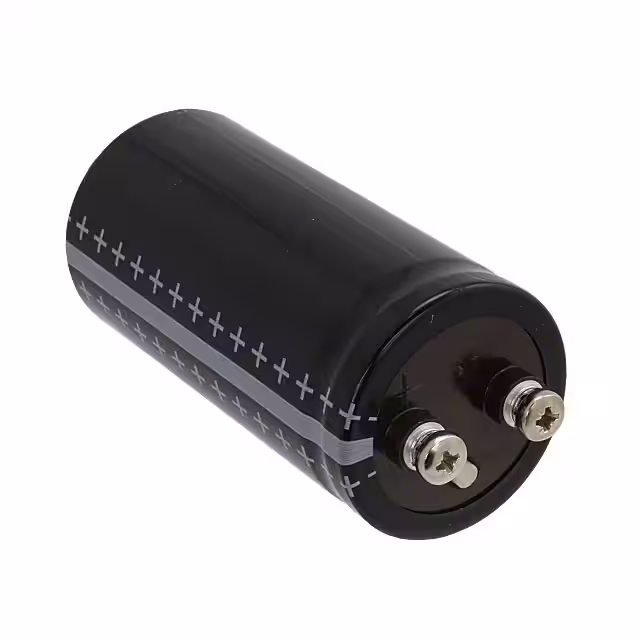

B41456B8339M000CAP ALUM 33000UF 20% 63V SCREW |
3,144 | 39.97 |
RFQ |
Datasheet |
Bulk | B41456 | Active | 33000 µF | ±20% | 63 V | 12mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14 A @ 100 Hz | - | 12 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
B43564C2478M000CAP ALUM 4700UF 20% 250V SCREW |
3,030 | 66.24 |
RFQ |
Datasheet |
Bulk | B43564 | Not For New Designs | 4700 µF | ±20% | 250 V | 39mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 11.1 A @ 100 Hz | - | 31 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
B41560A9229M000CAP ALUM 22000UF 20% 100V SCREW |
3,973 | 80.67 |
RFQ |
Datasheet |
Bulk | B41560 | Active | 22000 µF | ±20% | 100 V | 6mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17 A @ 100 Hz | - | 6 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 4.201 (106.70mm) | - | Chassis Mount |
|

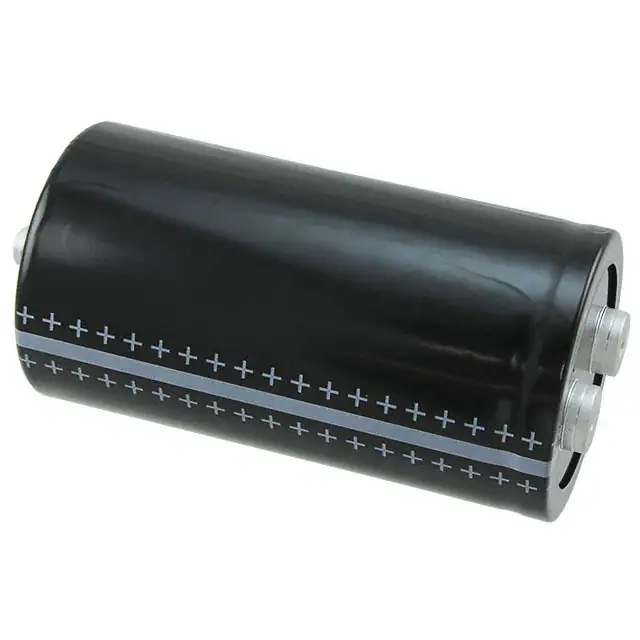

B43457B5478M000CAP ALUM 4700UF 20% 450V SCREW |
2,020 | 152.08 |
RFQ |
Datasheet |
Bulk | B43457 | Not For New Designs | 4700 µF | ±20% | 450 V | 23mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.7 A @ 100 Hz | - | 28 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.677 (144.20mm) | - | Chassis, Stud Mount |
|
B43634B9157M000CAP ALUM 150UF 20% 400V SNAP |
3,305 | 4.53 |
RFQ |
Datasheet |
Bulk | B43634 | Active | 150 µF | ±20% | 400 V | 720mOhm @ 100Hz | 8000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.13 A @ 100 Hz | - | 1.1 Ohms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
B43644A5477M000CAP ALUM 470UF 20% 450V SNAP |
3,995 | 12.15 |
RFQ |
Datasheet |
Bulk | B43644 | Not For New Designs | 470 µF | ±20% | 450 V | 220mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.26 A @ 100 Hz | - | 330 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.244 (57.00mm) | - | Through Hole |
