| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESH477M035AH3AACAP ALUM 470UF 20% 35V RADIAL |
8,881 | 0.63 |
RFQ |
Datasheet |
Bulk | ESH | Active | 470 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.748 (19.00mm) | - | Through Hole |
|
ESK106M350AH2AACAP ALUM 10UF 20% 350V RADIAL |
4,429 | 0.63 |
RFQ |
Datasheet |
Bulk | ESK | Active | 10 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 98 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
|
ESK108M025AH4AACAP ALUM 1000UF 20% 25V RADIAL |
12,314 | 0.64 |
RFQ |
Datasheet |
Bulk | ESK | Active | 1000 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 760 mA @ 120 Hz | 874 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.827 (21.00mm) | - | Through Hole |
|
ESC477M035AH4AACAP ALUM 470UF 20% 35V RADIAL |
16,221 | 0.66 |
RFQ |
Datasheet |
Bulk | ESC | Active | 470 µF | ±20% | 35 V | 39mOhm @ 100kHz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.3 A @ 100 kHz | 39 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.827 (21.00mm) | - | Through Hole |
|
ESH475M400AH2AACAP ALUM 4.7UF 20% 400V RADIAL |
15,749 | 0.66 |
RFQ |
Datasheet |
Bulk | ESH | Active | 4.7 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 60 mA @ 120 Hz | 96 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
ESH107M100AH4AACAP ALUM 100UF 20% 100V RADIAL |
13,785 | 0.66 |
RFQ |
Datasheet |
Box | ESH | Active | 100 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 305 mA @ 120 Hz | 457.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
ESY227M035AH1AACAP ALUM 220UF 20% 35V RADIAL |
2,732 | 0.70 |
RFQ |
Datasheet |
Bulk | ESY | Active | 220 µF | ±20% | 35 V | 53mOhm @ 100kHz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | 53 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
ESG475M400AH2AACAP ALUM 4.7UF 20% 400V RADIAL |
15,238 | 0.73 |
RFQ |
Datasheet |
Bulk | ESG | Active | 4.7 µF | ±20% | 400 V | 3.5Ohm @ 100kHz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 50 mA @ 120 Hz | 80 mA @ 10 kHz | 3.5 Ohms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
|
ESH475M450AH2AACAP ALUM 4.7UF 20% 450V RADIAL |
2,927 | 0.73 |
RFQ |
Datasheet |
Bulk | ESH | Active | 4.7 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 59 mA @ 120 Hz | 94.4 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
ESW227M050AH2AACAP ALUM 220UF 20% 50V RADIAL |
5,710 | 0.74 |
RFQ |
Datasheet |
Bulk | ESW | Active | 220 µF | ±20% | 50 V | 119mOhm @ 100kHz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 425 mA @ 120 Hz | 850 mA @ 100 kHz | 119 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
ESE106M400AH4AACAP ALUM 10UF 20% 400V RADIAL |
3,397 | 0.75 |
RFQ |
Datasheet |
Box | ESE | Active | 10 µF | ±20% | 400 V | - | 1000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 65 mA @ 120 Hz | 97.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
ESL825M400AH8AACAP ALUM 8.2UF 20% 400V RADIAL |
2,571 | 0.75 |
RFQ |
Datasheet |
Box | ESL | Active | 8.2 µF | ±20% | 400 V | 7.5Ohm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 126 mA @ 120 Hz | 252 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.709 (18.00mm) | - | Through Hole |
|
ESH226M500AL4AACAP ALUM 22UF 20% 500V RADIAL |
2,561 | 1.98 |
RFQ |
Datasheet |
Bulk | ESH | Active | 22 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 115 mA @ 120 Hz | 132.25 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
ESH477M050AL3AACAP ALUM 470UF 20% 50V RADIAL |
3,555 | 0.85 |
RFQ |
Datasheet |
Bulk | ESH | Active | 470 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 730 mA @ 120 Hz | 1.095 A @ 10 kHz | - | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
ESG226M250AL3AACAP ALUM 22UF 20% 250V RADIAL |
1,683 | 0.85 |
RFQ |
Datasheet |
Bulk | ESG | Active | 22 µF | ±20% | 250 V | 2.5Ohm @ 100kHz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 160 mA @ 120 Hz | 256 mA @ 10 kHz | 2.5 Ohms | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 0.866 (22.00mm) | - | Through Hole |
|

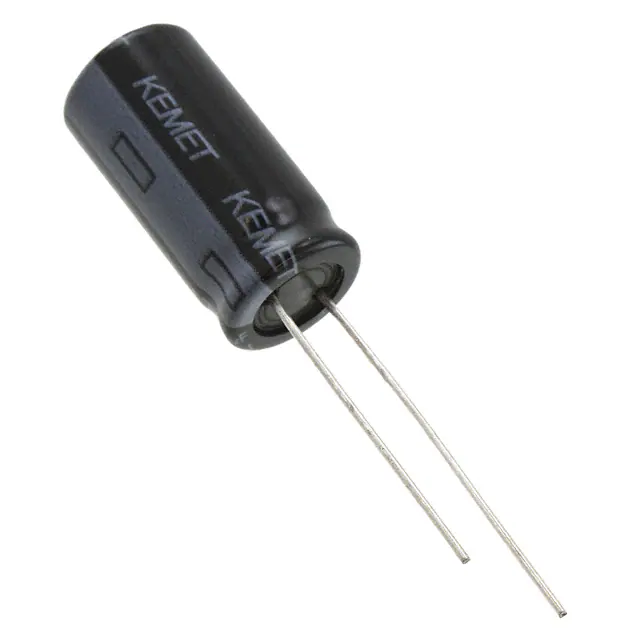

ESY108M016AH4AACAP ALUM 1000UF 20% 16V RADIAL |
12,990 | 0.88 |
RFQ |
Datasheet |
Bulk | ESY | Active | 1000 µF | ±20% | 16 V | 26mOhm @ 100kHz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.365 A @ 120 Hz | 1.82 A @ 100 kHz | 26 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.827 (21.00mm) | - | Through Hole |
|
ESK228M016AL3AACAP ALUM 2200UF 20% 16V RADIAL |
1,940 | 0.88 |
RFQ |
Datasheet |
Box | ESK | Active | 2200 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.265 A @ 10 kHz | - | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
ESY337M035AH2AACAP ALUM 330UF 20% 35V RADIAL |
1,030 | 0.90 |
RFQ |
Datasheet |
Bulk | ESY | Active | 330 µF | ±20% | 35 V | 38mOhm @ 100kHz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | 38 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
ESK228M025AL4AACAP ALUM 2200UF 20% 25V RADIAL |
10,632 | 0.93 |
RFQ |
Datasheet |
Bulk | ESK | Active | 2200 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.495 A @ 10 kHz | - | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
ESK108M035AL3AACAP ALUM 1000UF 20% 35V RADIAL |
2,399 | 0.94 |
RFQ |
Datasheet |
Box | ESK | Active | 1000 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.093 A @ 10 kHz | - | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 0.866 (22.00mm) | - | Through Hole |
