| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESK478M035AN2AACAP ALUM 4700UF 20% 35V RADIAL |
2,153 | 2.33 |
RFQ |
Datasheet |
Box | ESK | Active | 4700 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 2.76 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.496 (38.00mm) | - | Through Hole |
|
ESH478M035AN2AACAP ALUM 4700UF 20% 35V RADIAL |
3,904 | 2.60 |
RFQ |
Datasheet |
Bulk | ESH | Active | 4700 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.92 A @ 120 Hz | 2.208 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.496 (38.00mm) | - | Through Hole |
|

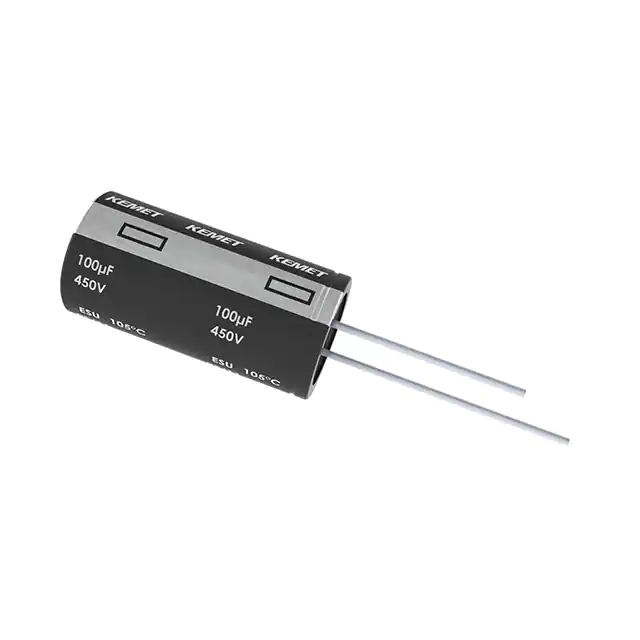

ESU476M450AM3AACAP ALUM 47UF 20% 450V RADIAL |
1,134 | 2.97 |
RFQ |
Datasheet |
Bulk | ESU | Active | 47 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 440 mA @ 120 Hz | 880 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.496 (38.00mm) | - | Through Hole |
|
PEG124MC310AQT1CAP ALUM 100UF 63V AXIAL |
2,270 | 6.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PEG124 | Active | 100 µF | -10%, +30% | 63 V | 730mOhm @ 100Hz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 328 mA @ 100 Hz | 341.12 mA @ 100 kHz | - | - | 0.512 Dia (13.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
ALA7DA561EE500CAP ALUM 560UF 20% 500V SNAP |
241 | 14.10 |
RFQ |
Datasheet |
Bulk | ALA7D | Active | 560 µF | ±20% | 500 V | 428mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.9 A @ 100 Hz | 5.4 A @ 10 kHz | 320 mOhms | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
|
ESK227M350AQ4AACAP ALUM 220UF 20% 350V RADIAL |
3,343 | 4.01 |
RFQ |
Datasheet |
Box | ESK | Active | 220 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 470 mA @ 120 Hz | 564 mA @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
ALF20G302KP400CAP ALUM 3000UF 20% 400V SNAP |
672 | 31.19 |
RFQ |
Datasheet |
Bulk | ALF20 | Active | 3000 µF | ±20% | 400 V | 61mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.03 A @ 100 Hz | 12.39 A @ 10 kHz | - | 0.886 (22.50mm) | 1.969 Dia (50.00mm) | 4.213 (107.00mm) | - | Through Hole, Press-Fit |
|
ALS30A332NP500CAP ALUM 3300UF 20% 500V SCREW |
3,877 | 100.58 |
RFQ |
Datasheet |
Bulk | ALS30 | Active | 3300 µF | ±20% | 500 V | 54mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.3 A @ 100 Hz | 22.6 A @ 10 kHz | 39 mOhms | 1.252 (31.80mm) | 3.032 Dia (77.00mm) | 5.827 (148.00mm) | - | Chassis Mount |
|
ALS70A105QW025CAP ALUM 1F 20% 25V SCREW |
2,094 | 101.72 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 1 F | ±20% | 25 V | 5mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 40.7 A @ 100 Hz | 41.3 A @ 10 kHz | 7 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.732 (171.00mm) | - | Chassis Mount |
|
ALT22A472BB063CAP ALUM 4700UF 20% 63V SNAP |
1,052 | 7.09 |
RFQ |
Datasheet |
Box | ALT22 | Active | 4700 µF | ±20% | 63 V | - | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
PEH534YDB3150M2CAP ALUM 150UF 20% 450V SNAP |
763 | 7.82 |
RFQ |
Datasheet |
Bulk | PEH534 | Active | 150 µF | ±20% | 450 V | 570mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 100 Hz | - | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
ALC70A472CB063CAP ALUM 4700UF 20% 63V SNAP |
558 | 8.20 |
RFQ |
Datasheet |
Bulk | ALC70 | Active | 4700 µF | ±20% | 63 V | 81mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.3 A @ 100 Hz | 6.15 A @ 10 kHz | 61 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
ALP20A222BB063CAP ALUM 2200UF 63V SOLDER LUG |
1,075 | 8.45 |
RFQ |
Datasheet |
Box | ALP20 | Active | 2200 µF | -10%, +30% | 63 V | - | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.591 (15.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
|
ALP20A472CB040CAP ALUM 4700UF 40V SOLDER LUG |
477 | 9.20 |
RFQ |
Datasheet |
Box | ALP20 | Active | 4700 µF | -10%, +30% | 40 V | - | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.591 (15.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
ALA7DA301CC450CAP ALUM 300UF 20% 450V SNAP |
206 | 9.63 |
RFQ |
Datasheet |
Bulk | ALA7D | Active | 300 µF | ±20% | 450 V | 504.2mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.12 A @ 100 Hz | 4.12 A @ 10 kHz | 481.2 mOhms | - | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
ALC40A221EC500CAP ALUM 220UF 20% 500V SNAP |
951 | 9.78 |
RFQ |
Datasheet |
Box | ALC40 | Active | 220 µF | ±20% | 500 V | 1.02Ohm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.03 A @ 100 Hz | 4.09 A @ 10 kHz | 820 mOhms | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
ALC70A101CC630CAP ALUM 100UF 20% 630V SNAP |
1,249 | 10.05 |
RFQ |
Datasheet |
Bulk | ALC70 | Active | 100 µF | ±20% | 630 V | 1.29Ohm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.18 A @ 100 Hz | 2.65 A @ 10 kHz | 892 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
ALC70A102DD250CAP ALUM 1000UF 20% 250V SNAP |
231 | 10.35 |
RFQ |
Datasheet |
Bulk | ALC70 | Active | 1000 µF | ±20% | 250 V | 188mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.09 A @ 100 Hz | 6.12 A @ 10 kHz | 111 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
ALF80C123DF063CAP ALUM 12000UF 20% 63V SNAP |
792 | 11.06 |
RFQ |
Datasheet |
Bulk | ALF80 | Active | 12000 µF | ±20% | 63 V | 34mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.99 A @ 100 Hz | 10.62 A @ 10 kHz | 26 mOhms | 0.886 (22.50mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole, Press-Fit |
|
|
ALT22A103CB040CAP ALUM 10000UF 20% 40V SNAP |
690 | 11.18 |
RFQ |
Datasheet |
Box | ALT22 | Active | 10000 µF | ±20% | 40 V | - | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole |
