| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
159TTA025MCAP ALUM 15000UF 20% 25V AXIAL |
2,824 | 9.81 |
RFQ |
Datasheet |
Bulk | TTA | Active | 15000 µF | ±20% | 25 V | 48.6mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.7 A @ 120 Hz | 4.736 A @ 50 kHz | - | - | 0.984 Dia x 2.010 L (25.00mm x 51.00mm) | - | - | Through Hole |
|
226CKR063MCAP ALUM 22UF 20% 63V RADIAL |
3,073 | 0.35 |
RFQ |
Datasheet |
Bulk | CKR | Active | 22 µF | ±20% | 63 V | 7.536Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 130 mA @ 120 Hz | 299 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
476CKR160MCAP ALUM 47UF 20% 160V RADIAL |
3,042 | 1.14 |
RFQ |
Datasheet |
Bulk | CKR | Active | 47 µF | ±20% | 160 V | 7.055Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 270 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
688LBA025M2CCCAP ALUM 6800UF 20% 25V SNAP |
3,610 | 4.16 |
RFQ |
Datasheet |
Bulk | LBA | Active | 6800 µF | ±20% | 25 V | 109.71mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.55 A @ 120 Hz | 3.1875 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
478LBB035M2CCCAP ALUM 4700UF 20% 35V SNAP |
2,066 | 4.26 |
RFQ |
Datasheet |
Bulk | LBB | Active | 4700 µF | ±20% | 35 V | 88.18mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.42 A @ 120 Hz | 3.025 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
478LBA050M2BFCAP ALUM 4700UF 20% 50V SNAP |
3,240 | 4.91 |
RFQ |
Datasheet |
Bulk | LBA | Active | 4700 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.91 A @ 120 Hz | 3.6375 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
109LBA016M2CCCAP ALUM 10000UF 20% 16V SNAP |
3,989 | 5.05 |
RFQ |
Datasheet |
Bulk | LBA | Active | 10000 µF | ±20% | 16 V | 82.89mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.76 A @ 120 Hz | 3.45 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
228LBA100M2CGCAP ALUM 2200UF 20% 100V SNAP |
2,979 | 5.35 |
RFQ |
Datasheet |
Bulk | LBA | Active | 2200 µF | ±20% | 100 V | 150.70mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.41 A @ 120 Hz | 4.2625 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
159LBB035M2CHCAP ALUM 15000UF 20% 35V SNAP |
2,053 | 5.82 |
RFQ |
Datasheet |
Bulk | LBB | Active | 15000 µF | ±20% | 35 V | 27.63mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.54 A @ 120 Hz | 5.675 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
107KBM050MFHCAP ALUM 100UF 20% 50V RADIAL |
2,386 | 0.00 |
RFQ |
Datasheet |
Bulk | KBM | Active | 100 µF | ±20% | 50 V | 1.6579Ohm @ 120Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 240 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
475AXZ035MCAP ALUM 4.7UF 20% 35V SMD |
2,114 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | AXZ | Active | 4.7 µF | ±20% | 35 V | 42.33Ohm @ 120Hz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 40 mA @ 120 Hz | - | 1.8 Ohms | - | 0.157 Dia (4.00mm) | 0.217 (5.50mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
227KBM050MCAP ALUM 220UF 20% 50V RADIAL |
3,039 | 0.00 |
RFQ |
Datasheet |
Bulk | KBM | Active | 220 µF | ±20% | 50 V | 753.6mOhm @ 120Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 525 mA @ 120 Hz | 1.05 A @ 100 kHz | 64 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
|
107AXZ025MCAP ALUM 100UF 20% 25V SMD |
18,000 | 0.59 |
RFQ |
Datasheet |
Cut Tape (CT),Bulk | AXZ | Active | 100 µF | ±20% | 25 V | 2.32Ohm @ 120Hz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 140 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.307 (7.80mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|

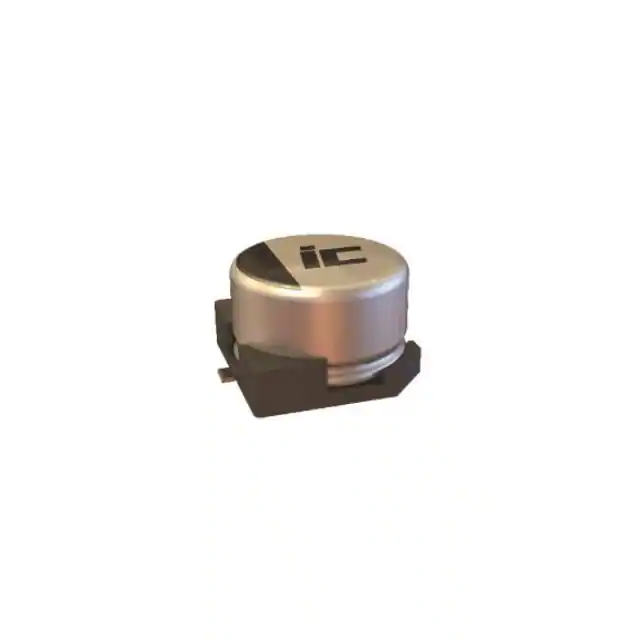

ATB337M035330UF, 35VDC, 10X10.2MM, SMD |
3,627 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ATB | Active | 330 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Bypass, Decoupling | 595 mA @ 120 Hz | 850 mA @ 100 kHz | 120 mOhms | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.417 W (10.30mm x 10.60mm) | Surface Mount |
|
|
ATB687M016670UF, 16VDC, 10X10.2MM, SMD |
3,135 | 0.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ATB | Active | 680 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Bypass, Decoupling | 595 mA @ 120 Hz | 850 mA @ 100 kHz | 120 mOhms | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.417 W (10.30mm x 10.60mm) | Surface Mount |
|
|
ATB227M050220UF, 50VDC, 10X10.2MM, SMD |
3,671 | 0.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ATB | Active | 220 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Bypass, Decoupling | 469 mA @ 120 Hz | 670 mA @ 100 kHz | 340 mOhms | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.417 W (10.30mm x 10.60mm) | Surface Mount |
|
|
226KBM050MCAP ALUM 22UF 20% 50V RADIAL |
3,754 | 0.00 |
RFQ |
Datasheet |
Bulk | KBM | Active | 22 µF | ±20% | 50 V | 7.5357Ohm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 80 mA @ 120 Hz | 200 mA @ 100 kHz | 700 mOhms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
106SML035MD4CAP ALUM 10UF 20% 35V SMD |
3,108 | 0.42 |
RFQ |
Datasheet |
Bulk | SML | Active | 10 µF | ±20% | 35 V | 23.21Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24 mA @ 120 Hz | 36 mA @ 100 kHz | - | - | 0.157 Dia (4.00mm) | 0.217 (5.50mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
476SML035MCAP ALUM 47UF 20% 35V SMD |
3,793 | 0.00 |
RFQ |
Datasheet |
Bulk | SML | Active | 47 µF | ±20% | 35 V | 4.938Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Bypass, Decoupling | 70 mA @ 120 Hz | 105 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
ATB477M025470UF, 25VDC, 10X10.2MM, SMD |
3,621 | 1.17 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ATB | Active | 470 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Bypass, Decoupling | 595 mA @ 120 Hz | 850 mA @ 100 kHz | 120 mOhms | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.417 W (10.30mm x 10.60mm) | Surface Mount |
