| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
478LBA035M2BDCAP ALUM 4700UF 20% 35V SNAP |
905 | 4.91 |
RFQ |
Datasheet |
Bulk | LBA | Active | 4700 µF | ±20% | 35 V | 141.09mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 3 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
336TTA250MCAP ALUM 33UF 20% 250V AXIAL |
350 | 3.03 |
RFQ |
Datasheet |
Bulk | TTA | Active | 33 µF | ±20% | 250 V | 10.048Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 190 mA @ 120 Hz | 290.7 mA @ 50 kHz | - | - | 0.512 Dia x 1.220 L (13.00mm x 31.00mm) | - | - | Through Hole |
|
688CKS025MCAP ALUM 6800UF 20% 25V RADIAL |
150 | 3.29 |
RFQ |
Datasheet |
Bulk | CKS | Active | 6800 µF | ±20% | 25 V | 63mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.53 A @ 120 Hz | 4.942 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.437 (36.50mm) | - | Through Hole |
|
|
228CKH050MCAP ALUM 2200UF 20% 50V RADIAL |
400 | 3.35 |
RFQ |
Datasheet |
Bulk | CKH | Active | 2200 µF | ±20% | 50 V | 106mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.38 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
109LBB016M2BCCAP ALUM 10000UF 20% 16V SNAP |
2,688 | 3.47 |
RFQ |
Datasheet |
Bulk | LBB | Active | 10000 µF | ±20% | 16 V | 82.89mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.77 A @ 120 Hz | 3.4625 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
107CKS350MCAP ALUM 100UF 20% 350V RADIAL |
204 | 3.78 |
RFQ |
Datasheet |
Bulk | CKS | Active | 100 µF | ±20% | 350 V | 3.316Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 550 mA @ 120 Hz | 825 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.437 (36.50mm) | - | Through Hole |
|
|
158TTA035MCAP ALUM 1500UF 20% 35V AXIAL |
175 | 3.79 |
RFQ |
Datasheet |
Bulk | TTA | Active | 1500 µF | ±20% | 35 V | 176.8mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.28 A @ 120 Hz | 1.6384 A @ 50 kHz | - | - | 0.630 Dia x 1.220 L (16.00mm x 31.00mm) | - | - | Through Hole |
|
|
107LBA400M2BDCAP ALUM 100UF 20% 400V SNAP |
3,345 | 4.16 |
RFQ |
Datasheet |
Bulk | LBA | Active | 100 µF | ±20% | 400 V | 2.4868Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 680 mA @ 120 Hz | 999.6 mA @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
688LBA050M2EDCAP ALUM 6800UF 20% 50V SNAP |
2,554 | 7.70 |
RFQ |
Datasheet |
Bulk | LBA | Active | 6800 µF | ±20% | 50 V | 85.33mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.73 A @ 120 Hz | 4.6625 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
108LBA200M2DGCAP ALUM 1000UF 20% 200V SNAP |
3,384 | 7.38 |
RFQ |
Datasheet |
Bulk | LBA | Active | 1000 µF | ±20% | 200 V | 248.68mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.42 A @ 120 Hz | 5.0274 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
476CKE100MCAP ALUM 47UF 20% 100V RADIAL |
340 | 0.74 |
RFQ |
Datasheet |
Bulk | CKE | Active | 47 µF | ±20% | 100 V | 2.822Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 644 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
107CKS100MLQCAP ALUM 100UF 20% 100V RADIAL |
309 | 0.74 |
RFQ |
Datasheet |
Bulk | CKS | Active | 100 µF | ±20% | 100 V | 1.326Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 340 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
106CKS450MGBWCAP ALUM 10UF 20% 450V RADIAL |
310 | 0.78 |
RFQ |
Datasheet |
Bulk | CKS | Active | 10 µF | ±20% | 450 V | 39.79Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | Bypass, Decoupling | 105 mA @ 120 Hz | 189 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
827KXM025MCAP ALUM 820UF 20% 25V RADIAL |
794 | 0.89 |
RFQ |
Datasheet |
Bulk | KXM | Active | 820 µF | ±20% | 25 V | 283mOhm @ 120Hz | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.29 A @ 120 Hz | 2.15 A @ 100 kHz | 66 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
475CKE450MCAP ALUM 4.7UF 20% 450V RADIAL |
550 | 1.03 |
RFQ |
Datasheet |
Bulk | CKE | Active | 4.7 µF | ±20% | 450 V | 70.547Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 43 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
337SML035MCAP ALUM 330UF 20% 35V SMD |
490 | 1.37 |
RFQ |
Datasheet |
Bulk | SML | Active | 330 µF | ±20% | 35 V | 703mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 360 mA @ 120 Hz | - | - | - | 0.394 Dia (10.00mm) | 0.417 (10.60mm) | 0.394 L x 0.394 W (10.00mm x 10.00mm) | Surface Mount |
|

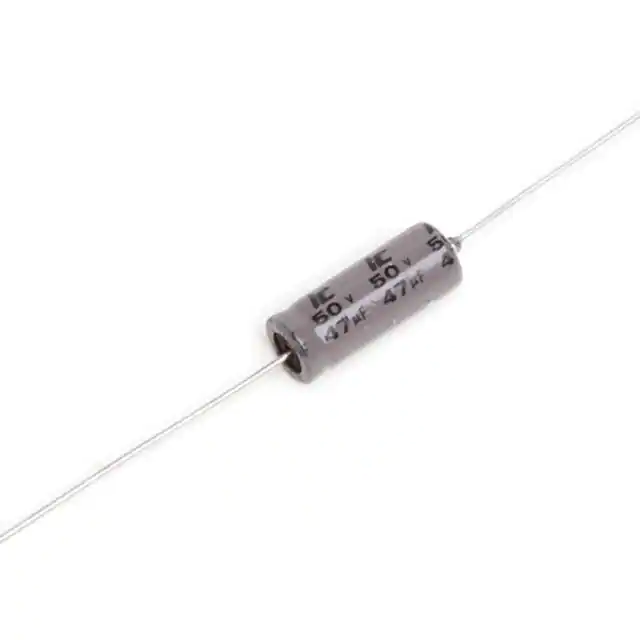

70111902CAP ALUM 47UF 20% 50V AXIAL |
211 | 0.80 |
RFQ |
Bulk | - | Active | 47 µF | ±20% | 50 V | 3.527Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 145 mA @ 120 Hz | 214.6 mA @ 10 kHz | - | - | 0.248 Dia x 0.630 L (6.30mm x 16.00mm) | - | - | Through Hole | |
|
228SAK035MCAP ALUM 2200UF 20% 35V RADIAL |
200 | 2.44 |
RFQ |
Datasheet |
Bulk | SAK | Active | 2200 µF | ±20% | 35 V | 136mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.52 A @ 120 Hz | 1.748 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
|
228CKS063MCAP ALUM 2200UF 20% 63V RADIAL |
245 | 2.79 |
RFQ |
Datasheet |
Bulk | CKS | Active | 2200 µF | ±20% | 63 V | 106mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.22 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.437 (36.50mm) | - | Through Hole |
|
|
476CKE400MQVCAP ALUM 47UF 20% 400V RADIAL |
397 | 2.91 |
RFQ |
Datasheet |
Bulk | CKE | Active | 47 µF | ±20% | 400 V | 7.055Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 360 mA @ 120 Hz | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
