| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EKMG161ELL220MJ20SCAP ALUM 22UF 20% 160V RADIAL |
1,523 | 1.18 |
RFQ |
Datasheet |
Bulk | KMG | Active | 22 µF | ±20% | 160 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 120 mA @ 120 Hz | 216 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.846 (21.50mm) | - | Through Hole |
|

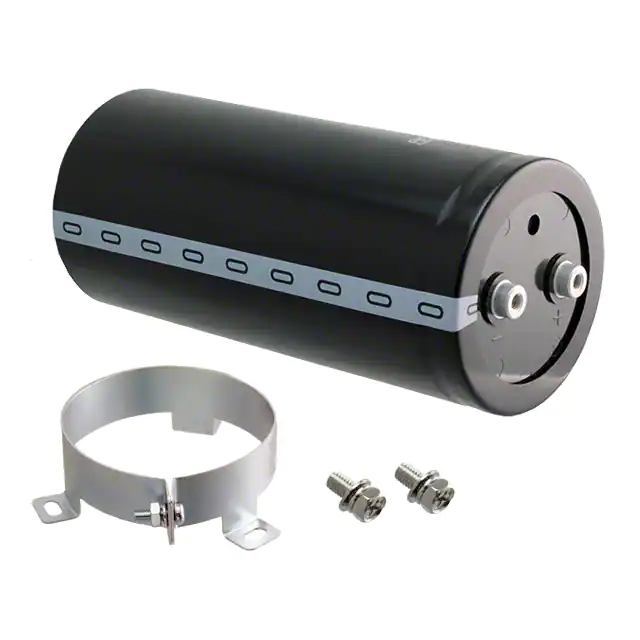

ERHB701LGC182MEC5UCAP ALUM 1800UF 20% 700V SCREW |
3,434 | 113.07 |
RFQ |
Datasheet |
Bulk | RHB | Active | 1800 µF | ±20% | 700 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.2 A @ 120 Hz | 10.08 A @ 3 kHz | - | 1.240 (31.50mm) | 3.000 Dia (76.20mm) | 5.079 (129.00mm) | - | Chassis Mount |
|
ELZA160ELL152MJ20SCAP ALUM 1500UF 20% 16V RADIAL |
1,986 | 1.78 |
RFQ |
Datasheet |
Bulk | LZA | Active | 1500 µF | ±20% | 16 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 930 mA @ 120 Hz | 1.55 A @ 100 kHz | 35 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.846 (21.50mm) | - | Through Hole |
|

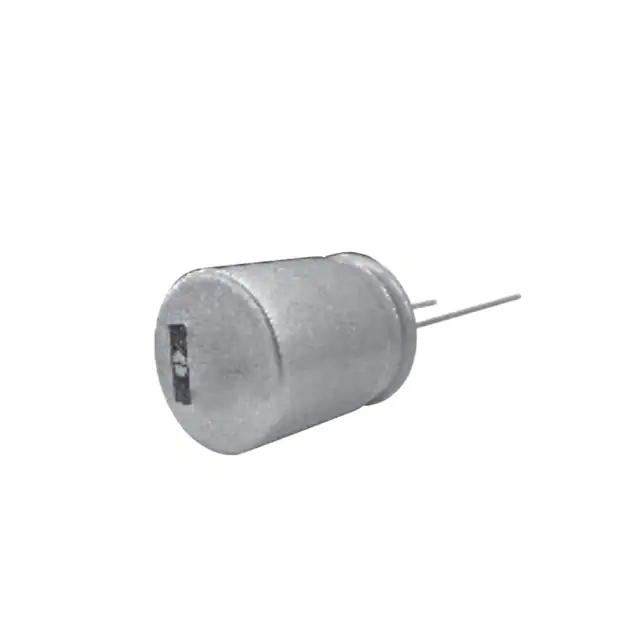

EGQB250ELL112MK20HCAP ALUM 1100UF 20% 25V RADIAL |
1,916 | 2.17 |
RFQ |
Datasheet |
Bulk | GQB | Active | 1100 µF | ±20% | 25 V | 120mOhm @ 100kHz | 1000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 1.572 A @ 120 Hz | 2.62 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
EPAG451ELL820MM30SCAP ALUM 82UF 20% 450V RADIAL |
2,261 | 3.72 |
RFQ |
Datasheet |
Bulk | PAG | Active | 82 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 550 mA @ 120 Hz | 990 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
EPAG201ELL391MM35SCAP ALUM 390UF 20% 200V RADIAL |
240 | 3.75 |
RFQ |
Datasheet |
Bulk | PAG | Active | 390 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.24 A @ 120 Hz | 1.86 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
EPAG421ELL820MU40SCAP ALUM 82UF 20% 420V RADIAL |
482 | 3.85 |
RFQ |
Datasheet |
Bulk | PAG | Active | 82 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 570 mA @ 120 Hz | 1026 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.571 Dia (14.50mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
EPAG451ELL470MU30SCAP ALUM 47UF 20% 450V RADIAL |
275 | 4.19 |
RFQ |
Datasheet |
Bulk | PAG | Active | 47 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 390 mA @ 120 Hz | 702 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.571 Dia (14.50mm) | 1.260 (32.00mm) | - | Through Hole |
|
EKMQ250ELL103MM40SCAP ALUM 10000UF 20% 25V RADIAL |
486 | 4.47 |
RFQ |
Datasheet |
Bulk | KMQ | Active | 10000 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.16 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.634 (41.50mm) | - | Through Hole |
|
ESMQ451VSN221MR30SCAP ALUM 220UF 20% 450V SNAP |
184 | 4.49 |
RFQ |
Datasheet |
Bulk | SMQ | Active | 220 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.2165 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
|
EPAG421ELL101ML40SCAP ALUM 100UF 20% 420V RADIAL |
250 | 4.54 |
RFQ |
Datasheet |
Bulk | PAG | Active | 100 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 610 mA @ 120 Hz | 915 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
EKMQ201VSN821MP45SCAP ALUM 820UF 20% 200V SNAP |
3,981 | 4.65 |
RFQ |
Datasheet |
Bulk | KMQ | Active | 820 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.04 A @ 120 Hz | 3.06 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
EKMQ451VSN151MP40SCAP ALUM 150UF 20% 450V SNAP |
3,271 | 5.01 |
RFQ |
Datasheet |
Bulk | KMQ | Active | 150 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 120 Hz | 1.1297 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
ESMQ351VSN471MR35SCAP ALUM 470UF 20% 350V SNAP |
2,486 | 5.12 |
RFQ |
Datasheet |
Bulk | SMQ | Active | 470 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 3.432 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
EGPA101ELL621MM35SCAP ALUM 620UF 20% 100V RADIAL |
215 | 5.58 |
RFQ |
Datasheet |
Bulk | GPA | Active | 620 µF | ±20% | 100 V | 44mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.614 A @ 120 Hz | 2.69 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.437 (36.50mm) | - | Through Hole |
|
EKMQ251VSN681MQ40SCAP ALUM 680UF 20% 250V SNAP |
167 | 5.86 |
RFQ |
Datasheet |
Bulk | KMQ | Active | 680 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.55 A @ 50 kHz | - | 0.394 (10.00mm) | 1.000 Dia (25.40mm) | 1.654 (42.00mm) | - | Through Hole |
|
EKMQ251VSN821MR35SCAP ALUM 820UF 20% 250V SNAP |
123 | 6.21 |
RFQ |
Datasheet |
Bulk | KMQ | Active | 820 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 3 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
EKMM451VSN391MA40SCAP ALUM 390UF 20% 450V SNAP |
187 | 6.36 |
RFQ |
Datasheet |
Bulk | KMM | Active | 390 µF | ±20% | 450 V | 850mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.2165 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
ESMQ351VSN561MA30SCAP ALUM 560UF 20% 350V SNAP |
198 | 6.41 |
RFQ |
Datasheet |
Bulk | SMQ | Active | 560 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | 3.718 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
ELXS451VSN151MP40SCAP ALUM 150UF 20% 450V SNAP |
200 | 6.45 |
RFQ |
Datasheet |
Bulk | LXS | Active | 150 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 940 mA @ 120 Hz | 1.3442 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.673 (42.50mm) | - | Through Hole |
