| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESMR401VSN151MP25SCAP ALUM 150UF 20% 400V SNAP |
352 | 4.02 |
RFQ |
Datasheet |
Bulk | SMR | Active | 150 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.859 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.083 (27.50mm) | - | Through Hole |
|
ESMR401VSN221MQ25SCAP ALUM 220UF 20% 400V SNAP |
3,519 | 4.26 |
RFQ |
Datasheet |
Bulk | SMR | Active | 220 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 2.3595 A @ 50 kHz | - | 0.394 (10.00mm) | 1.000 Dia (25.40mm) | 1.083 (27.50mm) | - | Through Hole |
|
|
ESMR451VSN181MQ25SCAP ALUM 180UF 20% 450V SNAP |
416 | 4.32 |
RFQ |
Datasheet |
Bulk | SMR | Active | 180 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 2.0306 A @ 50 kHz | - | 0.394 (10.00mm) | 1.000 Dia (25.40mm) | 1.083 (27.50mm) | - | Through Hole |
|
ESMR401VSN181MP30SCAP ALUM 180UF 20% 400V SNAP |
394 | 4.36 |
RFQ |
Datasheet |
Bulk | SMR | Active | 180 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.49 A @ 120 Hz | 2.1307 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.280 (32.50mm) | - | Through Hole |
|

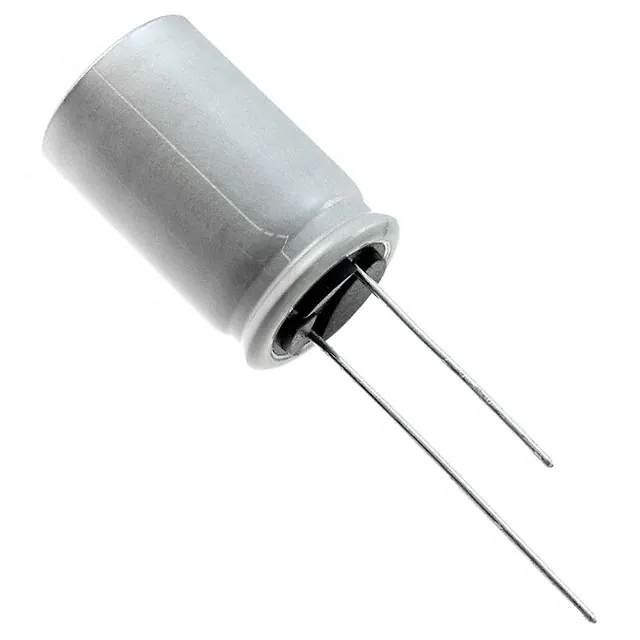

EGPD350ELL302ML25HCAP ALUM 3000UF 20% 35V RADIAL |
494 | 4.37 |
RFQ |
Datasheet |
Bulk | GPD | Active | 3000 µF | ±20% | 35 V | 28mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 3.195 A @ 120 Hz | 4.26 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
ELBK250ELL802ALN3SCAP ALUM 8000UF 25V RADIAL |
417 | 4.46 |
RFQ |
Datasheet |
Bulk | LBK | Active | 8000 µF | 0%, +30% | 25 V | 21mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.72 A @ 120 Hz | 3.2 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
|
ELBK350ELL662AL40SCAP ALUM 6600UF 35V RADIAL |
499 | 4.72 |
RFQ |
Datasheet |
Bulk | LBK | Active | 6600 µF | 0%, +30% | 35 V | 17mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 3.23 A @ 120 Hz | 3.8 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.634 (41.50mm) | - | Through Hole |
|
EGPD350ELL472MM30HCAP ALUM 4700UF 20% 35V RADIAL |
940 | 4.97 |
RFQ |
Datasheet |
Bulk | GPD | Active | 4700 µF | ±20% | 35 V | 22mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 4.76 A @ 120 Hz | 5.6 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
EGXF500ELL272MM35SCAP ALUM 2700UF 20% 50V RAD TH |
375 | 4.99 |
RFQ |
Datasheet |
Bulk | GXF | Active | 2700 µF | ±20% | 50 V | 19mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.693 A @ 120 Hz | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.437 (36.50mm) | - | Through Hole |
|
|
EGPD101ELL621MM30HCAP ALUM 620UF 20% 100V RADIAL |
140 | 5.45 |
RFQ |
Datasheet |
Bulk | GPD | Active | 620 µF | ±20% | 100 V | 37mOhm @ 100kHz | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.96 A @ 120 Hz | 3.92 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
ESMR401VSN331MR25SCAP ALUM 330UF 20% 400V SNAP |
134 | 5.53 |
RFQ |
Datasheet |
Bulk | SMR | Active | 330 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 3.003 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.083 (27.50mm) | - | Through Hole |
|

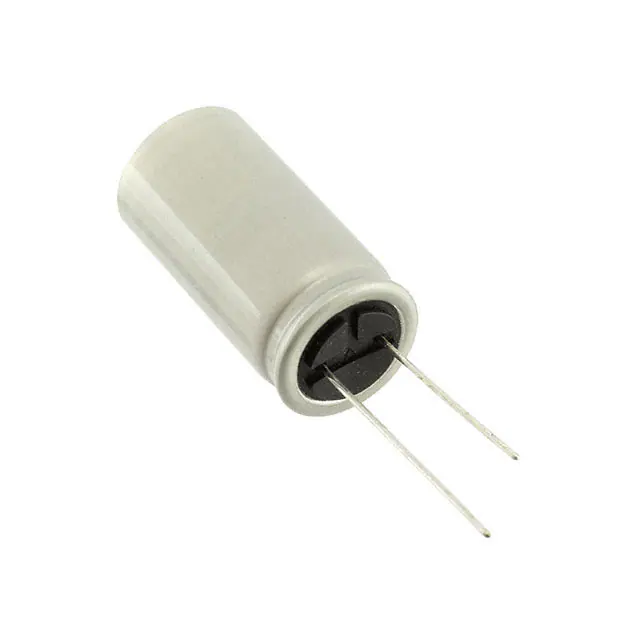

EGPD500ELL302MM35HCAP ALUM 3000UF 20% 50V RADIAL |
213 | 5.55 |
RFQ |
Datasheet |
Bulk | GPD | Active | 3000 µF | ±20% | 50 V | 24mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 4.4025 A @ 120 Hz | 5.87 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.437 (36.50mm) | - | Through Hole |
|
ESMR451VSN271MP45SCAP ALUM 270UF 20% 450V SNAP |
400 | 5.64 |
RFQ |
Datasheet |
Bulk | SMR | Active | 270 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.88 A @ 120 Hz | 2.6884 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.870 (47.50mm) | - | Through Hole |
|
|
ELBK250ELL143AM40SCAP ALUM 14000UF 25V RADIAL |
500 | 5.72 |
RFQ |
Datasheet |
Bulk | LBK | Active | 14000 µF | 0%, +30% | 25 V | 15mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 3.4 A @ 120 Hz | 4 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
ESMR421VSN331MR30SCAP ALUM 330UF 20% 420V SNAP |
388 | 5.72 |
RFQ |
Datasheet |
Bulk | SMR | Active | 330 µF | ±20% | 420 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.08 A @ 120 Hz | 2.9744 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.280 (32.50mm) | - | Through Hole |
|
|
ELBK350ELL842AM40SCAP ALUM 8400UF 35V RADIAL |
626 | 5.81 |
RFQ |
Datasheet |
Bulk | LBK | Active | 8400 µF | 0%, +30% | 35 V | 15mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 3.4 A @ 120 Hz | 4 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.634 (41.50mm) | - | Through Hole |
|
ESMR421VSN331MQ40SCAP ALUM 330UF 20% 420V SNAP |
400 | 5.86 |
RFQ |
Datasheet |
Bulk | SMR | Active | 330 µF | ±20% | 420 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.24 A @ 120 Hz | 3.2032 A @ 50 kHz | - | 0.394 (10.00mm) | 1.000 Dia (25.40mm) | 1.673 (42.50mm) | - | Through Hole |
|
EGVD350ELL362MM30HCAP ALUM 3600UF 20% 35V RADIAL |
2,871 | 5.95 |
RFQ |
Datasheet |
Bulk | GVD | Active | 3600 µF | ±20% | 35 V | 23mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 4.035 A @ 120 Hz | 5.38 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
EGPD800ELL162MM40HCAP ALUM 1600UF 20% 80V RADIAL |
950 | 6.26 |
RFQ |
Datasheet |
Bulk | GPD | Active | 1600 µF | ±20% | 80 V | 21mOhm @ 100kHz | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 3.396 A @ 120 Hz | 5.66 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.634 (41.50mm) | - | Through Hole |
|
ESMR401VSN391MA25SCAP ALUM 390UF 20% 400V SNAP |
150 | 6.32 |
RFQ |
Datasheet |
Bulk | SMR | Active | 390 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.05 A @ 120 Hz | 2.9315 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.083 (27.50mm) | - | Through Hole |
