| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-EB1J470SJCAP ALUM 47UF 20% 63V RADIAL |
965 | 0.56 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | EB-A | Active | 47 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 80 mA @ 120 Hz | 104 mA @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEU-FM1V221LBCAP ALUM 220UF 20% 35V RADIAL |
755 | 0.72 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FM-A | Active | 220 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 868 mA @ 120 Hz | 1.24 A @ 100 kHz | 41 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
EEU-FC1J680BCAP ALUM 68UF 20% 63V RADIAL |
892 | 0.56 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FC | Active | 68 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 263.3 mA @ 120 Hz | 405 mA @ 100 kHz | 342 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
|
EEU-EB1H101SJCAP ALUM 100UF 20% 50V RADIAL |
890 | 0.56 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | EB-A | Active | 100 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 99 mA @ 120 Hz | 128.7 mA @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEE-HAE470WAPCAP ALUM 47UF 20% 25V SMD |
778 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Active | 47 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 70 mA @ 120 Hz | 119 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.213 (5.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEU-FS1A821BCAP ALUM 820UF 20% 10V RADIAL |
5,936 | 0.74 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 820 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 712.5 mA @ 120 Hz | 950 mA @ 100 kHz | 56 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
EEE-FN1V220RCAP ALUM 22UF 20% 35V SMD |
632 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FN | Active | 22 µF | ±20% | 35 V | 700mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 104 mA @ 120 Hz | 160 mA @ 100 kHz | - | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
|
EEE-FN1V180URCAP ALUM 18UF 20% 35V SMD |
284 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FN | Active | 18 µF | ±20% | 35 V | 1.35Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 58.5 mA @ 120 Hz | 90 mA @ 100 kHz | - | - | 0.157 Dia (4.00mm) | 0.240 (6.10mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
EEU-FC1A122SBCAP ALUM 1200UF 20% 10V RADIAL |
500 | 0.58 |
RFQ |
Datasheet |
Tape & Box (TB) | FC | Active | 1200 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 964 mA @ 120 Hz | 1.205 A @ 100 kHz | 65 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.630 (16.00mm) | - | Through Hole |
|
ECA-1VHG221BCAP ALUM 220UF 20% 35V RADIAL |
950 | 0.60 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | NHG-A | Active | 220 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 270 mA @ 120 Hz | 405 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEE-1AA331PCAP ALUM 330UF 20% 10V SMD |
2,294 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 330 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 390 mA @ 120 Hz | 663 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
Series.jpg)
|

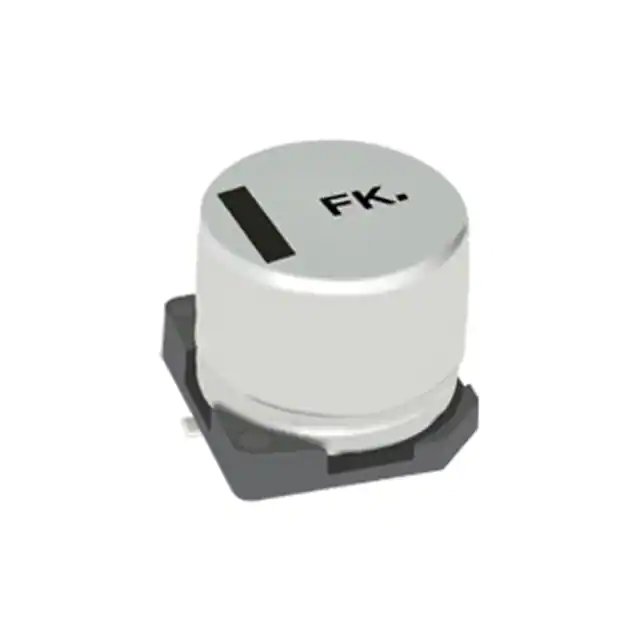

EEE-FK1H220LCAP ALUM 22UF 20% 50V SMD |
438 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FK, Halogen Free | Active | 22 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 123.75 mA @ 120 Hz | 165 mA @ 100 kHz | 880 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEE-1VA470WAPCAP ALUM 47UF 20% 35V SMD |
358 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | S | Active | 47 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 70 mA @ 120 Hz | 119 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.213 (5.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEU-FR1V181BCAP ALUM 180UF 20% 35V RADIAL |
387 | 0.61 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 180 µF | ±20% | 35 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 665 mA @ 120 Hz | 950 mA @ 100 kHz | 56 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
EEU-FR0J821BCAP ALUM 820UF 20% 6.3V RADIAL |
329 | 0.61 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 820 µF | ±20% | 6.3 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 712.5 mA @ 120 Hz | 950 mA @ 100 kHz | 56 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
EEA-GA1C101HCAP ALUM 100UF 20% 16V RADIAL |
810 | 0.62 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | GA-A | Active | 100 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 120 mA @ 120 Hz | 186 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.315 Dia (8.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
EEE-HD1C220ARCAP ALUM 22UF 20% 16V SMD |
700 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HD | Active | 22 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 39 mA @ 120 Hz | 66.3 mA @ 10 kHz | 7.2 Ohms | - | 0.197 Dia (5.00mm) | 0.228 (5.80mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
ECA-1CHG102BCAP ALUM 1000UF 20% 16V RADIAL |
3,684 | 0.89 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | NHG-A | Active | 1000 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 560 mA @ 120 Hz | 644 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
EEA-GA1H330BCAP ALUM 33UF 20% 50V RADIAL |
303 | 0.62 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | GA-A | Active | 33 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 91 mA @ 120 Hz | 141 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
|
EEA-GA1H220BCAP ALUM 22UF 20% 50V RADIAL |
239 | 0.62 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | GA-A | Active | 22 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 108.5 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.276 (7.00mm) | - | Through Hole |
