| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-TP1E122BCAP ALUM 1200UF 20% 25V RADIAL |
819 | 2.53 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | TP-A | Active | 1200 µF | ±20% | 25 V | - | 4000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.488 A @ 120 Hz | 1.49 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-FS1K181CAP ALUM 180UF 20% 80V RADIAL |
678 | 1.28 |
RFQ |
Datasheet |
Bulk | FS-A | Active | 180 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 784 mA @ 120 Hz | 1.12 A @ 100 kHz | 54 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEV-FK1J151VCAP ALUM 150UF 20% 63V SMD |
400 | 2.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FK, Anti-Vibration | Active | 150 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 600 mA @ 120 Hz | 800 mA @ 100 kHz | 160 mOhms | - | 0.492 Dia (12.50mm) | 0.543 (13.80mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount |
|

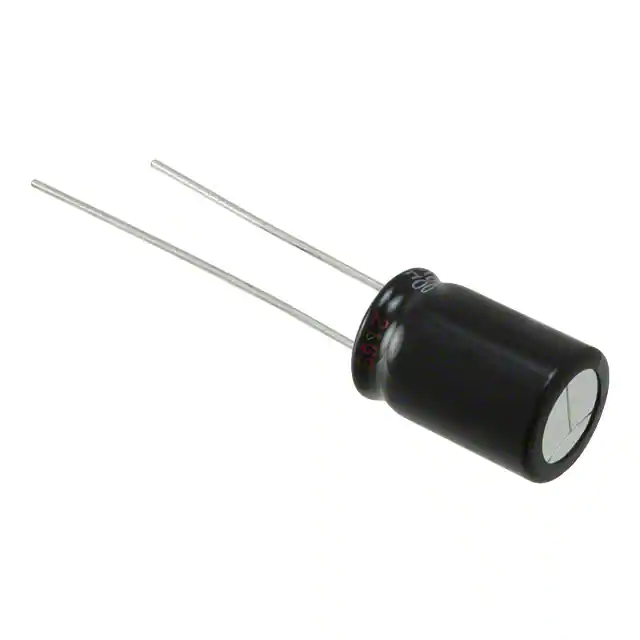

EEU-HD1A102CAP ALUM 1000UF 20% 10V RADIAL |
329 | 1.47 |
RFQ |
Datasheet |
Bulk | HD | Active | 1000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 460 mA @ 120 Hz | 529 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|

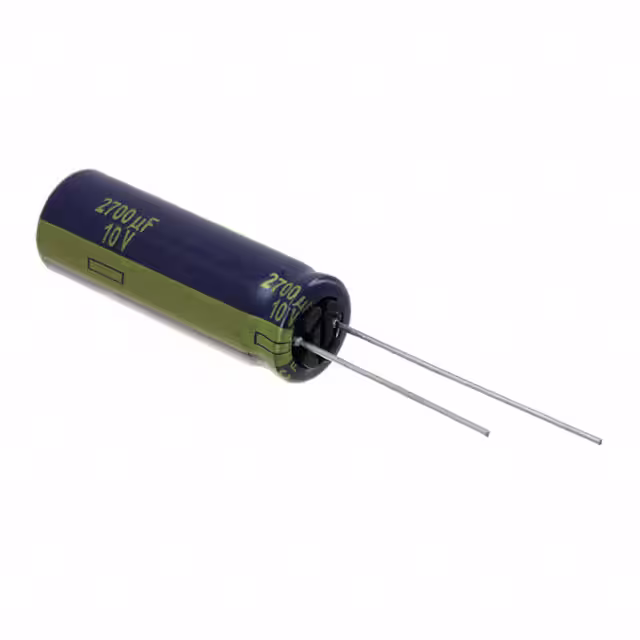

EEU-FK1A272LCAP ALUM 2700UF 20% 10V RAD TH |
981 | 1.75 |
RFQ |
Datasheet |
Bulk | FK | Active | 2700 µF | ±20% | 10 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.712 A @ 120 Hz | 2.14 A @ 100 kHz | 25 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
EEU-TP1V391BCAP ALUM 390UF 20% 35V RADIAL |
909 | 3.89 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | TP-A | Active | 390 µF | ±20% | 35 V | - | 3000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.155 A @ 120 Hz | 1.1 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-FR1A562LCAP ALUM 5600UF 20% 10V RADIAL |
394 | 1.96 |
RFQ |
Datasheet |
Bulk | FR-A | Active | 5600 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 120 Hz | 3.75 A @ 100 kHz | 12 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.457 (37.00mm) | - | Through Hole |
|
EEE-HD0J752AMCAP ALUM 7500UF 20% 6.3V SMD |
490 | 3.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HD | Active | 7500 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.54 A @ 120 Hz | 1.817 A @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.669 (17.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
|
EEE-HD1A682AMCAP ALUM 6800UF 20% 10V SMD |
410 | 3.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HD | Active | 6800 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.54 A @ 120 Hz | 1.817 A @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.669 (17.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
EEE-TK1E681AMCAP ALUM 680UF 20% 25V SMD |
317 | 3.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TK | Active | 680 µF | ±20% | 25 V | 80mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 825 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.650 (16.50mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|
|
EEE-TKK221UAMCAP ALUM 220UF 20% 80V SMD |
250 | 3.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TK | Active | 220 µF | ±20% | 80 V | 300mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 262.5 mA @ 120 Hz | 350 mA @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.650 (16.50mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|
EEU-TP1V152BCAP ALUM 1500UF 20% 35V RADIAL |
459 | 4.10 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | TP-A | Active | 1500 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.208 A @ 120 Hz | 2.3 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEE-TP1E182MCAP ALUM 1800UF 20% 25V SMD |
163 | 3.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP | Active | 1800 µF | ±20% | 25 V | 47mOhm @ 100kHz | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.8 A @ 120 Hz | 2.4 A @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|
EEE-FK1V102AVCAP ALUM 1000UF 20% 35V SMD |
250 | 3.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FK, Anti-Vibration | Active | 1000 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.35 A @ 120 Hz | 1.8 A @ 100 kHz | 35 mOhms | - | 0.630 Dia (16.00mm) | 0.661 (16.80mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|
|
EEU-FR0J682LCAP ALUM 6800UF 20% 6.3V RADIAL |
300 | 2.27 |
RFQ |
Datasheet |
Bulk | FR-A | Active | 6800 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 120 Hz | 3.75 A @ 100 kHz | 12 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.457 (37.00mm) | - | Through Hole |
|
EEU-FK1E222SCAP ALUM 2200UF 20% 25V RAD TH |
237 | 2.43 |
RFQ |
Datasheet |
Bulk | FK | Active | 2200 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.864 A @ 120 Hz | 2.33 A @ 100 kHz | 26 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EEU-FK0J562SCAP ALUM 5600UF 20% 6.3V RAD TH |
940 | 2.44 |
RFQ |
Datasheet |
Bulk | FK | Active | 5600 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.864 A @ 120 Hz | 2.33 A @ 100 kHz | 26 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EEU-TP1V561CAP ALUM 560UF 20% 35V RADIAL |
849 | 2.53 |
RFQ |
Datasheet |
Bulk | TP-A | Active | 560 µF | ±20% | 35 V | - | 4000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.395 A @ 120 Hz | 1.49 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EEU-TP1E122CAP ALUM 1200UF 20% 25V RADIAL |
273 | 2.53 |
RFQ |
Datasheet |
Bulk | TP-A | Active | 1200 µF | ±20% | 25 V | - | 4000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.488 A @ 120 Hz | 1.49 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EEE-TP1E272VCAP ALUM 2700UF 20% 25V SMD |
375 | 4.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP, Anti-Vibration | Active | 2700 µF | ±20% | 25 V | 45mOhm @ 100kHz | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.95 A @ 120 Hz | 2.6 A @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.669 (17.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
