| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECE-A1HKS220CAP ALUM 22UF 20% 50V RADIAL |
383 | 0.58 |
RFQ |
Datasheet |
Bulk | KS | Active | 22 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 60 mA @ 120 Hz | 102 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.315 Dia (8.00mm) | 0.197 (5.00mm) | - | Through Hole |
|
ECA-2EHG3R3CAP ALUM 3.3UF 20% 250V RADIAL |
166 | 0.58 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 3.3 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 42 mA @ 120 Hz | 63 mA @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEU-FM1A681CAP ALUM 680UF 20% 10V RADIAL |
794 | 0.73 |
RFQ |
Datasheet |
Bulk | FM-A | Active | 680 µF | ±20% | 10 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 967.5 mA @ 120 Hz | 1.29 A @ 100 kHz | 38 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
ECA-2CHG220CAP ALUM 22UF 20% 160V RADIAL |
122 | 0.81 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 22 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 130 mA @ 120 Hz | 195 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|

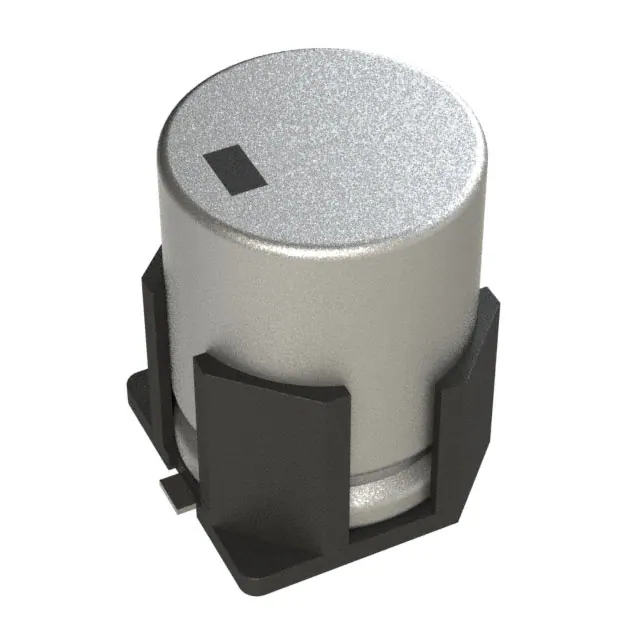

EEE-FT1E471GVCAP ALUM 470UF 20% 25V SMD |
673 | 1.84 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FT, Anti-Vibration | Active | 470 µF | ±20% | 25 V | 80mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|

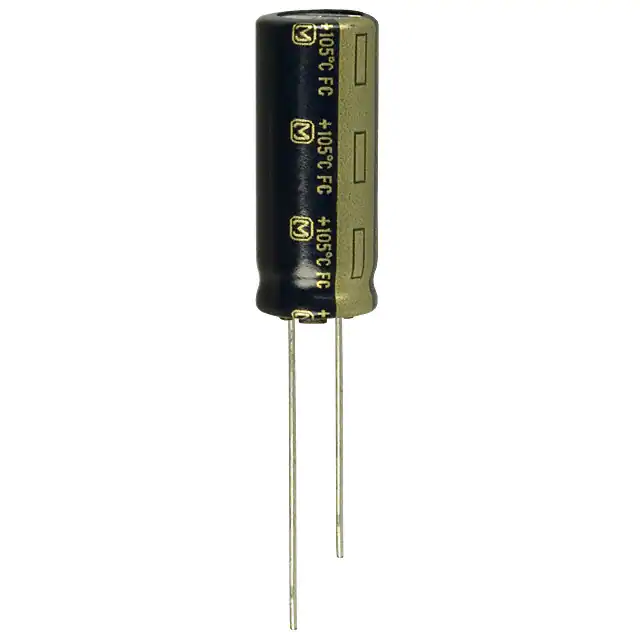

EEU-FC0J122LCAP ALUM 1200UF 20% 6.3V RADIAL |
849 | 0.83 |
RFQ |
Datasheet |
Bulk | FC | Active | 1200 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 604 mA @ 120 Hz | 995 mA @ 100 kHz | 65 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
ECA-1JM331CAP ALUM 330UF 20% 63V RADIAL |
3,338 | 0.83 |
RFQ |
Datasheet |
Bulk | M-A | Active | 330 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 550 mA @ 120 Hz | 935 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-FM1C681LCAP ALUM 680UF 20% 16V RADIAL |
2,151 | 0.84 |
RFQ |
Datasheet |
Bulk | FM-A | Active | 680 µF | ±20% | 16 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.56 A @ 100 kHz | 30 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
ECE-A0JN471XCAP ALUM 470UF 20% 6.3V RADIAL |
572 | 0.85 |
RFQ |
Datasheet |
Bulk | SU | Active | 470 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 310 mA @ 120 Hz | 527 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEU-EB2C220CAP ALUM 22UF 20% 160V RADIAL |
334 | 0.86 |
RFQ |
Datasheet |
Bulk | EB-A | Active | 22 µF | ±20% | 160 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 258.5 mA @ 120 Hz | 470 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-FC2A330CAP ALUM 33UF 20% 100V RADIAL |
109 | 0.86 |
RFQ |
Datasheet |
Bulk | FC | Active | 33 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 198.9 mA @ 120 Hz | 306 mA @ 100 kHz | 530 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEU-FS0J202LCAP ALUM 2000UF 20% 6.3V RADIAL |
2,081 | 0.87 |
RFQ |
Datasheet |
Bulk | FS-A | Active | 2000 µF | ±20% | 6.3 V | - | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.248 A @ 120 Hz | 1.56 A @ 100 kHz | 30 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
ECA-0JM332CAP ALUM 3300UF 20% 6.3V RADIAL |
2,871 | 0.91 |
RFQ |
Datasheet |
Bulk | M-A | Active | 3300 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.02 A @ 120 Hz | 1.734 A @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
ECA-2CHG330CAP ALUM 33UF 20% 160V RADIAL |
416 | 0.91 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 33 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 270 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-FC1E561CAP ALUM 560UF 20% 25V RADIAL |
2,190 | 0.99 |
RFQ |
Datasheet |
Bulk | FC | Active | 560 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 915 mA @ 120 Hz | 1.22 A @ 100 kHz | 52 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
EEU-FC1E391CAP ALUM 390UF 20% 25V RADIAL |
693 | 0.93 |
RFQ |
Datasheet |
Bulk | FC | Active | 390 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 787.5 mA @ 120 Hz | 1.05 A @ 100 kHz | 68 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.630 (16.00mm) | - | Through Hole |
|
EEU-FC1V561CAP ALUM 560UF 20% 35V RADIAL |
2,794 | 1.03 |
RFQ |
Datasheet |
Bulk | FC | Active | 560 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.08 A @ 120 Hz | 1.44 A @ 100 kHz | 45 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
ECA-0JM472CAP ALUM 4700UF 20% 6.3V RADIAL |
1,545 | 1.05 |
RFQ |
Datasheet |
Bulk | M-A | Active | 4700 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.989 A @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
ECA-2CHG470CAP ALUM 47UF 20% 160V RADIAL |
709 | 1.01 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 47 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 220 mA @ 120 Hz | 330 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EEU-FC1E821CAP ALUM 820UF 20% 25V RADIAL |
2,677 | 1.06 |
RFQ |
Datasheet |
Bulk | FC | Active | 820 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.08 A @ 120 Hz | 1.44 A @ 100 kHz | 45 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.984 (25.00mm) | - | Through Hole |
