| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECO-S2WP560AACAP ALUM 56UF 20% 450V SNAP |
3,223 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 56 µF | ±20% | 450 V | 2.96Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 980 mA @ 100 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
ECO-S2WP560BACAP ALUM 56UF 20% 450V SNAP |
2,261 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 56 µF | ±20% | 450 V | 2.96Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 980 mA @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.984 (25.00mm) | - | Through Hole |
|

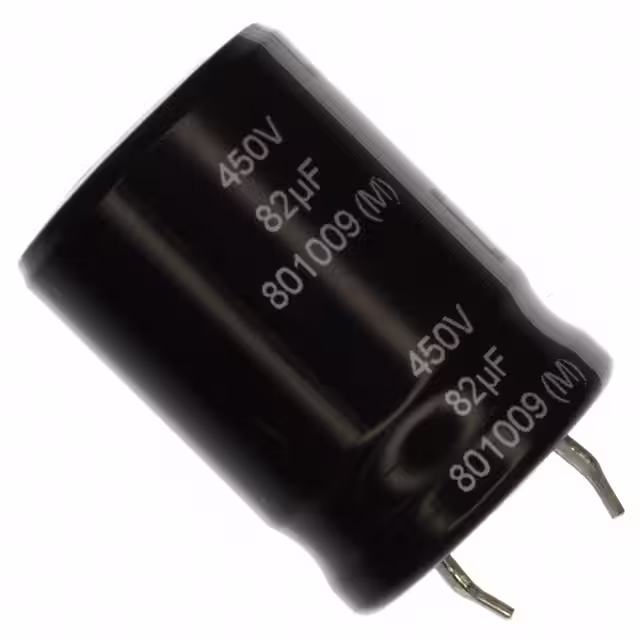

ECO-S2WP820BACAP ALUM 82UF 20% 450V SNAP |
3,635 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 82 µF | ±20% | 450 V | 2.022Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 830 mA @ 120 Hz | 1.16 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
ECO-S2WP820CACAP ALUM 82UF 20% 450V SNAP |
3,390 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 82 µF | ±20% | 450 V | 2.022Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 830 mA @ 120 Hz | 1.16 A @ 100 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
ECO-S2WP121BACAP ALUM 120UF 20% 450V SNAP |
2,047 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 120 µF | ±20% | 450 V | 1.382Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.04 A @ 120 Hz | 1.456 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
ECO-S2WP121DACAP ALUM 120UF 20% 450V SNAP |
2,065 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 120 µF | ±20% | 450 V | 1.382Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.04 A @ 120 Hz | 1.456 A @ 100 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
ECO-S2WP151BACAP ALUM 150UF 20% 450V SNAP |
2,086 | 2.28 |
RFQ |
Datasheet |
Bulk,Bulk | TS-UP | Obsolete | 150 µF | ±20% | 450 V | 1.105Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.19 A @ 120 Hz | 1.666 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
ECO-S2WP271DACAP ALUM 270UF 20% 450V SNAP |
2,183 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 270 µF | ±20% | 450 V | 675mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | 2.492 A @ 100 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
ECO-S2WP271EXCAP ALUM 270UF 20% 450V SNAP |
2,719 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 270 µF | ±20% | 450 V | 614mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | 2.492 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
ECO-S2WP331DACAP ALUM 330UF 20% 450V SNAP |
3,046 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 330 µF | ±20% | 450 V | 553mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.01 A @ 120 Hz | 2.814 A @ 100 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
ECE-S2WP331EXCAP ALUM 330UF 20% 450V SNAP |
3,072 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 330 µF | ±20% | 450 V | 553mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.01 A @ 120 Hz | 2.814 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
ECO-S2WP391EACAP ALUM 390UF 20% 450V SNAP |
2,225 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 390 µF | ±20% | 450 V | 510mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.24 A @ 120 Hz | 3.136 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
|
ECO-S2WP471EXCAP ALUM 470UF 20% 450V SNAP |
3,908 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 470 µF | ±20% | 450 V | 423mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.53 A @ 120 Hz | 3.542 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
|
ECO-S2HP470BACAP ALUM 47UF 20% 500V SNAP |
2,866 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 47 µF | ±20% | 500 V | 3.527Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 630 mA @ 120 Hz | 882 mA @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.984 (25.00mm) | - | Through Hole |
|

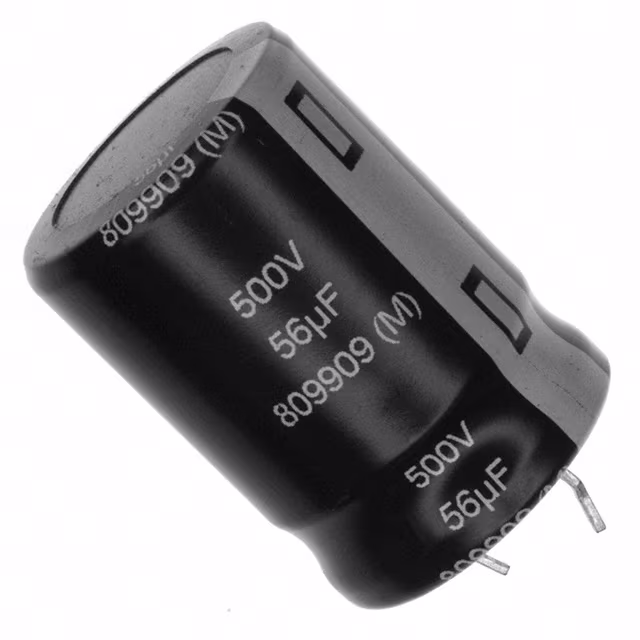

ECO-S2HP560BACAP ALUM 56UF 20% 500V SNAP |
2,605 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 56 µF | ±20% | 500 V | 2.96Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 980 mA @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
ECO-S2HP680BACAP ALUM 68UF 20% 500V SNAP |
2,425 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 68 µF | ±20% | 500 V | 2.438Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 780 mA @ 120 Hz | 1.09 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
|
ECO-S2HP680CACAP ALUM 68UF 20% 500V SNAP |
2,313 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 68 µF | ±20% | 500 V | 2.438Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 780 mA @ 120 Hz | 1.09 A @ 100 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
|
ECO-S2HP820BACAP ALUM 82UF 20% 500V SNAP |
2,290 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 82 µF | ±20% | 500 V | 2.022Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.23 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
ECO-S2HP820CACAP ALUM 82UF 20% 500V SNAP |
2,508 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 82 µF | ±20% | 500 V | 2.022Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.23 A @ 100 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
ECO-S2HP101BACAP ALUM 100UF 20% 500V SNAP |
3,672 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 100 µF | ±20% | 500 V | 1.658Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.39 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.772 (45.00mm) | - | Through Hole |
