| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECO-S1CP472BACAP ALUM 4700UF 20% 16V SNAP |
3,570 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 4700 µF | ±20% | 16 V | 159mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.77 A @ 120 Hz | 2.036 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
ECO-S1CP682BACAP ALUM 6800UF 20% 16V SNAP |
3,712 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 6800 µF | ±20% | 16 V | 110mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.57 A @ 120 Hz | 2.956 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
ECO-S1CP822BACAP ALUM 8200UF 20% 16V SNAP |
3,851 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 8200 µF | ±20% | 16 V | 91mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.1 A @ 120 Hz | 3.565 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
ECO-S1EP332BACAP ALUM 3300UF 20% 25V SNAP |
2,117 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 3300 µF | ±20% | 25 V | 161mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.68 A @ 120 Hz | 1.932 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
|
ECO-S1EP472BACAP ALUM 4700UF 20% 25V SNAP |
3,032 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 4700 µF | ±20% | 25 V | 113mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.39 A @ 120 Hz | 2.749 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
|
ECO-S1EP562BACAP ALUM 5600UF 20% 25V SNAP |
2,811 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 5600 µF | ±20% | 25 V | 95mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.86 A @ 120 Hz | 3.289 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
|
ECO-S1VP222BACAP ALUM 2200UF 20% 35V SNAP |
2,960 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 2200 µF | ±20% | 35 V | 166mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.52 A @ 120 Hz | 1.748 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
|
ECO-S1VP332BACAP ALUM 3300UF 20% 35V SNAP |
2,364 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 3300 µF | ±20% | 35 V | 111mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.29 A @ 120 Hz | 2.6335 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
|
ECO-S1VP392BACAP ALUM 3900UF 20% 35V SNAP |
2,939 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 3900 µF | ±20% | 35 V | 94mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.71 A @ 120 Hz | 3.117 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
|
ECO-S1HP152BACAP ALUM 1500UF 20% 50V SNAP |
3,605 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 1500 µF | ±20% | 50 V | 221mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.24 A @ 120 Hz | 1.426 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
|
ECO-S1HP222BACAP ALUM 2200UF 20% 50V SNAP |
3,206 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 2200 µF | ±20% | 50 V | 151mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.82 A @ 120 Hz | 2.093 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
|
ECO-S1HP272BACAP ALUM 2700UF 20% 50V SNAP |
3,218 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 2700 µF | ±20% | 50 V | 123mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.23 A @ 120 Hz | 2.565 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
|
ECO-S1KP681BACAP ALUM 680UF 20% 80V SNAP |
2,471 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 680 µF | ±20% | 80 V | 390mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.02 A @ 120 Hz | 1.173 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
|
ECO-S1KP102BACAP ALUM 1000UF 20% 80V SNAP |
2,702 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 1000 µF | ±20% | 80 V | 265mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.51 A @ 120 Hz | 1.737 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
|
ECO-S1KP122BACAP ALUM 1200UF 20% 80V SNAP |
2,097 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 1200 µF | ±20% | 80 V | 221mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.81 A @ 120 Hz | 2.082 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.984 (25.00mm) | - | Through Hole |
|

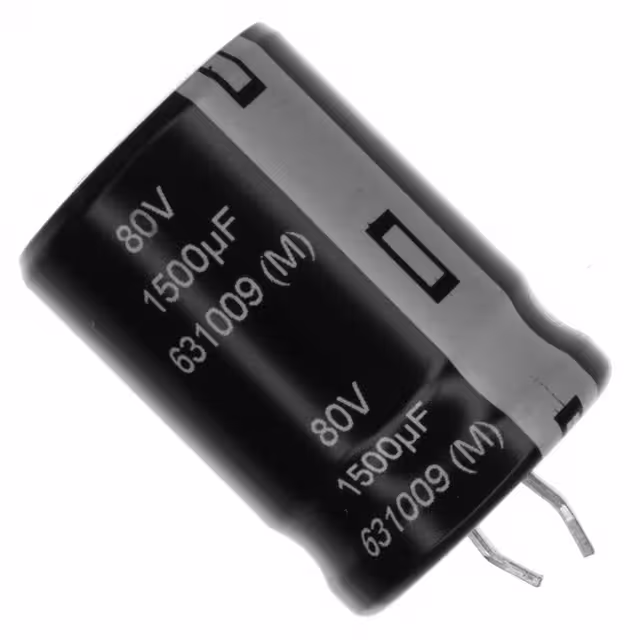

ECO-S1KP152BACAP ALUM 1500UF 20% 80V SNAP |
2,377 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 1500 µF | ±20% | 80 V | 177mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.26 A @ 120 Hz | 2.599 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
ECO-S1KP152CACAP ALUM 1500UF 20% 80V SNAP |
3,596 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 1500 µF | ±20% | 80 V | 177mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.26 A @ 120 Hz | 2.599 A @ 100 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
ECO-S1KP182BACAP ALUM 1800UF 20% 80V SNAP |
2,850 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 1800 µF | ±20% | 80 V | 147mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.52 A @ 120 Hz | 2.898 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
ECO-S1KP182CACAP ALUM 1800UF 20% 80V SNAP |
3,462 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 1800 µF | ±20% | 80 V | 147mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.52 A @ 120 Hz | 2.898 A @ 100 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
ECO-S1KP222BACAP ALUM 2200UF 20% 80V SNAP |
2,761 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 2200 µF | ±20% | 80 V | 121mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.73 A @ 120 Hz | 3.1395 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.575 (40.00mm) | - | Through Hole |
