| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECO-S1CA473EACAP ALUM 47000UF 20% 16V SNAP |
3,034 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-HA | Obsolete | 47000 µF | ±20% | 16 V | 20mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.5 A @ 120 Hz | 6.325 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
ECO-S1CA563EACAP ALUM 56000UF 20% 16V SNAP |
2,376 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-HA | Obsolete | 56000 µF | ±20% | 16 V | 19mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6 A @ 120 Hz | 6.9 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
ECO-S1EA472BACAP ALUM 4700UF 20% 25V SNAP |
2,777 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-HA | Obsolete | 4700 µF | ±20% | 25 V | 106mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.3 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
ECO-S1EA472AACAP ALUM 4700UF 20% 25V SNAP |
2,756 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-HA | Obsolete | 4700 µF | ±20% | 25 V | 106mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.3 A @ 100 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.260 (32.00mm) | - | Through Hole |
|

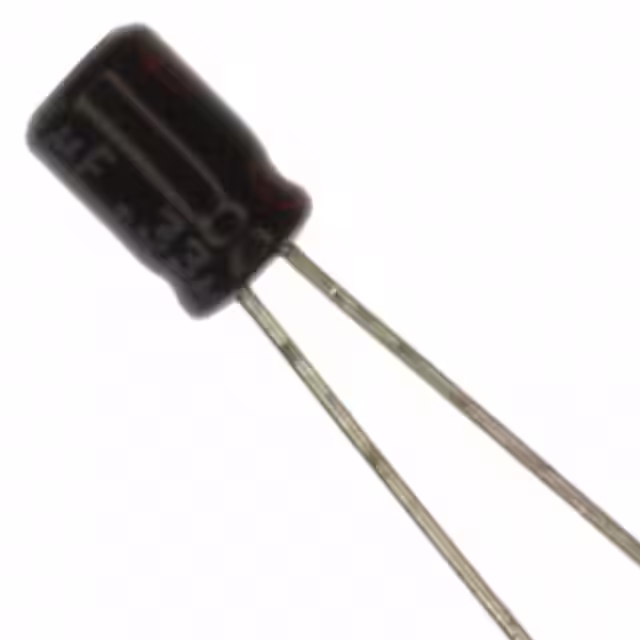

ECE-A1HKKR33CAP ALUM 0.33UF 20% 50V RADIAL |
3,449 | 0.00 |
RFQ |
Datasheet |
Bulk | KK | Obsolete | 0.33 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3 mA @ 120 Hz | - | - | 0.039 (1.00mm) | 0.118 Dia (3.00mm) | 0.197 (5.00mm) | - | Through Hole |
|
ECE-A1HKSR47CAP ALUM 0.47UF 20% 50V RADIAL |
2,979 | 0.00 |
RFQ |
Datasheet |
Bulk | KS | Obsolete | 0.47 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.197 (5.00mm) | - | Through Hole |
|
ECE-A1HKKR47CAP ALUM 0.47UF 20% 50V RADIAL |
2,546 | 0.00 |
RFQ |
Datasheet |
Bulk | KK | Obsolete | 0.47 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5 mA @ 120 Hz | - | - | 0.039 (1.00mm) | 0.118 Dia (3.00mm) | 0.197 (5.00mm) | - | Through Hole |
|

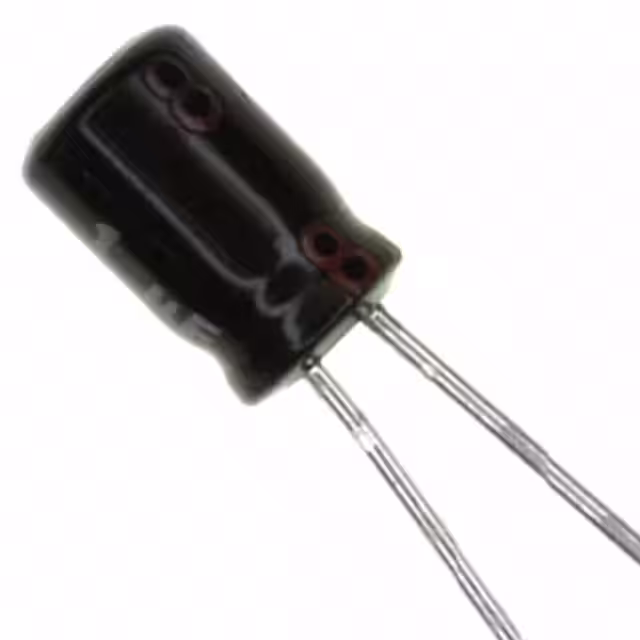

ECE-A1HKK010CAP ALUM 1UF 20% 50V RADIAL |
3,794 | 0.00 |
RFQ |
Datasheet |
Bulk | KK | Obsolete | 1 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8 mA @ 120 Hz | - | - | 0.039 (1.00mm) | 0.118 Dia (3.00mm) | 0.197 (5.00mm) | - | Through Hole |
|

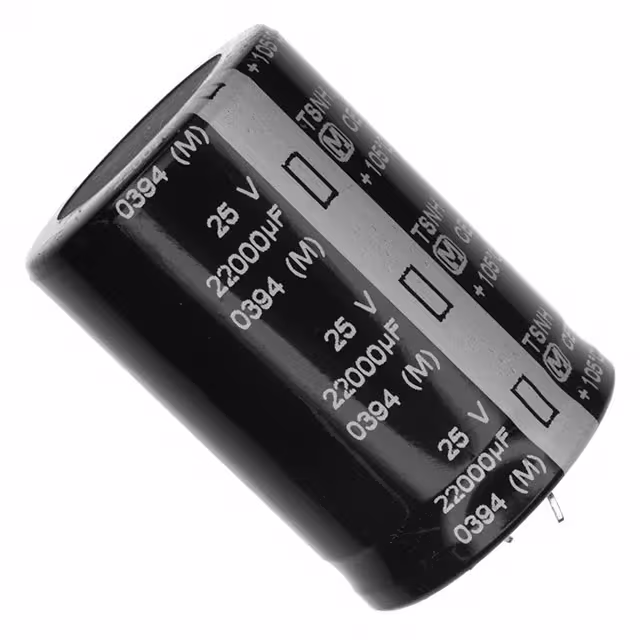

ECE-S1EG223ZCAP ALUM 22000UF 20% 25V SNAP |
3,331 | 0.00 |
RFQ |
Datasheet |
Bulk | NH | Obsolete | 22000 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4 A @ 120 Hz | 4.6 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.969 (50.00mm) | - | Through Hole |
|

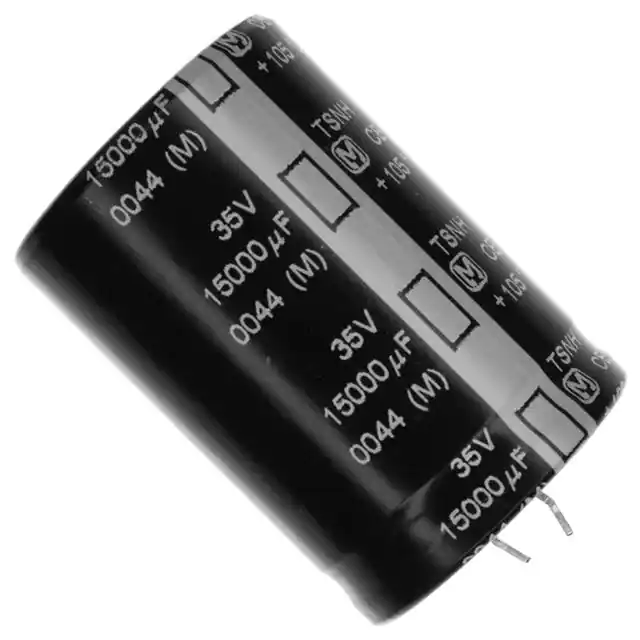

ECE-S1VG153ZCAP ALUM 15000UF 20% 35V SNAP |
3,275 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-NH | Obsolete | 15000 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.9 A @ 120 Hz | 4.485 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.969 (50.00mm) | - | Through Hole |
|

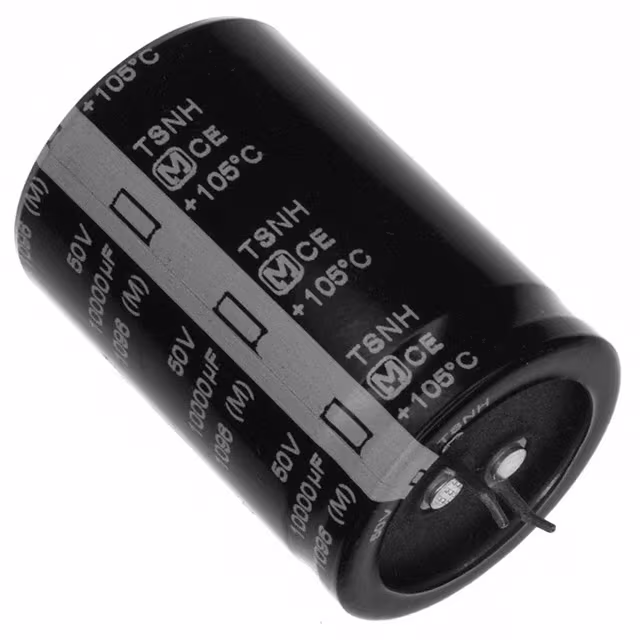

ECE-S1HG103ZCAP ALUM 10000UF 20% 50V SNAP |
2,381 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-NH | Obsolete | 10000 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.7 A @ 120 Hz | 4.255 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.969 (50.00mm) | - | Through Hole |
|

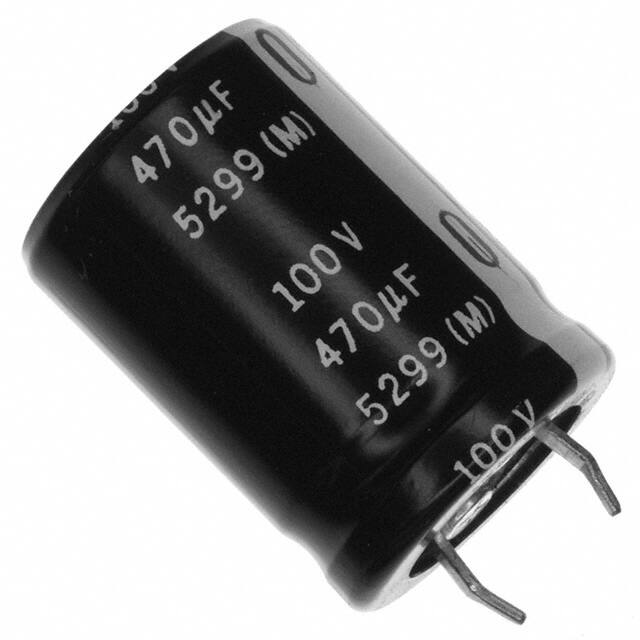

ECE-S2AG471ECAP ALUM 470UF 20% 100V SNAP |
2,078 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-NH | Obsolete | 470 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.38 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.181 (30.00mm) | - | Through Hole |
|

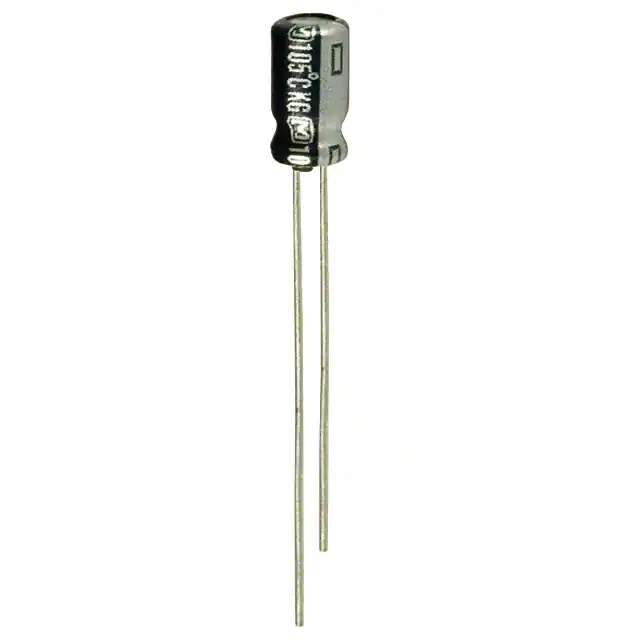

ECE-A0JKG220CAP ALUM 22UF 20% 6.3V RADIAL |
3,248 | 0.00 |
RFQ |
Datasheet |
Bulk | KG | Obsolete | 22 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 47 mA @ 100 kHz | 10 Ohms | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
|
ECE-A1HKGR68CAP ALUM 0.68UF 20% 50V RADIAL |
2,007 | 0.00 |
RFQ |
Datasheet |
Bulk | KG | Obsolete | 0.68 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 10 mA @ 100 kHz | 10 Ohms | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
|
ECE-A1HKG1R5CAP ALUM 1.5UF 20% 50V RADIAL |
2,292 | 0.00 |
RFQ |
Datasheet |
Bulk | KG | Obsolete | 1.5 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 24 mA @ 100 kHz | 10 Ohms | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
|
ECE-A1HKG010CAP ALUM 1UF 20% 50V RADIAL |
3,439 | 0.00 |
RFQ |
Datasheet |
Bulk | KG | Obsolete | 1 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 16 mA @ 100 kHz | 10 Ohms | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
|
ECE-A1EKG100CAP ALUM 10UF 20% 25V RADIAL |
2,319 | 0.00 |
RFQ |
Datasheet |
Bulk | KG | Obsolete | 10 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 47 mA @ 100 kHz | 10 Ohms | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|

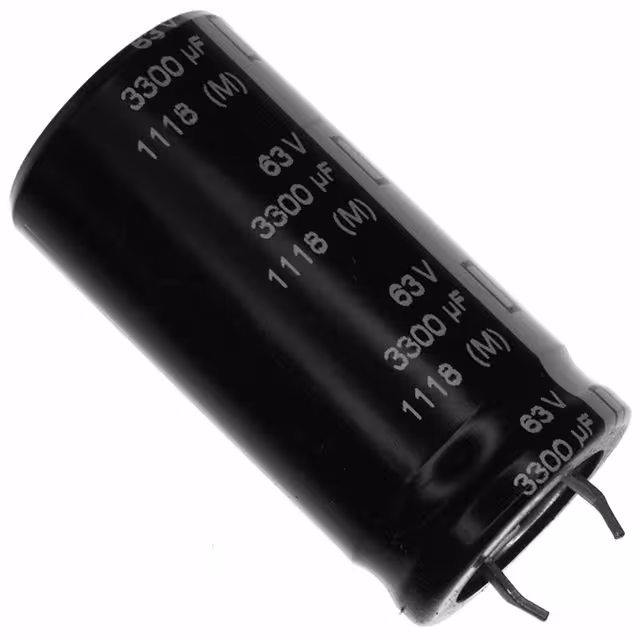

ECE-S1JG332NCAP ALUM 3300UF 20% 63V SNAP |
3,278 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-NH | Obsolete | 3300 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 2.875 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.969 (50.00mm) | - | Through Hole |
|

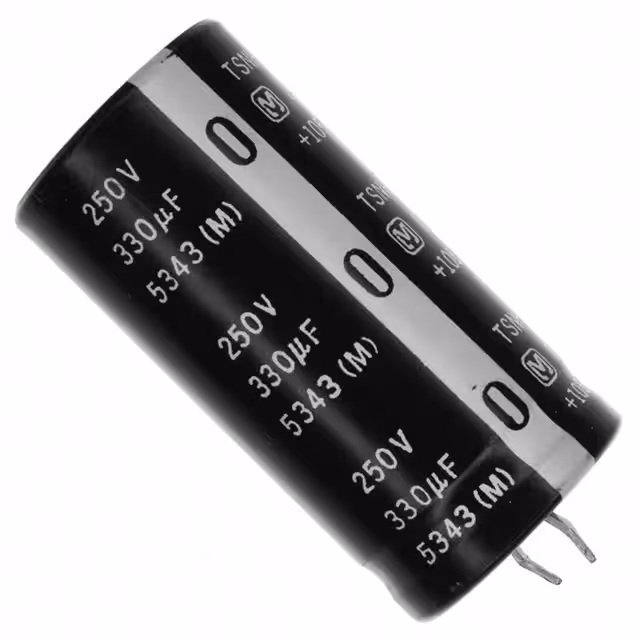

ECE-S2EG331NCAP ALUM 330UF 20% 250V SNAP |
3,431 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-NH | Obsolete | 330 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.25 A @ 120 Hz | 1.563 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.969 (50.00mm) | - | Through Hole |
|

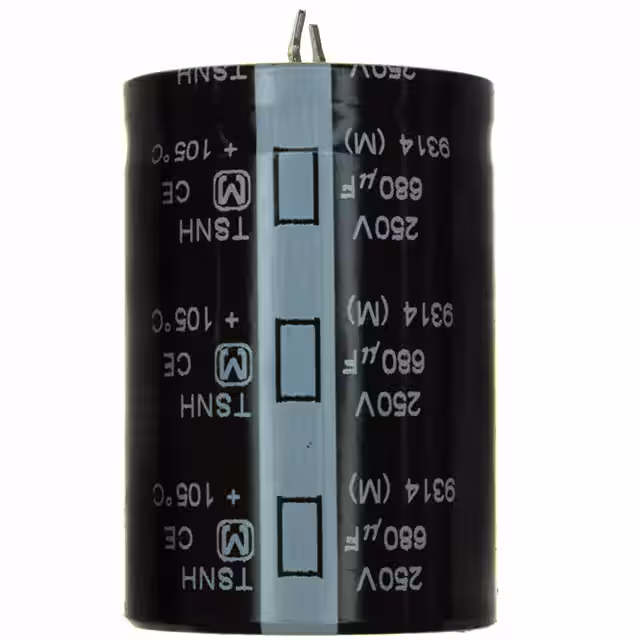

ECE-S2EG681ZCAP ALUM 680UF 20% 250V SNAP |
3,324 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-NH | Obsolete | 680 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.25 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.969 (50.00mm) | - | Through Hole |
