| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

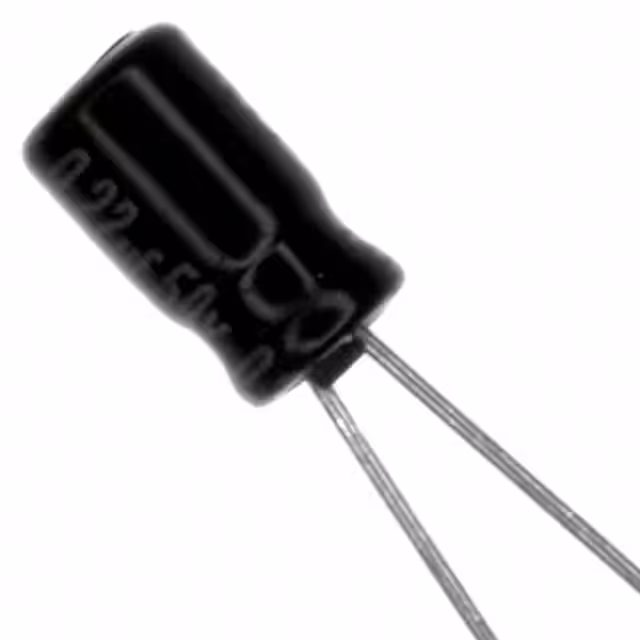

ECE-A1HKAR22CAP ALUM 0.22UF 20% 50V RADIAL |
3,856 | 0.00 |
RFQ |
Datasheet |
Bulk | KA | Obsolete | 0.22 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 3.4 mA @ 10 kHz | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|

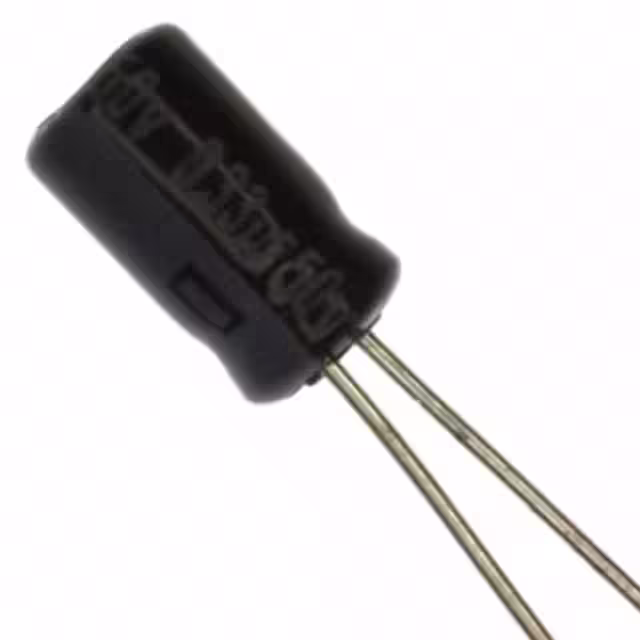

ECE-A1HKAR33CAP ALUM 0.33UF 20% 50V RADIAL |
2,048 | 0.00 |
RFQ |
Datasheet |
Bulk | KA | Obsolete | 0.33 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 5.1 mA @ 10 kHz | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|

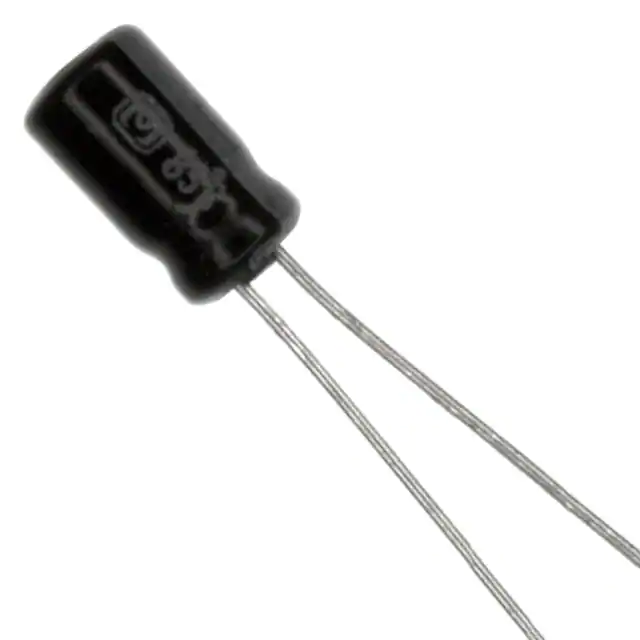

ECE-A1HKAR47CAP ALUM 0.47UF 20% 50V RADIAL |
2,672 | 0.00 |
RFQ |
Datasheet |
Bulk | KA | Obsolete | 0.47 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 8.5 mA @ 10 kHz | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|

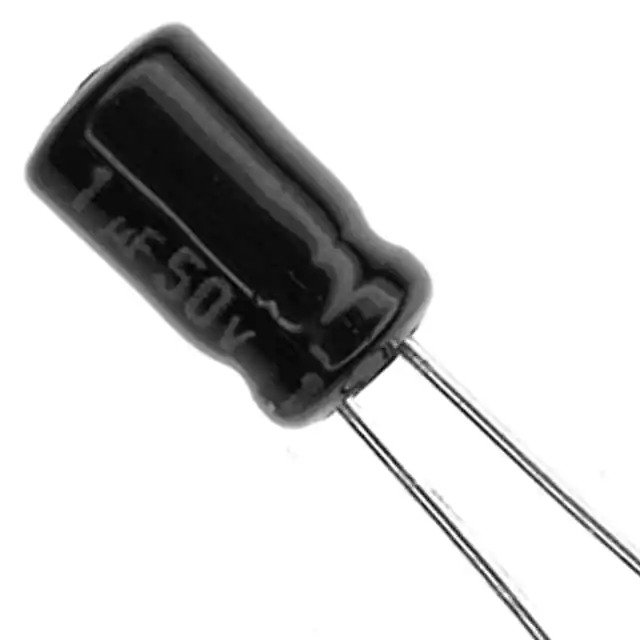

ECE-A1HKA010CAP ALUM 1UF 20% 50V RADIAL |
3,214 | 0.00 |
RFQ |
Datasheet |
Bulk | KA | Obsolete | 1 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 17 mA @ 10 kHz | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|

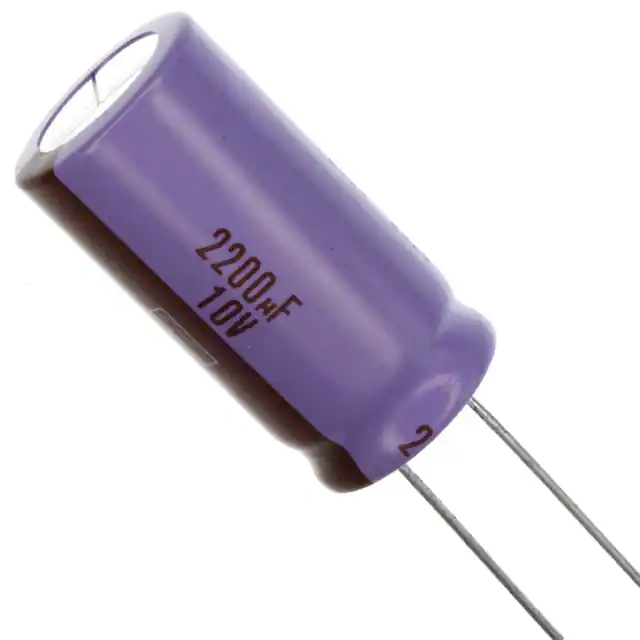

ECE-A10Z2200CAP ALUM 2200UF 20% 10V RADIAL |
2,055 | 0.00 |
RFQ |
Bulk | Z | Obsolete | 2200 µF | ±20% | 10 V | - | - | -40°C ~ 85°C | - | - | General Purpose | - | - | - | 0.295 (7.50mm) | - | - | - | Through Hole | |
|
ECE-S2DU471MCAP ALUM 470UF 20% 200V SNAP |
2,632 | 0.00 |
RFQ |
Datasheet |
Bulk | TSU | Obsolete | 470 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.82 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
ECO-S1CA183BACAP ALUM 18000UF 20% 16V SNAP |
2,994 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-HA | Obsolete | 18000 µF | ±20% | 16 V | 40mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.5 A @ 120 Hz | 4.025 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.850 (47.00mm) | - | Through Hole |
|

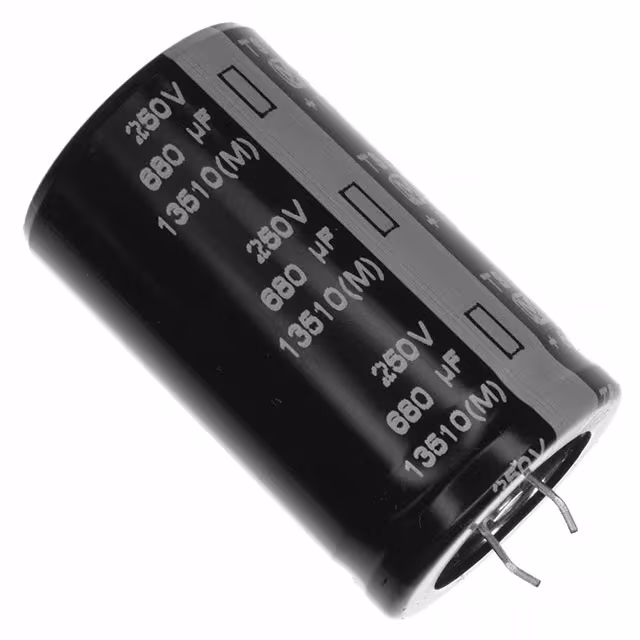

ECE-S2EU681UCAP ALUM 680UF 20% 250V SNAP |
3,074 | 0.00 |
RFQ |
Datasheet |
Bulk | TSU | Obsolete | 680 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.1 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
ECO-S1CA273CACAP ALUM 27000UF 20% 16V SNAP |
2,390 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-HA | Obsolete | 27000 µF | ±20% | 16 V | 28mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.2 A @ 120 Hz | 4.83 A @ 100 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
ECE-A1EKG6R8CAP ALUM 6.8UF 20% 25V RADIAL |
2,726 | 0.00 |
RFQ |
Datasheet |
Bulk | KG | Obsolete | 6.8 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 47 mA @ 100 kHz | 10 Ohms | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
|
ECE-A1HKGR22CAP ALUM 0.22UF 20% 50V RADIAL |
2,462 | 0.00 |
RFQ |
Datasheet |
Bulk | KG | Obsolete | 0.22 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 3.5 mA @ 100 kHz | 12 Ohms | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
|
ECE-A1HKG0R1CAP ALUM 0.1UF 20% 50V RADIAL |
2,133 | 0.00 |
RFQ |
Datasheet |
Bulk | KG | Obsolete | 0.1 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 1.7 mA @ 100 kHz | 22 Ohms | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
ECE-A1VKG220CAP ALUM 22UF 20% 35V RADIAL |
3,279 | 0.00 |
RFQ |
Datasheet |
Bulk | KG | Obsolete | 22 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 121 mA @ 100 kHz | 2 Ohms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.276 (7.00mm) | - | Through Hole |
|
ECE-A1AN470SCAP ALUM 47UF 20% 10V RADIAL |
3,994 | 0.00 |
RFQ |
Datasheet |
Bulk | SU | Obsolete | 47 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 90 mA @ 120 Hz | 170 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.441 (11.20mm) | - | Through Hole |
|
ECE-A1HN330SCAP ALUM 33UF 20% 50V RADIAL |
2,135 | 0.00 |
RFQ |
Datasheet |
Bulk | SU | Obsolete | 33 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 110 mA @ 120 Hz | 238 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.630 (16.00mm) | - | Through Hole |
|

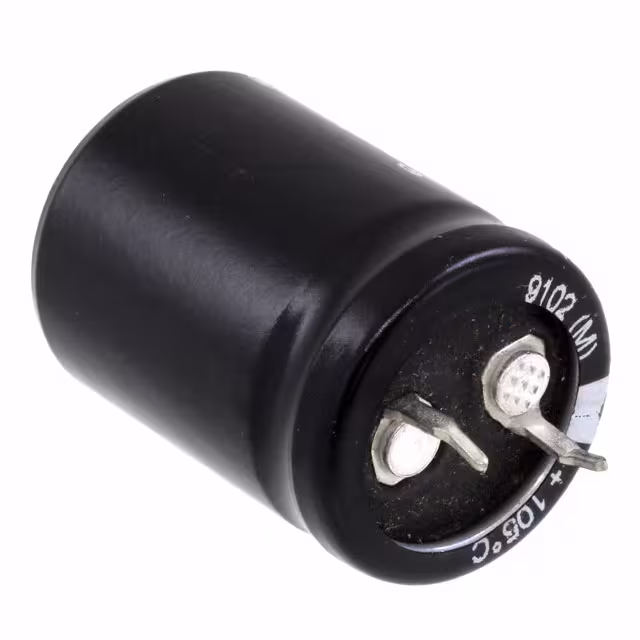

ECE-S1CG472ECAP ALUM 4700UF 20% 16V SNAP |
2,691 | 0.00 |
RFQ |
Datasheet |
Bulk | NH | Obsolete | 4700 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.3 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.181 (30.00mm) | - | Through Hole |
|

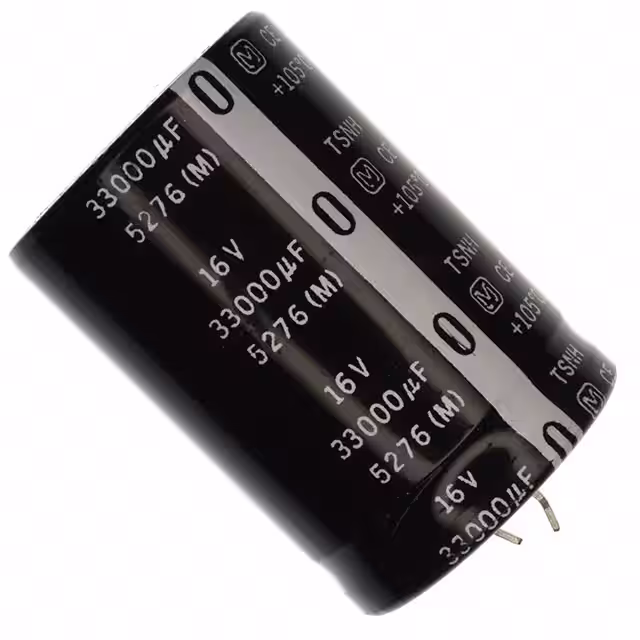

ECE-S1CG333ZCAP ALUM 33000UF 20% 16V SNAP |
3,051 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-NH | Obsolete | 33000 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.8 A @ 120 Hz | 5.52 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.969 (50.00mm) | - | Through Hole |
|

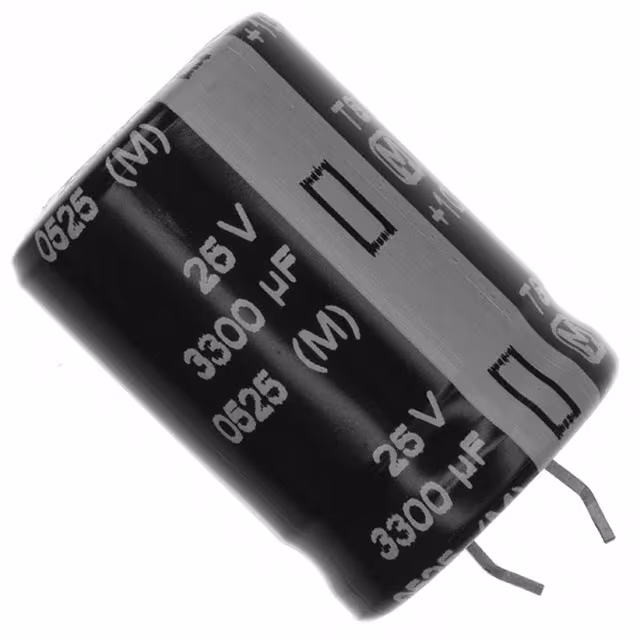

ECE-S1EG332ECAP ALUM 3300UF 20% 25V SNAP |
3,183 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-NH | Obsolete | 3300 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 1.955 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.181 (30.00mm) | - | Through Hole |
|

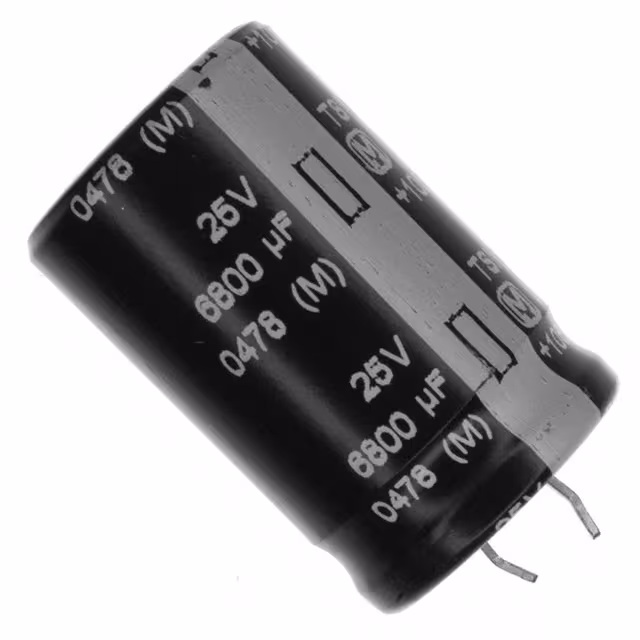

ECE-S1EG682MCAP ALUM 6800UF 20% 25V SNAP |
2,763 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-NH | Obsolete | 6800 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | 2.99 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.575 (40.00mm) | - | Through Hole |
|

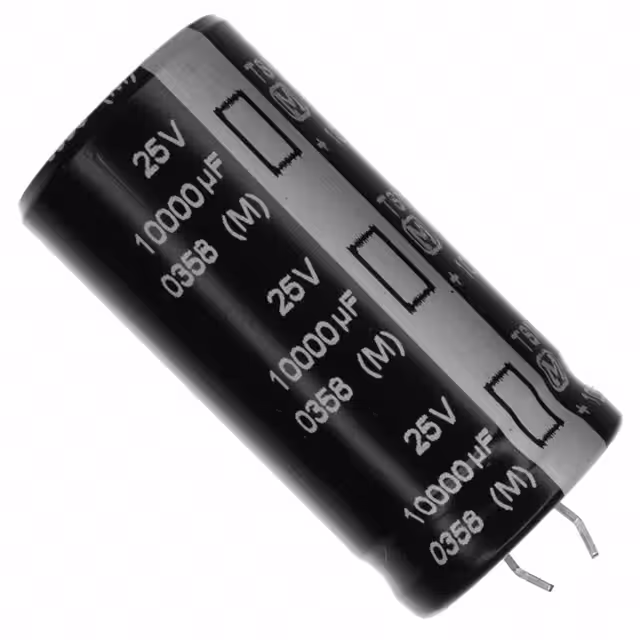

ECE-S1EG103NCAP ALUM 10000UF 20% 25V SNAP |
2,265 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-NH | Obsolete | 10000 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.1 A @ 120 Hz | 3.565 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.969 (50.00mm) | - | Through Hole |
