| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECE-A1CKA100CAP ALUM 10UF 20% 16V RADIAL |
2,453 | 0.33 |
RFQ |
Datasheet |
Bulk | KA | Active | 10 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28 mA @ 120 Hz | 47.6 mA @ 10 kHz | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
ECA-1HHG330CAP ALUM 33UF 20% 50V RADIAL |
18,033 | 0.33 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 33 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 90 mA @ 120 Hz | 180 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
ECE-A1EKA4R7CAP ALUM 4.7UF 20% 25V RADIAL |
16,396 | 0.33 |
RFQ |
Datasheet |
Bulk | KA | Active | 4.7 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 37.4 mA @ 10 kHz | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
|
ECA-1HHG220CAP ALUM 22UF 20% 50V RADIAL |
2,475 | 0.33 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 22 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 65 mA @ 120 Hz | 130 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1HHG4R7CAP ALUM 4.7UF 20% 50V RADIAL |
2,105 | 0.33 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 4.7 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 26 mA @ 120 Hz | 52 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1HHG2R2CAP ALUM 2.2UF 20% 50V RADIAL |
3,887 | 0.33 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 2.2 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 18 mA @ 120 Hz | 36 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|

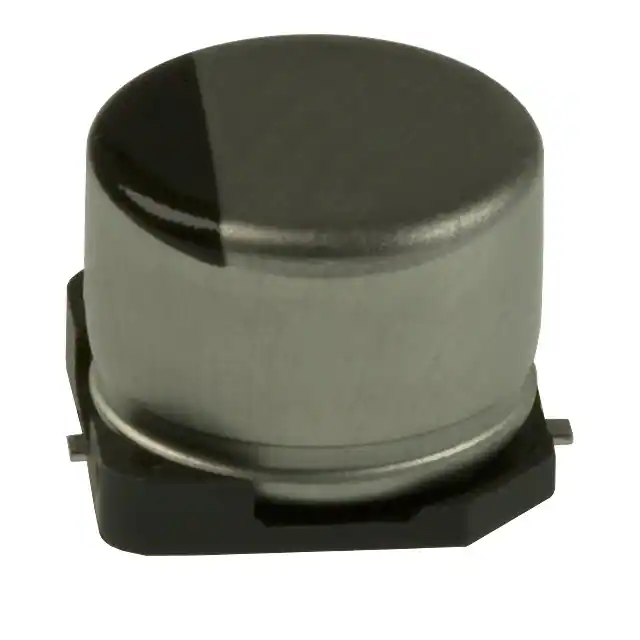

EEE-1VA330APCAP ALUM 33UF 20% 35V SMD |
36,949 | 0.68 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 33 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 130 mA @ 120 Hz | 221 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|

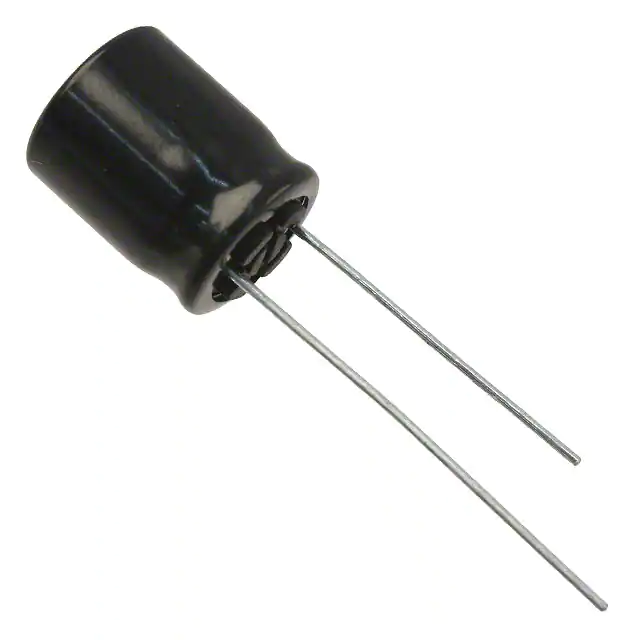

EEU-FR0J102BCAP ALUM 1000UF 20% 6.3V RAD TH |
4,572 | 0.70 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 1000 µF | ±20% | 6.3 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 712.5 mA @ 120 Hz | 950 mA @ 100 kHz | 56 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|

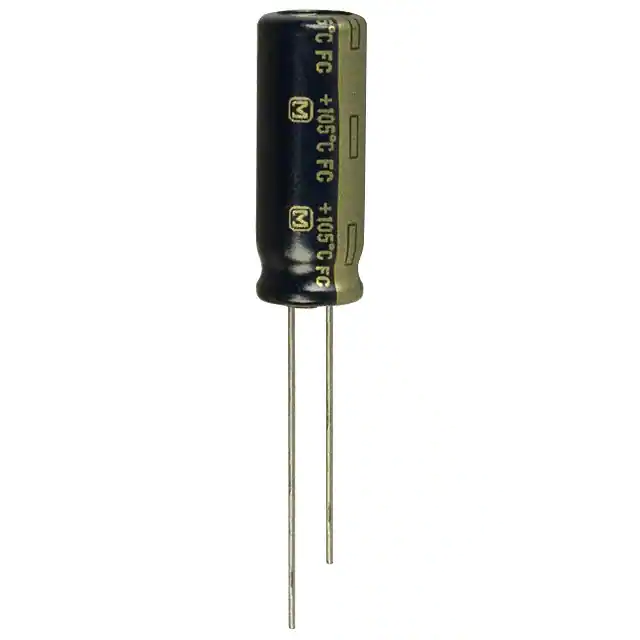

EEU-FC0J821LBCAP ALUM 820UF 20% 6.3V RADIAL |
9,029 | 0.70 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FC | Active | 820 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 547.5 mA @ 120 Hz | 730 mA @ 100 kHz | 85 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.807 (20.50mm) | - | Through Hole |
|
EEU-FR1E221BCAP ALUM 220UF 20% 25V RADIAL TH |
2,365 | 0.70 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 220 µF | ±20% | 25 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 665 mA @ 120 Hz | 950 mA @ 100 kHz | 56 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|

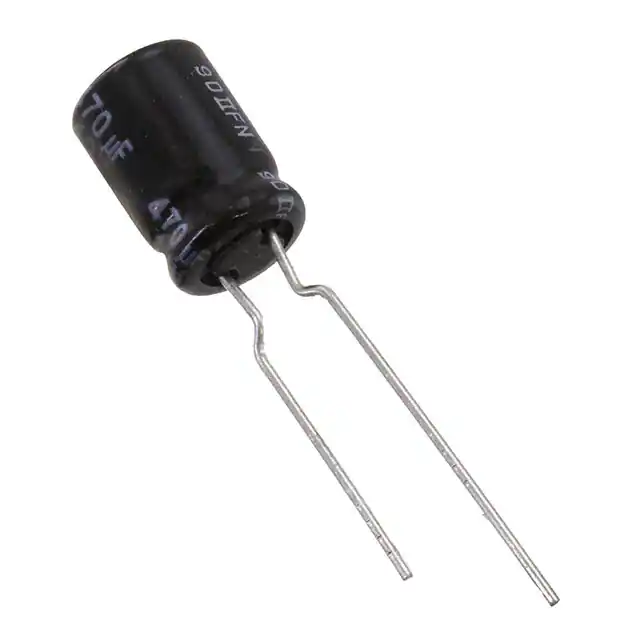

EEU-FR1A471BCAP ALUM 470UF 20% 10V RADIAL TH |
9,110 | 0.71 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 470 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 712.5 mA @ 120 Hz | 950 mA @ 100 kHz | 56 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
ECE-A1CKA101CAP ALUM 100UF 20% 16V RADIAL |
12,974 | 0.35 |
RFQ |
Datasheet |
Bulk | KA | Active | 100 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 91 mA @ 120 Hz | 154.7 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.276 (7.00mm) | - | Through Hole |
|
ECA-1EM101CAP ALUM 100UF 20% 25V RADIAL |
10,057 | 0.35 |
RFQ |
Datasheet |
Bulk | M-A | Active | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 306 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.480 (12.20mm) | - | Through Hole |
|
|
ECA-1JHG100CAP ALUM 10UF 20% 63V RADIAL |
17,728 | 0.35 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 10 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 46 mA @ 120 Hz | 92 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
ECE-A1HKA220CAP ALUM 22UF 20% 50V RADIAL |
6,077 | 0.35 |
RFQ |
Datasheet |
Bulk | KA | Active | 22 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 60 mA @ 120 Hz | 102 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.276 (7.00mm) | - | Through Hole |
|
|
ECA-1HM470CAP ALUM 47UF 20% 50V RADIAL |
3,402 | 0.35 |
RFQ |
Datasheet |
Bulk | M-A | Active | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 130 mA @ 120 Hz | 221 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.480 (12.20mm) | - | Through Hole |
|
|
ECA-0JM471CAP ALUM 470UF 20% 6.3V RADIAL |
2,362 | 0.35 |
RFQ |
Datasheet |
Bulk | M-A | Active | 470 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 380 mA @ 120 Hz | 646 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.480 (12.20mm) | - | Through Hole |
|
EEU-FC1C471LBCAP ALUM 470UF 20% 16V RADIAL |
2,565 | 0.75 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FC | Active | 470 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 547.5 mA @ 120 Hz | 730 mA @ 100 kHz | 85 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.807 (20.50mm) | - | Through Hole |
|
EEU-FM1A101CAP ALUM 100UF 20% 10V RADIAL |
2,191 | 0.37 |
RFQ |
Datasheet |
Bulk | FM-A | Active | 100 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 196 mA @ 120 Hz | 280 mA @ 100 kHz | 300 mOhms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
EEU-FM1C680CAP ALUM 68UF 20% 16V RADIAL |
16,233 | 0.37 |
RFQ |
Datasheet |
Bulk | FM-A | Active | 68 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 196 mA @ 120 Hz | 280 mA @ 100 kHz | 300 mOhms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
