| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DriverCircuitry | InputType | Voltage-Rated | VoltageRange | Frequency | Technology | OperatingMode | Duration | SoundPressureLevel(SPL) | Current-Supply | PortLocation | OperatingTemperature | ApprovalAgency | Ratings | IngressProtection | MountingType | Termination | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBT12M1PCBUZZER PIEZO 44.5MM TH |
3,705 | 39.06 |
RFQ |
Datasheet |
Bulk | - | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 9V, 10cm | 15 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752 Dia (44.50mm) |
|
SC250RBUZZER PIEZO 42.85MM PNL MNT |
3,898 | 39.67 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | AC, DC | - | 60 ~ 250V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 60V, 61cm | 5 ~ 18mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
SC648ANRBUZZER PIEZO 42.98MM PNL MNT |
3,438 | 42.98 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | AC, DC | - | 10 ~ 48V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 10V, 61cm | 4 ~ 26mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.692 Dia (42.98mm) |
|
SBT5LMMEPCBUZZER PIEZO 44.5MM TH |
3,296 | 45.72 |
RFQ |
Datasheet |
Bulk | - | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 3.3V, 10cm | 15 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752 Dia (44.50mm) |
|
SC628APRBUZZER PIEZO 42.98MM PNL MNT |
3,111 | 46.43 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 68dB @ 7.5V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.692 Dia (42.98mm) |
|

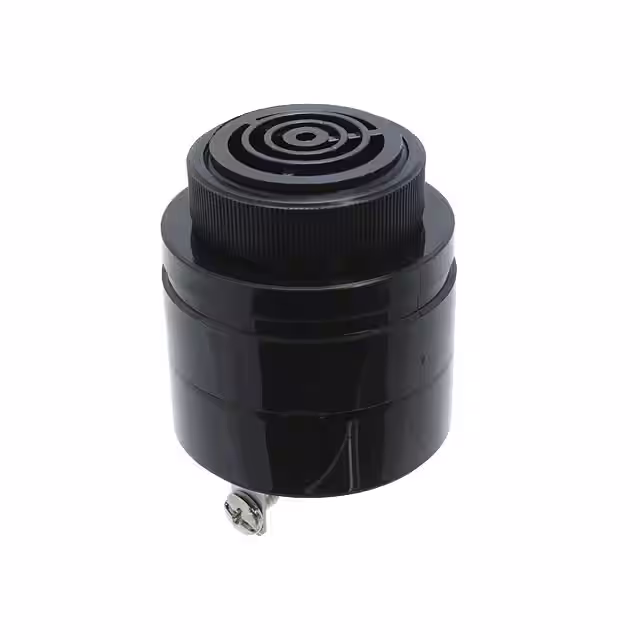

SC628AJRBUZZER PIEZO 42.98MM PNL MNT |
2,566 | 46.57 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2.5 PPS | 68dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.692 Dia (42.98mm) |
|

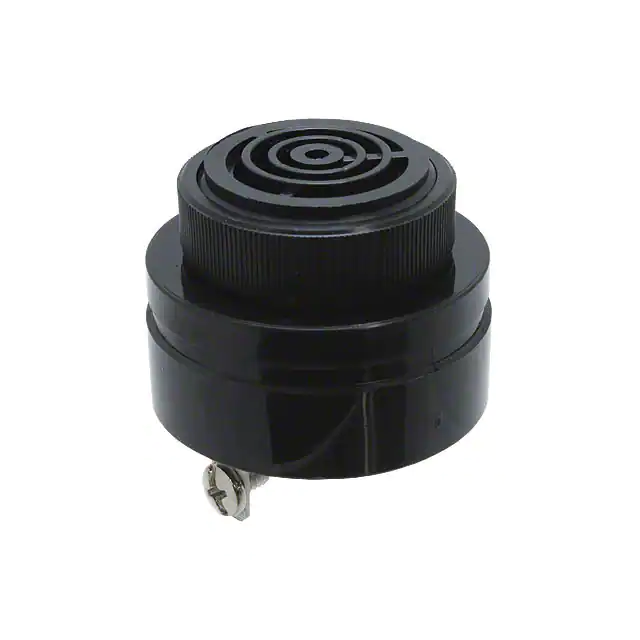

SC648ANPRBUZZER PIEZO 42.98MM PNL MNT |
3,193 | 48.03 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | AC | - | 10 ~ 48V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 91dB @ 10V, 61cm | 4 ~ 26mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.692 Dia (42.98mm) |
|
ZT028LACTRBUZZER PIEZO 30.74MM PNL MNT |
3,883 | 50.92 |
RFQ |
Datasheet |
Bulk | ZT | Active | Indicator, Internally Driven | AC, DC | - | 20 ~ 28V | 3.7kHz | Piezo | Single Tone, Visual Indicator | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
ZT028LDCTR30BUZZER PIEZO 30.74MM PNL MNT |
2,503 | 51.95 |
RFQ |
Datasheet |
Bulk | ZT | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 3.7kHz | Piezo | Single Tone, Visual Indicator | 30 Sec On-Time | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
SC628KRBUZZER PIEZO 42.98MM PNL MNT |
2,684 | 54.33 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Short | 0.5 ~ 1.2 PPS | 68dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.692 Dia (42.98mm) |
|
ZA120LAFP1BUZZER PIEZO 30.74MM PNL MNT |
3,037 | 54.85 |
RFQ |
Datasheet |
Bulk | ZA | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Pulse, Fast | 10 PPS | 85dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
SCE028LD3DT7BBUZZER PIEZO 42.98MM PNL MNT |
2,945 | 55.44 |
RFQ |
Datasheet |
Bulk | SCE | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Warble, Fast | 7 WPS | 85dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692 Dia (42.98mm) |
|

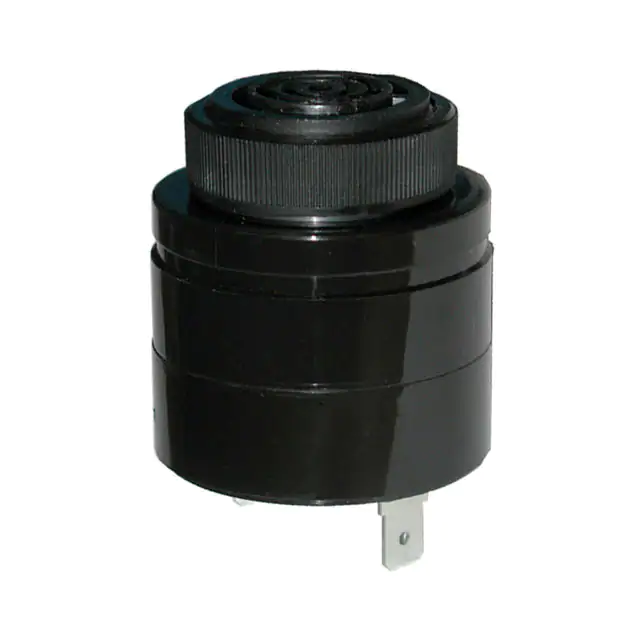

SC2036CPRBUZZER PIEZO 42.85MM PNL MNT |
2,310 | 58.79 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | DC | - | 20 ~ 36V | 1kHz | Piezo | Chime | - | 68dB @ 20V, 61cm | 12 ~ 25mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|

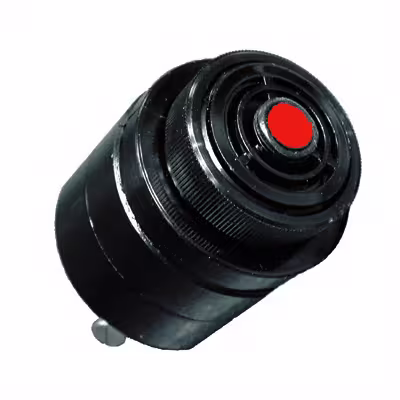

LSC250NBUZZER PIEZO 42.85MM PNL MNT |
2,570 | 70.45 |
RFQ |
Datasheet |
Bulk | LSC | Active | Indicator, Internally Driven | AC, DC | - | 60 ~ 250V | 2.9kHz | Piezo | Single Tone, Visual Indicator | - | 82dB @ 60V, 61cm | 42 ~ 61mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
SC628CPNRBUZZER PIEZO 42.98MM PNL MNT |
2,524 | 71.44 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Chime | - | 84dB @ 6V, 61cm | 6 ~ 16mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.692 Dia (42.98mm) |
|
ZT028LDIC3GBUZZER PIEZO 24V 30.74MM PNL MNT |
2,683 | 99.76 |
RFQ |
Datasheet |
Bulk | ZT | Active | Indicator, Internally Driven | DC | 24 V | 20 ~ 28V | 3.9kHz | Piezo | Pulse, Slow, Visual Indicator | 1 PPS | 85dB @ 20V, 61cm | 50mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
SC616WYRBUZZER PIEZO 42.85MM PNL MNT |
3,659 | 102.64 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.325kHz | Piezo | Pin Selectable | 0.5 ~ 2.5 PPS | 62dB @ 6V, 61cm | 6 ~ 27mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
SCH628ANPRBUZZER PIEZO 42.85MM PNL MNT |
3,154 | 377.77 |
RFQ |
Datasheet |
Bulk | SCH | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 88dB @ 6V, 61cm | 4 ~ 30mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
.JPG)
|
AST0827MW-03TRQBUZZER MAGNETIC 3V 8.5X8.5MM SMD |
761 | 1.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | AST | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 2 ~ 4V | 2.731kHz | Magnetic | Single Tone | - | 85dB @ 3V, 10cm | 80mA | Side | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.335 L x 0.335 W (8.50mm x 8.50mm) |
.JPG)
|
AST1341MCTRQBUZZER PIEZO 5V 13X13MM SMD |
3,098 | 2.19 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | AST | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 25V | 4.1kHz | Piezo | Single Tone | - | 90dB @ 5V, 10cm | 8mA | Side | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.512 L x 0.512 W (13.00mm x 13.00mm) |
