| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DriverCircuitry | InputType | Voltage-Rated | VoltageRange | Frequency | Technology | OperatingMode | Duration | SoundPressureLevel(SPL) | Current-Supply | PortLocation | OperatingTemperature | ApprovalAgency | Ratings | IngressProtection | MountingType | Termination | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

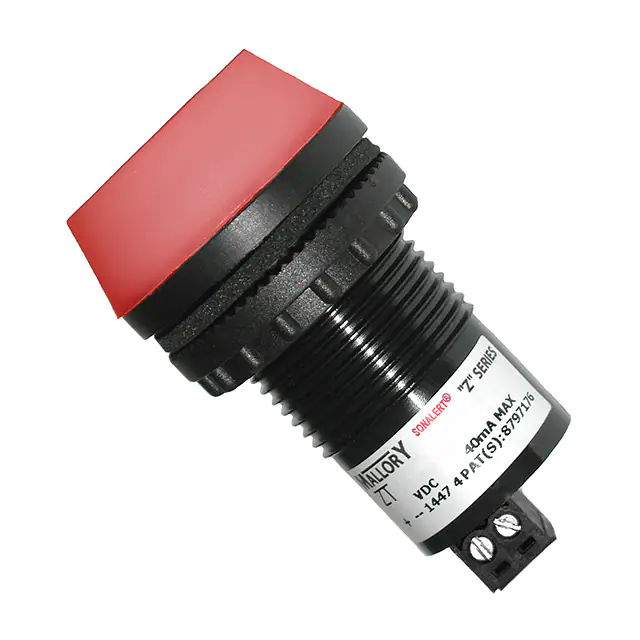

ZT028LDCTRBUZZER PIEZO 30.74MM PNL MNT |
3,807 | 39.06 |
RFQ |
Datasheet |
Bulk | ZT | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 3.7kHz | Piezo | Single Tone, Visual Indicator | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
SC110RBUZZER PIEZO 42.85MM PNL MNT |
2,371 | 39.67 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 30V, 61cm | 6 ~ 21mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|

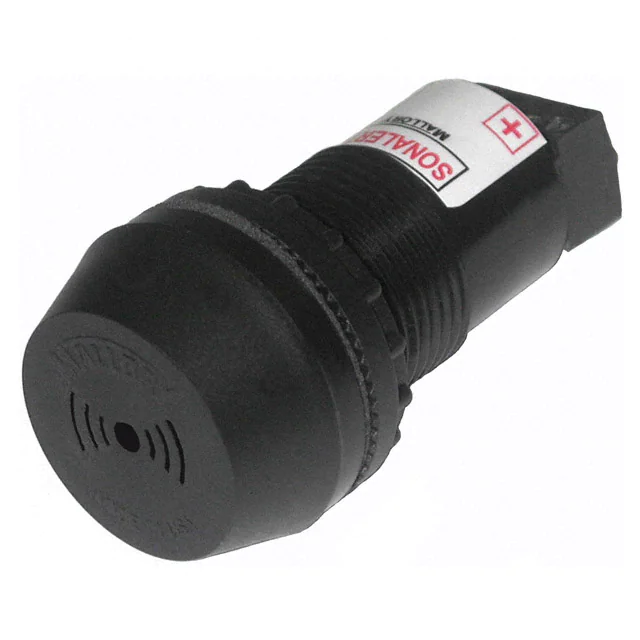

ZA120MACTBUZZER PIEZO 30.74MM PNL MNT |
2,085 | 39.87 |
RFQ |
Datasheet |
Bulk | ZA | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Single Tone | - | 75dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|

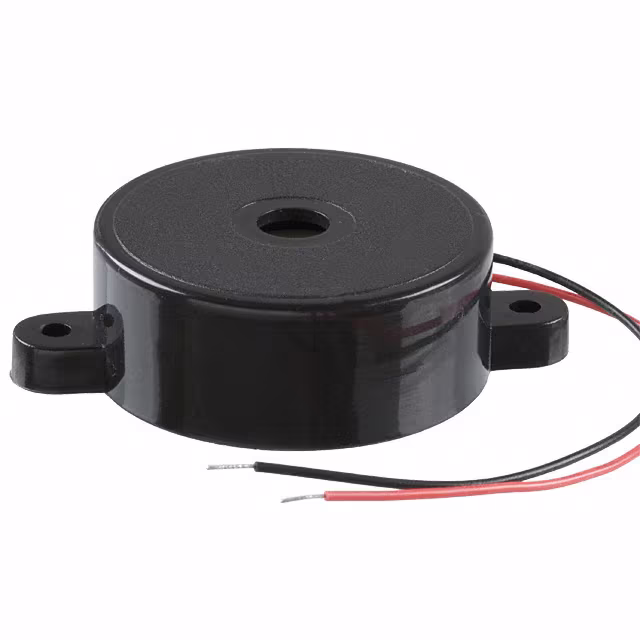

SBT5LM0FLBUZZER PIEZO 44.5MM FLANGE |
2,881 | 41.11 |
RFQ |
Datasheet |
Bulk | - | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Single Tone | - | 85dB @ 3.3V, 10cm | 35mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Panel Mount, Flange | Wire Leads | 1.752 Dia (44.50mm) |
|
ZA028LACTBUZZER PIEZO 30.74MM PNL MNT |
2,098 | 41.96 |
RFQ |
Datasheet |
Bulk | ZA | Active | Indicator, Internally Driven | AC, DC | - | 16 ~ 28V | 3.3kHz | Piezo | Single Tone | - | 85dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
|
SC250BUZZER PIEZO 42.85MM PNL MNT |
2,985 | 44.05 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | AC, DC | - | 60 ~ 250V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 60V, 61cm | 5 ~ 18mA | Top | -30°C ~ 65°C | cUL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
|
ZA028MDCM1BUZZER PIEZO 30.74MM PNL MNT |
3,708 | 44.57 |
RFQ |
Datasheet |
Bulk | ZA | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Chime | Repeating every 3 Sec | 75dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
|
SC630JWBUZZER PIEZO 42.98MM PNL MNT |
3,917 | 44.62 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | DC | - | 6 ~ 30V | 2.3kHz | Piezo | Warble | 0.5 ~ 2 PPS | 65dB @ 6V, 61cm | 6 ~ 35mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.692 Dia (42.98mm) |
|
SBT5LMMVPCBUZZER PIEZO 44.5MM TH |
2,805 | 45.72 |
RFQ |
Datasheet |
Bulk | - | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 3.3V, 10cm | 15 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752 Dia (44.50mm) |
|
SC648AJRBUZZER PIEZO 42.98MM PNL MNT |
3,300 | 46.16 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | AC, DC | - | 10 ~ 48V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2.5 PPS | 68dB @ 10V, 61cm | 6 ~ 21mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.692 Dia (42.98mm) |
|
SC628ANJRBUZZER PIEZO 42.98MM PNL MNT |
3,637 | 47.42 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2 PPS | 80dB @ 6V, 61cm | 4 ~ 30mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.692 Dia (42.98mm) |
|

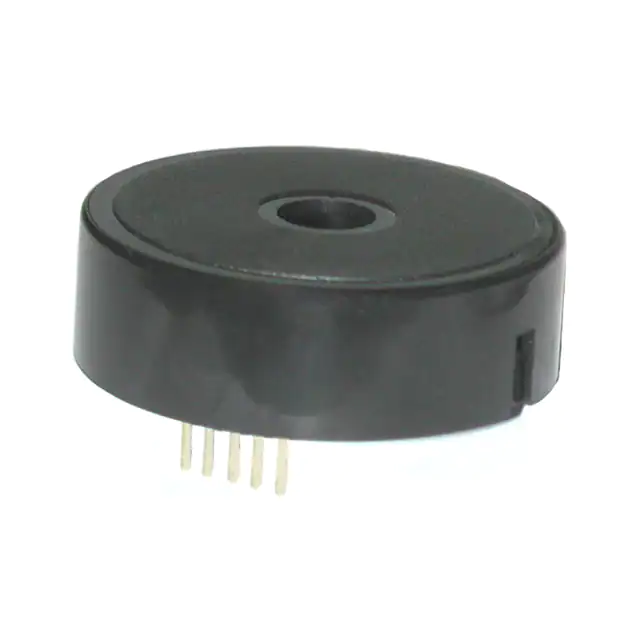

SBS12GLMCTPCBUZZER MAGNETIC 44.45MM TH |
3,503 | 48.47 |
RFQ |
Datasheet |
Bulk | SBS | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 150Hz ~ 4kHz | Magnetic | Pin Selectable | Variable | 95dB @ 9V, 10cm | 40 ~ 300mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750 Dia (44.45mm) |
|
SC628ADPRBUZZER PIEZO 42.85MM PNL MNT |
2,793 | 48.53 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 60dB @ 7.5V, 61cm | 6 ~ 20mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
|
SC110PRBUZZER PIEZO 42.85MM PNL MNT |
3,520 | 51.40 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 68dB @ 30V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
|
SC110NJRBUZZER PIEZO 42.85MM PNL MNT |
2,857 | 53.56 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2 PPS | 80dB @ 30V, 61cm | 6 ~ 24mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
|
SC110NPRBUZZER PIEZO 42.85MM PNL MNT |
2,561 | 53.56 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 80dB @ 30V, 61cm | 6 ~ 24mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
|
SC110DPRBUZZER PIEZO 42.85MM PNL MNT |
3,544 | 53.57 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 60dB @ 30V, 61cm | 6 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
|
SC110NPBUZZER PIEZO 42.85MM PNL MNT |
2,742 | 56.90 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 80dB @ 30V, 61cm | 6 ~ 24mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
|
SC110PBUZZER PIEZO 42.85MM PNL MNT |
2,917 | 57.08 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 68dB @ 30V, 61cm | 6 ~ 24mA | Top | -30°C ~ 65°C | cUL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
|
SC648SBUZZER PIEZO 42.98MM PNL MNT |
3,942 | 59.10 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | DC | - | 10 ~ 48V | 2.4kHz | Piezo | Siren | 3.5 ~ 6.5 PPS | 80dB @ 10V, 61cm | 25 ~ 35mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.692 Dia (42.98mm) |
