| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DriverCircuitry | InputType | Voltage-Rated | VoltageRange | Frequency | Technology | OperatingMode | Duration | SoundPressureLevel(SPL) | Current-Supply | PortLocation | OperatingTemperature | ApprovalAgency | Ratings | IngressProtection | MountingType | Termination | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZT028LDFP1RBUZZER PIEZO 30.74MM PNL MNT |
3,995 | 51.95 |
RFQ |
Datasheet |
Bulk | ZT | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 3.7kHz | Piezo | Pulse, Fast, Visual Indicator | 10 PPS | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
SC628DJRBUZZER PIEZO 42.98MM PNL MNT |
2,915 | 55.80 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 1.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2 PPS | 60dB @ 6V, 61cm | 5 ~ 23mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.692 Dia (42.98mm) |
|
ZT120LACTBBUZZER PIEZO 30.74MM PNL MNT |
2,818 | 56.04 |
RFQ |
Datasheet |
Bulk | ZT | Active | Indicator, Internally Driven | AC | - | 90 ~ 120V | 3.7kHz | Piezo | Single Tone, Visual Indicator | - | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
|
ZT028LACTR15BUZZER PIEZO 30.74MM PNL MNT |
3,519 | 64.79 |
RFQ |
Datasheet |
Bulk | ZT | Active | Indicator, Internally Driven | AC, DC | - | 20 ~ 28V | 3.7kHz | Piezo | Single Tone, Visual Indicator | 15 Sec On-Time | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
PB-1224PE-12QBUZZER MAGNETIC 12V 12MM TH |
3,033 | 0.79 |
RFQ |
Datasheet |
Bulk | PB | Active | Transducer, Externally Driven | DC | 12 V | 9 ~ 15V | 2.4kHz | Magnetic | Single Tone | - | 85dB @ 12V, 10cm | 60mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472 Dia (12.00mm) |
|
|
PB-1224PEQBUZZER MAGNETIC 1.5V 12MM TH |
2,730 | 0.79 |
RFQ |
Datasheet |
Bulk | PB | Active | Transducer, Externally Driven | Peak-Peak Signal | 1.5 V | 1.25 ~ 2.5V | 2.4kHz | Magnetic | Single Tone | - | 85dB @ 1.5V, 10cm | 32mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472 Dia (12.00mm) |
.JPG)
|
AST0827MW-03QBUZZER MAGNETIC 3V 8.5X8.5MM SMD |
3,585 | 0.88 |
RFQ |
Datasheet |
Strip | AST | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 2 ~ 4V | 2.731kHz | Magnetic | Single Tone | - | 85dB @ 3V, 10cm | 80mA | Side | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.335 L x 0.335 W (8.50mm x 8.50mm) |
.JPG)
|
AST0827MW-03AQBUZZER MAGNETIC 3V 8.5X8.5MM SMD |
3,234 | 0.88 |
RFQ |
Datasheet |
Strip | AST | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 2 ~ 4V | 2.731kHz | Magnetic | Single Tone | - | 85dB @ 3V, 10cm | 80mA | Side | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.335 L x 0.335 W (8.50mm x 8.50mm) |
|
|
AST0827MW-03BQBUZZER MAGNETIC 3V 8.5X8.5MM SMD |
3,416 | 0.88 |
RFQ |
Datasheet |
Strip | AST | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 2 ~ 4V | 2.7kHz | Magnetic | Single Tone | - | 80dB @ 3V, 10cm | 100mA | Top | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.335 L x 0.335 W (8.50mm x 8.50mm) |
.JPG)
|
AST0927MW-3.6QBUZZER MAGNETIC 3.6V 9MM SMD |
2,900 | 0.99 |
RFQ |
Datasheet |
Strip | AST | Active | Transducer, Externally Driven | Peak-Peak Signal | 3.6 V | 2 ~ 5V | 2.73kHz | Magnetic | Single Tone | - | 85dB @ 3.6V, 10cm | 90mA | Side | -30°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.354 Dia (9.00mm) |
.JPG)
|
AST0927MW-03QBUZZER MAGNETIC 3V 9MM SMD |
2,606 | 0.99 |
RFQ |
Datasheet |
Strip | AST | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 2 ~ 5V | 2.7kHz | Magnetic | Single Tone | - | 90dB @ 3V, 10cm | 90mA | Side | -30°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.354 Dia (9.00mm) |
|
|
PB-1220PE-12QBUZZER MAGNETIC 12V 12MM TH |
2,895 | 1.11 |
RFQ |
Datasheet |
Bulk | PB | Active | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 9 ~ 15V | 2.048kHz | Magnetic | Single Tone | - | 90dB @ 12V, 10cm | 65mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472 Dia (12.00mm) |
|

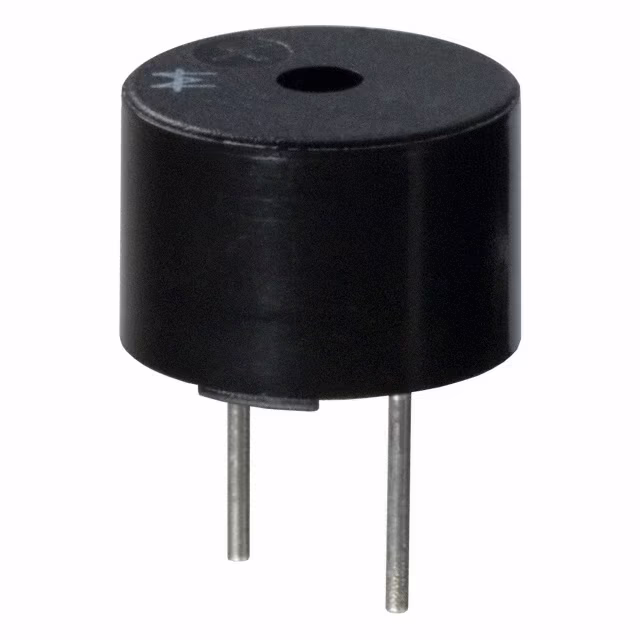

PB-1220P-05QBUZZER MAGNETIC 5V 12MM TH |
3,970 | 1.12 |
RFQ |
Datasheet |
Bulk | PB | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 4.5 ~ 5.5V | 2.048kHz | Magnetic | Single Tone | - | 85dB @ 5V, 10cm | 45mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.472 Dia (12.00mm) |
|
|
PB-1220PE-05QBUZZER MAGNETIC 5V 12MM TH |
3,170 | 1.18 |
RFQ |
Datasheet |
Bulk | PB | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 4.5 ~ 5.5V | 2.048kHz | Magnetic | Single Tone | - | 85dB @ 5V, 10cm | 60mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472 Dia (12.00mm) |
|
|
PB-1220PEQBUZZER MAGNETIC 1.5V 12MM TH |
3,033 | 1.18 |
RFQ |
Datasheet |
Bulk | PB | Active | Transducer, Externally Driven | Peak-Peak Signal | 1.5 V | 1.25 ~ 2.5V | 2.048kHz | Magnetic | Single Tone | - | 85dB @ 1.5V, 10cm | 32mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472 Dia (12.00mm) |
|
|
PB-1221PEQBUZZER MAGNETIC 1.5V 12MM TH |
3,659 | 1.18 |
RFQ |
Datasheet |
Bulk | PB | Active | Transducer, Externally Driven | Peak-Peak Signal | 1.5 V | 1.25 ~ 2.5V | 2.048kHz | Magnetic | Single Tone | - | 80dB @ 1.5V, 10cm | 15mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472 Dia (12.00mm) |
|
|
PB-12S20PQBUZZER MAGNETIC 1.5V 12MM TH |
3,193 | 1.18 |
RFQ |
Datasheet |
Bulk | PB | Active | Transducer, Externally Driven | Peak-Peak Signal | 1.5 V | 1.25 ~ 2.5V | 2.048kHz | Magnetic | Single Tone | - | 75dB @ 1.5V, 10cm | 32mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.472 Dia (12.00mm) |
|
|
PB-1220PF-01QBUZZER MAGNETIC 1.5V 12MM TH |
2,989 | 1.20 |
RFQ |
Datasheet |
Bulk | PB | Active | Transducer, Externally Driven | Peak-Peak Signal | 1.5 V | 1.25 ~ 2.5V | 2.048kHz | Magnetic | Single Tone | - | - | 40mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.472 Dia (12.00mm) |
|
|
PB-1220P-SGQBUZZER MAGNETIC 1.5V 12MM TH |
3,367 | 1.20 |
RFQ |
Datasheet |
Bulk | PB | Active | Transducer, Externally Driven | Peak-Peak Signal | 1.5 V | 1.25 ~ 2.5V | 2.048kHz | Magnetic | Single Tone | - | 85dB @ 1.5V, 10cm | 32mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.472 Dia (12.00mm) |
.JPG)
|
AST0727MW-3.6AQBUZZER MAGNETIC 3.6V 7.5X7.5 SMD |
2,249 | 1.30 |
RFQ |
Datasheet |
Strip | AST | Active | Transducer, Externally Driven | Peak-Peak Signal | 3.6 V | 2.5 ~ 4.5V | 2.7kHz | Magnetic | Single Tone | - | 85dB @ 3.6V, 10cm | 100mA | Side | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.295 L x 0.295 W (7.50mm x 7.50mm) |
