| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DriverCircuitry | InputType | Voltage-Rated | VoltageRange | Frequency | Technology | OperatingMode | Duration | SoundPressureLevel(SPL) | Current-Supply | PortLocation | OperatingTemperature | ApprovalAgency | Ratings | IngressProtection | MountingType | Termination | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZT028LAIC1RBUZZER PIEZO 24V 30.74MM PNL MNT |
3,337 | 113.03 |
RFQ |
Datasheet |
Bulk | ZT | Active | Indicator, Internally Driven | AC, DC | 24 V | 20 ~ 28V | 3.9kHz | Piezo | Single Tone, Visual Indicator | - | 85dB @ 20V, 61cm | 50mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
SC110MNBUZZER PIEZO 42.85MM PNL MNT |
2,884 | 138.60 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 30V, 61cm | 6 ~ 24mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
SCH628RBUZZER PIEZO 42.85MM PNL MNT |
2,820 | 196.64 |
RFQ |
Datasheet |
Bulk | SCH | Active | Indicator, Internally Driven | DC | - | 6 ~ 18V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 6V, 61cm | 3 ~ 18mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|

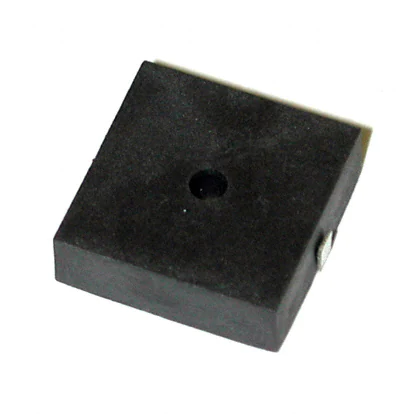

AST1750MATRQBUZZER PIEZO 5V 17X17MM SMD |
3,087 | 3.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | AST | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 20V | 4kHz | Piezo | Single Tone | - | 80dB @ 5V, 10cm | 2.5mA | Top | -30°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.669 L x 0.669 W (17.00mm x 17.00mm) |
|

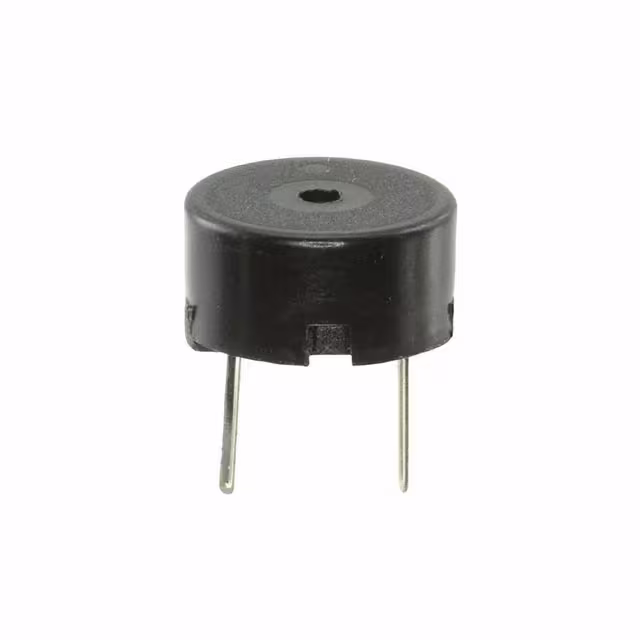

PT-2130FWQBUZZER PIEZO 12V 24MM FLANGE |
3,297 | 2.95 |
RFQ |
Datasheet |
Bulk | PT | Active | Transducer, Externally Driven | DC | 12 V | 1.5 ~ 30V | 3kHz | Piezo (with Feedback) | Single Tone | - | 80dB @ 12V, 30cm | 12mA | Top | -20°C ~ 90°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.945 Dia (24.00mm) |
|
PB-12N23P-01QBUZZER MAGNETIC 1.5V 12MM TH |
3,221 | 5.26 |
RFQ |
Datasheet |
Tube | PB | Active | Indicator, Internally Driven | DC | 1.5 V | 1.25 ~ 2.5V | 2.3kHz | Magnetic | Single Tone | - | 80dB @ 1.5V, 10cm | 25mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472 Dia (12.00mm) |
|
PK-12N40PEDYQBUZZER PIEZO 12V 13.8MM TH |
2,149 | 7.47 |
RFQ |
Datasheet |
Bulk | PK | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 15V | 4.1kHz | Piezo | Single Tone, Visual Indicator | - | 83dB @ 12V, 10cm | 12mA | Top | -20°C ~ 100°C | - | - | - | Through Hole | PC Pins | 0.543 Dia (13.80mm) |
|
MSE14LSU2BUZZER PIEZO 23X23MM TH |
3,359 | 23.77 |
RFQ |
Datasheet |
Bulk | - | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 3.9kHz | Piezo | Speed Up, Fast | - | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906 L x 0.906 W (23.00mm x 23.00mm) |
|
MSE14LDP2BUZZER PIEZO 23X23MM TH |
3,075 | 23.77 |
RFQ |
Datasheet |
Bulk | - | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 3.9kHz | Piezo | Double Pulse, Fast | 2 PPS | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906 L x 0.906 W (23.00mm x 23.00mm) |
|
MSE14LDP3BUZZER PIEZO 23X23MM TH |
3,626 | 23.77 |
RFQ |
Datasheet |
Bulk | - | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 3.9kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906 L x 0.906 W (23.00mm x 23.00mm) |
|

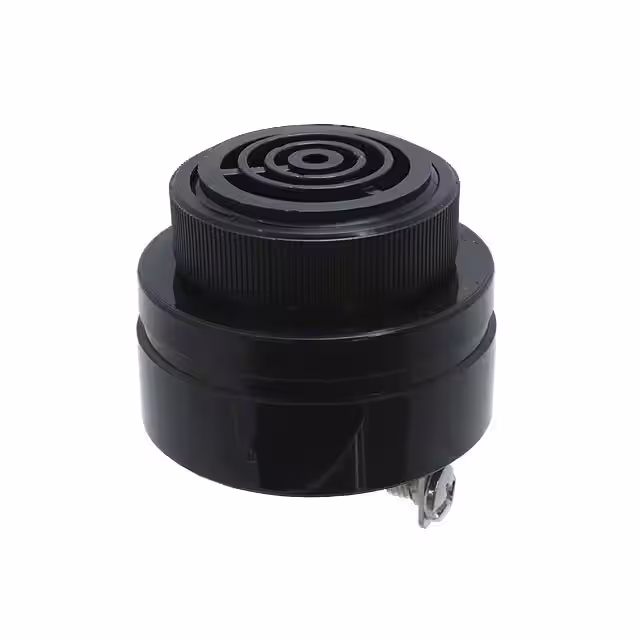

SC110QBUZZER PIEZO 42.85MM PNL MNT |
2,480 | 28.80 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | AC | - | 30 ~ 120V | 2.9kHz | Piezo | Chirp | - | 70dB @ 30V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | cUL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
MSS5MMPBUZZER MAGNETIC 5V 23X23MM TH |
2,287 | 30.17 |
RFQ |
Datasheet |
Bulk | MSS | Active | Indicator, Internally Driven | DC | 5 V | 4 ~ 6V | 2.075kHz | Magnetic | Pin Selectable | Variable | 85dB @ 5V, 10cm | 46 ~ 150mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906 L x 0.906 W (23.00mm x 23.00mm) |
|
SC616NJ-BTRBUZZER PIEZO 42.85MM PNL MNT |
3,781 | 31.14 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 3.5 PPS | 80dB @ 6V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
SC616NJRBUZZER PIEZO 42.85MM PNL MNT |
3,506 | 31.14 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 3.5 PPS | 80dB @ 6V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
|
SC628NDRBUZZER PIEZO 42.98MM PNL MNT |
3,415 | 31.35 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2kHz | Piezo | Single Tone | - | 83dB @ 6V, 61cm | 3 ~ 20mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.692 Dia (42.98mm) |
|
SC628NPRBUZZER PIEZO 42.98MM PNL MNT |
3,757 | 36.80 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 80dB @ 6V, 61cm | 4 ~ 16mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.692 Dia (42.98mm) |
|
ZA028LDSU2BUZZER PIEZO 30.74MM PNL MNT |
3,925 | 37.44 |
RFQ |
Datasheet |
Bulk | ZA | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Speed Up, Fast | - | 85dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|

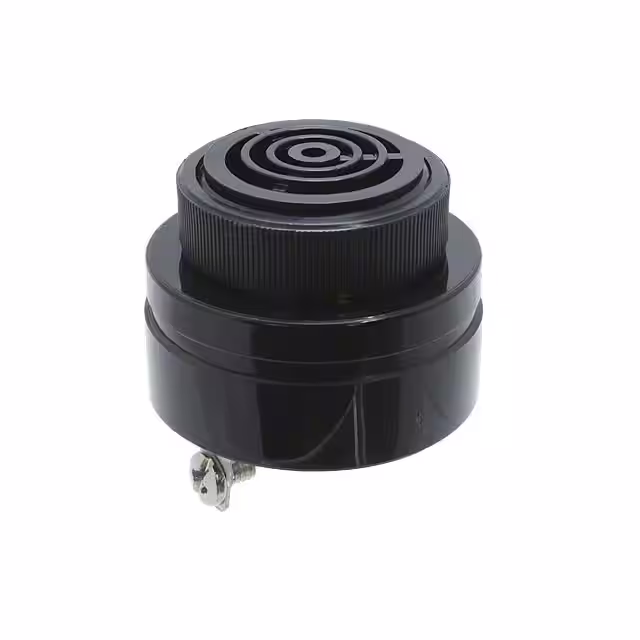

SC110ERBUZZER PIEZO 42.85MM PNL MNT |
2,354 | 38.11 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 1.9kHz | Piezo | Single Tone | - | 50dB @ 30V, 61cm | 4 ~ 10mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
|
SC616CPRBUZZER PIEZO 42.85MM PNL MNT |
2,084 | 39.71 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Chime | - | 68dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
|
SC110DRBUZZER PIEZO 42.85MM PNL MNT |
2,746 | 42.82 |
RFQ |
Datasheet |
Bulk | SC | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2kHz | Piezo | Single Tone | - | 60dB @ 30V, 61cm | 6 ~ 21mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
